StarTech.com VS415RVGA Manuel utilisateur

VGA Video Switcher

VS415RVGA

VS815RVGA

Instruction Manual

*VS815RVGA shown, actual

product may vary from photo

4 Port VGA Video Selector Switch with IR Remote Control

8 Port VGA Video Selector Switch with IR Remote Control

TTaabblleeooffCCoonntteennttss

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Using the Video Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Instruction Manual

IInnttrroodduuccttiioonn

Thank you for purchasing a StarTech.com VGA Video Switcher. This device allows you to

connect multiple VGA signal sources to a single display, eliminating the need to manually

swap out connections to the display. With the added convenience of IR remote control,

video sources can be switched at the touch of a button.

FFeeaattuurreess

• Can be used to connect to displays up to 65M away from video source

• Switch between video sources using front panel push-button control, or included

Remote Control

• Supports a maximum resolution of 2048 x 1536 with 450 Mhz bandwidth

• Solid construction - metal enclosure provides durability in any environment

BBeeffoorreeyyoouuBBeeggiinn

Contents

• VGA Switcher (1)

• Remote Control (1)

• Instruction Manual (1)

• Power adapter (1)

System Requirements

• VGA signal sources (1-4: VS415RVGA), (1-8: VS815RVGA)

• A display with an available VGA input/connection

Instruction Manual

Installation

1. Situate the Video Switcher in a location that is near both the video display, and an

available power outlet.

2. Insert the power adapter into the nearby power outlet.

3. Insert the remaining end of the power adapter cable into the port marked DC 5V on

the rear panel of the Video Switcher.

4. Connect the cable provided by the video display to the blue input port on the rear

panel of the Video Switcher.

5. Connect one end of a standard VGA cable to the input port marked 1, on the rear

panel of the Video Switcher, ensuring that all attached screws/fasteners are secure.

6. Insert the remaining end of the VGA cable used in step 5 into the VGA output port

located on the first VGA source computer, ensuring that all attached screws/fasteners

are secure.

7. Repeat steps 5 & 6 for each video source that will be used, using the input ports

available on the rear panel of the Video Switcher.

8. Ensure that each video source is powered on. Turn on the power to the Video

Switcher, by pressing the orange/red power button located on the front panel.

Instruction Manual

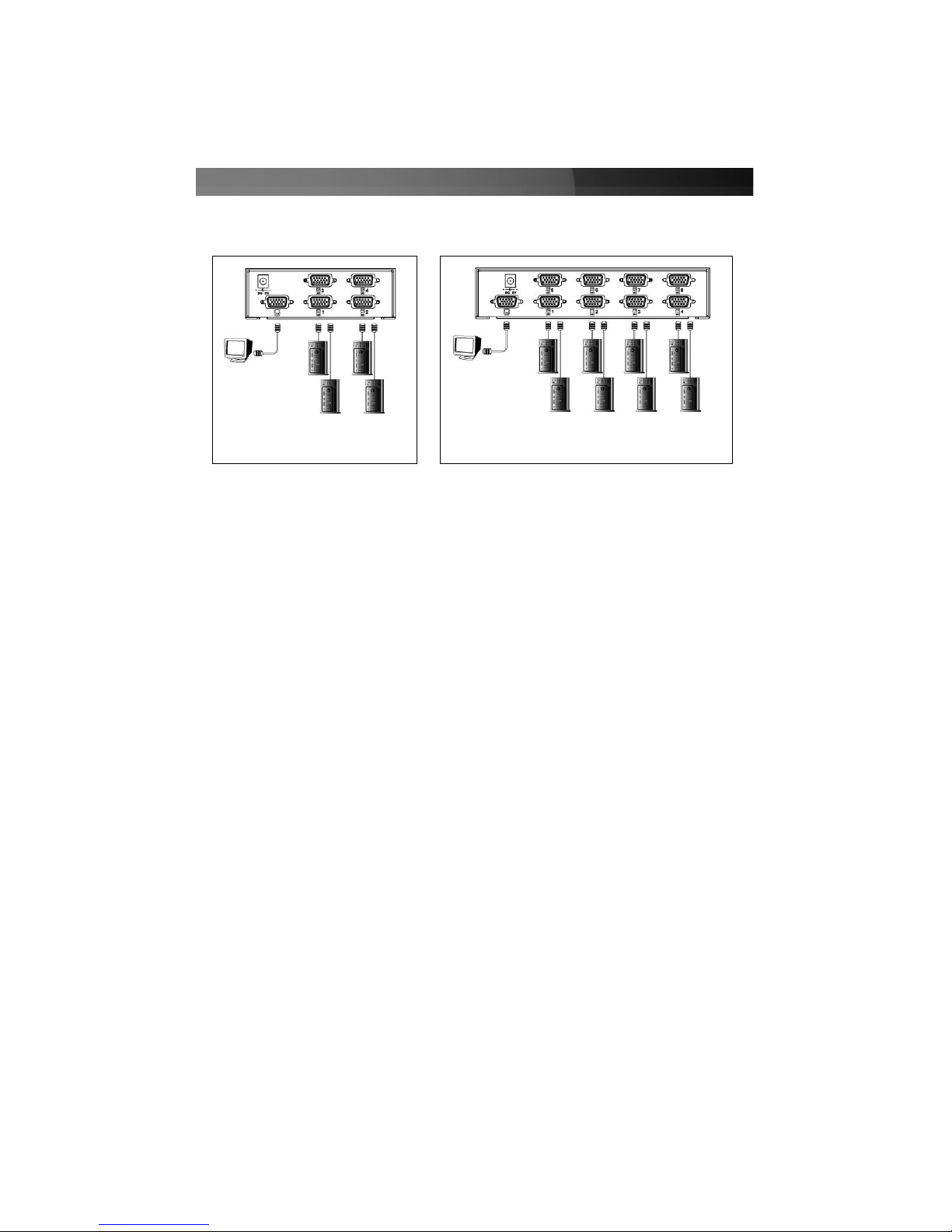

1 2 3 4

5 6 7 8

Display

1 2

Display

VS415RVGA VS415RVGA

UUssiinnggtthheeVViiddeeooSSwwiittcchh

Once all necessary connections have been made, and power has been applied to the

video signal sources, the display and the Video Switch, you will be able to switch

between sources so that the desired signal can be displayed. To simplify determining the

origin of each video signal, you may want to label each source with the number

corresponding with the port into which it has been installed on the Video Switcher.

By default, the Video Switch will revert back to input 1, following power up. To change

the video signal being used, simply press the front panel button that corresponds with

each signal designation.

SSppeecciiffiiccaattiioonnss

Instruction Manual

Maximum connection distance 65M (213 feet)

Maximum Bandwidth 450 Mhz

Operation Temperature 0 – 40 degrees C

Storage Temperature -50 – 70 degrees C

Connectors 1 x HD-15 Female Output Connector

8 x HD-15 Male InputConnector

Maximum Resolution 2048x1536

TTeecchhnniiccaallSSuuppppoorrtt

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

WWaarrrraannttyyIInnffoorrmmaattiioonn

This product is backed by a one-year warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, following

the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement

may not apply to you.

Instruction Manual

AAbboouuttSSttaarrTTeecchh..ccoomm

StarTech.com is “The Professionals’ Source for Hard-to-Find Computer

Parts”. Since 1985, we have been providing IT professionals with the

quality products they need to complete their solutions. We offer an

unmatched selection of computer parts, cables, server management

solutions and A/V products and serve a worldwide market through our

locations in the United States, Canada, the United Kingdom and Taiwan.

Visit www.startech.com for complete information about all our products

and to access exclusive interactive tools such as the Parts Finder and the

KVM Reference Guide. StarTech.com makes it easy to complete almost

any IT solution. Find out for yourself why our products lead the industry in

performance, support, and value.

Revised: 12 September 2006 (Rev. A)
