StarTech.com SV1115IPEXT Manuel utilisateur

IP KVM Switch

1-Port USB PS/2 Server Remote

Control IP KVM

with Virtual Media and Serial

SV1115IPEXT

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Required Cables and Hardware ..................................................2

Installation....................................................................... 3

Connecting to the Host Computer and Network..........................3

Connecting a Local Keyboard, Mouse, and Monitor....................6

Disabling Mouse Acceleration on the Host Computer .................7

Conﬁguring the SV1115IPEXT ....................................... 8

Web Conﬁguration Using the On-Screen Display........................8

Web Conﬁguration Using DHCP .................................................10

Web Conﬁguration Using Static IP ..............................................11

Terminal Conﬁguration Using a Serial Cable...............................12

Using the Web Interface.................................................. 14

The Login Screen ........................................................................14

Web Interface Introduction...........................................................15

Main Menu selections..................................................................16

Using the Terminal Interface via Serial Port.................................27

Accessing the VNC Interface.......................................... 28

Web Interface ..............................................................................28

Native VNC Client........................................................................29

SSH Tunnel (with Native VNC client) ...........................................29

Using the VNC Menu ....................................................... 30

Bribar Feature..............................................................................31

Main Menu...................................................................................33

VirtKeys Menu .............................................................................35

Video Tuning Menu......................................................................36

Disk Control Menu.......................................................................40

Using the IPMI Feature ................................................... 40

Conﬁguring IPMI on the SV1115IPEXT ......................................42

Accessing the Status Screen.......................................................43

Accessing IPMI Controls .............................................................44

Using the Modem Feature .............................................. 45

Connecting a Modem ..................................................................46

Modem conﬁguration...................................................................47

Conﬁguring the Remote Connection ...........................................48

Accessing the Web Interface .......................................................49

Troubleshooting Guide.................................................................51

Serial Remote Control operation ................................... 52

Advanced Conﬁguration Using the Integrated SSH Shell............54

About Security Certiﬁcate Warnings............................................56

Troubleshooting .............................................................. 57

Supported Protocols....................................................... 60

Speciﬁcations.................................................................. 61

Technical Support........................................................... 62

Warranty Information...................................................... 62

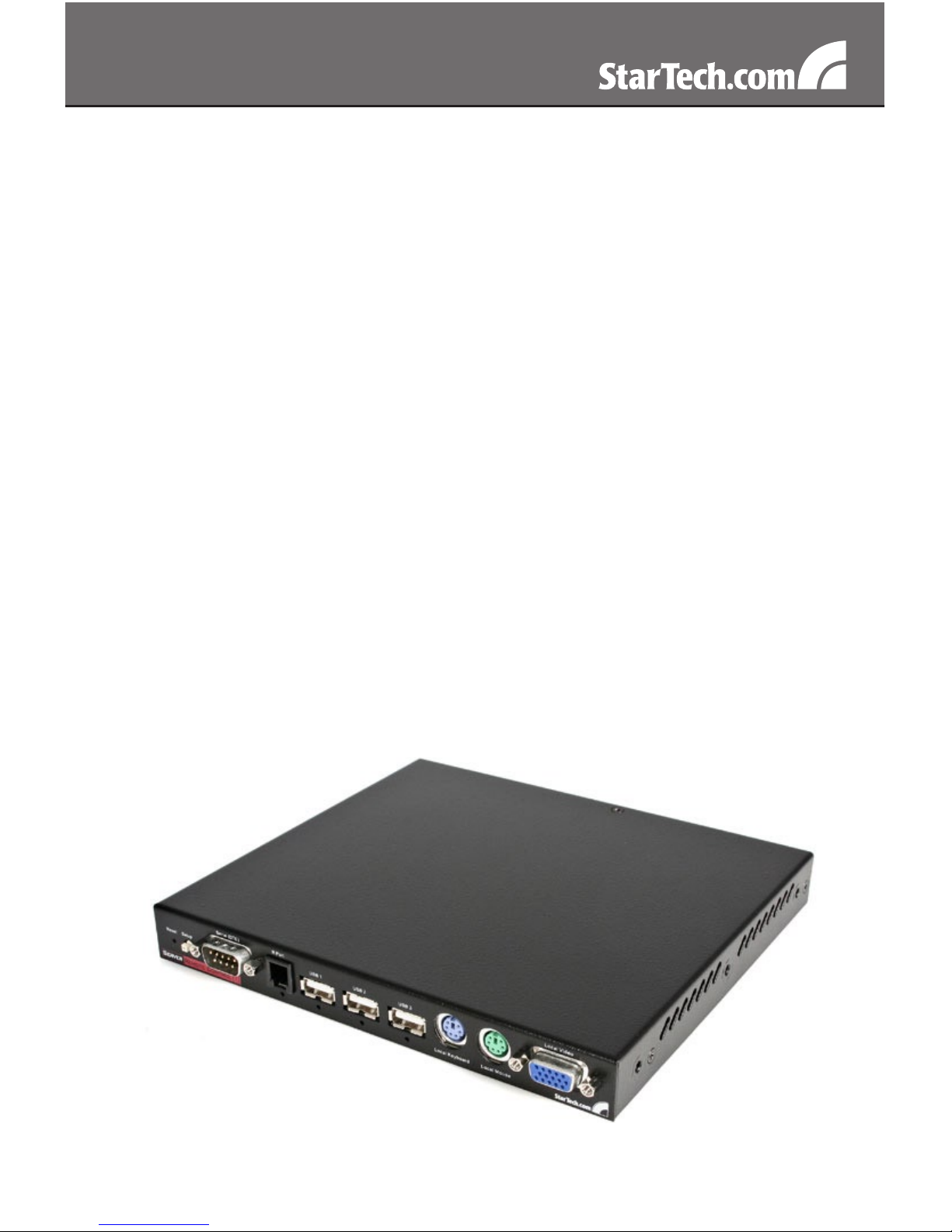

Introduction

Packaging Contents

1 x SV1115IPEXT unit•

1 x Power Adapter•

1 x Power Cord•

1 x Instruction Manual•

1 x PS/2 KVM cable•

System Requirements

PS/2 or USB enabled computer system or KVM switch•

Note: KVM switch must have a USB hub port

Standard 104-key PS/2 wired keyboard•

Standard 3-button PS/2 wired mouse•

VGA enabled monitor/display•

10/100Mbps compatible TCP/IP network•

Required Cables and Hardware

The included integrated KVM cable will allow you to connect the

SV1115IPEXT to most IBM compatible computers. Depending on your

requirements and how you wish to handle the initial conﬁguration of the

unit, you may wish to use the following additional cables and hardware.

All applications

1 x Straight-through Ethernet patch cable (to connect the unit to your•

LAN)

StarTech.com part number: M45PATCHxxxx

To use the optional dedicated WAN port

An additional straight-through Ethernet patch cable to connect the•

unit directly to a dedicated WAN/Internet connection

StarTech.com part number: M45PATCHxxxx

Conﬁguration via serial port

1 x Straight-through RS-232 serial cable with 9-pin DB9 male/female•

connectors

StarTech.com part number: MXT100

–or—

1 x Null modem RS-232 serial cable with 9-pin DB-9 female/female•

connectors

StarTech.com part number: SCNM9FF

To use USB connections on host and/or virtual disk emulation

1 x USB Type A to B cable•

StarTech.com part number: USBFAB_3

To install the SV1115IPEXT into a rack or cabinet

1 x Rack kit (supports up to two units)•

StarTech.com part number: 1110EXTRACK

Installation

Connecting to the Host Computer and Network

Follow these instructions if the host computer uses a PS/2

keyboard and mouse:

Power down the computer to which the SV1115IPEXT will be1.

connected (host computer). If purchased, install the unit in your

rack or cabinet following the instructions that came with the

1110EXTRACK (optional, not included).

If present, disconnect the existing monitor and PS/2 keyboard/2.

mouse from the host computer.

Using the provided integrated KVM cable, locate the end with3.

Remote User

Local keyboard/mouse/monitor

(native PS/2 or optional USB)

VGA port

(Host)

PS/2 Keyboard

(Host)

PS/2 Mouse

(Host)

USB port

(Host)

RJ45 port

(WAN)

RJ45 port

(LAN)

Serial port

(DCE)

Power

connector 1

Power

connector 2

the male VGA (monitor) connector and connect it to the VGA-out

connector on the back of the host computer.

Connect the PS/2 keyboard and mouse connectors on the same4.

end of the integrated KVM cable as the male VGA connection you

completed in the previous step.

Insert the connectors on the opposite end of the integrated KVM5.

cable (female VGA monitor connector, keyboard, mouse) to the

Video (IN), Host Keyboard, Host Mouse ports on the rear panel of

the SV1115IPEXT as appropriate.

Using a Category 5 Ethernet patch cable, connect the LAN6.

connector on the rear panel of the SV1115IPEXT to a network data

jack (usually on a hub, switch, router, or pre-wired wall jack).

Optional: If needed, connect the WAN connector on the rear panel7.

of the SV1115IPEXT to a network data jack (usually a hub, switch,

router, or pre-wired wall jack). For more information on the WAN

port, please refer to the section Conﬁguring SV1115IPEXT for

important information.

Important: If you want to continue to use the host computer locally,8.

skip step 10 and go directly to “Connecting a Local Keyboard,

Mouse, and Monitor” after completing step 9. Otherwise, complete

steps 9 and 10 now and continue to Conﬁguring SV1115IPEXT.

Connect the power cord (provided) to an appropriate electrical9.

outlet, plug the opposite end of the power cord into the AC/DC

adapter, and insert the power connector into either the DC-in or

DC-in-2 port on the rear panel of the unit. The LED underneath the

power connectors will be solid green when the unit is powered.

IMPORTANT: If you wish to add power redundancy to the unit, simply

connect the optional second AC/DC adapter to the unit following the

instructions in step 9 above. This provides a load-balancing feature

between the two power sources and allows the unit to function if one

adapter fails. *Please note: The additional power supply used with

SV1110IPEXT can NOT be used with SV1115IPEXT.

Power on the host computer.10.

Follow these instructions if the host computer uses a USB

keyboard and mouse:

IMPORTANT: Not all computers fully support USB mice and keyboards

and recognize them on startup. It is strongly recommended that you

test the USB devices you will use with the host computer before

conﬁguring the SV1115IPEXT. If the computer does not work properly

with USB devices, you can attempt to update the computer’s BIOS to

the most recent version to see if it adds USB input device functionality.

Consult your computer manufacturer for details.

Power down the computer to which the SV1115IPEXT will be1.

connected (host computer). If purchased, install the unit in your

rack or cabinet following the instructions that came with the

1110EXTRACK (optional, not included).

If present, disconnect the existing monitor and USB keyboard/mouse2.

from the host computer.

Using the provided integrated KVM cable, locate the end with3.

the male VGA (monitor) connector and connect it to the VGA-out

connector on the back of the host computer.

Insert the female VGA connector on the opposite end of the4.

integrated KVM cable to the Video (IN) port on the rear panel of the

SV1115IPEXT.

Connect a USB Type A to B cable to the USB port on the rear panel5.

of the KVM.

Connect the opposite end of the USB Type A to B cable to an6.

available USB port on the managed computer.

Using a Category 5 Ethernet patch cable, connect the LAN7.

connector on the rear panel of the SV1115IPEXT to a network data

jack (usually on a hub, switch, router, or pre-wired wall jack).

Optional: If needed, connect the WAN connector on the rear panel8.

of the SV1115IPEXT to a network data jack (usually a hub, switch,

router, or pre-wired wall jack).

Important: If you want to continue to use the host computer locally,9.

skip step 11 and go directly to Connecting a Local Keyboard,

Mouse, and Monitor (next page) after completing step 10. Otherwise,

complete step 11 now and continue to the section entitled

Conﬁguring SV1115IPEXT.

Connect the power cord (provided) to an appropriate electrical10.

outlet, plug the opposite end of the power cord into the AC/DC

adapter, and plug the power connector into either the DC-in or DC-

in-2 ports on the rear panel of the unit. The LED underneath the

power connectors will be solid green when the unit is powered.

Power on the host computer.11.

NOTE: If you are using cables other than those provided in the

SV1115IPEXT package or branded by StarTech.com, ensure that

the cables are of high quality and use the minimum possible distance

necessary. Low quality or excessively long (particularly video) cables

between the host computer and the SV1115IPEXT could degrade

performance.

NOTE: In the event that you do not have enough integrated USB ports

available on the managed computer to directly connect the keyboard,

mouse, and SV1115IPEXT, you may use a high-quality USB hub on

one of the computer’s USB ports to make all of the connections.

IMPORTANT: The SV1115IPEXT is convection-cooled. As such,

please ensure the vents on both sides are unobstructed.

Connecting a Local Keyboard, Mouse, and Monitor

SV1115IPEXT has the capability to connect a local keyboard, mouse,

and monitor to the host computer for maintenance and monitoring,

allowing users to physically use the host computer as though

SV1115IPEXT were transparent. If needed, the unit can be run through

a typical KVM switch like any other computer. Using a KVM cable, you

can connect the Server Remote Control’s host computer inputs to the

Serial port

(DTE)

R-Port

USB hub ports

PS/2 keyboard

(Local)

PS/2 mouse

(Local)

VGA port

(Local)

RESET button

Autres manuels pour SV1115IPEXT

Table des matières

Autres manuels StarTech.com Changer

StarTech.com

StarTech.com DuraView RACKCONS1708 Manuel utilisateur

StarTech.com

StarTech.com P2DD46A2-KVM-SWITCH Manuel utilisateur

StarTech.com

StarTech.com STARVIEW SV431DVIUAHR Manuel utilisateur

StarTech.com

StarTech.com SV441HDIE Manuel utilisateur

StarTech.com

StarTech.com 5G4AINDRM-USB-A-HUB Manuel utilisateur

StarTech.com

StarTech.com ST4200MINI Manuel utilisateur

StarTech.com

StarTech.com SV231DPDDUA2 Manuel utilisateur

StarTech.com

StarTech.com StarView SV221DVIDD Manuel

StarTech.com

StarTech.com HB30C5A2CSC Manuel utilisateur

StarTech.com

StarTech.com SV231HU34K6 Manuel utilisateur

StarTech.com

StarTech.com SV231QDVIUA Manuel utilisateur

StarTech.com

StarTech.com SV431DPDDUA2 Manuel utilisateur

StarTech.com

StarTech.com 35BAYUSB3S4 Manuel du système

StarTech.com

StarTech.com SV231DPDDUA Manuel utilisateur

StarTech.com

StarTech.com VS122HDMIU Manuel utilisateur

StarTech.com

StarTech.com ICUSB23208FD Manuel utilisateur

StarTech.com

StarTech.com 5G4AIBS-USB-HUB-EU Manuel utilisateur

StarTech.com

StarTech.com SV211 Manuel utilisateur

StarTech.com

StarTech.com SV231DPU34K Manuel utilisateur

StarTech.com

StarTech.com RACKCONS17HD Manuel utilisateur

StarTech.com

StarTech.com STARVIEW SV831SUN Manuel utilisateur

StarTech.com

StarTech.com SV5CONS Manuel utilisateur

StarTech.com

StarTech.com SV211KUSB Manuel utilisateur

StarTech.com

StarTech.com ST7202USB Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
