StarTech.com SV831DUSBAU Manuel utilisateur

Manual Revision: 01/28/2013

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SV831DUSBAU

8 Port Rack Mount VGA USB KVM

Switch with Audio

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ...........................................................................................1

Package Contents ..................................................................................................................................... 1

Installation ..............................................................................................2

Console Connection ................................................................................................................................. 2

Connecting Computers to the KVM Switch ..................................................................................... 3

Cascaded Congurations ....................................................................................................................... 4

Operation ................................................................................................5

Push Button controls ............................................................................................................................... 5

K/M Reset ..................................................................................................................................................... 5

Auto Scan ..................................................................................................................................................... 5

OSD (On Screen Display) Operation ....................................................6

Auto Scan ..................................................................................................................................................... 10

Manual Scan ................................................................................................................................................ 10

Hot-key commands .................................................................................................................................. 11

Sun/Mac Keyboard Mapping ................................................................................................................ 13

Specications ..........................................................................................15

Technical Support ..................................................................................16

Warranty Information ............................................................................16

Instruction Manual

Introduction

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables

Included) allows you to control up to 8 USB computers using a single keyboard, mouse

and monitor, and features Audio and Microphone ports to switch between audio

signals as well as PC ports.

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses

rear cable connections to maximize space eciency. Multiple KVM units can also be

connected (cascaded) together for control of up to 64 computers, ensuring a scalable

KVM solution that can be expanded as necessary.

To ensure seamless operation, the switch features automatic and manual scan

modes, supports both hot-key and front panel push-button switching, and features a

convenient OSD (on-screen display) for added conguration options.

Backed by a StarTech.com 3-year warranty and free lifetime technical support

Features

• Auto-scan function automatically selects computers sequentially

• Cascade conguration expands system capability

• Hotkey functions allow easy computer access/switching

• Identies and selects computers by name assignment

• OSD security option protected against unauthorized computer use

• Unique cables oer convenient, space-saving connections

Package Contents

• 1 x 8 Port KVM Switch

• 8 x 6ft. green (speaker) 3.5mm mini-jack audio cable

• 8 x 6ft. red/pink (microphone) 3.5mm mini-jack audio cable

• 2 x Mounting Bracket

• 3 x Power Cord (NA/UK/EU)

• 1 x User Manual

• 1 x Foot pad (set)

Instruction Manual

Installation

WARNING: Prior to installation, please ensure that all computers and KVM switch(es)

are powered down.

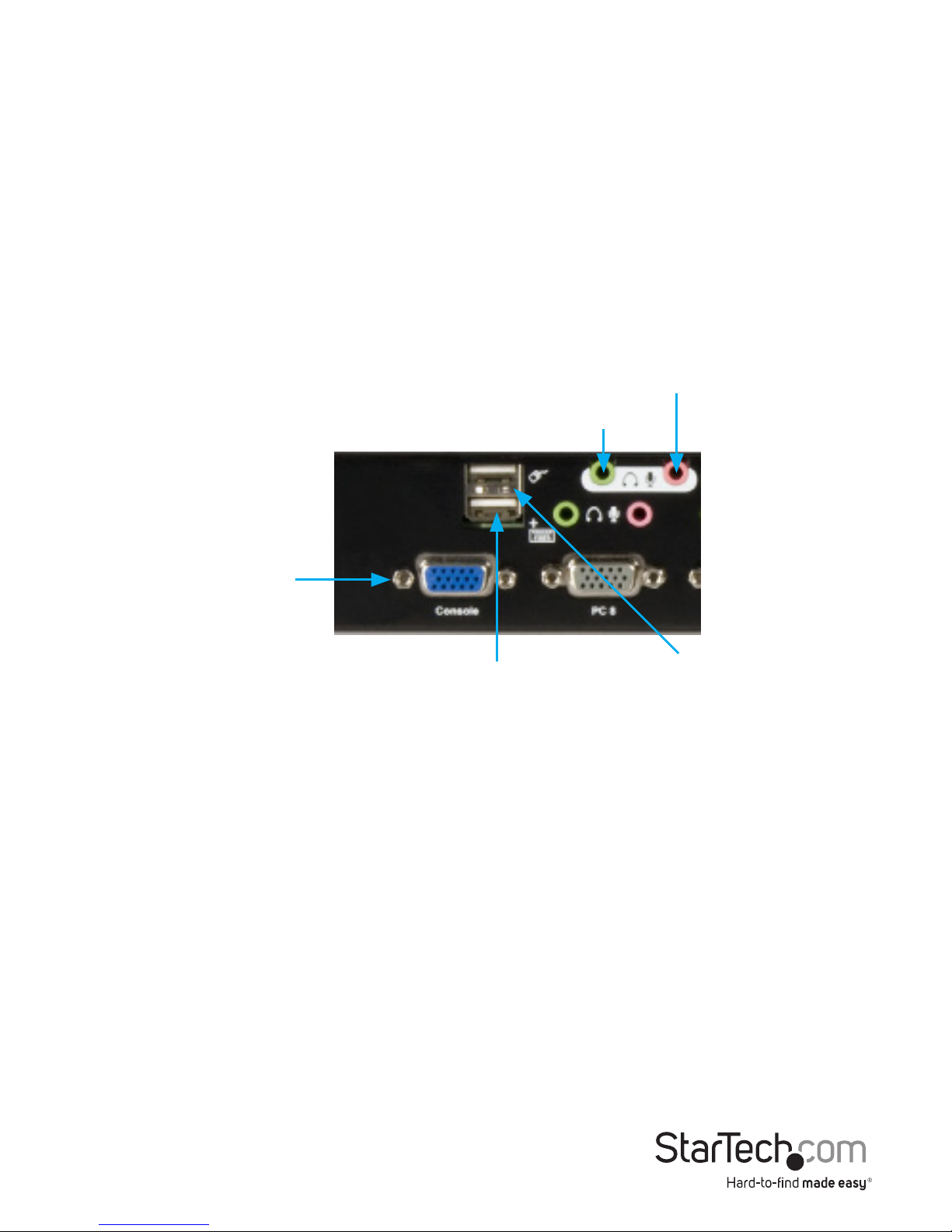

Console Connection

The SV831DUSBAU is designed for use with USB console connections only. A USB

compatible keyboard and mouse and VGA monitor must be used for the local console.

A USB keyboard/mouse combo device that uses a single USB connector may also

be used, but must be connected to the USB Keyboard port only. If using audio,

separately connect the 3.5mm mini-jack cables for the speaker and microphone to the

corresponding Console connectors indicated.

Speakers

Microphone

VGA

Monitor

USB

keyboard

USB

mouse

Instruction Manual

Connecting Computers to the KVM Switch

To connect a computer to the KVM switch, use the appropriate StarTech.com KVM

cable to connect from one of the PC ports located on the rear panel of the KVM switch

to the keyboard/mouse and VGA video ports on the computer.

If using audio, separately connect 3.5mm mini-jack cables for the speaker and

microphone connections from the same PC port to the sound card on the computer.

Repeat these steps for each computer you wish to connect to the KVM switch.

KVM

cable

Instruction Manual

Cascaded Congurations

NOTE: The Master KVM switch must have equal or more PC ports than that of the Slave

KVM switch. For example, if an 8-port switch is the Master KVM switch, an 8-port or

4-port switch can be used as a Slave KVM switch, but a 16-port switch cannot be used.

The ports labelled PC 1 - PC 8 can be connected to either a computer or a Slave

KVM switch’s CONSOLE port, as shown below. Use only StarTech.com KVM cables to

connect the Master KVM switch’s PC ports and Slave KVM switch’s CONSOLE port, as

shown below:

KVM cables

The maximum number of computers controlled by a master/slave conguration with all

8-port units is 64, including 8 Slave KVM switches and each slave unit connecting to 8

computers as depicted below:

DC9-12V, 500mA

Master

Slave

Computers

Instruction Manual

NOTE: A device (computer or KVM switch) on any PC port can be changed at any time

after initial power up. If you change any one of the PC1 thru PC8 connections from

a computer system to a Slave KVM switch or vice-versa, or simply change/replace

the device, the On-Screen Display (OSD) will update the next time the OSD menu is

activated.

After the connection has been completed, please reactivate the OSD menu to verify

that the Master KVM switch has recognized the Slave KVM switches. A triangle mark is

placed to the right of the Channel Name to indicate that the port connected is a KVM

switch and not a computer. A number to the left of the triangle mark indicates the

number of ports on the Slave KVM switch.

Operation

You may select a computer by pressing the front panel push button directly, by

issuing hot-key commands or by activating the OSD window. The front panel indicator

changes to reect the computer port selected (red) and whether the port is connected

to a powered computer (green). The indicator ashes red when it is in either Auto Scan

or Manual Scan mode.

Push Button controls

To select control of an attached computer, press the front panel button that

corresponds with the assigned computer number.

K/M Reset

K/M Reset resolves the majority of problems developed by keyboard and/or

mouse device replacement or conguration changes. Press down buttons 1 and 2

simultaneously for 2 seconds to recongure the whole system without having to turn

o the KVM switch or any attached computers.

Auto Scan

This KVM switch provides an easy to use feature to start Auto Scanning. To use this

function, simultaneously press buttons 7 and 8 and hold for two seconds.

Instruction Manual

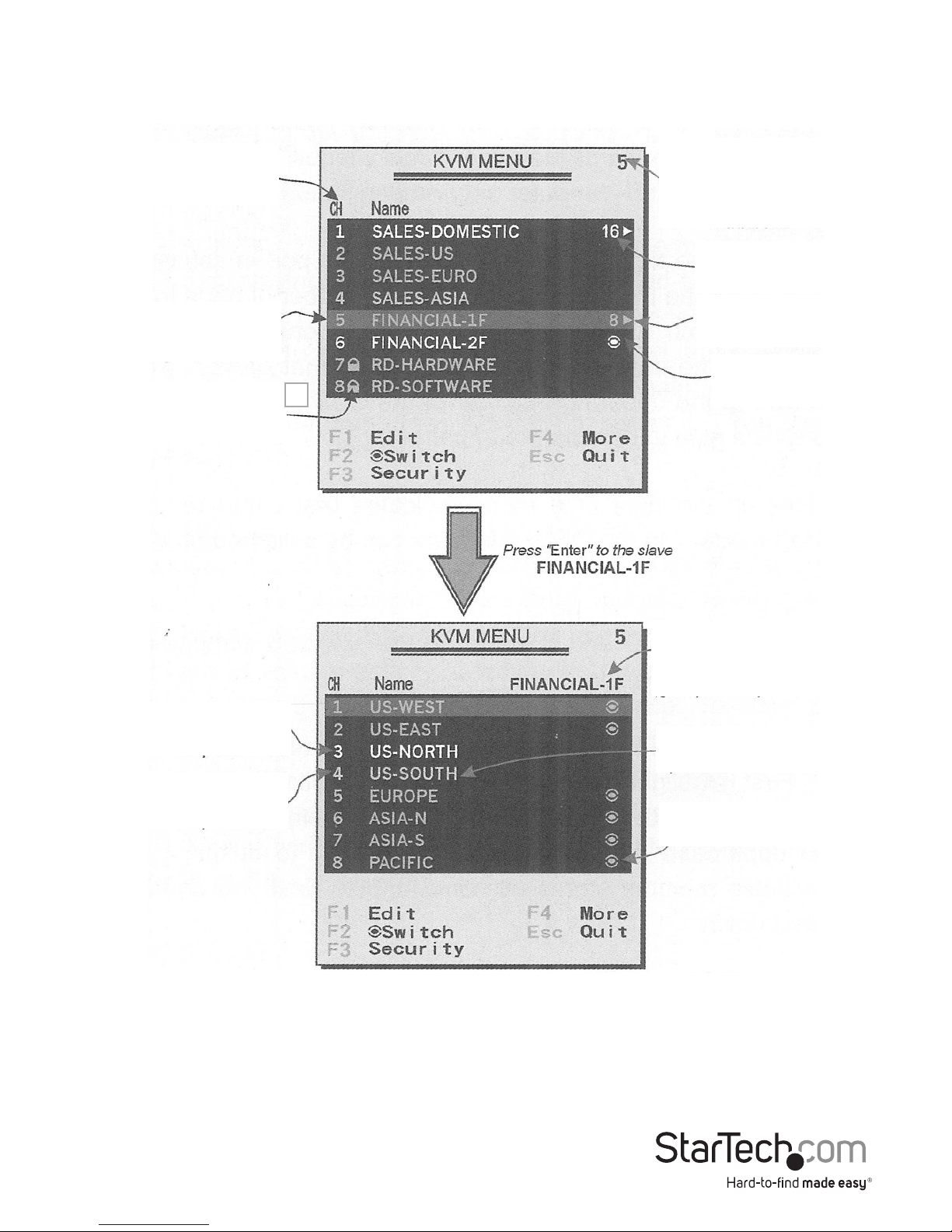

OSD (On Screen Display) Operation

By hitting the left <CTRL> key twice within two seconds, you may see the ’Hotkey

Menu’ if it is enabled (an OSD option). Or, by hitting the left <CTRL> key three

times within two seconds, you will see a ’KVM MENU’ screen displaying a list of the

computers with corresponding channel addresses, names and status.

Port Channel

Address

Highlighted by

arrow keys

Security

enabled port

Currently

selected channel

address

To a 16-port

Slave

To an 8-port

Slave

Eye mark

enabled

Master port

name (group

name)

User-input port

names

Eye mark enabled

White indicates

power o

Green indicates

power on

Instruction Manual

The channel address (port number) of the currently selected computer is displayed in

red, same as the front indicator, to the right of the OSD title ’KVM MENU’.

The color of a device name is green if it has power and is ready for selection (its

corresponding front panel indicator is green), or the color is white as it has no power.

OSD menu updates the color when it is activated.

Use the <UP> and <DOWN> arrow keys to highlight a computer and the <ENTER>

key to select it. Or, you may press <ESCAPE> to exit the OSD and remove the OSD

menu from the display; the status window returns to the display and indicates the

currently selected computer or operating status.

A triangle mark ( ►) to the right of a name indicates the port is cascaded to a slave

switch; the number at the left of the triangle mark indicates the number of ports the

slave has, (i.e. 8 for SV831DUSBAU). The <ENTER> key brings you one level down and

another screen pops up listing the names of the computers on that slave. The name of

the slave will be shown at the upper right corner of the OSD menu. It is useful to group

computers and still be able to see the group name.

An eye mark (N) to the right of a name indicates the computer is selected to be

monitored in Scan mode. In the OSD, this mark can be switched on or o by function

key <F2>.

Press the <ESCAPE> key to exit the OSD and to return to the selected computer, the

computer name is also shown on the screen.

Function key <F1>: To edit the name entry of a computer or a slave, use

the <UP> and <DOWN> arrow keys to highlight a

channel, then press <F1> followed by name entry.

Valid characters are ‘A’~’Z’, ‘0’~’9’ and the dash

character. Lowercase letters are converted to

uppercase ones.

Press the <BACKSPACE> key to delete a letter one

at a time. Non-volatile memory stores all name en

tries until you change them, even if the unit is

powered down.

Function key <F2>: To switch the eye mark (N) of a computer on or o.

First, use the <UP> and <DOWN> arrow keys to

highlight it, then press <F2> to switch it’s eye mark

on or o. If Scan Type is ’Ready PC + N’, only the

power-on and eye mark selected computers will be

displayed sequentially in Scan mode.

Table des matières

Autres manuels StarTech.com Changer

StarTech.com

StarTech.com ST124WGB Manuel utilisateur

StarTech.com

StarTech.com 8STMSTMDP124DP Manuel utilisateur

StarTech.com

StarTech.com SV431USBDDM Manuel utilisateur

StarTech.com

StarTech.com ST7300U3M Manuel utilisateur

StarTech.com

StarTech.com IES101002SFP Manuel utilisateur

StarTech.com

StarTech.com 8STST7300USBME Manuel utilisateur

StarTech.com

StarTech.com USB2HDCAPS Manuel utilisateur

StarTech.com

StarTech.com SV211HDUA Manuel utilisateur

StarTech.com

StarTech.com STARVIEW SV215MICUSBA Manuel utilisateur

StarTech.com

StarTech.com SV231HDMIUA Manuel utilisateur

StarTech.com

StarTech.com DS152M Manuel du système

StarTech.com

StarTech.com SV211USB Manuel utilisateur

StarTech.com

StarTech.com DuraView RACKCONS1708 Manuel utilisateur

StarTech.com

StarTech.com 8STSV431DPDDUA2 Manuel utilisateur

StarTech.com

StarTech.com SV211KDVI Manuel utilisateur

StarTech.com

StarTech.com SV1654DX4I Manuel utilisateur

StarTech.com

StarTech.com SV431HDU3A2 Manuel utilisateur

StarTech.com

StarTech.com SV231DPUCA Manuel utilisateur

StarTech.com

StarTech.com IES81GPOEW Manuel utilisateur

StarTech.com

StarTech.com MSTMDP122DP Manuel utilisateur

StarTech.com

StarTech.com ST222MX Manuel utilisateur

StarTech.com

StarTech.com DS8105 Manuel du système

StarTech.com

StarTech.com 5G7AIBS-USB-HUB-EU Manuel utilisateur

StarTech.com

StarTech.com SV231MDPU2 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
