StarTech.com SV211KUSB Manuel utilisateur

Micro USB KVM Switch

SV211KUSB

SV411KUSB

Instruction Manual

Actual product may vary from photo

2 Port Micro USB KVM Kit with Audio and Cables

4 Port Micro USB KVM Kit with Audio and Cables

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other

Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this

document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installing the KVM Client application . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Connecting console components to the KVM switch - SV211KUSB . . . . .2

Connecting computers to the KVM switch - SV211KUSB . . . . . . . . . . . . .2

Connecting console components to the KVM switch - SV411KUSB . . . . .2

Connecting computers to the KVM switch - SV411KUSB . . . . . . . . . . . . .4

Using the KVM Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Using the face-panel buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Using a hotkey sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

KVM Switching software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com Micro USB KVM Kit. This product allows you

to access and control multiple USB-enabled computers and features an independant

audio/mic switching function that offers uninterrupted audio, even while connected to

another computer. For PCs running Windows systems, this KVM switch provides an

easy-to-use KVM Client application to facilitate switching operations such as PC selection

and hotkey sequence programming, autoscanning, autoscan delay time programming

and independent/simultaneous audio and PC switching.

Features

• USB 1.1 compliant

• Also switches audio for a complete multimedia sharing solution

• Optional Windows-based Switching Software provides configurable hotkeys

• LED indicators for easy status monitoring

• High VGA resolution 2048 x 1536

• Powered by USB

Before

You

Begin

System Requirements

• Console: USB keyboard (1), USB mouse (1), VGA Monitor (1), speakers (optional),

microphone (optional)

• Controlled systems: USB keyboard and mouse support, VGA video out, speaker out

(optional), microphone out (optional)

Contents

Instruction Manual

This package should contain

SV211KUSB:

• Micro USB KVM Switch (1)

• 4 ft. (1.2m) USB + Video Data Cable (2)

• 4 ft. (1.2m) Audio Cable (2)

• Instruction Manual (1)

• Software CD (1)

This package should contain

SV411KUSB:

• USB KVM Switch (1)

• 6 ft. USB + Video Data Cable (4)

• 6 ft. Audio Cable (4)

• User Manual (1)

• Software CD (1)

Installation

This section details how to install the optional Windows-based software, as well as how

to make the necessary physical connections between your peripherals and the KVM

switch. For best results, ensure that all of the computers to be controlled are located as

close as possible to the KVM switch and console peripherals (monitor, keyboard, mouse),

as this will reduce the length of cabling required and reduces the chance of interference.

Installing the KVM Client application

Please note: The KVM Software supports only the Windows operating system. When

using other operating systems such as Linux, you can still use the keyboard hotkey

ScrLK + ScrLK to switch PCs, however this hotkey is not available on non-PC platforms

such as Mac OS, however an IBM keyboard can be used at the console to control Apple

Mac computers. Please note: Hotkey support is not natively supported in Mac OS. If

you are using a Mac OS, you must use the KVM buttons to switch between computers.

1. For each computer that will be connected to the KVM switch, please insert the

companion CD ROM into your CD drive. The installation program USBKVMIn.exe

should run automatically, however if it does not, please locate the file on the disk

and double-click on the icon to launch the application:

2. After the installation has completed, you will see a KVM Switcher icon on the system

tray of your Windows desktop. Right-click on the icon to launch the operation menu,

and double-click to evoke the configuration box.

Connecting console components to the KVM Switch (SV211KUSB)

1. Place the KVM switch in close proximity to the keyboard, mouse and monitor you

wish to use as the shared console controls.

2. Connect the monitor to the VGA port (Blue) located on the front panel of the switch.

3. Connect a USB keyboard to the USB Type A connector on the front panel of the

switch, as shown in Figure 1-2 (page 3).

4. Connect a USB mouse to the USB Type A connector on the front panel of the

switch, as shown in Figure 1-2 (page 3).

5. Optional: Connect speakers to the green 3.5mm phono connector located on the front

panel of the switch, as shown in Figure 1-2 (page 3).

6. Optional: Connect a microphone to the pink 3.5mm phono connector located on the

front panel of the switch, as shown in Figure 1-2 (page 3).

Instruction Manual

Connecting Computers to the KVM Switch (SV211KUSB)

This section describes how to connect the computers you wish to control, to the KVM

switch.

1. Remove any existing keyboards, mice, monitors, speakers, and microphones from the

computer(s).

2. Using a USB + Video Data Cable, connect one end (blue) to the Video Out connector

on Computer 1. (This will be the same connector from which you disconnected the

monitor in step 1, if applicable.) Connect the opposite end to the VGA port on the

back of the KVM Switch.

3. Plug the USB portion of the USB + Video Data Cable into an available USB port on

Computer 1.

4. Optional: If you wish to use audio, connect the Speaker/Microphone combination cable

to the Mic and Speaker out ports. Insert the opposite end of the cable (USB mini-B)

into the port located on the side of the switch denoted as PC1.

5. Repeat the above process to connect any further computers.

Instruction Manual

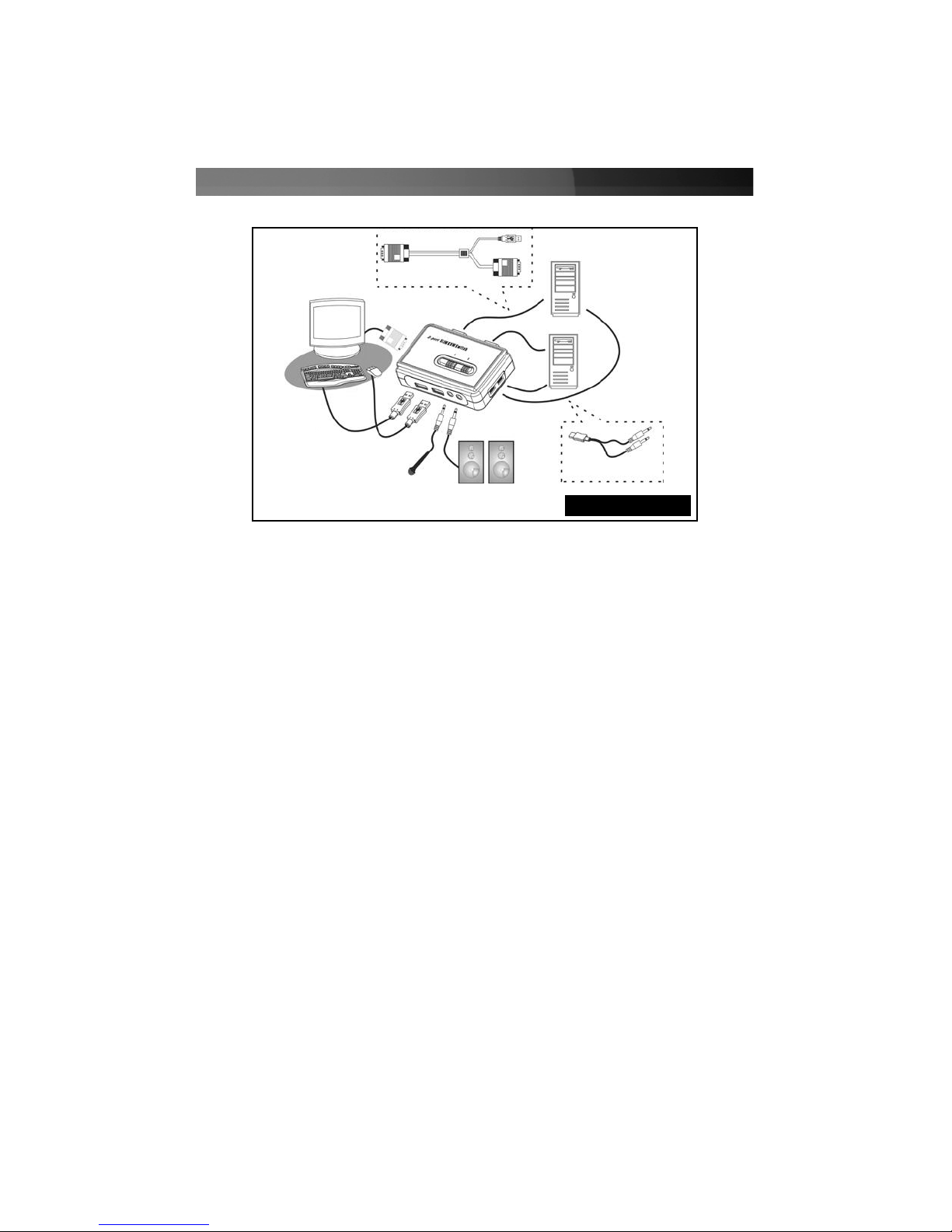

SV211KUSB Shown

Figure 1-2

USB + Video Data Cable

Microphone

Speakers

USB to Audio cables

PC 2

PC 1

Console

Connecting console components to the KVM Switch (SV411KUSB)

1. Place the KVM switch in close proximity to the keyboard, mouse and monitor you

wish to use as the shared console controls.

2. Connect the monitor to the VGA port (Blue) located on the front panel of the switch.

3. Connect a USB keyboard to the Type A USB Port located on the front panel of the

switch. Please refer to Figure 1-3.

4. Connect a USB mouse to the Type A USB Port located on the front panel of the

switch. Please refer to Figure 1-3.

5. Connect speakers to the green 3.5mm phono connector (optional), located on the

front panel of the switch. Please refer to Figure 1-3.

6. Connect a microphone to the pink 3.5mm phono connector (optional) located on the

front panel of the switch. Please refer to Figure 1-3.

Connecting Computers to the KVM Switch (SV411KUSB)

This section describes how to connect the computer(s) you wish to control, to the KVM

switch.

1. Remove any existing keyboards, mice, monitors, speakers, and microphones

from the computer.

2. Using an HD-15 VGA+USB Cable, connect the VGA portion (15-pin) to the Video

Out connector on computer 1. (This will be the same connector from which you

disconnected the monitor in step 1, if applicable.) Connect the opposite end of

Instruction Manual

SV411KUSB Shown

Figure 1-3

PC 1

PC 3

PC 4

Device

the cable to one of the VGA/Data ports on the KVM Switch, (located on the side

or rear panel of the switch) as shown in Figure 1-3.

3. Plug the USB portion of the USB + Video Data Cable into an available USB port

on computer 1.

4. Optional: If you wish to use audio, connect the Speaker/Microphone

combination cable to the Mic and Speaker out ports on the computer. Insert the

opposite ends of the cable(s) into the corresponding audio ports located next to the

VGA/Data port used in step 2.

5. Repeat the above process to connect the remaining computers.

Using

the

KVM

Switch

There are three methods of controlling your KVM Switch for PC and Audio/Mic channel

selection:

(1) Using the face-panel buttons: The face-panel button allows you to have direct

control over KVM switching operation. Simply pressing the button will switch to the

corresponding PC port and audio/mic channel (if enabled). By default, PC port

switching and audio/mic port switching are bound together.

(2) Using a hotkey sequence : These products features both User-definable Hotkeys

for PC selection and a Universal Hotkey Sequence that can be used to switch

connected PCs.

Universal Hotkey Sequence: ScrLk + ScrLk

User-definable Hotkey: Ctrl + Alt + [command key]. Please refer to KVM Switching

software section, for keys that are eligible to be used as a command key.

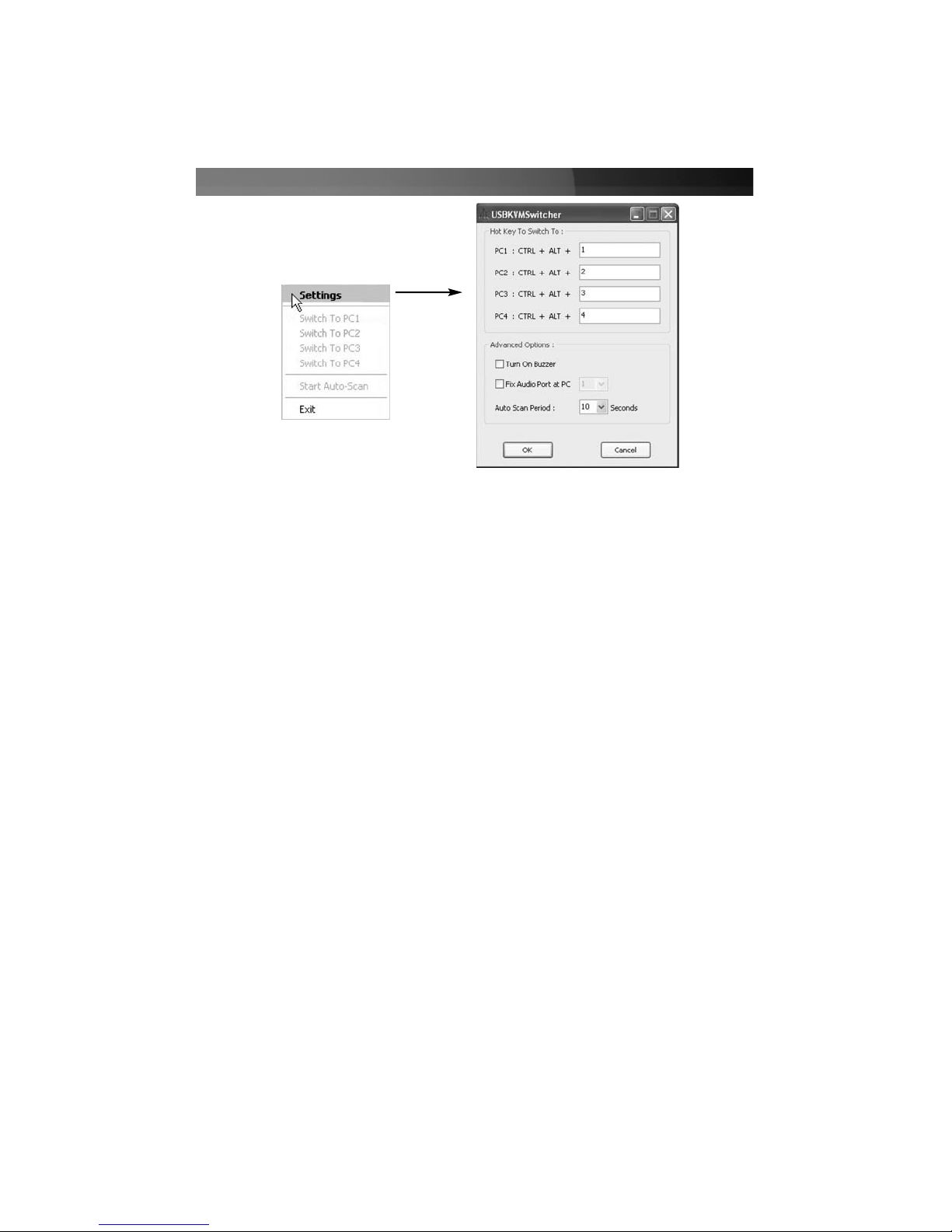

(3) KVM Switching software: To launch the operation menu, right-click on the KVM

Switching icon located in the system tray.

By selecting Settings, you will be able to customize the hotkeys to be used with the

CTRL+ALT command (i.e. CTRL+ALT+1 = PC1, CTRL+ALT+2 = PC2), by entering

the desired value into the editable text box. Please note: ALT, CTRL, SHIFT, CAPS,

TAB, ESC, function keys (i.e. F1, F2) and edit keys cannot be selected as hotkeys.

Instruction Manual

From within the KVM Switcher software, you also have the option to fix the

audio/mic channel to the selected PC. Once this option is check, the audio/mic

channel will be fixed and become non-switchable without re-configuration.

Similarly, the Autoscan feature can also be customized, by selecting the desired Auto

Scan Period from the drop down menu provided. The Autoscan period is the time

your KVM Switch will wait to switch to the next PC.

Instruction Manual

Technical

Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

Warranty

Information

This product is backed by a one-year warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, following

the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement

may not apply to you.

Instruction Manual

Autres manuels pour SV211KUSB

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels StarTech.com Changer

StarTech.com

StarTech.com DisplayPort MSTDP124DP Manuel utilisateur

StarTech.com

StarTech.com StarView SV231 Manuel utilisateur

StarTech.com

StarTech.com SV231DD2DUA Manuel utilisateur

StarTech.com

StarTech.com SV441HDIE Manuel utilisateur

StarTech.com

StarTech.com SV431USBDDM Manuel utilisateur

StarTech.com

StarTech.com C2-D46-UAC-CBL-KVM Manuel utilisateur

StarTech.com

StarTech.com VS421HDDP Manuel utilisateur

StarTech.com

StarTech.com HB30C1A1CPD Manuel utilisateur

StarTech.com

StarTech.com SV431USBAEGB Manuel utilisateur

StarTech.com

StarTech.com SV431DPDDUA2 Manuel utilisateur

StarTech.com

StarTech.com ST4300USBM Manuel utilisateur

StarTech.com

StarTech.com DS154 Manuel du système

StarTech.com

StarTech.com USB421HS Manuel utilisateur

StarTech.com

StarTech.com SV5CONS Manuel utilisateur

StarTech.com

StarTech.com 8STSV431HDU3A2 Manuel utilisateur

StarTech.com

StarTech.com RACKCONS17HD Manuel utilisateur

StarTech.com

StarTech.com ST4205USB Manuel utilisateur

StarTech.com

StarTech.com ST4100USB Manuel utilisateur

StarTech.com

StarTech.com ENTERPRISE CLASS SV1653DXI Manuel utilisateur

StarTech.com

StarTech.com P4A20132-KM-SWITCH Manuel utilisateur

StarTech.com

StarTech.com STARVIEW SV215MICUSBA Manuel utilisateur

StarTech.com

StarTech.com SV431DHD4KU Manuel utilisateur

StarTech.com

StarTech.com SV431USBAE Manuel utilisateur

StarTech.com

StarTech.com STARVIEW SV431DVIUAHR Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
