StarTech.com ARMSLIMDUO Manuel utilisateur
Manual Revision: 03/26/2019
For the latest information, technical specications, and support for
this product, please visit www.startech.com/ARMSLIMDUO.
FR: Guide de l’utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l’uso - it.startech.com
ARMSLIMDUO
Dual Monitor Mount with Built-In
2-Port USB Pass-Through
*actual product may vary from photos
Instruction manual
i
Table of Contents
Introduction............................................................................................1
Packaging contents.................................................................................................................................. 1
Product diagram ....................................................................................3
Product dimensions ................................................................................................................................. 4
Technical specications ........................................................................5
Assemble the ARMSLIMDUO................................................................5
Attach the desk clamps to the mounting arms.............................................................................. 5
Attach the mounting arm to a desk or table................................................................................... 7
Attach the monitors to the VESA monitor mounts....................................................................... 8
Attach the VESA monitor mounts to the mounting arm............................................................ 9
Route the cables........................................................................................................................................ 11
Manage your cables...............................................................................12
Technical support...................................................................................13
Warranty information............................................................................13
Instruction manual
1
Introduction
You can use the ARMSLIMDUO to mount two displays on your desk and take
advantage of the full-motion articulation and the cable-management system that
comes with the ARMSLIMDUO. The ARMSLIMDUO features two 3.5 mm audio ports
and two USB pass-through ports, and comes with a desk-clamp mount.
Packaging contents
Mounting arm
Quantity: One
Desk clamps (upper bracket)
Quantity: Two
Desk clamps (lower bracket)
Quantity: Two
VESA monitor mounts
Quantity: Two
M4x12 mm screws
Quantity: Eight
M4x30 mm screws
Quantity: Eight
Plastic spacers
Quantity: Eight
M4 hex key
Quantity: One
1 2
4
3
6
78
5
Instruction manual
2
10
11 12
M5 hex key
Quantity: One
M6x12 mm screws
Quantity: Eight
M8x12 mm screws
Quantity: Four
Rubber pads
Quantity: Two
Instruction manual
Quantity: One
9
13
Instruction manual
3
Product diagram
VESA monitor mounts
Mounting arms
Cable cover Cable cover
Close-up view of the base
Audio port
USB A pass-through ports
Microphone port
Cable cover Cable cover
Instruction manual
4
Product dimensions
Instruction manual
5
Technical specications
The ARMSLIMDUO can support up to 8.0 kg (17.6 lb) of weight per mounting arm. The
desk clamp can support a maximum thickness of 90 mm (3.54 in.).
Assemble the ARMSLIMDUO
Warning! Make sure that all of the hardware is assembled securely and checked for
stability before you load the monitors.
Note: You will need a Phillips screwdriver to assemble the ARMSLIMDUO.
Attach the desk clamps to the mounting arms
1. Line up the four holes in one of the desk clamps (upper bracket) (2) with one set of
four holes on the underside of the mounting arm (1).
2. Insert four of the M6x12 mm screws (10) through the holes in the desk clamp (upper
bracket) and into the mounting arm.
3. Use the M4 hex key (8) to turn the screws clockwise to tighten them. (gure 1)
4. Repeat steps 1 to 3 for the second desk clamp (upper bracket).
1
210
8
gure 1

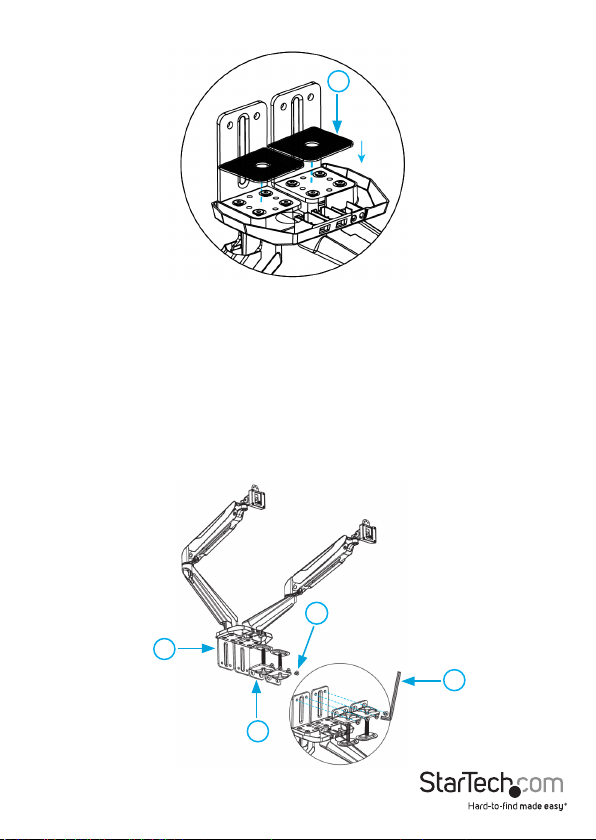

5. Remove the backing from the two rubber pads (12), and ax them over the
M6x12 mm screws in the desk clamp (upper bracket). (gure 2)
Instruction manual
6
gure 2
6. Line up the two holes in one of the desk clamps (lower bracket) (3) with the two
holes on the end of one of the desk clamps (upper bracket). Make sure that the
hand screw on the desk clamp (lower bracket) is pointing downwards and away
from the mounting arm.
7. Insert two of the M8x12 mm screws (11) through the holes in the desk clamp (lower
bracket) and into the desk clamp (upper bracket).
8. Use the M5 hex key (9) to turn the screws clockwise to tighten them. (gure 3)
9. Repeat steps 6 to 8 for the second desk clamp (lower bracket).
9
11
3
2
12
gure 3
Instruction manual
7
Attach the mounting arm to a desk or table
1. Turn the hand screws on the desk clamps (lower bracket) (3) counterclockwise until
you reach the thickness of the desk or table. (gure 4)
2. Slide the desk clamp over the edge of the desk or table and turn the hand screws on
the desk clamps clockwise until the mounting arm is securely fastened to the desk
or table.
3
gure 4
Instruction manual
8
Attach the monitors to the VESA monitor mounts
Warning! To prevent scratching during the installation process, you should handle the
surface of the monitors with care.
Do one of the following:
• To install monitors that have a ush installation surface, insert four of the
M4x12 mm screws (5) through one of the VESA monitor mounts (4) and into the
mounting holes on the back of the monitor. Use a Phillips screwdriver to tighten the
screws. Repeat the steps for the second monitor that you’re attaching. (gure 5)
• To install monitors that have a recessed installation surface, insert four of the
M4x30 mm screws (6) through one of the VESA monitor mounts (4), into four of the
plastic spacers (7), and into the mounting holes on the back of the monitor. Use a
Phillips screwdriver to tighten the screws. Repeat the steps for the second monitor
that you’re attaching. (gure 6)
gure 5 gure 6
54
Monitor
(not included)
64
Monitor
(not included)
7
