ARMPIVOT

Desk Mount Monitor Arm with Cable

Management & Height Adjust

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

Product Diagram ....................................................................................2

Installation ..............................................................................................2

Desk / Grommet Mounting ................................................................................................................... 2

Attaching the Display.............................................................................................................................. 5

Completing the Assembly ..................................................................................................................... 6

Adjusting Monitor Mount Resistance................................................................................................ 7

Specications..........................................................................................8

Technical Support ..................................................................................9

Warranty Information............................................................................9

Instruction Manual

Introduction

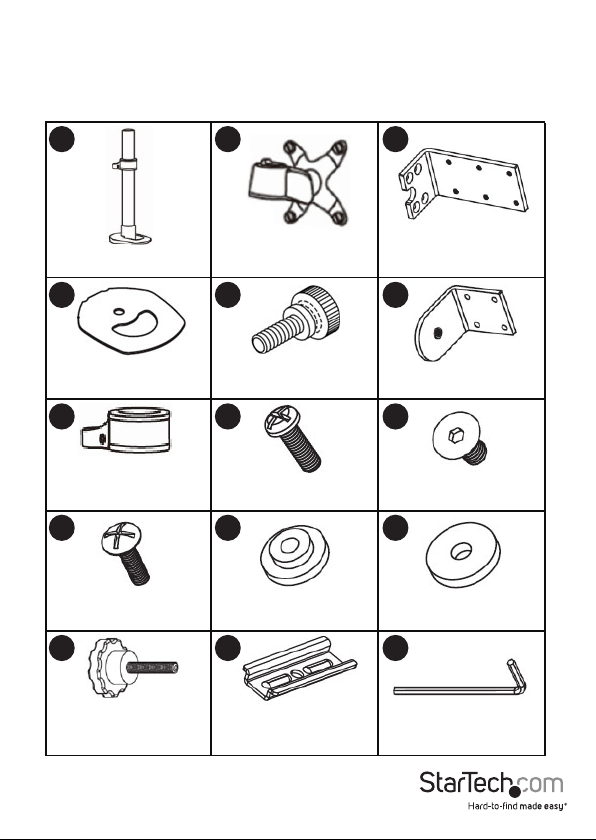

Packaging Contents

Support Post

Qty: 1

Monitor Mount

Qty: 1

Large C Clamp

Qty: 1

EVA Cushion

Qty: 1

Cable Clip / Collar

(attached)

Qty: 1

Thumb Screws

Qty: 4

M6x12mm Phillips Screws

Qty: 4

M5x14mm Hex Screws

Qty: 4

M4x15mm Phillips Screw

Qty: 1

Male Round Washer

Qty: 1

Female Round Washer

Qty: 1

Hand Screw

(attached)

Qty: 1

Pressure Plate

(attached)

Qty: 1

M3 (2.5mm) Allen Wrench

Qty: 1

Small C Clamp

Qty: 1

4 5 6

7 8 9

10 11 12

13 14 15

Instruction Manual

Product Diagram

Installation

Desk / Grommet Mounting

Warning: It is the installer’s responsibility to ensure that the combined weight of all

components does not exceed the maximum 14 kg (30.9 lbs) weight capacity of the

mounting arm.

The Monitor Arm can be clamped to a desk / table, or mounted through a grommet

hole. Instructions for both will be provided in the following sections.

Instruction Manual

Grommet Mount

Desk Mount

1. Remove the Hand Screw (13) from the base of the Support Post (1).

2. Place the EVA Cushion (4) beneath the Support Post (1) and thread the Hand Screw

(13) from below until secure. Ensure that the Pressure Plate (14) is making full

contact with the desk surface.

1. Attach the Large C Clamp (3) and Small C Clamp (6) pieces using 4 M6x12mm

Screws (8) as shown, depending on the thickness of your desk / table.

Instruction Manual

2. Slide the Hand Screw (13) through the bottom of the clamp and attach the Pressure

Plate (14) using the Male Round Washer (11), Female Round Washer (12) and

M4x15mm Phillips Screw (10).

3. Attach the completed Desk Clamp to base of the Support Post (1) using 4 M5x14mm

Hex Screws (9).

4. Place the EVA Cushion (4) beneath the Support Post (1) and then place the Desk

Clamp opening around the edge of your desktop in your desired location. Tighten by

hand to secure, ensuring that the clamp is making full contact with the desk surface.

Instruction Manual

Attaching the Display

1. Carefully place your display face down on a protective surface to access the

mounting points.

2. Attach the display to the Monitor Mount (2) using the 4 Thumb Screws (5).

Instruction Manual

WARNING! Do not over-tighten the screws and stop immediately if you encounter

resistance to avoid damage to your display. Ensure that all spacers and screws being

used are the same length and thread type.

Completing the Assembly

1. Loosen the Cable Clip / Collar (7) on the Support Post (1) and adjust to the

desired height.

2. Slide the Monitor Mount (2) onto the Support Post (1) until it rests on the Collar (7)

and tighten the set screw using the M3 Allen Wrench (15).

Instruction Manual

Adjusting Monitor Mount Resistance

WARNING! Forced movement of the Mount Bracket without loosening the screws may

damage the product or the mounted displays.

Always support your display from underneath when making any adjustments to the

LCD Arms or Mount Brackets to avoid damage to the display.

Note: For all adjustments outlined below, turning the screw clockwise will increase the

resistance, while turning the screw counter-clockwise will decrease resistance.

To increase / decrease the tilt resistance, adjust the set screw located on the side of the

Monitor Mount joint, using the M3 Allen Wrench (15).

To increase / decrease swivel resistance, adjust the set screw located on the side of the

Monitor Mount bracket at the Support Post, using the M3 Allen Wrench (15).

Place the wrench in the collar when not in use.
