StarTech.com MPEX4S552 Manuel utilisateur

Manual Revision: 04/18/2011

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

MPEX4S552

MPEX2S1P552

4 Port RS232 Mini PCI Express Serial Card

2S 1P Mini PCI Express Serial/Parallel Combo Card

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

o and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names

and/or symbols of third-party companies not related in any way to StarTech.com. Where they

occur these references are for illustrative purposes only and do not represent an endorsement of

a product or service by StarTech.com, or an endorsement of the product(s) to which this manual

applies by the third-party company in question. Regardless of any direct acknowledgement

elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks,

registered trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Instruction Manual i

Table of Contents

Introduction ........................................................................................................ 1

Packaging Contents ......................................................................................................................................................1

System Requirements ...................................................................................................................................................1

Installation .......................................................................................................... 2

Hardware Installation ...................................................................................................................................................2

Driver Installation ...........................................................................................................................................................3

Verifying Installation .....................................................................................................................................................4

Pinout ................................................................................................................... 5

Specications ...................................................................................................... 6

Technical Support .............................................................................................. 7

Warranty Information ........................................................................................ 7

Instruction Manual 1

Introduction

The MPEX4S952 4 Port RS232 Mini PCI Express Serial Card with 16550 UART and the

MPEX2S1P552 2S1P Mini PCI Express Serial Parallel Combo Card turns a mini-PCIe slot

into either four RS232 (DB9) serial ports or two RS232 (DB9) serial ports and one IEEE

1284 parallel port - cost-saving solutions for adding legacy serial/parallel support for

embedded systems that aren’t normally compatible.

A native PCI Express single chip design allows you to take advantage of full PCI Express

bus capability by providing improved speed and reliability while reducing the load

applied to the CPU by as much as 48% over conventional “bridge chip” serial cards .

Packaging Contents

• 1 x Mini PCI Express Card

• 4 x DB9 to IDC Ribbon Cable (MPEX4S552 only)

• 2 x DB9 to IDC Ribbon Cable (MPEX2S1P552 only)

• 1 x DB25 to IDC Ribbon Cable (MPEX2S1P552 only)

• 1 x Driver CD

• 1 x Instruction Manual

System Requirements

• PCI Express enabled computer system with available Mini PCI Express slot (Mini Card)

• Microsoft® Windows® 2000/XP/Server 2003/Vista/Server 2008 R2/7 (32/64-bit), or

Linux® kernel 2.6.x

Instruction Manual 2

Installation

WARNING! Computer parts can be severely damaged by static electricity.

Be sure that you are properly grounded before opening your computer case.

StarTech.com recommends that you wear an anti-static strap when installing any

computer component. If an anti-static strap is unavailable, discharge yourself of any

static electricity build-up by touching a large grounded metal surface (such as the

computer case) for several seconds. Also be careful to handle the card by its edges and

not the gold connectors.

Hardware Installation

1. Line up and insert the Mini PCI Express adapter card with the Mini PCI Express slot on

the system board. Match up the gap in the card connector, with the notch in the slot.

*installation photos for reference only

2. Fasten the top edge of the Mini Card to the motherboard.

NOTE: Dierent systems may have dierent methods for installing mini cards, so please

refer to documentation for your system/board for full installation instructions for your

particular application.

Instruction Manual 3

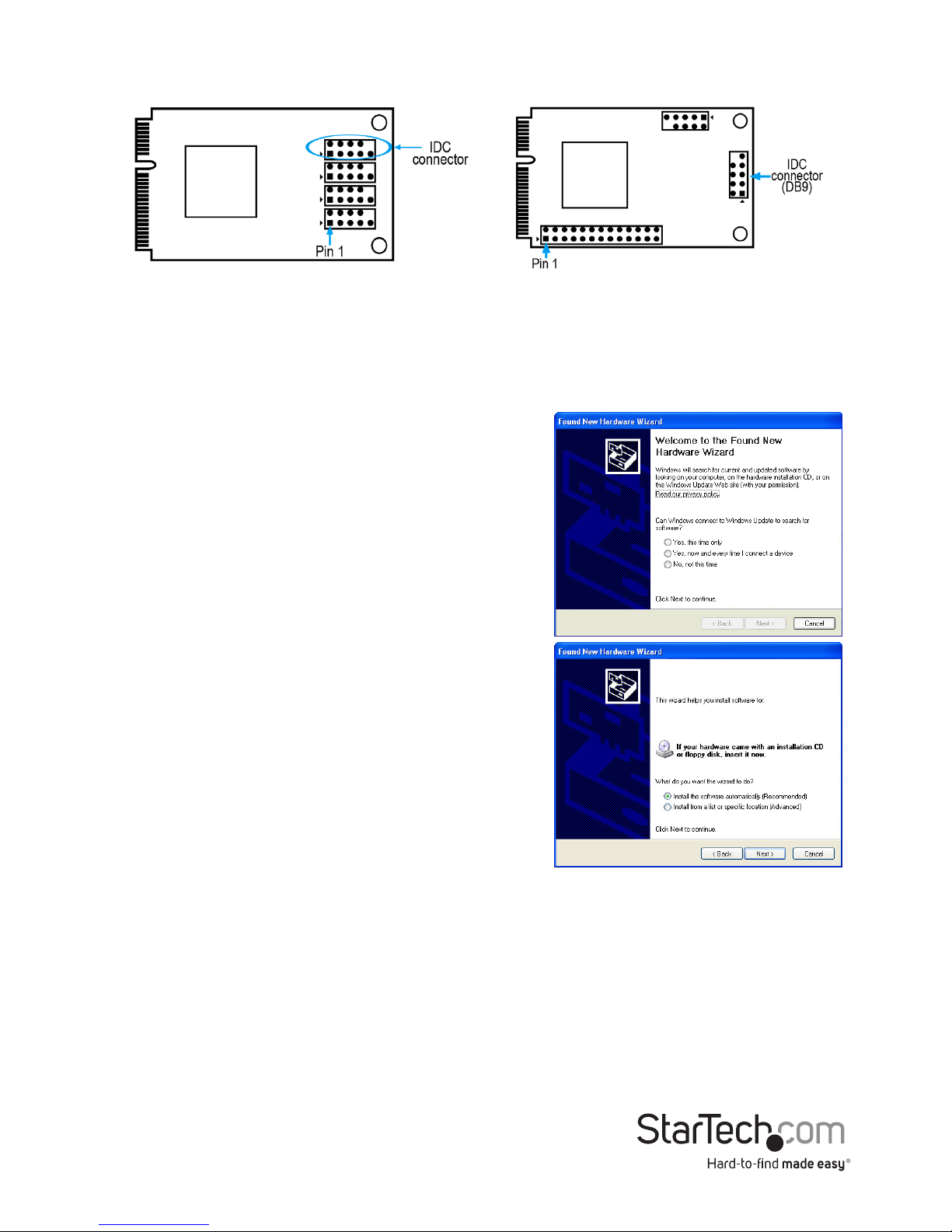

3. Attach the ribbon cables to the IDC connectors on the Mini Card. Match up Pin1 on

the Mini Card (indicated with an arrow) with Pin1 on the ribbon cable (red wire).

MPEX4S552 MPEX2S1P552

4. Mount the D-Sub connectors to the desired locations such as the computer chassis or

external panel, etc.

Driver Installation

Windows 2000/XP/Server 2003

1. When the Found New Hardware wizard appears

on the screen, insert the Driver CD into your CD/

DVD drive. If you are prompted to connect to

Windows Update, please select the “No, not this

time” option and click Next.

2. Select the option “Install Drivers Automatically

(Recommended)” and then click the Next button.

3. Windows should now start searching for the

drivers and being the installation automatically.

Once this has completed, click the Finish button.

NOTE: If automatic installation fails, you may need

to point the driver installation wizard to the driver

location on the CD, manually:

“IO \ MOSCHIP \ MCS99xx”

Instruction Manual 4

Windows Vista/7

1. When the Found New Hardware window appears

on the screen, click on the “Locate and install

drivers software (recommended)” option. If

prompted to search online, select the “Don’t

search online” option.

2. When prompted to insert the disc, insert the

Driver CD that came with the card, into your

CD/DVD drive and Windows will automatically

proceed to search the CD.

3. If a Windows Security dialog window appears,

click the “Install this driver software anyway”

option to proceed.

4. Once the driver is installed, click the Close button.

NOTE: If automatic installation fails, you may need to point the driver installation

wizard to the driver location on the CD, manually: “IO \ MOSCHIP \ MCS99xx”

Verifying Installation

Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7

From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then

select Manage. In the new Computer Management window, select Device Manager

from the left window panel.

Double-click on the “Ports (COM & LPT)” option. Additional COM ports should be listed.

Instruction Manual 5

Pinout

Pin Signal

1 DCD

2 RxD

3 TxD

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

9 RI

Pin Signal Pin Signal

1 STB- 14 AFD-

2 PD0 15 ERR-

3 PD1 16 INIT-

4 PD2 17 SLIN-

5 PD3 18 GND

6 PD4 19 GND

7 PD5 20 GND

8 PD6 21 GND

9 PD7 22 GND

10 ACK- 23 GND

11 BUSY 24 GND

12 PE 25 GND

13 SLCT

Instruction Manual 6

Specications

MPEX4S552 MPEX2S1P552

Number of Ports Serial: 4 Serial: 2

Parallel: 1

Host Interface PCI Express revision 1.1

Form Factor Full Length Mini Card

Chipset ID MosChip MCS9904CV-

MosChip MCS9901CV-

External Connectors 4 x DB9 male 2 x DB9 male

1 x DB25 female

Supported Standards RS232 RS232, EPP, ECP, SPP,

Byte, Nibble

Maximum Data Transfer Rate Serial: 921.6 Kbps Serial: 921.6 Kbps

Parallel: 1.5 Mbps

Data Bits 5, 6, 7, 8

Parity None, Odd, Even, Space, Mark

Stop Bits 1, 1.5, 2

Buer Size 256 byte FIFO

Operating Temperature 0°C ~ 55°C (32°F ~ 131°F)

Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F)

Humidity 5% ~ 95% RH

Dimensions (LxWxH) 50.95mm x 30.0mm x

10.0mm

50.0mm x 30.0mm x

10.0mm

Weight 150g

Compatible Operating Systems Windows 2000/XP/Server 2003/Vista/

Server 2008 R2/7 (32/64-bit), Linux kernel 2.6.x

Instruction Manual 7

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-

leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a lifetime warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for

the periods noted, following the initial date of purchase. During this period, the products may be

returned for repair, or replacement with equivalent products at our discretion. The warranty covers

parts and labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers,

directors, employees or agents) for any damages (whether direct or indirect, special, punitive,

incidental, consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss,

arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If

such laws apply, the limitations or exclusions contained in this statement may not apply to you.
