SCSI PCI Card
PCISCSIUW Instruction Manual
Actual product may vary from photo
Ultra Wide 40 MBytes/sec SCSI PCI Controller Card
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other
Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and
do not represent an endorsement of a product or service by StarTech.com, or an
endorsement of the product(s) to which this manual applies by the third-party company in
question. Regardless of any direct acknowledgement elsewhere in the body of this
document, StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this
manual and related documents are the property of their respective holders.
Table of Contents
Introduction..................................................... 1
Before You Begin ................................................ 1
System Requirements........................................... 1
Contents ..................................................... 1
Installation...................................................... 2
Installing the Card.............................................. 2
Connecting and Terminating Your SCSI Devices ...................... 3
Installing the Drivers ............................................ 3
Verifying Your Installation ........................................ 4
Specifications ................................................... 4
Accessory Products from StarTech.com ............................. 5
Technical Support ............................................... 6
Warranty Information ............................................. 6
Instruction Manual
i
Introduction
Thank you for purchasing a StarTech.com Ultra Wide SCSI host adapter card. This
reliable 40 MBytes/sec synchronous PCI card can control up to fifteen Wide SCSI
devices like hard drives, CD-ROMs, CD-RWs, scanners and removable media devices.
The dedicated on-board processor provides high-speed single-ended SCSI bus transfers
at up to 40 MBytes/sec. The card also comes with a 50 and 68-pin ribbon cables so that
you can start attaching your internal Wide SCSI peripherals right away.
Features
• Supports up to fifteen Wide SCSI devices
• Transfers data at 40 MBytes/sec
• Includes on-board automatic SCSI termination
• Backed by StarTech.com’s 1 year warranty and free lifetime technical support
Before You Begin
WARNING! PCI cards, like all computer equipment, can be severely damaged by static
electricity. Be sure that you are properly grounded before opening your computer case or
touching your PCI card. StarTech.com recommends that you wear an anti-static strap
when installing any computer component. If an anti-static strap is unavailable, discharge
yourself of any static electricity build-up by touching a large grounded metal surface
(such as the computer case) for several seconds. Also be careful to handle the PCI card
by its edges and not the gold connectors.
System Requirements
An IBM-compatible computer running Windows Vista (32-bit)/Server 2003/•
XP/2000/98/95, NT 4.0, DOS, NetWare
• An available 32-bit 5V PCI slot
Contents
This package should contain:
• 1 x PCI SCSI card
• 1 x 68-pin (half pitch) internal SCSI cable
• 1 x 50-pin internal SCSI cable
• Driver Installation Disk
• Instruction Manual
Instruction Manual
1
Installation
This section will guide you through the installation of your PCI card and the related
software. Please read through the instructions carefully and complete each step in the
order listed.
Installing the Card
1. Make sure that your system is unplugged and you are grounded.
2. Remove the cover of your system (see your computer's user manual for details, if
necessary) and gently turn your computer onto its side.
3. Locate an empty PCI slot (usually white in colour) and remove the metal plate that
covers the rear bracket. You may need a Phillips screwdriver to perform this step.
Retain the screw! You will need it to secure the card later.
4. Gently insert the card into the empty slot, making sure it is firmly seated.
5. Secure the card in place using the screw you removed in Step 3.
6. Physically install your SCSI devices into your case, following the instructions in their
documentation. If you need more information about connecting and terminating your
devices on the SCSI card, please see the next subsection, “Connecting and
Terminating Your SCSI Devices” below before closing the case. Otherwise, connect
the data cables to both the card and your devices(s) as needed, and complete step 7.
7. Put your computer case back on.
NOTE: You may also wish to use the card’s integrated SCSI BIOS utility to view and
configure SCSI devices attached to the card. You can access this utility by following the
on-screen instructions at boot-up.
Instruction Manual
2

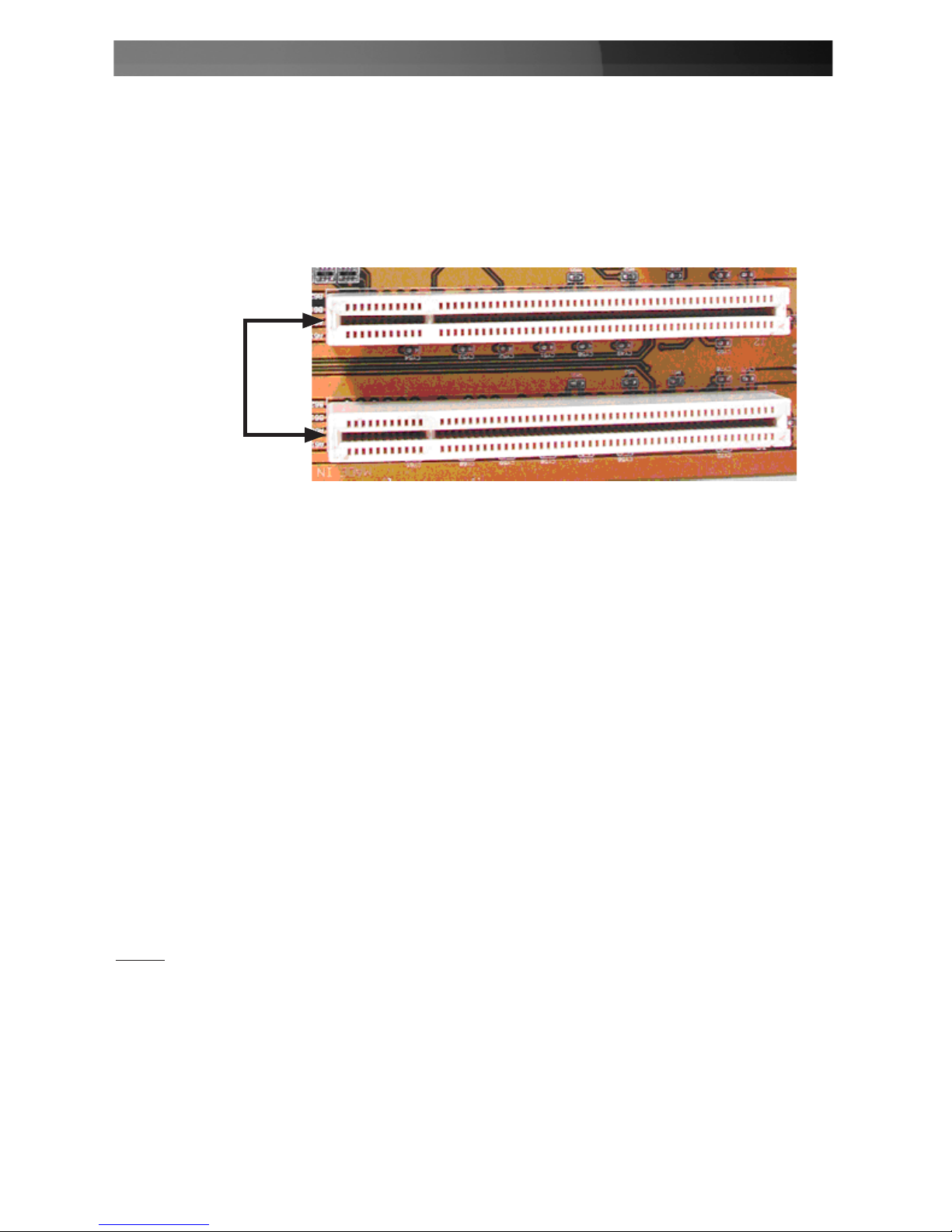

PCI slots
Connecting and Terminating Your SCSI Devices
1. Connect one end of your internal SCSI ribbon cable (either 50-pin, 68-pin, or both,
depending on the devices you need to connect) to your SCSI card, making sure
that the red stripe faces pin 1. The connector that is furthest away from the other
connectors should be connected to the card.
NOTE: The cable connectors have been formed so that it is difficult to connect the
devices in an improper fashion.
2. Connect the SCSI cable to your SCSI device, again making sure that the red stripe
faces pin 1.
3. Repeat step 2 for any other SCSI devices you wish to attach at this time.
4. When you have connected all your devices, you must make sure that both the
internal and external chains of the SCSI bus are terminated. Most SCSI peripherals
will come with their own terminators. Follow the instructions in the peripheral’s user
guide to terminate the SCSI chain.
NOTE: StarTech.com offers a wide range of internal and external SCSI cables and
terminators to suit your needs. Refer to the “Accessory Products from StarTech.com”
section of this manual or visit www.startech.com for more information.
Installing the Drivers
Windows 98/2000/XP
1. On startup, Windows will detect that new hardware has been installed and launch the
Add New Hardware Wizard. Click Next and choose the Search for the best driver
for your device (Recommended) (or Search for a suitable driver... if using
Windows 2000/XP) option. Click Next.
2. Uncheck all boxes on this screen and click Next.
3. The Wizard will inform you that “Windows is now ready to install the best driver for
this device...” Click Next.. The Wizard will complete the installation. Click Finish.
4. Restart the computer if prompted.
Other Operating Systems
Drivers are included on the installation disk for several other operating systems, including
Windows 95 and NT 4.0. For more information about installing and configuring the card
under those operating systems, please refer to the text files contained in the folder on the
disk that matches your operating system.
Instruction Manual
3
Verifying Your Installation
Windows 98
1. Go to Start >Settings >Control Panel.
2. Double click System.
3. Click the Hardware tab.
4. If the card does not appear with a red x or yellow exclamation point (!) next to it,
Windows has not detected a problem with the installation and the card should
function normally.
Windows 2000/XP/Server 2003
1. Go to Start >Settings >Control Panel.
2. Double click System.
3. Click the Hardware tab and choose Device Manager.
4. If the card does not appear with a red x or yellow exclamation point (!) next to it,
Windows has not detected a problem with the installation and the card should
function normally.
Specifications
Form Factor/Interface Full height / PCI (5V)
Connectors 2 x 68-pin half-pitch female (internal/external)
1 x 50-pin male (internal)
Chipset Initio INIC-950
Standards Supported
Ultra Wide SCSI
(backwards compatible with Fast and Ultra
SCSI)
Maximum Data Transfer Rate
40 MB/s (Ultra Wide SCSI)
Supports auto-negotiation of transfer rate for
Fast/Ultra SCSI devices
Signaling Type High Voltage Differential/SE
Number of Devices Supported Up to 15 devices
Onboard BIOS Yes
Compatible Operating Systems Windows 98SE/2000/XP/Server 2003/Vista
(32-bit), NT 4.0, DOS, Netware
Regulatory and Other Certifications FCC Class B, CE, UL
Instruction Manual
4
Accessory Products from StarTech.com
Contact your local StarTech.com dealer or visit www.startech.com for cables or other
accessories that will help you get the best performance out of your new product.
56-inch 6-Drive Internal SCSI3 Cable
SCSI3INT7
3 ft. SCSI3 to SCSI Cable HPDB68M to Cent50M
SCSI2W1EXT_3
3 ft. SCSI3 to SCSI2 Cable HPDB68M to HPDB50M
SCSI2W2EXT_3
3 ft. External SCSI3 Cable HPDB68 M/M
SCSI33PEX4
26-inch 2-Drive Internal SCSI3 Cable
SCSI3INT
37-inch 4-Drive Internal SCSI3 Cable
SCSI3INT5
Instruction Manual
5
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to provide
industry-leading solutions. If you ever need help with your product, visit www.startech.
com/support and access our comprehensive selection of online tools, documentation,
and downloads.
Warranty Information
This product is backed by a 1 year warranty. In addition, StarTech.com warrants its
products against defects in materials and workmanship for the periods noted, following
the initial date of purchase. During this period, the products may be returned for repair, or
replacement with equivalent products at our discretion. The warranty covers parts and
labor costs only. StarTech.com does not warrant its products from defects or damages
arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
officers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential
damages. If such laws apply, the limitations or exclusions contained in this statement may
not apply to you.
Instruction Manual
6
Revised: 3 July 2009 (Rev. C)
About StarTech.com
StarTech.com is “The Professionals’ Source for Hard-to-Find Computer
Parts”. Since 1985, we have been providing IT professionals with the
quality products they need to complete their solutions. We offer an
unmatched selection of computer parts, cables, server management
solutions and A/V products and serve a worldwide market through our
locations in the United States, Canada, the United Kingdom and Taiwan.
Table des matières
Autres manuels StarTech.com Carte PCI
StarTech.com
StarTech.com ST1000SPEX4 Manuel utilisateur
StarTech.com
StarTech.com PEX1000MMSC2 Manuel utilisateur
StarTech.com
StarTech.com PEX1P Manuel utilisateur
StarTech.com
StarTech.com PCISAT2IDE1 Manuel utilisateur
StarTech.com
StarTech.com PEX4S952 Manuel utilisateur
StarTech.com
StarTech.com MPEX300WN2X2 Manuel du système
StarTech.com
StarTech.com PEX300WN2X3 Manuel utilisateur
StarTech.com
StarTech.com PCICOMBO Manuel utilisateur
StarTech.com
StarTech.com USB2HDCAPM Manuel utilisateur
StarTech.com
StarTech.com PEXHDCAP4K Manuel utilisateur
StarTech.com
StarTech.com PCI2S650DVLP Manuel utilisateur
StarTech.com
StarTech.com PEX3U3F800 Manuel utilisateur
StarTech.com
StarTech.com PCI2S485 Manuel utilisateur
StarTech.com
StarTech.com PEX1394A2DV Manuel utilisateur
StarTech.com
StarTech.com USB32VGCAPRO Manuel utilisateur
StarTech.com
StarTech.com CB1S485 Manuel utilisateur
StarTech.com
StarTech.com PEXUSB3S23 Manuel utilisateur
StarTech.com
StarTech.com PEXUSB3S44V Manuel utilisateur
StarTech.com
StarTech.com PEX2S650 Manuel utilisateur
StarTech.com
StarTech.com PEX1S1PMINI Manuel utilisateur
Manuels Carte PCI populaires d'autres marques
Belkin
Belkin F5D7000F Manuel utilisateur
Pericom
Pericom PI7C7100 Manuel utilisateur
ADLINK Technology
ADLINK Technology cPCI-3548 Manuel utilisateur
Digium
Digium TE200 Series Manuel utilisateur
Allo.com
Allo.com 2nd Gen E1/T1/J1 Manuel utilisateur
Western Digital
Western Digital FireWire PCI Adapter Manuel utilisateur
