StarTech.com USBPS2PLATE Manuel utilisateur

USBPS2PLATE

Internal USB to PS2 Adapter Card

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital de-

vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com. Where

they occur these references are for illustrative purposes only and do not represent an endorse-

ment of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. Regardless of any direct acknowl-

edgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols

contained in this manual and related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction ................................................................................... 1

Package Contents .......................................................................1

System Requirements .................................................................1

Hardware Guide ............................................................................. 2

Connectors ..................................................................................2

USB Pin Header Pin Assignment ................................................2

USB Header Cable (supplied): Pin Assignment ..........................2

Installation...................................................................................... 3

Speciﬁcations ................................................................................ 4

Accessory Products from StarTech.com .................................... 4

Technical Support ......................................................................... 5

Warranty Information .................................................................... 5

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com USB to PS2 Keyboard and

Mouse Adapter. This innovative product allows you to connect two PS/2

devices, such as a keyboard and mouse to an internal USB port on your

desktop PC, enabling the use of a PS/2 keyboard and mouse as USB

plug-and-play human interface devices (HID).

The USBPS2PLATE USB to PS2 Keyboard Mouse Adapter also allows

two PS/2 devices to be used simultaneously, and allows users to hot-plug

and unplug PS/2 devices without rebooting the system.

Features

Designed with universal connectors allowing users to use either of the•

two PS/2 connectors for either keyboards or mice

Installs in any low proﬁle or standard proﬁle case, without the clutter of•

having an external USB to PS/2 adapter

Plug and Play compatible•

Package Contents

1 x User manual•

1 x Internal USB to PS/2 Adapter Card•

System Requirements

Desktop PC with a USB port and a vacant rear mounting bracket•

position

Windows 98 SE/ME/2000/XP/Server 2003/Vista, Netware 4.11, 5.0 HP•

Unix, Linux, Mac OS

Instruction Manual

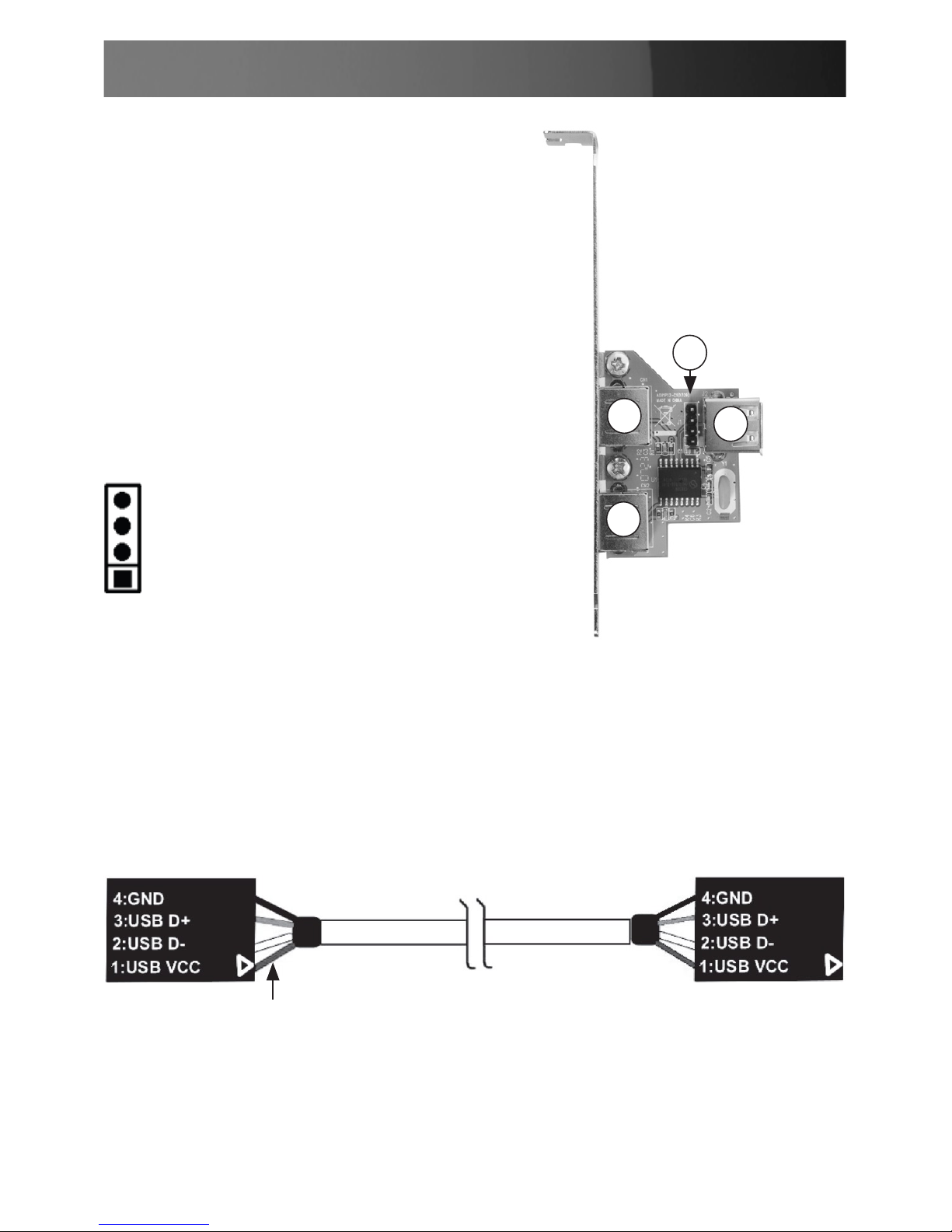

Hardware Guide

Connectors

PS/2 Mouse Connector1.

PS/2 Keyboard Connector2.

USB 4-pin header3.

USB Female Port4.

USB Pin Header Pin Assignment

GND

D+ (USB DP)

D- (USB DM)

+5V (USB VCC)

USB Header Cable (supplied): Pin Assignment

Red wire

Please note: For USB boot-up support, the USB connector must be

plugged in to a built-in type A or header connector on the motherboard

Instruction Manual

Installation

Turn off your computer and all external devices connected to it.1.

Disconnect your computer from its power source.2.

Open the computer case.3.

Install the USB PS/2 card at any vacant rear mounting bracket position.4.

Secure it with the bracket screw.

Connect one end of the supplied USB cable to the J1 USB Pin Header5.

(shown as #3 on pg. 2). Connect the remaining end of the USB cable to

a vacant USB header on the motherboard as applicable. Please note

the orientation of the red wire (Pin 1)

If no 4-pin USB Header connection is available on the motherboard,

connect the USB Female port provided by USBPS2PLATE (shown as

#4 on pg.2) to an available USB port on the rear panel of the computer.

This will require a USB A-A (male/male) cable

CAUTION: Please refer to the documentation that accompanied your

motherboard for the location and pin assignment of the on-board USB

header. Incorrect installation of the USB cable will cause permanent

damage to the USBPS2PLATE.

Replace the computer case cover (see step #3).6.

Connect a PS/2 peripheral to the green connector provided (shown as7.

#1 on pg. 2)

Connect a PS/2 keyboard to the purple connector provided (shown as

#2 on pg. 2).

Restore power to the computer. The operating system should detect8.

the new device and automatically install the appropriate driver.

To enable your PS/2 Mouse or Keyboard’s functionality when9.

working in a DOS operating environment, change your motherboard’s

BIOS setting to enable “USB Mouse Support” or “USB Keyboard

Support”. For further clariﬁcation, please refer to your motherboard

user manual for details.

Instruction Manual

Specications

Accessory Products from StarTech.com

Contact your local StarTech.com dealer or visit www.startech.com for

cables or other accessories that will help you get the best performance

out of your new product.

Connectors PS/2: 2 x 6-pin min-DIN

USB: 4-pin Type A

OS Compatibility Any Windows operating system with a USB interface

Power Mode USB Bus Powered

KXT102 6 ft. PS/2 Keyboard/Mouse Extension Cable

KXT102_10

10 ft. PS/2 Keyboard/Mouse Extension Cable M-F

PCI420USB

4 Port USB 2.0 PCI Card

USB2FAAEXT15

15 Foot (5 Meter) USB 2.0 Active Extension Cable

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commit-

ment to provide industry-leading solutions. If you ever need help with your

product, visit www.startech.com/support and access our comprehensive

selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty. In addition, StarTech.

com warrants its products against defects in materials and workman-

ship for the periods noted, following the initial date of purchase. During

this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor

costs only. StarTech.com does not warrant its products from defects or

damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations or

exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Serv-

er Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
