StarTech.com ICUSB232INT1 Manuel utilisateur

USB to Serial Adapter

Internal 1/2-Port USB to Serial

Adapter with Rear Expansion

Slot Bracket

ICUSB232INT1

ICUSB232INT2

Instruction Manual

Manual Revision:07/26/2010

For the most up-to-date information, please visit www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes

only and do not represent an endorsement of a product or service by StarTech.

com, or an endorsement of the product(s) to which this manual applies by the

third-party company in question. Regardless of any direct acknowledgement

elsewhere in the body of this document, StarTech.com hereby acknowledges that

all trademarks, registered trademarks, service marks, and other protected names

and/or symbols contained in this manual and related documents are the property

of their respective holders.

Table of Contents

Introduction..............................................................1

Packaging Contents.............................................................1

System Requirements .........................................................1

Installation................................................................2

Hardware Installation...........................................................2

Driver Installation.................................................................2

Speciﬁcations...........................................................4

Technical Support....................................................5

Warranty Information...............................................5

Introduction

The StarTech.com Internal 1 or 2-Port USB to Serial Converter Adapter

provides the ability to add 1 or 2 RS232 serial ports to any desktop system

equipped with an available USB motherboard header. Unlike standard USB

to serial cables, this cable is designed for use inside the PC case, affording

an entirely internal solution with no mess or extra adapters needed. This

compact and simple USB adapter offers a cost-effective solution that

bridges the compatibility gap between modern computers and legacy serial

peripherals. Backed by a StarTech.com 1 year warranty and free lifetime

technical support.

Packaging Contents

• 1 x Internal USB to Serial adapter

• 1 x Driver CD

• 1 x Low Proﬁle bracket (2x for ICUSB232INT2)

• 1 x Instruction Manual

System Requirements

• Available 9-pin internal USB header

• Available rear expansion card slot (2 slots for 2-port low proﬁle version)

• Microsoft®Windows®2000/XP/Server 2003/Vista/Server 2008 R2/7

(32/64-bit), or Windows XP Embedded/CE 4.2/CE 5.0/CE 6.0,

or Apple®Mac OS®9/10.4, or Linux®kernel 2.4/2.6

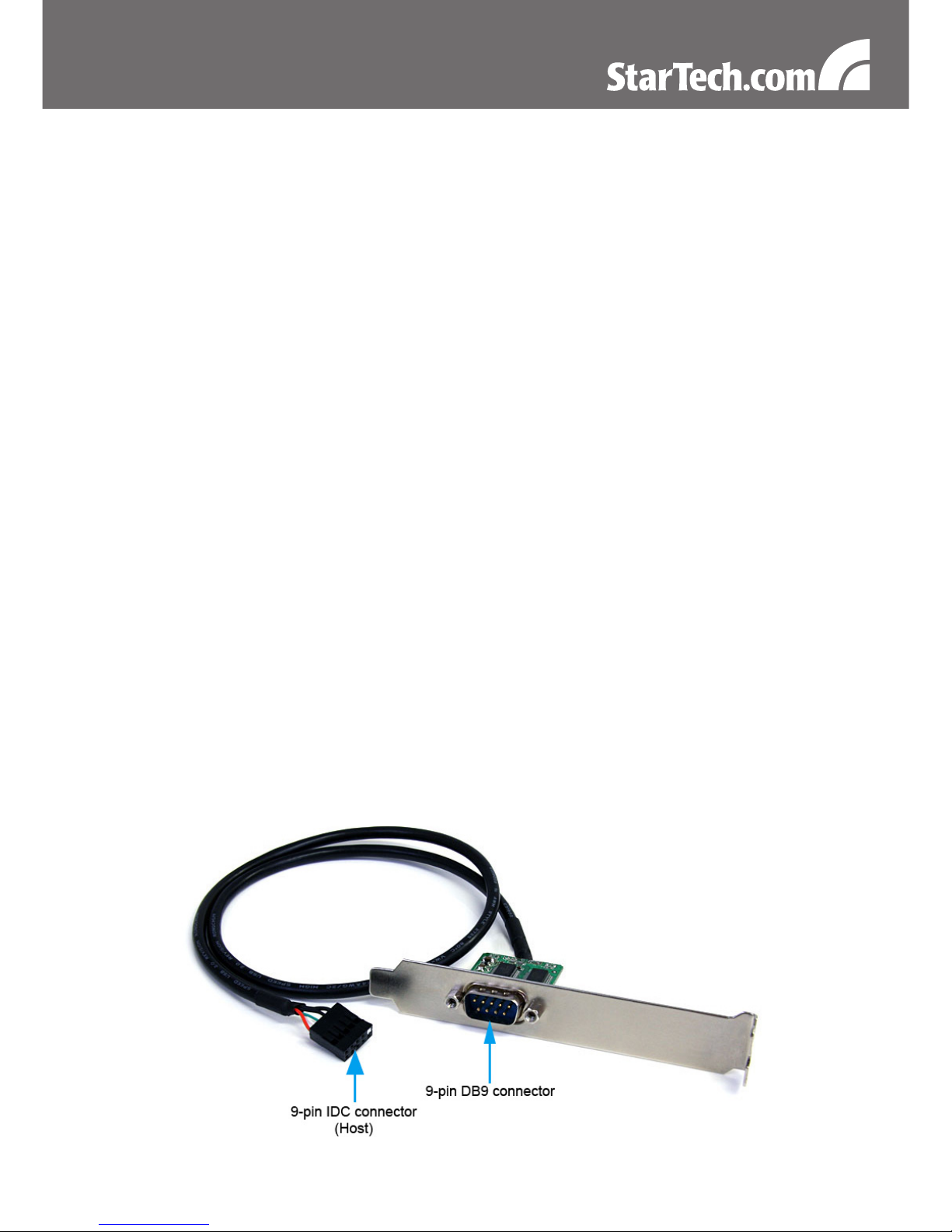

*1-Port model shown

*actual product may vary from photos

Installation

WARNING! Computer parts can be severely damaged by static electricity.

Be sure that you are properly grounded before opening your computer

case. StarTech.com recommends that you wear an anti-static strap when

installing any computer component. If an anti-static strap is unavailable,

discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds.

Hardware Installation

1. Turn your computer off and any peripherals connected to the computer

(i.e. Printers, external hard drives, etc.). Unplug the power cable from the

rear of the power supply on the back of the computer and disconnect all

peripheral devices.

2. Remove the cover from the computer case. Refer to documentation for

your computer system for details.

3. Locate an open expansion card slot on the rear of the computer case

and remove the metal cover plate.

4. Place the adapter’s expansion card bracket into the opening and fasten

the bracket to the rear of the case.

5. Locate a 9-pin USB header connector on the motherboard and

plug in the IDC connector on the cable. The IDC connector is keyed

to help prevent incorrect installation. See system or motherboard

documentation for details.

6. Place the cover back onto the computer case.

7. Insert the power cable into the socket on the power supply and

reconnect all other connectors removed in Step 1.

Driver Installation

Windows 2000/XP/Server 2003

1. When the Found New Hardware wizard appears on the screen, insert

the Driver CD into your CD/DVD drive. If you are prompted to connect to

Windows Update, please select the “No, not this time” option and click

Next.

2. Select the option “Install Drivers Automatically (Recommended)” and

then click the Next button.

3. Windows should now start searching for the drivers. Once this has

completed, click the Finish button.

Windows Vista/7/Server 2008 R2

1. When the Found New Hardware window appears on the screen, click

on the “Locate and install drivers software (recommended)” option. If

prompted to search online, select the “Don’t search online” option.

2. When prompted to insert the disc, insert the Driver CD that came

with the card, into your CD/DVD drive and Windows will automatically

proceed to search the CD.

3. If a Windows Security dialog window appears, click the “Install this driver

software anyway” option to proceed.

4. Once the driver is installed, click the Close button.

Specications

ICUSB232INT1 ICUSB232INT2

Bus Interface USB 2.0

Form Factor Full/Low Proﬁle

Chipset ID FTDI FT232R

Connectors

1 x DB9 male

1 x 9-pin IDC

female

2 x DB9 male

1 x 9-pin IDC

female

Supported Protocols RS232

Maximum Data

Transfer Rate 115.2 Kbps

Operating Temperature -40°C ~ 85°C (-40°F ~ 185°F)

Storage Temperature -65°C ~ 85°C (-85°F ~ 185°F)

Integrated Cable

Length 24 in

Weight 31 g 63 g

Compatible Operating

Systems

Windows 2000/XP/Server 2003/Vista/

Server 2008 R2/7 (32/64-bit), or Windows

XP Embedded/CE 4.2/CE 5.0/CE 6.0, or

Mac OS 9/10.4, or Linux kernel 2.4/2.6

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.

com USA LLP (or their ofﬁcers, directors, employees or agents) for

any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of proﬁts, loss of business, or any

pecuniary loss, arising out of or related to the use of the product exceed

the actual price paid for the product. Some states do not allow the

exclusion or limitation of incidental or consequential damages. If such

laws apply, the limitations or exclusions contained in this statement

may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government,

education and industrial facilities to name just a few. We offer

an unmatched selection of computer parts, cables, A/V products,

KVM and Server Management solutions, serving a worldwide

market through our locations in the United States, Canada, the

United Kingdom and Taiwan.

Visit www.startech.com today for complete information about

all our products and to access exclusive interactive tools such as

the Cable Finder, Parts Finder and the KVM Reference Guide.
