StarTech.com SVID2USB22 Manuel utilisateur

USB Video Capture Adapter

USB to S-Video/Composite

Video Capture Cable Adapter

with Audio

SVID2USB22

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction ..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 2

Verifying Installation.....................................................................2

Software Installation (Optional) ...................................................3

Speciﬁcations.................................................................. 4

Technical Support........................................................... 5

Warranty Information...................................................... 5

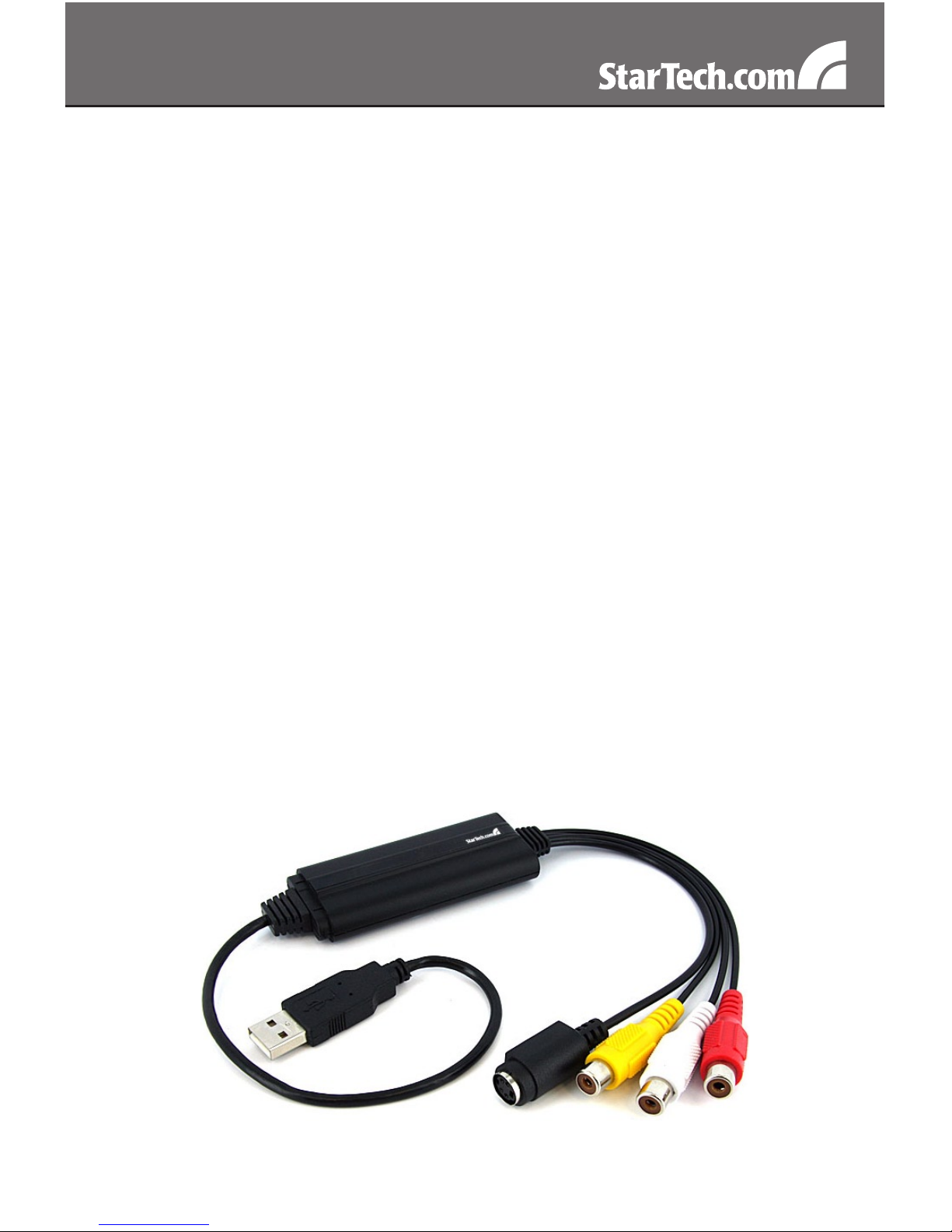

Introduction

The StarTech.com SVID2USB22 USB 2.0 S-Video/Composite video

Capture Cable lets you connect devices that output S-Video or

Composite video to a computer, through an available USB 2.0 port.

The cable also features two channel RCA stereo audio inputs, that let

you capture the audio that accompanies the S-Video or Composite

video signal. Support for TWAIN drivers to enable various third party

video capture software, the capture cable offers real time MPEG1 and

MPEG2 recording.

Packaging Contents

1 x SVID2USB22 video capture adapter•

1 x Driver Installation CD•

1 x Software Installation CD•

1 x Instruction Manual•

System Requirements

USB 2.0 enabled computer system with available port•

Microsoft• ®Windows®2000/XP/Vista/7 (32/64-bit)

Installation

Please insert the included Driver CD into the CD-ROM Drive.1.

At the Windows desktop, click Start, Run.2.

Type D:\ AV Grabber\Setup.exe, click OK. (Change D: to match your3.

CD-ROM drive letter)

If a Windows Security dialog window appears, click the “Install this4.

driver software anyway” or “Continue Anyways” option to proceed

Restart Windows to complete the driver installation.5.

Once the computer has booted into Windows, plug the SVID2USB226.

adapter cable into an available USB2.0 port.

Windows should automatically detect new hardware and begin to7.

load the drivers.

If a Windows Security dialog window appears, click the “Install this8.

driver software anyway” or “Continue Anyways” option to proceed.

Connect the video source to the video capture adapter either9.

through S-Video (black) or composite video (yellow) using the

appropriate cables. Stereo audio (red/white) can also be connected

to the adapter.

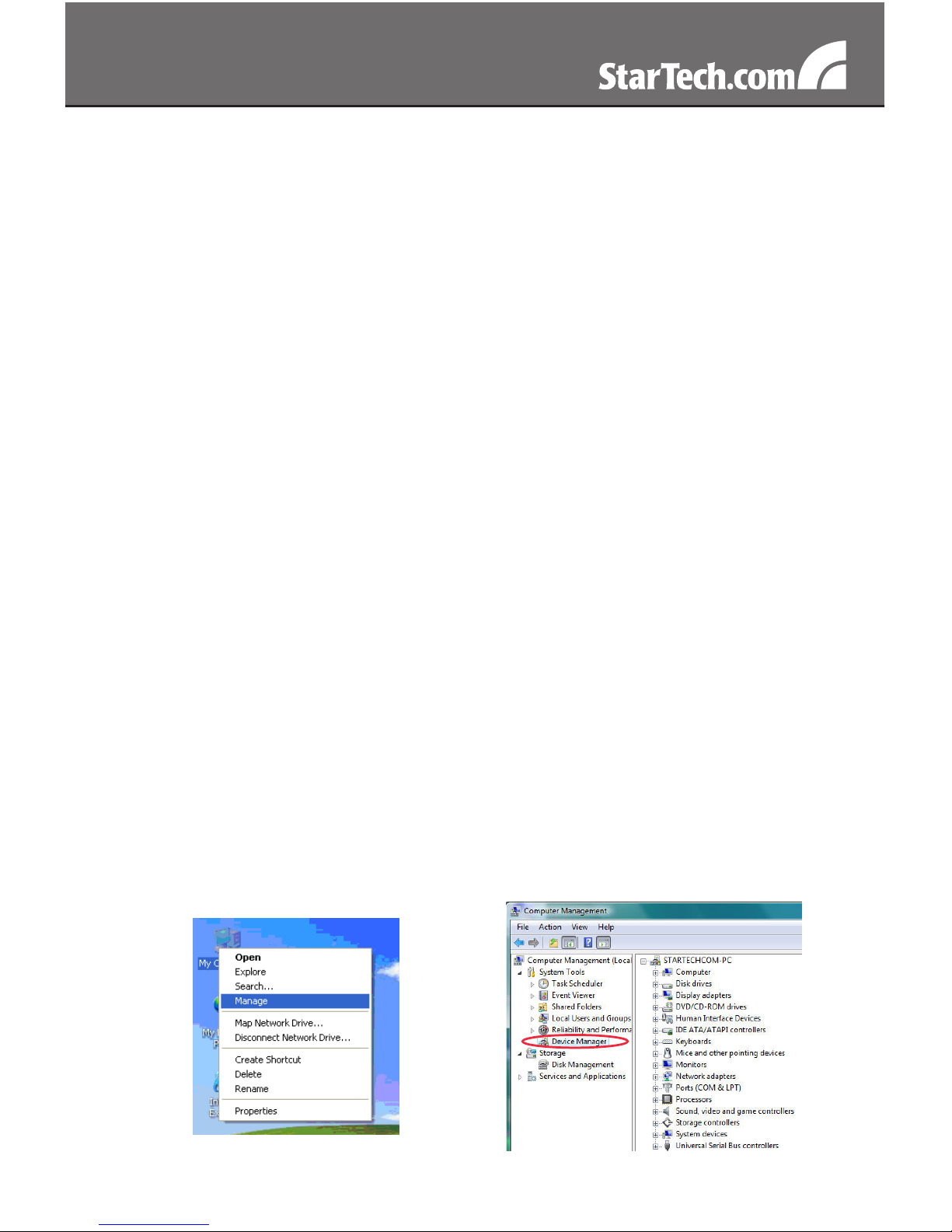

Verifying Installation

From the main desktop, right-click on “My Computer” (“Computer”

in Vista/7), then select Manage. In the new Computer Management

window, select Device Manager from the left window panel.

Click on the “+” (plus sign) in front of “Sound, video and game

controllers”, “AV Grabber” should be displayed under this category.

Software Installation (Optional)

To install Ulead®VideoStudio®for use as video capture and editing

software, follow these installation steps. If other video capture/editing

software is to be used, then this is not necessary.

Place the Ulead Video Studio SE CD into a CD-ROM drive and1.

setup should launch automatically. If setup does not launch, use

Windows Explorer to navigate to appropriate CD-ROM drive and run

the Setup.

The installation wizard will start the installation process, click OK to2.

start installing.

NOTE: The serial installation key is included on the back of the CD

sleeve.

Follow the installation wizard and complete the steps to ﬁnish Ulead3.

VideoStudio 11 SE DVD software.

NOTE: For any further assistance with installation, how-to-use or

troubleshooting VideoStudio problems, please contact the developer of

the software, Ulead (www.ulead.com).

Specications

Bus Interface USB 2.0

Connectors

1 x USB type A

1 x RCA composite (yellow)

2 x RCA stereo audio (red/white)

1 x S-Video female (black)

LEDs 1 x Power

Video System NTSC, PAL, SECAM

Maximum Video Resolution 720x480 (NTSC), 720x576 (PAL)

Video Encoding Support MPEG1, MPEG2

Dimensions 92.0mm x 33.0mm x 11.0mm

Weight 60g

Compatible Operating

Systems

Windows 2000/XP/Vista/7

(32/64-bit)

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Server

Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
