Stanley MultiLine 1-77-122 Manuel utilisateur

Please read these instructions before operating the product

MultiLine

5 - Beam Self-Leveling Multi-Line Laser

77-122

Self-Leveling

FIN

277-122

Carefully read the Safety Instructions and User Manual before using this product. The person

responsible for the instrument must ensure that all users understand and adhere to these

instructions.

Retain this manual for future reference.

IMPORTANT: The following labels are on your laser tool for your convenience and safety.

They indicate where the laser light is emitted by the level. ALWAYS BE AWARE of their

location when using the level.

1. Safety

2. Product Description

3. Speciﬁcations

4. Operating Instructions

5. Calibration

6. Maintenance and Care

7. Warranty

User Safety

Safety

Contents

EN 60825-1

LASER RADIATION - DO NOT

STARE INTO BEAM OR VIEW

DIRECTLY WITH

OPTICAL INSTRUMENTS

CLASS 1M LASER PRODUCT

MAX OUTPUT ≤ 1 mW @ 630 - 670 nm

FIN

GB ENGLISH

GERMAN

FRENCH

ITALIAN

SPANISH

PORTUGUESE

DUTCH

DANISH

SWEDISH

FINNISH

NORWEGIAN

POLISH

GREEK

CZECH

RUSSIAN

HUNGARIAN

SLOVAKIAN

SLOVENIAN

BULGARIAN

ROMANIAN

ESTONIAN

LATVIAN

LITHUANIAN

TURKISH

CROATIAN

FIN

LT LT LT LT

TR TR TR

HR HR HR HR

77-122

DO NOT remove any warning label(s) on the housing. This instrument must only be used for

leveling and layout tasks as outlined in this manual.

ALWAYS make sure that any bystanders in the vicinity of use are made aware of the

dangers of looking directly into the laser tool.

DO NOT use in combination with other optical instruments. Do not modify the instrument, or

make manipulations or use in other applications than those described in the manual.

DO NOT look into the beam with optical aids, such as magniﬁers, binoculars or Telescopes.

DO NOT stare into the laser beam or direct it towards other persons. Make sure the

instrument is not set at eye level. Eye protection is normally afforded by natural aversion

responses such as the blink reﬂex.

DO NOT direct the laser beam at other persons.

ALWAYS turn the laser tool “OFF” when not in use. Leaving the laser tool “ON” increases

the risk of someone inadvertently staring into the laser beam.

DO NOT operate the laser tool in combustible areas such as in the presence of ﬂammable

liquids, gases or dust.

DO NOT disassemble the laser tool. There are no user serviceable parts inside.

Disassembling the laser will void all warranties on the product. Do not modify the product in

any way. Modifying the laser tool may result in hazardous laser radiation exposure.

DO NOT use this instrument in areas where a risk of explosion is present.

NOTE: Since the laser beam is of the focused type, ensure you check the beam’s path over

a relatively long distance and take all necessary precautions to ensure the beam cannot

interfere with other persons.

477-122

WARNING: Batteries can explode or leak and can cause injury or ﬁre. To reduce this risk:

ALWAYS follow all instructions and warnings on the battery label and package.

DO NOT short any battery terminals

DO NOT charge alkaline batteries.

DO NOT mix old and new batteries. Replace all of them at the same time with new batteries

of the same brand and type.

DO NOT mix battery chemistries.

DO NOT dispose of batteries in ﬁre.

ALWAYS keep batteries out of reach of children.

ALWAYS remove batteries if the device will not be used for several months.

NOTE: Ensure that the correct batteries as recommended are used.

NOTE: Ensure the batteries are inserted in the correct manner, with the correct polarity.

DO NOT dispose of this product with household waste.

ALWAYS dispose of batteries per local code.

PLEASE RECYCLE in line with local provisions for the collection and disposal of electrical

and electronic waste under the WEEE Directive.

Battery Safety

End of Life

77-122

ROHS Compliant

The Stanley Works declares that the CE Mark has been applied to this

product in accordance with the CE Marking Directive 93/68/EEC.

This product conforms with EN60825-1:2007.

For further details please refer to www.stanleyworks.com.

Declaration of Conformity

Product Description

Package Contents

1. Laser Unit

2. IR Remote Controller

3. Laser Target

4. Glasses

5. Carrying Case

6. Batteries (Laser Unit - 4 x AA, IR Remote Controller - 2 x AA)

7. User Manual

EN 60825-1

677-122

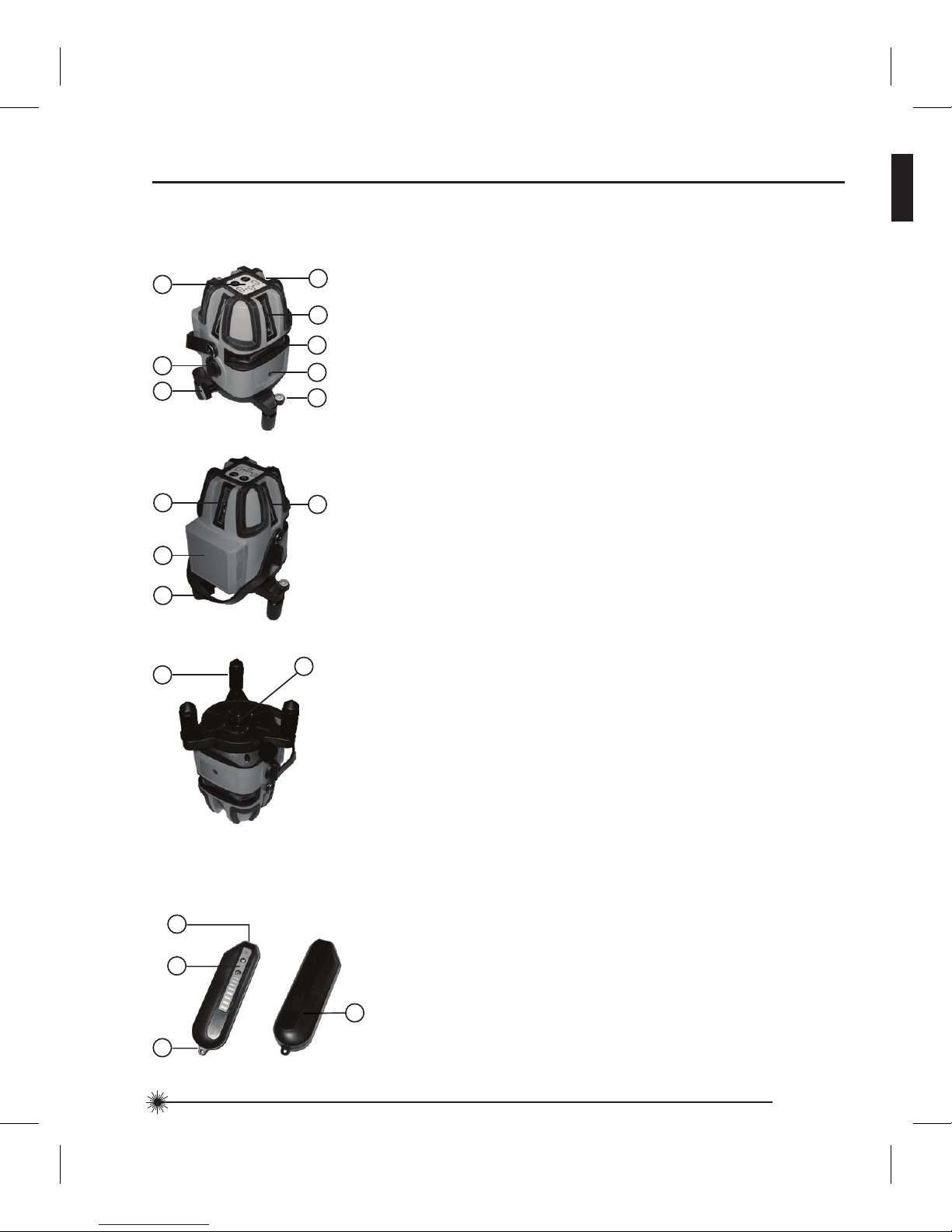

Product Overview

1. Keyboard

2. Main Power / Transport Lock

3. Fine Tuning Wheel

4. Window for 90° Vertical Reference Beam Laser

5. Window for Front Vertical Beam Laser

6. Window for Horizontal Beam Laser

7. IR Sensor

8. Bubble Level

9. Window for Rear Vertical Beam Laser

10. Laser Warning Label

Battery Compartment Cover

11. Handle

12. Window for 90° Vertical Reference Beam Laser

Laser Unit

13. Adjustable Legs 3x

14. 5/8 - 11 Threaded Mount

Window for Down Beam Laser

IR Remote Controller

1. IR LED

2. Keyboard

3. Location for Lanyard

4. Battery Compartment Cover

77-122

Leveling Accuracy:

Down Beam Accuracy:

Square Beam Accuracy:

Horizontal / Vertical Accurracy

Working Range:

Working Distance:

with Laser Detector:

Laser Class:

Laser Wavelength:

Operating Time:

Power Voltage:

Power Supply:

IP Rating:

Operating Temperature Range:

Storage Temperature Range:

Weight (without Base and Batteries):

≤ 2 mm / 10 m (≤ 5/64 in / 30 ft)

≤ 1 mm / 1.5 m (≤ 1/32 in / 5 ft)

≤ 1 mm / 5 m (≤ 1/32 in / 15 ft)

≤ 2 mm / 10 m (≤ 5/64 in / 30 ft)

Self-Leveling to ± 3°

≤ 15 m (≤ 50 ft)

≤ 50 m (≤ 165 ft)

Class 1M

635 nm ± 5 nm

6 h

6 V

4 x AA Batteries (Alkaline)

IP54

-10° C to +40° C (+14° F to +104° F)

-20° C to +60° C (-4° F to +140° F)

980 g (34,5 oz)

Speciﬁcations

Laser Unit

877-122

110 mm × 105 mm × 180 mm

(4 5/16 in × 4 1/8 in × 7 1/16 in)

Size:

IR Remote Controller

3 V

2 x AA Batteries (Alkaline)

37 g (1,3 oz)

35 mm × 25 mm × 120 mm

(1 3/8 in × 1 in × 4 3/4 in)

Power Voltage:

Power Supply:

Weight (without Batteries):

Size:

77-122

Operating Instructions

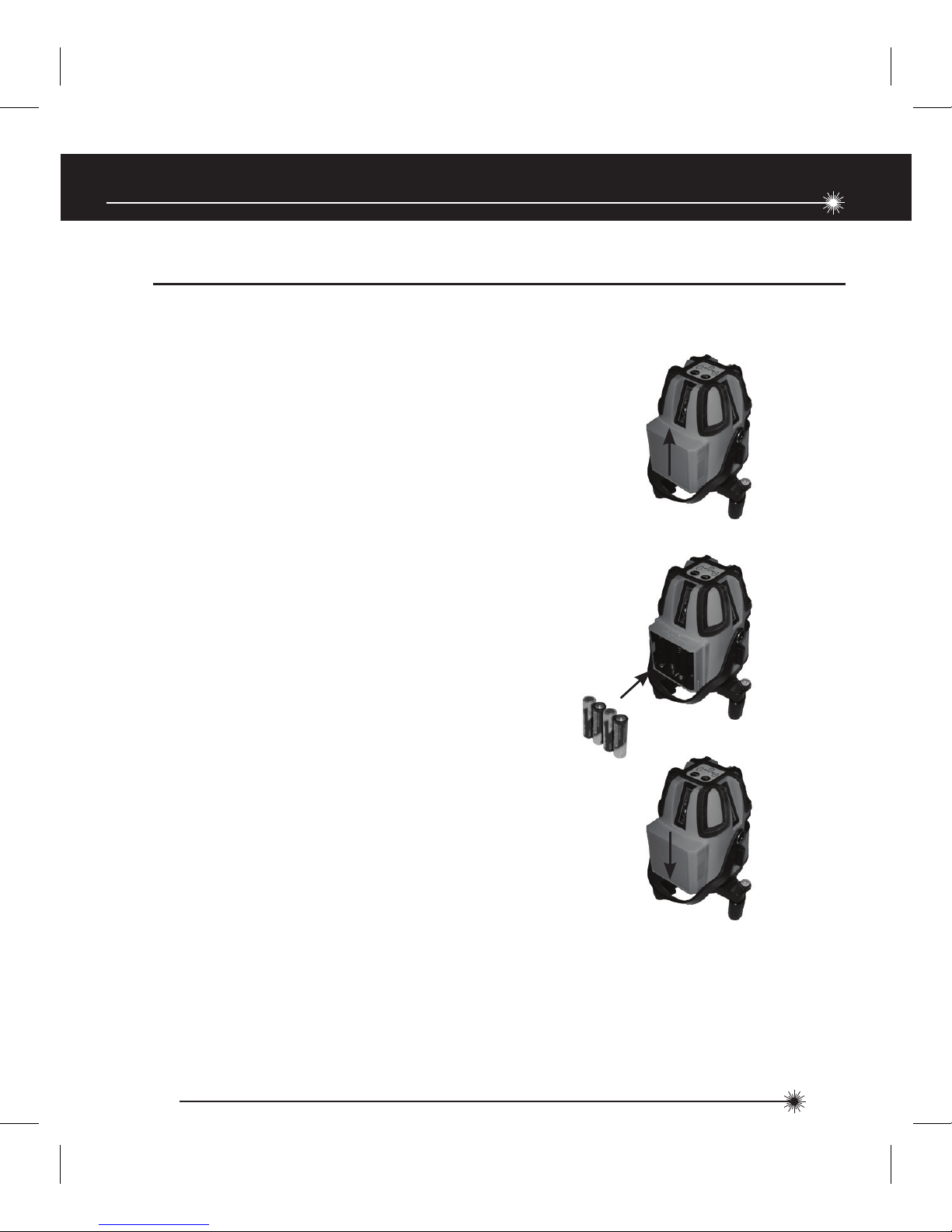

1. Turn laser unit to back. Open battery

compartment cover by pressing and sliding

out.

2. Install / Remove batteries. Orient batteries

correctly when placing into laser unit.

3. Close and lock battery compartment cover

by sliding in until securely closed.

Laser Unit

Battery Installation / Removal

10 77-122

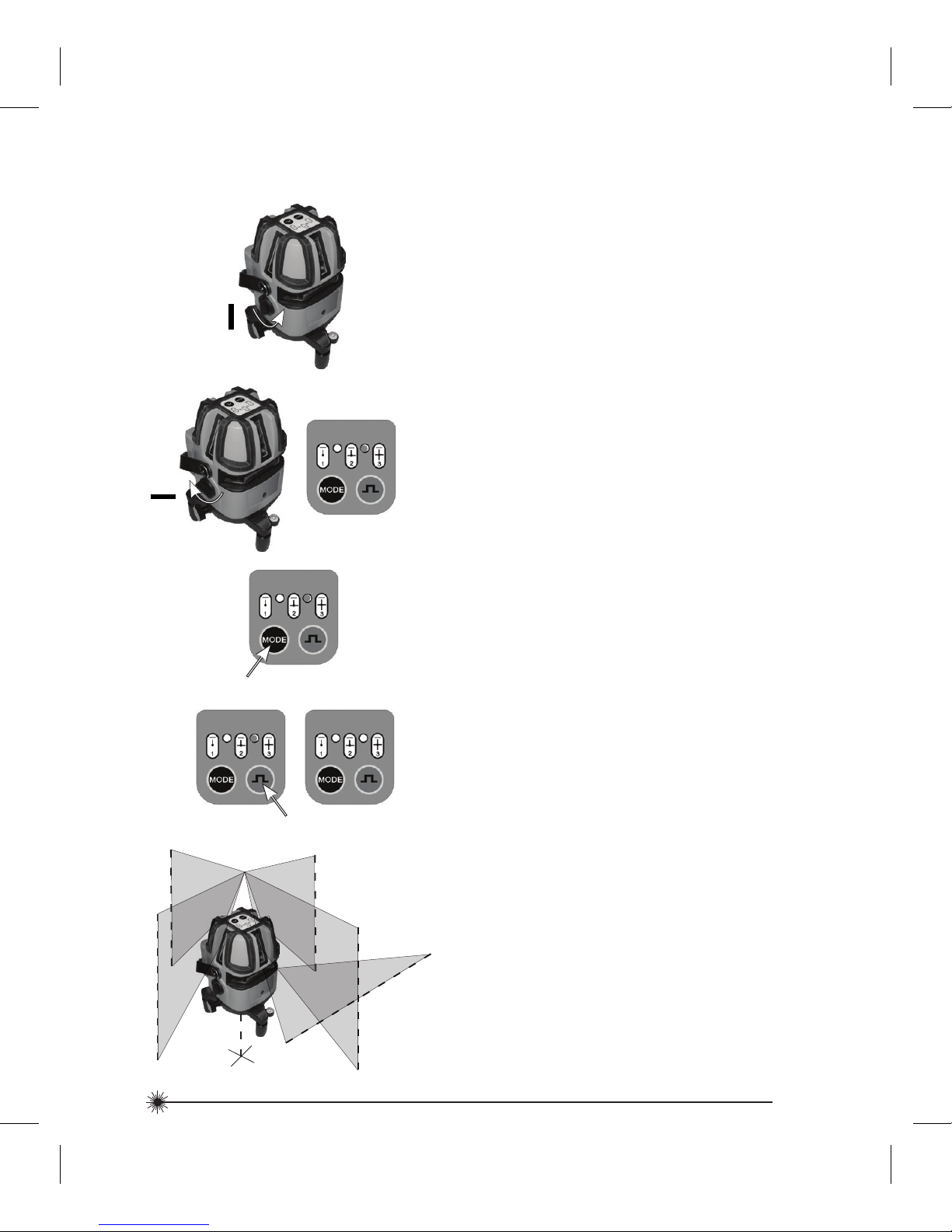

4. Press pulse mode key to toggle between

pulse mode ON and OFF. Indicator LED lights

green when on. Pulse mode allows use with

a laser detector.

2. Transport lock in unlocked position. Laser

power is ON. Down laser beam and

horizontal laser beam turn on. Left LED

indicator lights green when laser power is

on.

3. Press laser mode key to toggle through

available laser modes - horizontal only,

both horizontal and vertical, horizontal and

vertical with left and right 90° vertical

reference beam, horizontal with all 4 vertical.

1. Transport lock in locked position. Laser

power is OFF.

5. Laser beam(s) blink to indicate the laser unit

is out of the working range. Reposition laser

unit to be more level.

Pulse Mode

Function

Laser Mode

Unlocked

Locked
