Introduction

The SPC58NG-DISP discovery board is the hardware platform to evaluate and develop applications with the SPC58NG84E7

microcontroller at budget price.

This document describes the hardware architecture of the board and how it is possible to enable specific functions.

SPC58NG-DISP discovery board

UM2255

User manual

UM2255 - Rev 3 - February 2021

For further information contact your local STMicroelectronics sales office.

www.st.com

1SPC58NG-DISP

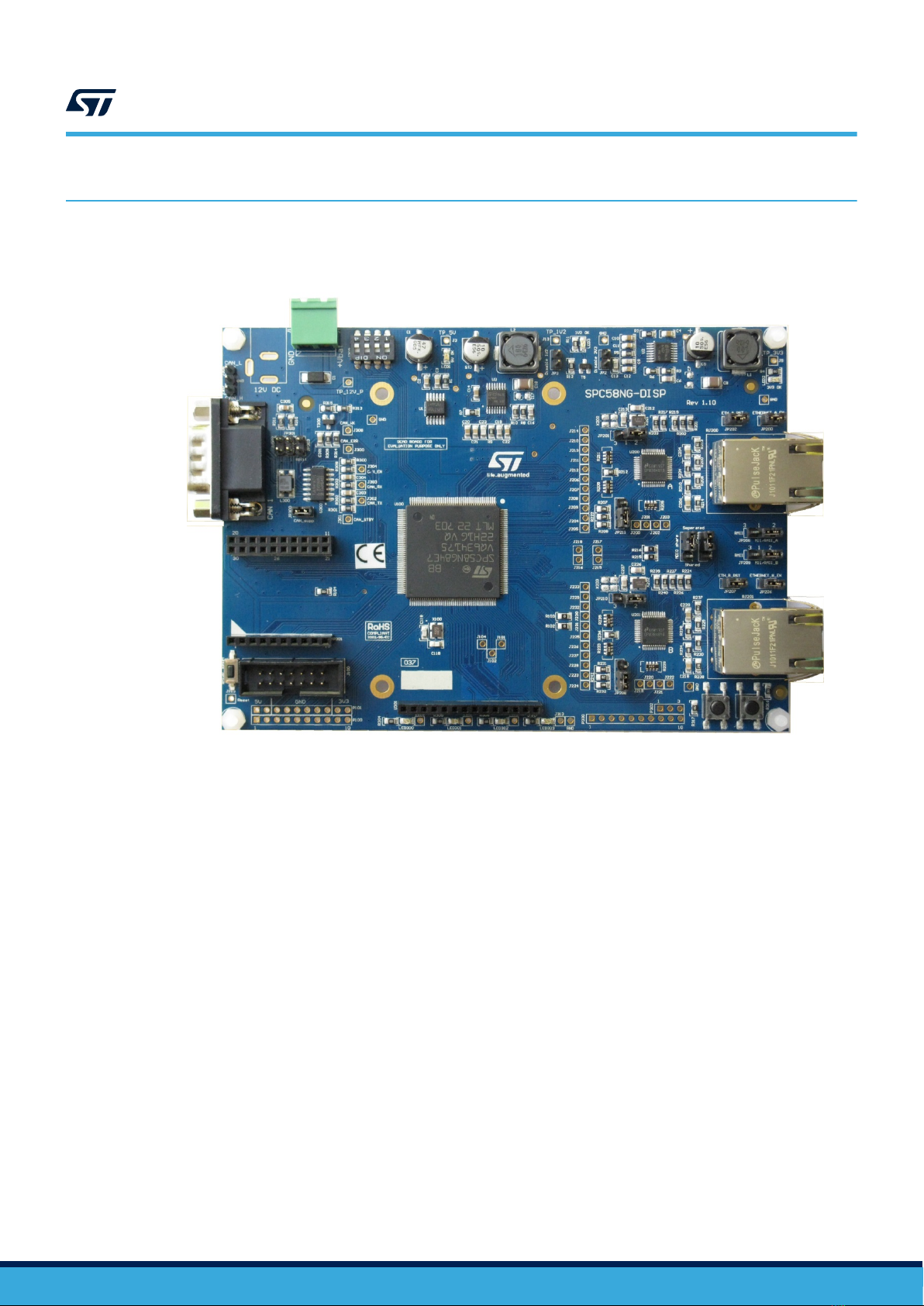

Figure 1. SPC58NG-DISP

The SPC58NG-DISP discovery board is based on the microcontroller SPC58NG84E7, a high performance

e200z4d triple core 32-bit Power Architecture® technology CPU, 6 MB Flash with HSM cryptography in an

eTQFP176 package.

The several interfaces including GPI/O's, peripherals such as DSPI, LINFlexD (LIN and UART), FlexRay, M_CAN

ISO CAN-FD and two ethernet ports make the SPC570S-DISP an excellent starter kit for the customer to quickly

evaluate the microcontroller as well as to develop and debug application.

Free ready-to-run application firmware examples are available inside SPC5Studio web page (www.st.com/

spc5studio) to support quick evaluation and development.

The PCB, the components and all HW parts assembled in this board meet the requirements of the applicable

RoHS directives.

UM2255

SPC58NG-DISP

UM2255 - Rev 3 page 2/16

1.1 I/O interface and connectors

• 2 ethernet ports 100BASE-TX

• 1 CAN FD port with DB9 connector

• 1 CAN + 1 LIN/UART +1 SPI

• 2 FlexRay channels

• JTAG (header 2 x 7 pin)

• 4 LED’s user

• 4 DIP switches

• 2 user push buttons

• 12 V DC power supply (external PSU)

• RESET push button

• 40 MHz crystal

• Option: LCD TFT display (320 x 240) with touch screen

UM2255

I/O interface and connectors

UM2255 - Rev 3 page 3/16

2SPC58NG-DISP block diagram

Figure 2. SPC58NG-DISP block diagram

SPC58NG84E7

UM2255

SPC58NG-DISP block diagram

UM2255 - Rev 3 page 4/16

3Hardware overview

Figure 3. SPC58NG-DISP: HW overview

3.1 Power supply section

The Figure 4 shows the PSU block diagram.

The DC input source is 12 V and the three voltage regulators generate 5 V, 3.3 V and 1.2 V supply voltages.

The LEDs D1, D2 and D3 are used to monitor the output of each voltage regulator as well as the test points J2,

J3, J5 and J13 to allow measuring the voltage levels 12 V, 5 V, 3.3 V and 1.2 V respectively.

Figure 4. PSU section – block diagram

5 V

3.3 V

1.2 V

12 V PSU

input linear regulator

5 V

switching regulator

1.2 V

switching regulator

3.3 V

12 V DC

input

UM2255

Hardware overview

UM2255 - Rev 3 page 5/16

3.1.1 Power supply - jumper configuration

U2 provides 3.3 V output voltage used to supply the VDD_HV pins. The test point J5 can be used to monitor the

VDD_HV supply voltage level.

The VDD_LV pin can be supplied using an internal regulator and a ballast BJT or providing the supply by using an

external source. In the default configuration the jumpers are set to supply VDD_LV with the external source (U3)

The VDD_LV power supply configuration can be easily configured setting the soldering jumpers as summarized in

the table here below.

Table 1. Power supply - jumper configuration

Configuration JP100 JP101 JP102 R100

External supply (default) Open 1-3 1-2 Removed

Internal regulator + external BJT Closed 1-2 1-3 Assembled

Figure 5. Microcontroller power supply configuration

UM2255

Power supply section

UM2255 - Rev 3 page 6/16

3.2 Microcontroller section

3.2.1 Programmer/debugger JTAG port

A standard 14 pin JTAG port is available for programming and debugging (Figure 6).

Figure 6. JTAG connector

UM2255

Microcontroller section

UM2255 - Rev 3 page 7/16

3.3 User LEDs and user buttons

In the board, the following functions are available:

• 4 LEDs (Figure 7)

• 2 push buttons (Figure 8)

• 4 DIP switches (Figure 9)

Figure 7. User LEDs

Figure 8. User push buttons

Figure 9. Dip switches

UM2255

User LEDs and user buttons

UM2255 - Rev 3 page 8/16

3.4 Ethernet configuration

Figure 10. Ethernet configuration

UM2255

Ethernet configuration

UM2255 - Rev 3 page 9/16

3.4.1 Ethernet MII / RMII configuration

Table 2. Ethernet MII jumper configuration

Default configuration - MII

Jumper Jumper setting

JP205 1-2

JP201 1-2

JP211 1-2

JP209 1-2

JP210 1-2

JP208 1-2

Table 3. Ethernet RMII jumper configuration

Default configuration - RMII

Jumper Jumper setting

JP205 1-3

JP201 1-3

JP211 1-3

JP209 1-3

JP210 1-3

JP208 1-3

X200 Assembled

X203 Assembled

3.4.2 Ethernet PHY serial management

Table 4. Ethernet - Configuration for separated management

Configuration for separated management

MDC0, MDIO0 linked to ETH0

MDC1, MDIO1 linked to ETH1

JP203 1-2

JP204 1-2

Table 5. Ethernet - Configuration for share management

Configuration for shared management

MDC0, MDIO0 linked to ETH0 and ETH1

ETH0 = address 1

ETH1 = address 3

JP203 1-3

JP204 1-3

UM2255

Ethernet configuration

UM2255 - Rev 3 page 10/16
