Introduction

This document is intended as quick guide to help the user in the startup phase of EVAL-L9963-MCU combining and

summarizing the information contained in EVAL-L9963-MCU and STSW-L9963 user manuals.

L9963 14 Cells BMC IC Evaluation Board Quick Guide

AN5560

Application note

AN5560 - Rev 2 - November 2020

For further information contact your local STMicroelectronics sales office.

www.st.com

1What you need

• EVAL-L9963-MCU

• USB cable

• Power supply (at least 3 output 0 – 30 V (if possible 60V):

– 1 output to power L9963 (0:60 V)

– 1 output to simulate Cells common mode voltage (0:60 V)

– 1 output to simulate Cell voltage (0:5 V)

• L9963 evaluation GUI STSW-L9963

• NI Labview-runtime 2014

• NI VISA-RUNTIME

Note: Before using the UART/USB bridge FT2232H, the Virtual Com Port (VCP D2XX) driver needs to be installed. It

can be downloaded by the FTDI Chip website.

Figure 1. EVAL-L9963-MCU board

Figure 2. EVAL-L9963-NDS board

AN5560

What you need

AN5560 - Rev 2 page 2/25

2Board description

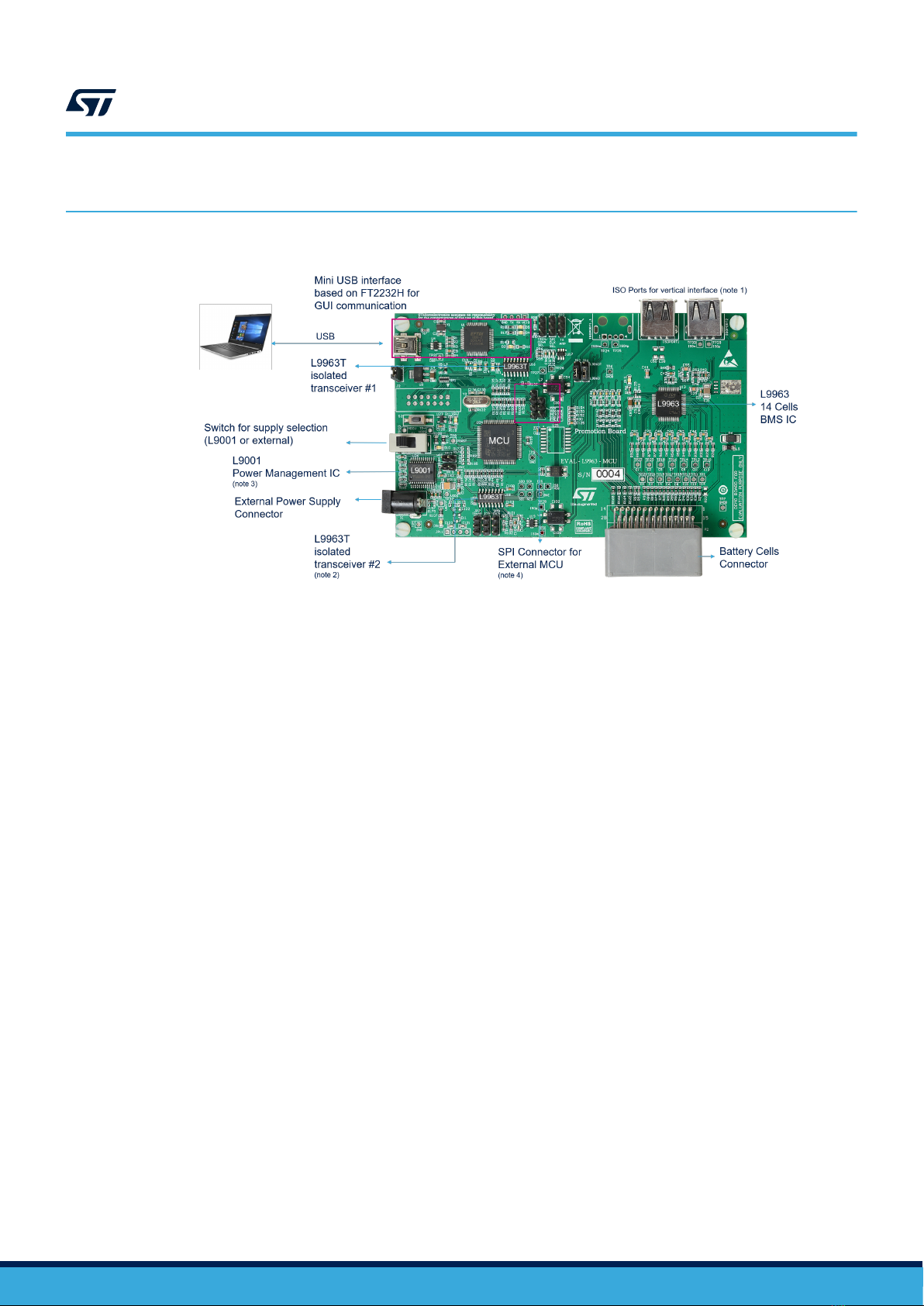

Figure 3. Main components and connectors

Note: 1. EVAL-L9963-MCU can be considered the only stage or the first stage of several stages. The port is the

isolated vertical interface to the next stage (EVAL-L9963-NDS);

2. A second L9963T (optional) may be needed to create a direct loop with the last stage (dual ring access);

3. MCU can be supplied either by USB or by L9001 (PMIC);

4. On board MCU can be bypassed in case a different MCU is needed for the user trials; these pins allow

an SPI connection with an external MCU (upon a specific board configuration). Anyway a specific board

derivative of EVAL-L9963-MCU has been designed for this purpose (same form factor/layout with MCU not

mounted: EVAL- L9963).

AN5560

Board description

AN5560 - Rev 2 page 3/25

3Block diagram

Figure 4. EVAL-L9963-MCU block diagram

AN5560

Block diagram

AN5560 - Rev 2 page 4/25

4Microcontroller Power supply

Figure 5. Microcontroller Power supply

AN5560

Microcontroller Power supply

AN5560 - Rev 2 page 5/25

5L9963 external connection and power supply

Figure 6. L9963 external connection and power supply

AN5560

L9963 external connection and power supply

AN5560 - Rev 2 page 6/25

6Transceiver settings

Figure 7. Transceiver settings

AN5560

Transceiver settings

AN5560 - Rev 2 page 7/25

7Possible connection for battery simulation

Figure 8. Battery simulation 1

Figure 9. Battery simulation 2

AN5560

Possible connection for battery simulation

AN5560 - Rev 2 page 8/25

8Preliminary action to open the GUI

Install the following SW on your PC:

• NI Labview-runtime 2014

• NI VISA-RUNTIME

• FTDI driver

– Before using the UART/USB bridge FT2232H, the Virtual Com Port (VCP) driver needs to be installed.

It can be downloaded by the FTDI Chip website.

When all is installed reboot your PC and open STSW-L9963.exe

AN5560

Preliminary action to open the GUI

AN5560 - Rev 2 page 9/25

9USB to PC connection

Figure 10. USB to PC connection

AN5560

USB to PC connection

AN5560 - Rev 2 page 10/25
