ST X-NUCLEO-OUT11A1 Manuel utilisateur

Introduction

The X-NUCLEO-OUT11A1 is an industrial digital output expansion board for STM32 Nucleo. It provides a powerful and flexible

environment for the evaluation of the driving and diagnostic capabilities of the ISO808 octal high-side smart power solid state

relay, with embedded galvanic isolation, in a digital output module connected to 0.7 A industrial loads.

The X-NUCLEO-OUT11A1 directly interfaces with the microcontroller on the STM32 Nucleo driven by GPIO pins and Arduino®

R3 connectors.

The galvanic isolation between the microcontroller and the process stage is guaranteed by the ISO808.

The expansion board can be connected to either a NUCLEO-F401RE or a NUCLEO-G431RB development board.

It is also possible to evaluate a system composed of a X-NUCLEO-OUT11A1 stacked on other expansion boards.

Figure 1. X-NUCLEO-OUT11A1 expansion board

Getting started with the X-NUCLEO-OUT11A1 industrial digital output expansion

board for STM32 Nucleo

UM3079

User manual

UM3079 - Rev 1 - December 2022

For further information contact your local STMicroelectronics sales office. www.st.com

1Getting started

1.1 Overview

The X-NUCLEO-OUT11A1 embeds the ISO808 intelligent power switch (IPS), which features galvanic isolation,

overcurrent and overtemperature protection for safe output loads control.

The board is designed to meet the application requirements for the galvanic isolation between the user and power

interfaces.

The galvanic isolation embedded by the ISO808 satisfies this requirement, avoiding the necessity of external

optocouplers, with a consequent cost saving and a reduced application size.

The expansion board features:

• Based on the ISO808 octal high-side switch, which features:

– Operating range 9.2 to 36 V

– Low power dissipation (RON(MAX) = 260 mΩ)

– Process side operating current: up to 0.7 A per channel

– Embedded 2k VRMS galvanic isolation

– Direct (jitter < 20us) and synchronous (jitter < 6us) control modes

– Fast decay for inductive loads

– Undervoltage lock-out

– Overload and overtemperature protections

– Loss of ground protection

– PowerSO36 package

• Application board process side operating range: 10 (J10 open) to 33 V (J9 closed)

• Extended operating range of process side from 9.2 (J10 closed) up to 36 V (J9 open)

• Application board logic side operating voltage 3.3 to 5 V

• Green LEDs for outputs on/off status (J6 and J7 close 1-2, 3-4, 5-6, 7-8)

• Red LED for common overheating and communication error diagnostic (J3 close 1-2)

• Yellow LED for output enable status signalization (J3 close 5-6)

• Direct control mode (J1, J2 closed)

• Synchronous control mode (J1, J2 open)

• Process and logic supply rails reverse polarity protections

• Compatible with STM32 Nucleo development boards

• Equipped with Arduino® UNO R3 connectors

• RoHS and China RoHS compliant

• CE certified

• Radiated emission: class B according to the standard EN 55032

UM3079

Getting started

UM3079 - Rev 1 page 2/19

1.2 Digital section

The digital section is associated with the STM32 interface and the digital supply voltage to and from the

X-NUCLEO-OUT11A1 expansion board.

Figure 2. X-NUCLEO-OUT11A1 expansion board: digital interface section

The dotted green line indicates the whole digital interface section. The pink rectangles identify the Arduino® UNO

R3 connectors.

The four Arduino® UNO R3 connectors:

•allow the expansion board to communicate with the STM32 Nucleo development board microcontroller

accessing the STM32 peripheral and GPIO resources;

• provide the digital supply voltage between the STM32 Nucleo development board and the X-NUCLEO-

OUT11A1 expansion board, in either direction.

Usually, the STM32 Nucleo development board supplies the expansion board by a 3.3 V or 5.0 V generated by

the USB.

Alternatively, it is possible to supply the STM32 Nucleo development board by the expansion board. In this case,

an external supply voltage (7-12 V) should be connected to the CN11 connector (not mounted by default) on the

expansion board and the ground loop should be closed by mounting D2 (enabling the reverse polarity protection)

or by closing J5 (without reverse polarity). In this scenario, the logic side of the ISO808 can be supplied by the

3.3 V supply rail generated by the expansion board: in this case, on the X-NUCLEO-OUT11A1, J4 must be closed

between pins 5 and 6.

To supply the VIN voltage rail, it is necessary to:

• close the JP5 jumper between pins 2 and 3 and open the JP1 jumper on the NUCLEO-F401RE;

• open the JP5 jumper between pins 1 and 2 and close the JP5 jumper between pins 3 and 4 on the

NUCLEO-G431RB.

The pin 3 of the connector CN11 can be used to supply the logic side of the ISO808 independently by the

expansion board. In this case, on the X-NUCLEO-OUT11A1, the pins 1 and 2 of J4 must be closed (pins 5-6

open).

UM3079

Digital section

UM3079 - Rev 1 page 3/19

1.3 Power section

The power section involves the power supply voltage (CN1, pin 1 for VCC, pin 2 for GND), the load connection

(eight loads can be connected between each pin of CN2, CN3, CN4, and CN12 and pin 2 of CN1), EMC

protections (U2), and supply reverse polarity protection (D1).

Figure 3. X-NUCLEO-OUT11A1 expansion board: power section components

1. ISO808

2. Output and power supply connector

3. Output channels - green LEDs

4. Status (overtemperature) red LED

5. Output Enable yellow LED

For EMC:

•the SM15T39CA transient voltage suppressor (U2), enabled by closing J9, is placed between VCC and

GND tracks to protect the ISO808 against surge discharge on the supply rail path up to ±1 kV/2 Ω coupling;

• in the common mode surge testing, two single-layer capacitors (C11 and C12 - not included) must be

soldered at the predisposed locations;

• the ISO808 output stages do not require additional EMC protections with respect to the IEC61000-4-2,

IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-8 standards.

The EMC performance of the X-NUCLEO-OUT11A1 is detailed below:

• for emission (when the DC input port of the board is powered by an AC-DC, DC-DC or battery with a cable

that does not exceed a three-meter length), compliance with standards:

– EN IEC 61000-6-3:2021

– EN 55032:2015 +A1:2020

• for immunity, compliance with standards:

– EN IEC 61000-6-1:2019

– EN 55035:2017 +A11:2020

UM3079

Power section

UM3079 - Rev 1 page 4/19

1.4 Hardware requirements

The X-NUCLEO-OUT11A1 expansion board is designed to be used with the NUCLEO-F401RE or NUCLEO-

G431RB STM32 Nucleo development boards.

To function correctly, the X-NUCLEO-OUT11A1 must be plugged onto the matching Arduino® UNO R3 connector

pins on the STM32 Nucleo board as shown below.

Figure 4. X-NUCLEO-OUT11A1 and STM32 Nucleo stack

1.5 System requirements

To use the STM32 Nucleo development boards with the X-NUCLEO-OUT11A1 expansion board, you need:

• a Windows PC/laptop (Windows 7 or above)

• a type A to mini-B USB cable to connect the STM32 Nucleo board to the PC when using a NUCLEO-

F401RE development board

• a type A to micro-B USB cable to connect the STM32 Nucleo board to the PC when using a NUCLEO-

G431RB development board

• the X-CUBE-IPS firmware and software package installed on your PC/laptop

UM3079

Hardware requirements

UM3079 - Rev 1 page 5/19

1.6 Board setup

Step 1. Connect the mini-USB or micro-USB cable to your PC to use the X-NUCLEO-OUT11A1 with NUCLEO-

F401RE or NUCLEO-G431RB development board

Step 2. Download the firmware (.bin) onto the STM32 Nucleo development board microcontroller through

STM32 ST-LINK utility, STM32CubeProgrammer, and according to your IDE environment as detailed in

the table below.

The X-NUCLEO-OUT11A1 must be configured coherently to the selected control mode for ISO808-1:

J1 and J2 open (synchronous) or J1 and J2 closed (direct).

The binary files provided with the X-CUBE-IPS software package are generated by enabling the

synchronous control mode. The user can anyway set the preferred control mode by using the

preprocessor directive USE_SCM (for synchronous) or USE_DCM (for direct). The modification to

control mode becomes effective on the binary files after rebuilding.

Table 1. NUCLEO-F401RE development board supported IDEs - bin files

NUCLEO-F401RE

IAR Keil STM32CubeIDE

EWARM-OUT11_13-

STM32F4xx_Nucleo.bin

MDK-ARM-OUT11_13-

STM32F4xx_Nucleo.bin

STM32CubeIDE-OUT11_13-

STM32F4xx_Nucleo.bin

Table 2. NUCLEO-G431RB development board supported IDEs - bin files

NUCLEO-G431RB

IAR Keil STM32CubeIDE

EWARM-OUT11_13-

STM32G4xx_Nucleo.bin

MDK-ARM-OUT11_13-

STM32G4xx_Nucleo.bin

STM32CubeIDE-OUT11_13-

STM32G4xx_Nucleo.bin

Step 3. Connect the ISO808 device supply voltage via CN1 (see Section 1.3 Power section).

Step 4. Provide the digital supply voltage (see Section 1.2 Digital section).

Step 5. Connect the load on the output connector (see Section 1.3 Power section).

Step 6. Reset the example sequence by pushing the black button on the STM32 Nucleo board.

Step 7. Push the blue button on the STM32 Nucleo board to choose among the examples provided in the

default firmware package.

UM3079

Board setup

UM3079 - Rev 1 page 6/19

2Schematic diagrams

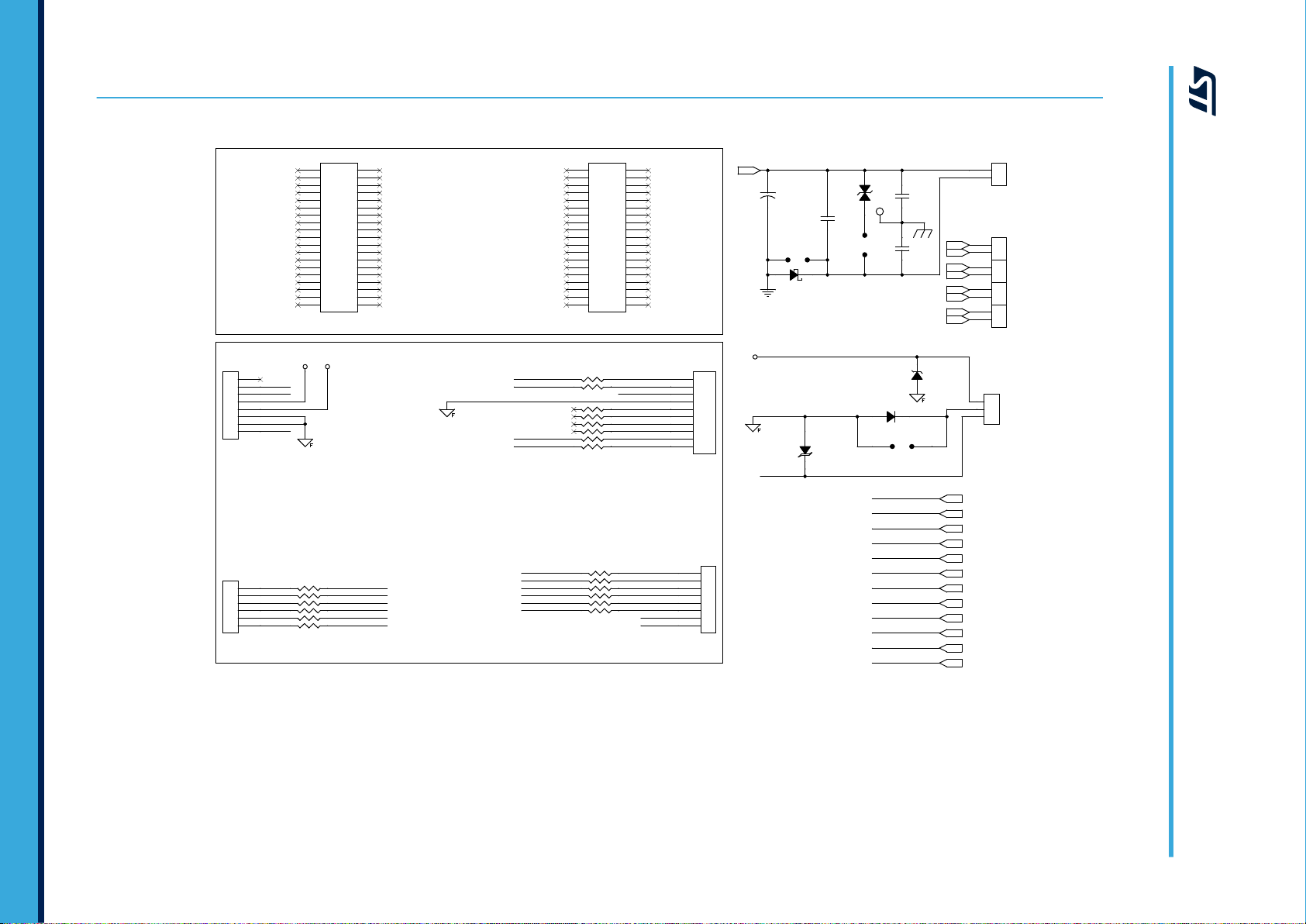

Figure 5. X-NUCLEO-OUT11A1 circuit schematic (1 of 2)

Analog supply

10V - 36 V

DEFAULT

Al t er nat e use

PC7

IOREF

PB10

DEFAULT

PA5

PA9

DEFAULT

PA8

PA0

Al t er nat e use

( 7V- 12V NUCLEO suppl y vol t age)

PA1 PB5

Al t er nat e use

PA7

PC0

DEFAULT

Morpho connectors

(not mounted)

PA10

DEFAULT

PB3

Arduino connectors

Al t er nat e use

PA3

PC1

PB0

PA4

Al t er nat e use

PB9

PB8

AVDD

PB4

Al t er nat e use

PA2

NRST

PA6

DEFAULT

PB6

DEFAULT

Al t er nat e use

DEFAULT

I SO808 direct supply voltage

- s et to max 3.3V

when X-NUCLEO-OUT11A1 is used with NUCLEO board

- can be set to max 5.5V

when X-NUCLEO-OUT11A1 is used stand-alone

VCC

OUT1

OUT2

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

STATUS

OUT_EN

SYNCH

LOAD

3v3 5v0

EXT_Vdd

R101 100

R106 100 N.M.

R103 100 N.M.

R118 100

TP8

5001

C11

4700pF

N.M.

R117 100 N.M.

CN1

691214110002

default closed

CN8

SSQ-106-04-F-S

R112 100

CN11

691214110003

N.M.

C10

2.2uF

R109 100

ESDA15P60-1U1M

N.M.

47uF

N.M.

C12

4700pF

N.M. CN2

691214110002

SM15T39CA

R102 100

R107 100 N.M.

CN5

SSQ-110-04-F-S

R104 100 N.M.

JUMPER-con2-strip-male

N.M. default open

R119 100

R120 100 N.M.

CN4

691214110002

R113 100

D12

ESDA7P60-1U1M

N.M.

CN9

SSQ-108-04-F-S

R110 100

CN3

691214110002

R108 100

R105 100 N.M. D2 BAT48JFILM

N.M.

R116 100

CN6

SSQ-108-04-F-S

CN12

691214110002

R115 100 N.M.

CN10

SSQ-119-04-L-D

N.M.

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

31 32

33 34

35 36

37 38

R114 100

R111 100

CN7

SSQ-119-04-L-D

N.M.

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

31 32

33 34

35 36

37 38

J10

default open

D1 STPS1H100A

EARTH

STATUS

3V3

VIN

IN1

IN2

IN1

IN2

IN3

IN4

OUT_EN IN5

IN5

OUT_EN IN6

SYNCH IN7

IN6

SYNCH IN8

LOAD

IN7

LOAD

IN8

STATUS

OUT_EN

SYNCH

LOAD

VIN

UM3079 - Rev 1 page 7/19

UM3079

Schematic diagrams

Figure 6. X-NUCLEO-OUT11A1 circuit schematic (2 of 2)

def aul t :

cl ose 1- 2, 3- 4, 5- 6, 7- 8 def aul t :

cl ose 1- 2, 3- 4, 5- 6, 7- 8

VCC

OUT1OUT_EN

SYNCH OUT2

LOAD

IN1 OUT3

IN2

IN3 OUT4

IN4

IN5 OUT5

IN6

IN7 OUT6

IN8

OUT7

OUT8

STATUS

EXT_Vdd

3v3

R10 390

C4 10nF

R22 22k

C21 100pF

R28

15k

C26

0.1uF

C19 100pF

R1 390

C3 10nF

R21 22k

C13

0.1uF

R9 390

C2 10nF

C1 10nF

R27

15k

R8 390

R20 22k

D15

LED YELLOW

R26

15k

C22 100pF

con6-2x3-strip-male

default: close 1-2, 5-6

1 2

3 4

5 6

R7 390

LED GREEN AC

C16 100pF

LED GREEN AC

con8-2x4-strip-male

R25

15k

R6 390

LED GREEN AC

ISO808

1NC1

2Vdd

3OUT_EN

4SYNCH

5LOAD

6IN1

7IN2

8IN3

9IN4

10 IN5

11 IN6

12 IN7

13 IN8

14 FAULT

15 GNDdd

16 NC16

17 NC17

18 NC18 19

GNDcc

NC20

OUT8_2

OUT8_1

OUT7_2

OUT7_1

OUT6_2

OUT6_1

OUT5_2

OUT5_1

OUT4_2

OUT4_1

OUT3_2

OUT3_1

OUT2_2

OUT2_1

OUT1_2

OUT1_1

VCC_EP

D10

LED GREEN AC

C20 100pF

R5 390

con8-2x4-strip-male

R15

R19

15k

C23 100pF

C25

2.2uF

R14 22k

C14 100pF

D13

SMBJ5.0A-TR

R17

390

R18

15k

C17 100pF

R4 390

C8 10nF

con6-2x3-strip-male

default: close 5-6

1 2

3 4

5 6

R24 22k

C18 100pF

R13 22k

default open

C7 10nF

R30

15k

R3 390

R11 390

C6 10nF

C15 100pF

R23 22k

LED GREEN AC

C24 100pF

R2 390

R12 22k

C5 10nF

R29

15k

D11

RED LED

UM3079 - Rev 1 page 8/19

UM3079

Schematic diagrams

3Bill of materials

Table 3. X-NUCLEO-OUT11A1 bill of materials

Item Q.ty Ref. Part/value Description Manufacturer Order code

1 8 C1 C2 C3 C4

C5 C6 C7 C8

10nF 0603

(1608 Metric)

50V 10%

CAP CER

10000PF 50V

X7R 0603

Wurth

Electronics Inc. 885382206002

2 0 C9 47uF Radial,

Can 100V 20%

CAP 47 UF

20% 100 V (not

mounted)

Wurth

Electronics Inc. 860040875002

3 1 C10

2.2uF 1206

(3216 Metric)

100V 10%

CAP CER

2.2UF 100V

X7R 1206

AVX

Corporation 12061C225KAT2A

4 0 C11 C12

4700pF 1825

(4564 Metric)

3000V (3kV)

10%

CAP CER

4700PF 3KV

X7R 1825

Vishay Vitramon HV1825Y472KXHATHV

5 2 C13 C26

0.1uF 0805

(2012 Metric)

100V 10%

CAP CER

0.1UF 100V

X7R 0805

Würth

Elektronik 885012207128

6 11

C14 C15 C16

C17 C18 C19

C20 C21 C22

C23 C24

100pF 0402

(1005 Metric)

10V 5%

CAP CER

100PF 10V

C0G/NP0 0402

Wurth

Electronics Inc. 885012005013

7 1 C25

2.2uF 0402

(1005 Metric)

10V 20%

CAP CER

2.2UF 10V X5R

0402

Wurth

Electronics Inc. 885012105013

8 5 CN1 CN2 CN3

CN4 CN12

691214110002

7.4X7 pitch 3.5

TERM BLK

2POS SIDE

ENT 3.5MM

PCB

Wurth

Electronics Inc. 691214110002

9 1 CN5 10 ways, 1 row

CONN RCPT

10POS 0.1

GOLD PCB

SAMTEC

4UCON ESQ-110-14-T-S 17896

10 2 CN6 CN9 8 ways, 1row

CONN RCPT

8POS 0.1

GOLD PCB

SAMTEC

4UCON ESQ-108-14-T-S 15782

11 0 CN7 CN10

CONN RCPT

38POS 0.1

GOLD PCB (not

mounted)

Samtec Inc. SSQ-119-04-L-D

12 1 CN8 6 ways, 1 row

CONN RCPT

6POS 0.1

GOLD PCB

SAMTEC

4UCON ESQ-106-04-T-S 15781

13 0 CN11

691214110003

10.5X7.4 pitch

3.5mm

TERM BLK

3POS SIDE

ENT 3.5MM

PCB (not

mounted)

Wurth

Electronics Inc. 691214110003

14 1 D1

STPS1H100A

DO-214AC,

SMA 1A

DIODE

SCHOTTKY

100V 1A SMA

ST STPS1H100A

UM3079

Bill of materials

UM3079 - Rev 1 page 9/19

Item Q.ty Ref. Part/value Description Manufacturer Order code

15 0 D2

BAT48JFILM

SC-76,

SOD-323

750mV @

200mA 350mA

(DC)

DIODE

SCHOTTKY

40V 350MA

SOD323 (not

mounted)

ST BAT48JFILM

16 8 D3 D4 D5 D6

D7 D8 D9 D10

LED GREEN

0603 (1608

Metric) 20mA

LED GREEN

CLEAR 0603

SMD

Wurth

Electronics Inc. 150060VS75000

17 1 D11

RED LED 0603

(1608 Metric)

20mA

LED RED

CLEAR 0603

SMD

Wurth

Electronics Inc. 150060RS75000

18 0 D12 ESDA7P60-1U1

M QFN-2L

TVS DIODE

5VWM 11.6VCL

1610 (not

mounted)

ST ESDA7P60-1U1M

19 1 D13

SMBJ5.0A-TR

DO-214AA,

SMB 600W

TVS DIODE 5V

13.4V SMB ST SMBJ5.0A-TR

20 1 D15

LED YELLOW

0603 (1608

Metric) 20mA

LED YELLOW

CLEAR 0603

SMD

Wurth

Electronics Inc. 150060YS75000

21 2 J1 J2 JUMPER-con2-

strip-male

JUMPER-

CONN

HEADER .100

STR 2POS

Wurth

Electronics Inc. 61300211121

22 1 J3 con6-2x3-strip-

male

CONN

HEADER .100

DUAL STR

6POS

Wurth

Electronics Inc. 61300621121

23 1 J4 con6-2x3-strip-

male

CONN

HEADER .100

DUAL STR

6POS

Wurth

Electronics Inc. 61300621121

24 0 J5 JUMPER-con2-

strip-male

JUMPER-

CONN

HEADER .100

STR 2POS

Wurth

Electronics Inc. 61300211121

25 2 J6 J7 con8-2x4-strip-

male

CONN

HEADER VERT

8POS 2.54MM

Wurth

Electronics Inc. 61300821121

26 2 J9 J10 JUMPER-con2-

strip-male

JUMPER-

CONN

HEADER .100

STR 2POS

Wurth

Electronics Inc. 61300211121

27 11

R1 R2 R3 R4

R5 R6 R7 R8

R9 R10 R11

390 0402 (1005

Metric) 0.1W,

1/0W 5%

CHIP

RESISTOR

SMD 5% 1/0W

0402

Panasonic ERJH2GJ391X

28 8

R12 R13 R14

R20 R21 R22

R23 R24

22k 0603 (1608

Metric) 0.1W,

1/10W 1%

RES SMD 22K

OHM 1% 1/10W

0603

Yageo RC0603FR-0722KL

29 1 R17

390 0603 (1608

Metric) 0.1W,

1/10W 1%

RES SMD 390

OHM 1% 1/10W

0603

Yageo RC0603FR-07390RL

30 1 R15

1k 0603 (1608

Metric) 0.1W,

1/10W 1%

RES SMD 1K

OHM 1% 1/10W

0603

Yageo RC0603FR-071KL

UM3079

Bill of materials

UM3079 - Rev 1 page 10/19

Table des matières

Autres manuels ST Matériel informatique

ST X-NUCLEO-IOD02A1 Manuel utilisateur

ST UM2082 Manuel utilisateur

ST X-NUCLEO-IHM04A1 Manuel utilisateur

ST STM32F3 Series Manuel du propriétaire

ST X-NUCLEO-STMODA1 Manuel utilisateur

ST STM32F107Series Manuel utilisateur

ST X-NUCLEO-IDB04A1 Manuel utilisateur

ST X-NUCLEO-IHM03A1 Manuel utilisateur

ST X-NUCLEO-IKS4A1 Manuel utilisateur

ST X-NUCLEO-OUT04A1 Manuel utilisateur

ST X-NUCLEO-GFX01M Series Manuel utilisateur

ST EVAL6470H-DISC Manuel utilisateur

ST X-NUCLEO-IHM12A1 Manuel utilisateur

ST STM32 Nucleo Manuel utilisateur

ST X-NUCLEO-IDB04A1 Manuel utilisateur

ST STEVAL-C34KAT1 Manuel utilisateur

ST HTSSOP38 Manuel utilisateur

ST X-NUCLEO-IHM07M1 Manuel utilisateur

ST X-NUCLEO-IDB05A2 Manuel utilisateur

ST X-NUCLEO-IKA01A1 Manuel utilisateur

ST X-NUCLEO-53L7A1 Manuel utilisateur

ST EVSPIN948 Manuel utilisateur

ST UM2727 Manuel utilisateur

ST STEVAL-MKI015V1 Guide de démarrage rapide

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur
