ST UM3019 Manuel utilisateur

Introduction

The FP-ATR-ASTRA1 is an STM32Cube function pack that implements a complete asset tracking application,

which supports long-range connectivity and short-range connectivity. This application reads the data from the

environmental and motion sensors, retrieves the geo-position from GNSS and sends them to the cloud using

Bluetooth® Low Energy and LoRaWAN connectivity.

The FP-ATR-ASTRA1 package supports low-power profiles and the related transitions to ensure long battery

autonomy. Moreover, it provides key features such as secure element management, the possibility to add custom

algorithms, debugging interfaces, and expansion capability.

The firmware is available as a standard source code .zip file.

Getting started with the STM32Cube function pack for IoT tracker node with

Bluetooth® Low Energy, LoRa, NFC connectivity, GNSS and sensors

UM3019

User manual

UM3019 - Rev 1 - April 2022

For further information contact your local STMicroelectronics sales office.

www.st.com

1FP-ATR-ASTRA1 software expansion for STM32Cube

1.1 Overview

The FP-ATR-ASTRA1 software package expands STM32Cube functionality.

The key features of the package are:

• Complete asset tracking firmware application to manage long-range connectivity (LoRaWAN) and short-

range connectivity (Bluetooth® Low Energy and NFC)

• Environmental and motion sensors management to monitor asset status

• Outdoor localization and geo-fencing based on a GNSS NMEA string available on Teseo-LIV3F

• Secure element personalization and certificate retrieving

• Power/battery management with low-power operating modes

• Flexible state machine to support different use cases

• Predefined customizable use cases:

– Fleet management

– Livestock monitoring

– Goods monitoring

– Logistics

– Custom

• Implementation available for the STEVAL-ASTRA1B

• Fully integrated in an end-to-end, proof-of-concept ecosystem, which includes:

– the DSH-ASSETRACKING web cloud dashboard

– the STAssetTracking mobile app available on Google Play and App Store

1.2 Architecture

FP-ATR-ASTRA1 is developed to support all the STEVAL-ASTRA1B functionalities.

The FP-ATR-ASTRA1, compliant with the STM32Cube architecture, is structured into a set of layers of increasing

abstraction.

The hardware abstraction layer (HAL) interfaces with the hardware. It provides the low-level drivers and the

hardware interface methods to interact with the upper layers (application, libraries, and stacks). It also provides

the APIs for the communication peripherals (I²C, SPI, UART, etc.) for initialization and configuration, data transfer,

and communication errors.

The package provides a board support package (BSP), which deals with the board-specific peripherals and

functions (LED, user button, etc.). The BSP structure follows the hardware structure, including a component

management layer as well as the specific layers of the board used. The modules included in the BSP are selected

according to the used hardware configuration.

The horizontal interaction among the layer components is handled directly by calling the feature APIs. The vertical

interaction with the low-level drivers is managed through specific callbacks and static macros implemented in the

library system call interface.

On top, the application layer contains functions and procedures that characterize the application and can be

changed by the end user.

UM3019

FP-ATR-ASTRA1 software expansion for STM32Cube

UM3019 - Rev 1 page 2/43

Figure 1. FP-ATR-ASTRA1 software architecture

FP-ATR-ASTRA1

abstraction

GNSS NMEA

Hardware

Dashboard

Parson

ST ASSET TRACKING

CLOUD DASHBOARD

Application

And

Middleware

Utilities

STM32Cube hardware abstraction layer (HAL)

ST WPAN

STEVAL-ASTRA1B

and

Mobile App ST ASSET TRACKING

APP

Sequencer

USB

BLE manager and

SDK v2

LOW POWER

Hardware

MANAGER

ST SAFE

1.3 Folder structure

The software package includes the following folders:

•Documentation: contains a compiled HTML file generated from the source code, which details the software

components and APIs.

•Drivers: contains the HAL drivers and the board-specific drivers for each supported board or hardware

platform, including the on-board components and the CMSIS vendor-independent hardware abstraction

layer for the Arm Cortex®-M processor series.

•Middleware: contains libraries and protocols for the USB communication, STM32-WPAN, GNSS NMEA,

Parson library, Bluetooth® Low Energy manager, STSAFE, sequencer, and low-power manager.

•Projects: contains sample application used to implement asset tracking examples.

This application is provided for the STEVAL-ASTRA1B evaluation kit with three development environments

(IAR Embedded Workbench for Arm, MDK-ARM, and STM32CubeIDE).

Figure 2. FP-ATR-ASTRA1 folder structure

1.4 APIs

Detailed technical information with full user API function and parameter description is in a compiled HTML file in

the “Documentation” folder.

UM3019

Folder structure

UM3019 - Rev 1 page 3/43

2Sample application description

A standard asset tracking routine acquires information about location, sensor and system status. Then, the

routine sends the information acquired through the available communication interfaces with the minimum power

consumption.

Different use cases require the customization of these routines in terms of:

• acquisition frequency

• sending interval

• algorithms to run in order to add specific features

• localization technologies

• communication interfaces

The FP-ATR-ASTRA1 offers the following preconfigured (and customizable) use cases:

1. fleet management

2. livestock monitoring

3. goods monitoring

4. logistics

5. custom

The characteristics of these use cases are listed in the table below.

Table 1. Use cases

Uses cases LoRa sending

interval

Bluetooth® Low Energy

sending interval

Indoor only

(GNSS disabled) Algorithm(1) Data logging(2)

Fleet management 40 s 100 ms N No Yes

Livestock monitoring 60 s 500 ms N Motion No

Goods monitoring 3600 s 200 ms Y Geofence Yes

Logistics 20 s 1000 ms N No Yes

Custom 30 s 400 ms N No Yes

1. Only an empty callback is available. It has to be filled by the user. See the manageAlgorithms( ) function in the source

code.

2. The “LOG” flag is available in the source code. The data logging is going to be available in the coming releases. See

AstraEngineParams_t typedef in the source code.

2.1 Firmware library structure

The FP-ATR-ASTRA1 firmware flexibility allows changing the operation mode easily. The state machine can

change states and transitions according to the selected use case.

The firmware library structure is modular to meet these requirements. The figure below shows how the data flow

from the input to the output.

UM3019

Sample application description

UM3019 - Rev 1 page 4/43

Figure 3. Data flow diagram

The data acquired from the sensors, GNSS, and ADC through the driver interface, are stored in the RAM and/or

EEPROM (the storage in the EEPROM is not implemented yet, but it is going to be available in the coming

releases). Then, they are processed and sent. The processing output can be sent as well. The same path is used

for the configuration channels, shown in the figure below, to manage the settings at runtime.

Figure 4. Configuration block diagram

2.2 State machine

The application flow evolves by using a state machine that triggers a status change depending on events and

triggers.

A simple state machine has been implemented featuring two states: full-run state and low-power state. These

states are not related to the MCU power state, but to the whole system condition. A minimum and a maximum

performance and, consequently, power consumption characterize these states. In the full-run state, everything is

on and all the data are sent to the dashboard. In the low-power state, all the components, except the MCU, are

configured in low-power mode.

The side button event triggers the transition between the two states. Another input can be a MEMS event output

or the result of an algorithm.

This is just an example of how a state machine can be implemented, changing the behavior of our device. Several

intermediate states can also be implemented, balancing the system responsiveness and the battery life.

UM3019

State machine

UM3019 - Rev 1 page 5/43

Figure 5. State machine-functional diagram

The figure below shows the detailed flow diagram of the process, referring to the code implementation.

Figure 6. State machine flow

UM3019

State machine

UM3019 - Rev 1 page 6/43

The states are:

•Start

•Run

•LP (low-power)

•End

Figure 7. State description

The following callbacks describe each state:

•StartXXXFn is the function that turns the module on in the start state;

•RunXXXFn is the function that executes the module in the run state (all the modules are running);

•LpXXXFn is the function that executes the module in the low-power state (GNSS, memory, and sensors are

turned off, while the other modules are in low power).

The events are:

•BP: button pressed event;

•SD: shutdown event;

•ER: error event;

•EP: automatic transition to next step;

•RN: go to full-run command

•LP: go to low-power command.

See the SM_APP.c file for further details.

2.3 HMI using LEDs and buttons

The STEVAL-ASTRA1B is provided with an RBG user LED and two user buttons:

• power/side button

• frontal button

UM3019

HMI using LEDs and buttons

UM3019 - Rev 1 page 7/43

Figure 8. STEVAL-ASTRA1B LEDs and buttons placement

The FP-ATR-ASTRA1B implements simple HMI functionalities using:

• the RGB LED, which turns:

– blue, if the configuration is ongoing

– red, if the sending is ongoing

– green:

◦ with slow blinking, if the Bluetooth® Low Energy is not connected

◦ with fast blinking, if the Bluetooth® Low Energy is connected

– yellow, if the Bluetooth® Low Energy is connected and sending

• the frontal button:

– short press: triggers asynchronous LoRa end data

– long press: system shutdown

• the side button:

– short press: changes the low-power status to run (or vice versa)

– long press: system reboot

UM3019

HMI using LEDs and buttons

UM3019 - Rev 1 page 8/43

3FP-ATR-ASTRA1 source code: relevant files

Despite the file tree complexity, only few files are involved in the application configuration of the use cases:

•App_astra.c

•Astra_confmng.c/.h

•Astra_sysmng.c/.h

•Astra_datamng.c/.h

•SM_APP.c/.h

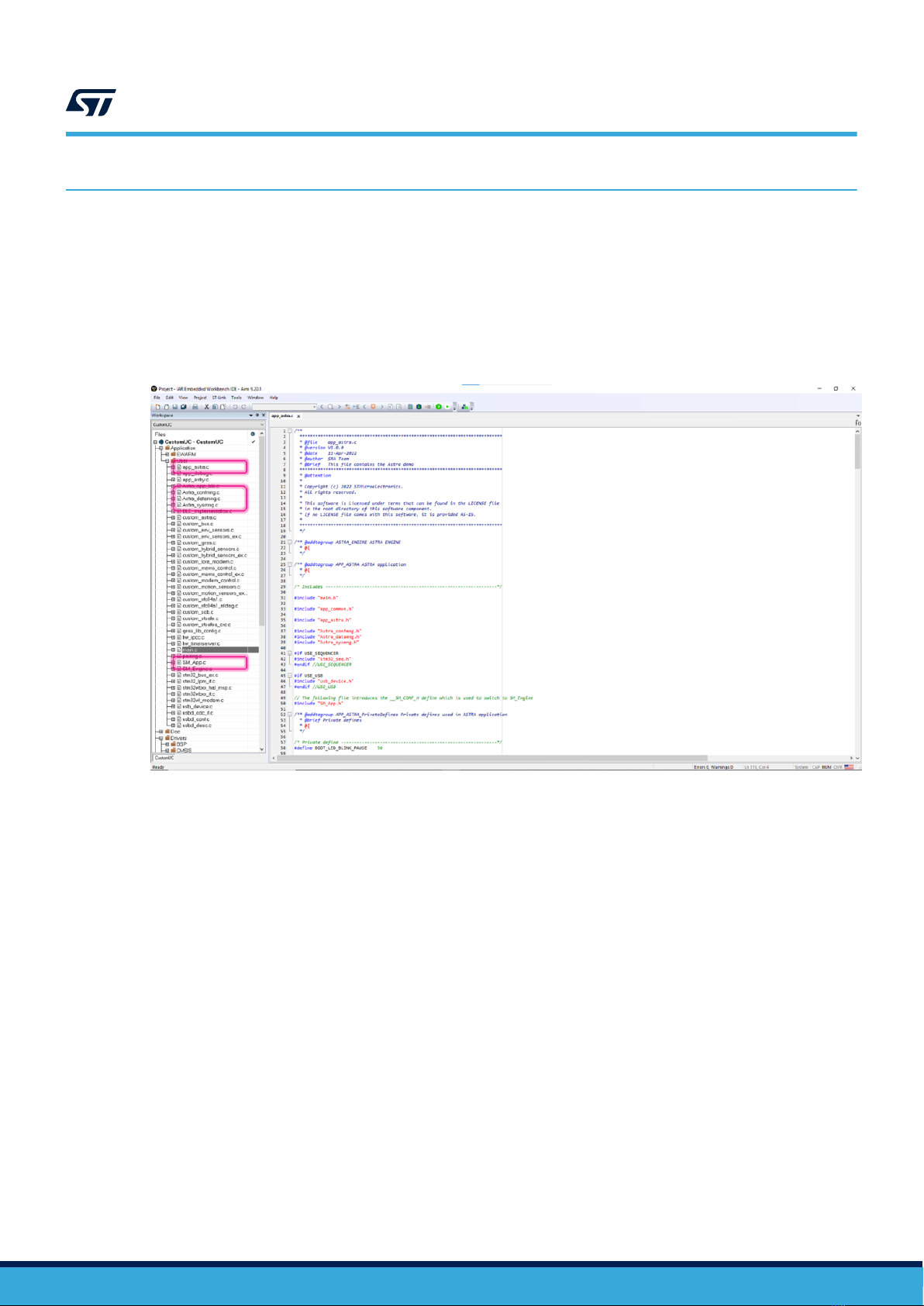

Figure 9. Application files

3.1 App_astra.c

The app_astra.c file is the main file, that is, the entry point. It calls the initialization functions inside

MX_Astra_Init(). Specific defines allow disabling some blocks (for example, USE_XXXXXX).

The MX_Astra_Init() function is used for the system initialization:

•AstraSysInit();// → platform data initialization

•memory_init();

•sensor_init();

•gnss_init();

•stm32wl_init();

•stsafe_init();

UM3019

FP-ATR-ASTRA1 source code: relevant files

UM3019 - Rev 1 page 9/43

Figure 10. MX_Astra_Init() function

The MX_Astra_Process() function is used for the main loop:

•ASTRA_TASK_ID → the main sequencer task calls the process function related to each module:

–ManageMemory();

–ReadSensors();

–ReadGnss();

–stm32wl_process();

–stsafe_process();

UM3019

App_astra.c

UM3019 - Rev 1 page 10/43

Table des matières

Autres manuels ST Matériel informatique

ST STEVAL-TTM001V1 Manuel utilisateur

ST UM2960 Manuel utilisateur

ST STR9 Manuel utilisateur

ST X-NUCLEO-IHM07M1 Manuel utilisateur

ST STEVAL-DPSG474 Manuel utilisateur

ST STM8SVLDISCOVERY Instructions d'installation et d'utilisation

ST X-NUCLEO-IDB04A1 Manuel utilisateur

ST STLINK-V3PWR Manuel utilisateur

ST STDES-PFCBIDIR Manuel utilisateur

ST X-NUCLEO-OUT06A1 Manuel utilisateur

ST X-NUCLEO-IKS4A1 Manuel utilisateur

ST X-NUCLEO-IDB04A1 Manuel utilisateur

ST STM32 Nucleo Manuel utilisateur

ST STEVAL-ISQ008V1 Manuel utilisateur

ST X-NUCLEO-OUT16A1 Manuel utilisateur

ST X-NUCLEO-53L8A1 Manuel utilisateur

ST STDES-65ACFADP Fiche technique

ST STMPE811 Fiche technique

ST X-NUCLEO-S2868A2 Manuel utilisateur

ST B-WB1M-WPAN1 Manuel utilisateur

ST X-NUCLEO-OUT02A1 Manuel utilisateur

ST STEVAL-IFS013V2 Manuel utilisateur

ST X-NUCLEO-NFC01A1 Manuel utilisateur

ST STM32U575 Series Instructions d'installation et d'utilisation

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur
