1 INTRODUCTION

This documentation gives you an overview about the initial operation and the first steps of

use with the Web Application Gateway IGW/935

1.1 Checklist

Compare the content of your Web Application Gateway start-up package with the checklist

below If any item is missing or appears to be damaged, please contact SSV

 Web Application Gateway IGW/935 with eSOM/3517

 Documentation

 Plug-in power supply

 DVI/HDMI video cable

 CD-ROM for eSOM/3517

 Screwdriver

1.2 Required Equipment

To operate the IGW/935 the following hardware is required:

• One Ethernet cross-over cable or two Ethernet patch cables and a switch

To configure the IGW/935 a PC with the following features is required:

• Windows 7 or higher

• Web browser (e g Firefox, Chrome)

• Telnet/SSH client (e g TeraTerm)

• FTP client (e g FileZilla)

• 10/100 Mbps Ethernet network controller and TCP/IP configuration

• CD-ROM drive

1.3 Conventions

Convention

Usage

bold

Important terms

monospace

Filenames,

Pathnames, program code, command lines

Table 1: Conventions used in this document

Web Application Gateway IGW/935 – First Steps

D o c u m e n t R e v i s i o n 1 . 3

2 SAFETY GUIDELINES

Please read the following safety guidelines carefully! In case of property or personal

damage by not paying attention to this manual and/or by incorrect handling, we do not

assume liability In such cases any warranty claim expires

• The power supply should be in immediate proximity to the device

• The power supply must provide a stable output voltage between 12 – 24 VDC ±10%

The output power should be at least 2 5 W

• Please pay attention that the power cord or other cables are not squeezed or damaged

in any way when you set up the device

• The installation of the device should be done only by qualified personnel

• Discharge yourself electrostatic before you work with the device, e g by touching a

heater of metal, to avoid damages

• Stay grounded while working with the device to avoid damage through electrostatic

discharge

• The case of the device should be opened only by qualified personnel

Web Application Gateway IGW/935 – First Steps

D o c u m e n t R e v i s i o n 1 . 3

3 CONNECTIONS

For a quick and easy start with the IGW/935 there are a few cable connections necessary

The following chapters describe how these connections have to be made

3.1 Ethernet Link

The Ethernet link between the PC and LAN1 of the IGW/935 can be made on two ways:

• Direct with an Ethernet cross-over cable like shown in figure 1

• With two standard Ethernet patch cables over a hub or switch like shown in figure 2

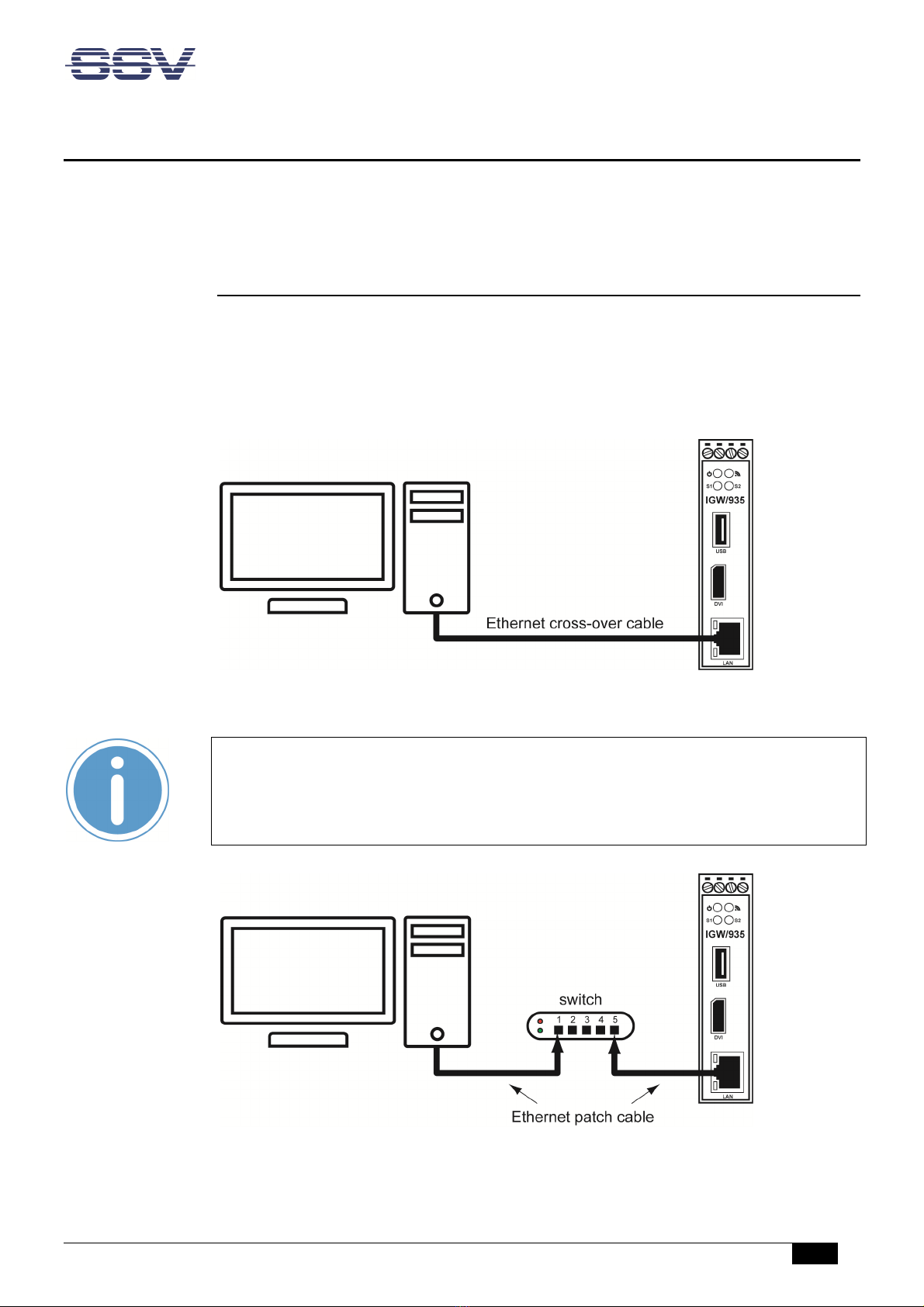

Figure 1: Ethernet link with cross-over cable

Please note:

For the Ethernet connection in figure 1 it is required to use a cross-over cable Do

not use an ordinary patch cable Both types of cables are in most cases visual indis-

tinguishable But the internal wiring is fully different Mixing up these types of ca-

bles leads to LAN errors Hence pay attention to the label of the cable or packing

Figure 2: Ethernet link with hub or switch

The IP address of the LAN1 interface is ex-factory set to 192.168.0.126

Web Application Gateway IGW/935 – First Steps

D o c u m e n t R e v i s i o n 1 . 3

3.2 DVI/HD I Video Link

Use the DVI/HDMI video cable to connect an external monitor device with the IGW/935 like

shown figure 3

Figure 3: DVI/HDMI video link

Web Application Gateway IGW/935 – First Steps

D o c u m e n t R e v i s i o n 1 . 3

3.3 RS485 Serial Port CO 1

To create an RS485 serial link on port COM1 of the Web Application Gateway IGW/935

connect an RS485 device like shown in figure 4

Figure 4: RS485 link on serial port COM1

Ter inal

Signal

COM1 RS485

Serial

Port RX /TX+

COM1 RS485 Serial Port RX /TX

Ground

Table 2: Screw terminal COM1

Please note:

The RS485 (officially called TIA/EIA-485-A) connection between your IGW/935 and

the field devices needs termination resistors on both ends for proper operation The

IGW/935 does not offer internal termination resistors Please make sure, that the

RS485 cable connection is equipped with external termination resistors

Web Application Gateway IGW/935 – First Steps

D o c u m e n t R e v i s i o n 1 . 3

3.4 Power Supply

The IGW/935 needs a supply voltage of 12 24 VDC ±10% to work

Connect the cables of an appropriate power supply to provide the system with the neces-

sary power like shown in figure 5

Figure 5: Power supply for the IGW/935

Ter inal

Signal

Vin (1

VDC

±10%

)

GNDin

Table 3: Screw terminal power

CAUTION!

Providing the IGW/935 with a higher voltage than the regular 12 24 VDC ±10%could cause

damaged device components!

Do NOT turn on the power supply while connecting it with the IGW/935 This could cause

damaged device components! First connect the power supply and THEN turn it on

Web Application Gateway IGW/935 – First Steps

D o c u m e n t R e v i s i o n 1 . 3

4 OPERATION

4.1 Booting the IGW/935

Just power up the IGW/935 and the boot process starts immediately The IGW/935 boots

thereby an embedded Linux out of its Flash memory This may take up to one minute

4.2 Accessing the SSV/WebUI WebConfig

To open the login page of the SSV/WebUI enter the ex-factory IP address and port number

of LAN1 of the IGW/936 manually in a web browser:

http://192.168.0.126:7777*

The username is admin, the password is ssvadmin

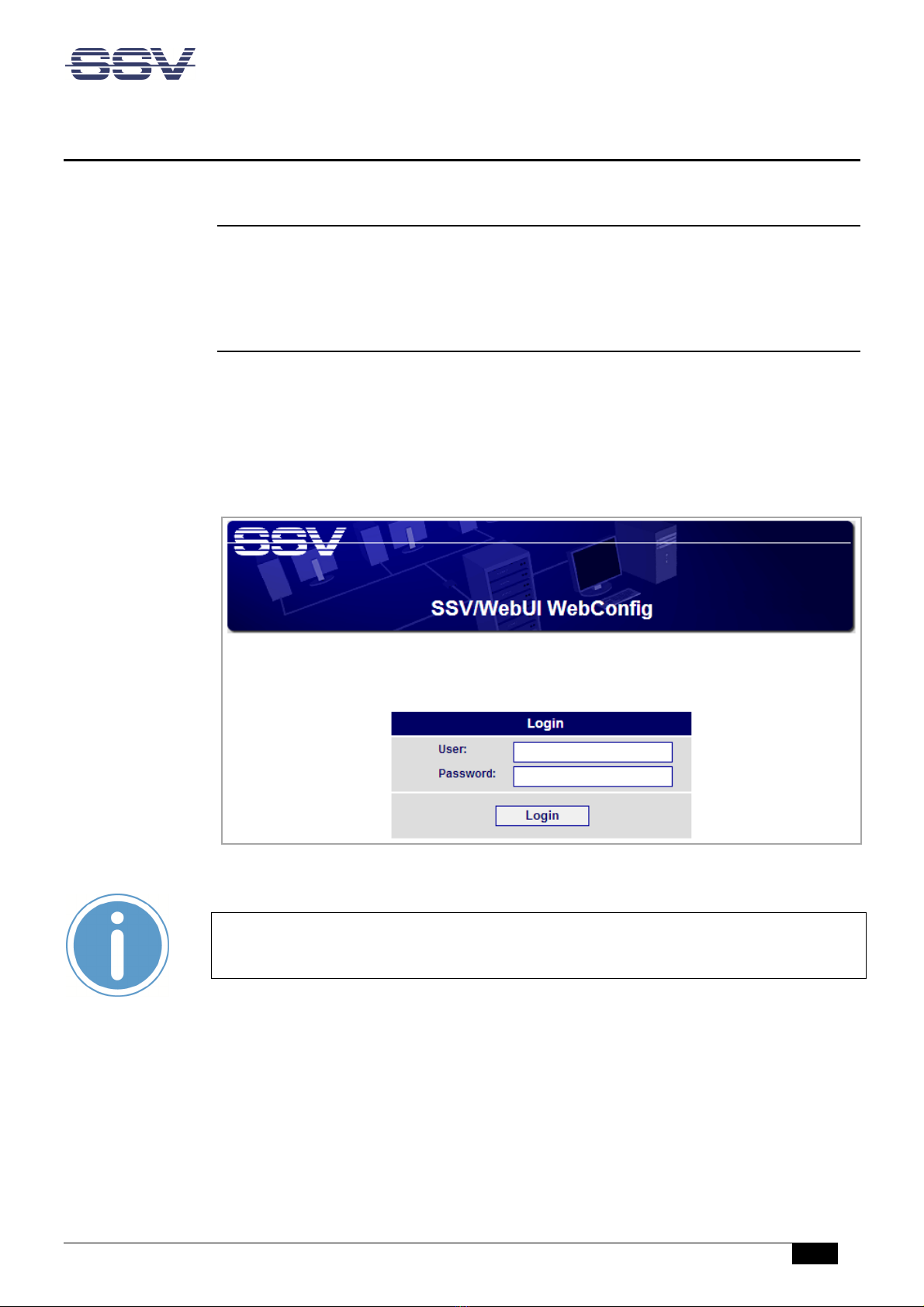

Figure 6: Login page of the SSV Web WebConfig

*Please note:

To access the SSV/WebUI, it is important to add the port number 7777 to the cur-

rent IP address of the IGW/935

Web Application Gateway IGW/935 – First Steps

D o c u m e n t R e v i s i o n 1 . 3

4.3 Accessing the SSV/WebUI with DHCP enabled

If the automatic IP address configuration of LAN1 via DHCP is enabled, you have to check

the assigned IP address, which is necessary to access the IGW/935 via a Telnet client or a

web browser

Therefore open in Windows Control Panel > Network and Internet > View network com-

puters and devices The IGW/935 should show up in this list

Figure 7: Selecting the IGW/935

Just right-click on the IGW/935 to open the properties dialog, where you can see the cur-

rent IP address of the IGW/935 like shown in figure 8

A double-click on the IGW/935 opens the SSV/WebUI in a web browser

Please note:

To access the SSV/WebUI, it is important to add the port number 7777 to the cur-

rent IP address of the IGW/935, e g : http://192.168.0.126:7777!
