SPRT SP-POS5IV Manuel utilisateur

SPRT

SP-POS58Ⅳ

Line Thermal Printer

User’s Manual

Beijing Spirit Technology

evelopment Co, Ltd.

SPRT

Content

Content. .............................................................................................................................................. 3

Introduction. ....................................................................................................................................... 3

Chapter1 Characteristic Specification ........................................................................................... 3

1.1 Printing Specification..........................................................................................................3

1.2 Printing Paper...................................................................................................................... 3

1.3 Printing Font........................................................................................................................4

1.4 Printing Interface................................................................................................................. 4

1.5 Printing Control Command ................................................................................................. 4

1.6 Power Supply ...................................................................................................................... 4

1.7 Operation Environment.......................................................................................................5

1.8 Outline imension .............................................................................................................. 5

Chapter 2

System Installation and Operation

........................................................................... 6

2.1 Printer Appearance .............................................................................................................. 7

2.2 Paper Installation................................................................................................................. 8

2.3 Interface Connection ........................................................................................................... 8

2.3.1 Interface Connection.. ............................................................................................................. 10

2.3.2 Parallel Interface .................................................................................. .................................. 11

2.3.3 Cash drawer Interface.................................................................................. ...........................12

2.3.4 Power connection ...................................................................................................................12

2.4 Buttons and Indicators....................................................................................................... 13

Chapter3 Print Controling Commands........................................................................................ 13

3.1 Summary ...........................................................................................................................13

3.2 Command escriptions..................................................................................................... 14

3.2.1 Printing Commands .................................................................................... ........................ 14

3.2.2 Line Spacing Setting Commands.........................................................................................14

3.2.3 Character Printing Commands ............................................................................................15

3.2.4 Special Control Commands ......................................................... .......................................17

3.2.5 Graphics Printing Commands ............................................................................................. 17

3.2.6 Barcode Printing Commands ...................................................... ........................................20

3.2.7 . Other Commands............................................................................................... ................... 22

Appendix 1 Performance Index.......................................................................................................28

Appendix 2 Index of Printing Commands.......................................................................................30

Appendix 3 Index of Printing Characters ............................................ .......................................... 33

SPRT

Introduction

POS58

Ⅳ

printer is a new type line thermal printer ,it features in fast

speed printing, low

printing noise, high reliability, perfect printing quality and

ribbon needless avoiding the

vexation of regular maintenance.

POS58Ⅳ printer: small in outline dimension, simple operation, and extensive application,

especially suitable for commercial cash register,

PC-POS, bank POS and all kinds of

receipts printing.

Chapter 1 Characteristic Specification

1.1Printing Specification

●Printing method: direct thermal

●Printing paper width:57.5±0.5mm

●Printing density:8dots/mm,384dots/line

●Printing speed:approx.60mm／sec.

●Reliability:

Printing head life:100km

Using condition:

＊Print 12 × 24 ASCII characters, print 50 lines each time, intermittent print repeatedly

＊Each dot-line printing at the same time should not exceed 25%, each character-line and

one dot vertically printing repeatedly should not exceed11 times

＊Use specified thermal paper

●Valid printing width:48mm

1.2

Printing Paper

●Thermal paper model:TF50KS－E（Japan paper co. ltd）

AF50KS-E(JUJO THERMAL)

SPRT

●Thermal paper: Width－－－－－－－－ 57.5±0.5mm

Outer iameter －－－80mm（max.）

Inner iameter －－－ 13mm（min.）

Thickness－－－－－－ 53～60g／m

1.3

Printing Font

●IBM Character set II (ANK):

12×24dots，1.25（W）×3.00（H）mm;

●GB2312-80(Chinese):

24×24dots，3.00（W）×3.00（H）mm.

1.4

Interface

●Serial interface (POS58

)

B25 socket (orifice), supports RTS/CTS protocol,

Baud rate: 1200~115200bps.

Adjustable.

ata structure: one start bit +seven or eight data bits +one or over one stop bit (s),

no parity.

●Parallel interface(POS58P):

B25 sockets (needle), 80bit parallel interface, supports BUSY/ACK

handshaking protocol ,TTL signal level.

●

Ethernet Interface:

It is a way to connect to Ethernet for ordinary printer. Can work on full duplex or half-duplex

mode.

Ethernet 802.3 protocol, upper layer protocols have TCP、U P、ICMP、IP、ARP、HTTP.

●

Cash drawer control

C12V，1A，60pinRJ-11socket.

Printing Control Command

●Character printing command: supports double width and double height print

of ANK characters, user-defined characters and Chinese characters, the

character line spacing is adjustable.

●Graphics printing command: supports the print of bit map graphics and

download bit map graphics with different density

●GS barcode printing command: supports EAN-13，EAN-8 barcode printing.

1.6

Power Supply

SPRT

● C12V±10％，2A，A-1009-3P Power socket

1.7

Operation Environment

Operation temperature:5～40℃ Relative humidity:10～80％

Storage temperature:-20～60℃ Relative humidity:10～90%

1.8

Outline Dimension

● 138（W）×200×(L)×120(H) mm

SPRT

2.1Printer Appearance

Chapter 2 Installation and Operation

Such as figure 2－1，figure 2－2

Figure 2－1 Printer appearance（Planform）

SPRT

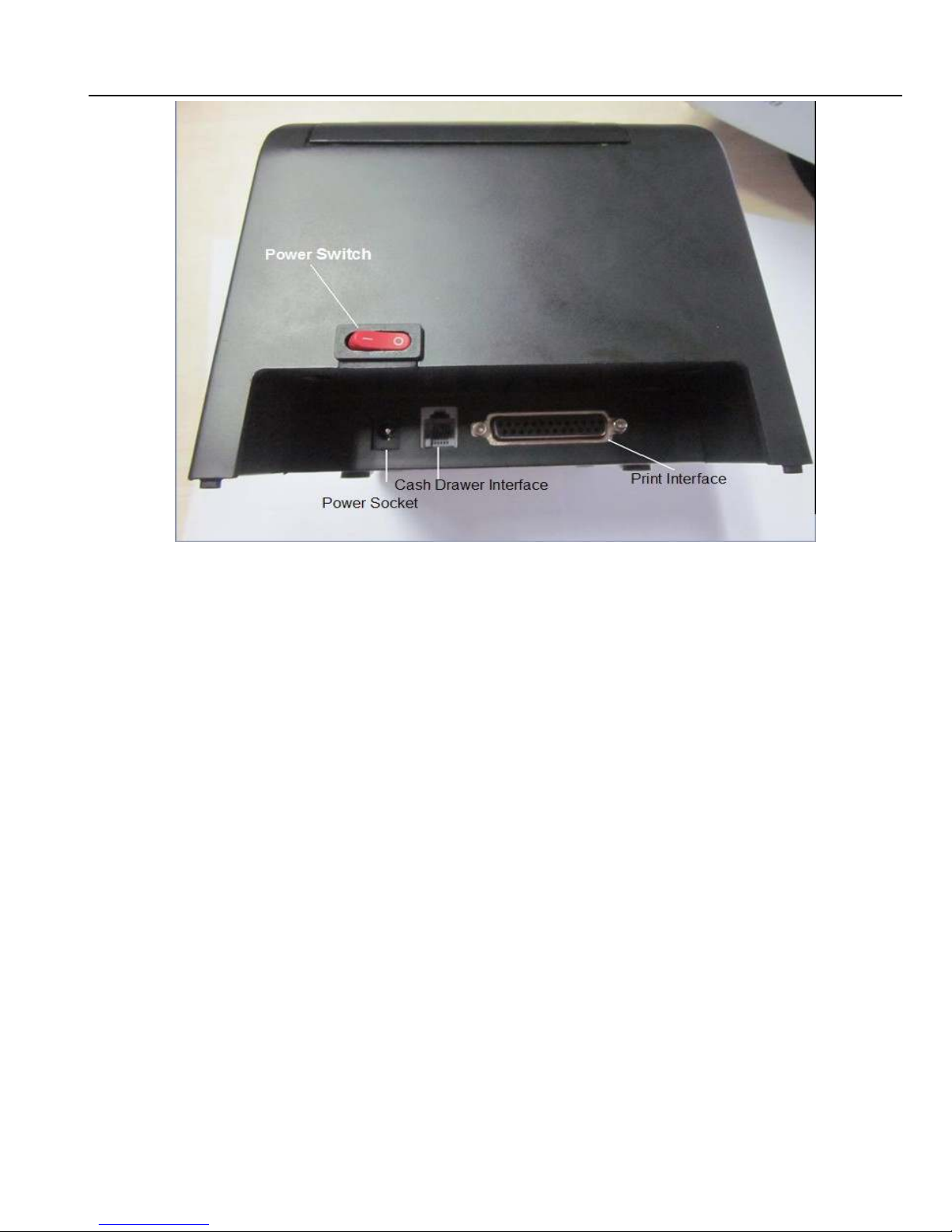

Figure 2－2 Printer appearance（back view）

2.2Paper Installation

POS58Ⅳadopts57.5±0.5mm width thermal paper.

The steps of thermal paper installation are as the following:

1.When there is no paper in the print head, please don’t press【FEE 】button ,avoiding to

influence the printing head life; as figure2-3，hold down【PUSH】，so open the paper case

and change paper.

SPRT

Figure 2－3 Paper Installation

Please don’t draw the paper forwards or backwards with hands .

2.3

Interface Connection

2.3.1

Serial Interface Connection

The serial interface of SP-POS58 Ⅳ printer is compatible with RS232C standard,

supports RTS/CTS handshaking protocol, it uses B25 socket (orifice),the pin order of

the serial port is as Fig.2-4 shows:

SPRT

Fig.2-4Pin Order of the Serial Port

The pin assignment of serial interface is shown in Fig.2-1:

Pin No.

Signal

2 RX

3 TX

Source

Host

Printer

escription

Printer receives data from host

Printer transmits control code X-ON/X-OFF and

data to host

5 CTS

Printer

Signal “MARK” indicates that the printer is

“BUSY” and unable to receive data; “SPACE”

indicates that the printer

is “REA Y”

for receiving data.

Printer Signal“space”indicates that the printer is” online”

“

7 GN

8 C

Printer

Signal Ground

The same as CTS

Note:

Fig.2-1Pin Assignment of Serial Interface

① “Source” denotes the source that signal comes from;

② Logical signal level is EIA .

The baud rate and data structure in serial interface mode are set to 9600bps,8 data

bits ,no parity bit and1or over1stopbit(s).

The serial interface of POS58

Ⅳ

can be connected to standard RS-232C interface.

When connected to IBM PC or compatible machine, connection can according to

Fig2-5.

SPRT

Fig.2-5Connection between POS58S and IBM PC Serial Interface Sketch Map

2.3.2

Parallel Interface Connection

The parallel interface of SP-POS58P printer is compatible with

CENTRONICS, supports

BUSY and /ACK handshaking protocol, it uses

B25socket (needle), the pin order of parallel

port is as Fig.2-6 shows:

Fig.2-6Pin Order of the Parallel Port

The pin assignment of parallel interface is shown in Fig.2-2show

Note:

①“In” denotes inputting to the printer，“Out” denotes outputting from the printer

②Signal level is TTL standard

2.3.4

Cash rawer Interface
