SPRT SP-POS58IV Manuel utilisateur

SPRT

SP POS58Ⅳ

LineThermalPrinter

Инструкция

Компания Авиор www.avior.ru

SPRT

Content

Introduction 2

Chapter1CharacteristicSpecification 3

1.1Printing Specification 3

1.2PrintingPaper 3

1.3PrintingFont 3

1.4Interface 3

1.5PrintingControlCommand 4

1.6PowerSupply 4

1.7Operation Environment 4

1.8ModelClassification 4

1.9Weight 4

1.10 OutlineDimension 4

Chapter2SystemInstallationand Operation 5

2.1PrinterAppearance 5

2.2PaperInstallation 5

2.3Interface Connection 5

2.3.1ParallelInterface 5

2.3.2SerialInterface 7

2.3.3Cash drawerInterface 8

2.3.4Powerconnection 9

2.4Buttonsand Indicators 9

2.5Self-test 10

Chapter3Printing ControlCommands 10

3.1Summary 10

3.2Command Descriptions 10

3.2.1PrintingCommands 10

3.2.2LineSpacing Setting Commands 11

3.2.3CharacterPrinting Commands 11

3.2.4SpecialControlCommands 13

3.2.5GraphicsPrintingCommands 13

3.2.6BarCodePrintingCommands 15

3.2.7OtherCommands 17

Appendix1Performance Index19

Appendix2IndexofPrinting Commands 21

Appendix3IndexofPrinting Characters 22

Компания АВИОР www.avior.ru

SPRT

２

Introduction

SP- POS58Ⅳprinteris anewtypeline thermalprinter,itfeaturesin

fast speedprint,lowprintnoise,high reliability,perfectprintqualityand

ribbonneedless avoiding thevexation ofregularmaintenance.

SP-POS58Ⅳprinter: small inoutlinedimension,simpleoperation,

and extensiveapplication,especiallysuitablefor commercialcash register,

PC-POS, bankPOSand all kinds ofreceipts print.

PDF

creat

with

pdfFa

ctory

trial

versi

www.

pdffa

ctory.

com

Компания АВИОР www.avior.ru

SPRT

３

Chapter 1CharacteristicSpecification

1.1Printingspecification

●Printingmethod:directthermal

●Printingpaperwidth:57.5±0.5mm

●Printingdensity:8dots/mm, 384 dots/line

●Printingspeed:approx. 70mm／sec. or 20 lines/sec.

●Reliability:

Printingheadlife:50km

MCBF:5million lines

Using condition:

＊Print12 ×24 ASCII characters,print50 lineseachtime,

intermittentprintrepeatedly

＊Eachdot-lineprinting atthesametimeshouldnotexceed25%,

eachcharacter-lineand onedotverticallyprintingrepeatedly

shouldnotexceed11times

＊Use specifiedthermalpaper

●Validprintingwidth:48mm

●Feedingspeed:approx.70mm／sec.or 20 lines／sec.

1.2PrintingPaper

●Thermalpapermodel: TF50KS－E（Japanpaperco.ltd）

AF50KS-E(JUJOTHERMAL)

●Thermalpaper: Width－－－－－－－－ 57.5±0.5mm

OuterDiameter －－－ 80mm（max.）

InnerDiameter －－－ 13mm（min.）

Thickness 53～60g／m2

1.3PrintingFont

●IBMCharactersetII:

12×24 dots，1.25（W）×3.00（H）mm;

●GB2312-80(Chinese):

24×24 dots，3.00（W）×3.00（H）mm.

1.4Interface

●LPTinterface:

DB25 socket(male),8-bit parallelinterface,supportsBUSY/ACK

handshaking protocol,TTLsignallevel.

PDF created

with

pdfFactory

trialversion

www.pdffactor

y.com

Компания АВИОР www.avior.ru

４

●RS232interface:

DB25 socket(female), supports RTS/CTSprotocol, baud rate:9600bps.

Datastructure:onestart bit +eightdatabits +oneor overonestopbit(s),

no parity.

●USB interface

●Cash drawercontrol

DC12V，1A，6-pinRJ-11socket.

1.5PrintingControlCommand

●Characterprintcommand:supports doublewidthand doubleheightprint

of ANK characters,user-definedcharacters and Chinesecharacters,the

characterlinespacing is adjustable.

●Graphicsprintcommand:supportstheprintof bit map graphicsand

downloadbitmapgraphicswithdifferentdensity

●GSbarcodeprintcommand:supports EAN-13，EAN-8 barcodeprint.

1.6Power Supply

●DC12V，2A

1.7OperationEnvironment

●Operation temperature:5～40

Relativehumidity:10～80％

●Operation environmenttemperature:5～40

Relativehumidity:10～80％

●Storagetemperature:-20～60

Relativehumidity:10～90%

1.8 Modelclassification

●SP-POS58ⅣPLPTinterface

●SP-POS58ⅣSRS232 interface

●SP-POS58ⅣU USB interface

1.9 Weight

●1kg(excludingpaperroll)

1.10 OutlineDimension

●138（W）×200×(L)×120(H)mm

Chapter2 Installation and Operation

SPRT Компания АВИОР www.avior.ru

５

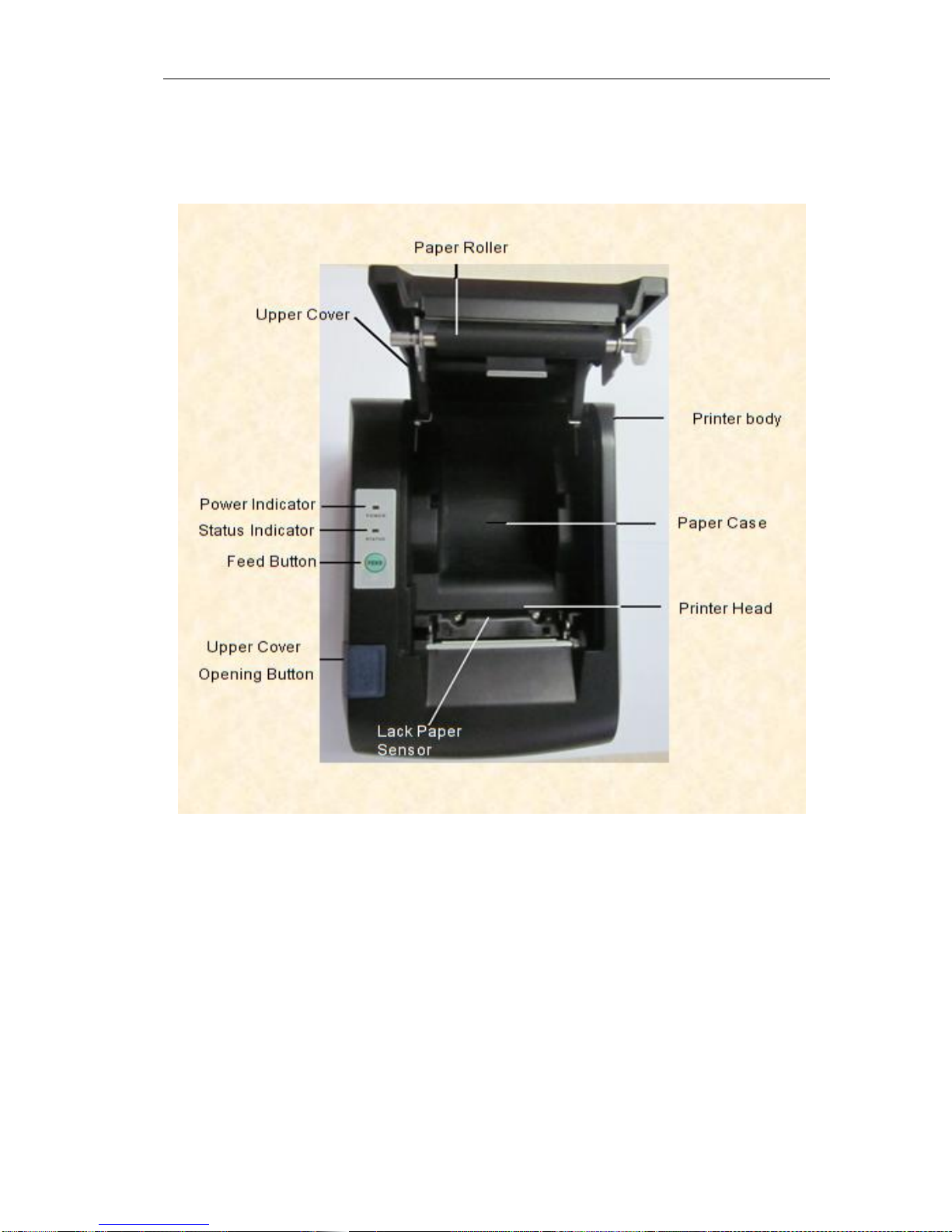

2.1PrinterAppearance

2.2PaperInstallation

SP-POS58adopts 57.5±0.5mmwidththermalpaper.

Thesteps of thermalpaperinstallationareasthefollowing:

Holddowntheuppercoverbutton, open themovableuppercover, move

awaytheoldpaperroll, and putthenewthermalpaperinthepaperholder

of printer, draw acertainlengthofthepaperroll, putthepaperend on the

printhead, closetheuppercoverandpress it downwards lightlyuntilit

restoretooriginalposition, and thepaperend appears fromthepaper-out

slotwhichis ontheuppercover, thenprintpaperinstallationis finished.

SPRT Компания АВИОР www.avior.ru

６

2.3Interface Connection

2.3.1LPTInterface Connection

TheLPTinterfaceof SP-POS58 ⅣPprinteris compatiblewith

CENTRONICS,supports BUSYand /ACK handshaking protocol,ituses

DB25 socket(male), thepinorderof parallelportis asFig. 2-2 shows:

Fig.2-2 PinOrderofParallelPort

Thepinassignmentof parallelinterface is showninFig. 2-3shows:

PinNo. Signal Direction Description

1 /STB In Strobepulsetolatch data,

reading occursatfallingedge.

DATA1

DATA2

DATA3

DATA4

DATA5

DATA6

DATA7

DATA8

Thesesignals representthe1

bit to8

th bit of theparallel

interface data,eachsignalisat

HIGHT levelwhendatais

logic1,and LOWwhendatais

logic0.

10 /ACK Out

Answerpulse, LOWlevel

signalindicatesthatdatahave

alreadybeenreceivedand the

printergets readytoreceivethe

nextdata.

Caution!

1.Whenthereis no paperintheprinthead,pleasedon’tpress 【LF】

button, avoidingtoinfluence theprintheadlife;

2.Pleasedon’tdrawthepaperforwards or backwards withhands,When

returningpaper, pleasecuttheextrapaper, and press 【LF】

button, paperwill goforwards.

SPRT Компания АВИОР www.avior.ru

７

11 BUSY Out HIGH levelsignalindicates

thattheprinteris BUSY and

cannotreceivedata.

12 PEOut HIGH levelsignalindicates

thatpaperis end.

13 SELOut PullinguptoHIGH level

signalbyaresistor indicates

theprinteris online.

15 /ERR Out PullinguptoHIGH level

signalbyaresistor indicates

thereis no error.

14,16,17 NC --- Noconnection

18-25 GND --- Grounding logical0level

Note: （1）“In”denotesinputting tothe printer，“Out”denotesoutputting

fromtheprinter.

（2）SignallevelisTTLstandard.

Fig.2-3 PinAssignmentof ParallelInterface

Thetiming chart forinterface signalof LPTinterface is asFig.2-4 shows:

Fig.2-4 SignalTiming Chart ofLPTInterface

2.3.2RS232 Interface Connection

TheRS232 interface of SP-POS58ⅣSprinteriscompatiblewith

RS232C standard, supports RTS/CTShandshakingprotocol, it usesDB25

socket(female), thepinorderoftheRS232 portisasFig.2-5shows:

BUSY

/ACK

DATA

/STB

0.5μS

SPRT Компания АВИОР www.avior.ru

８

GND

RTS

TXD

RXD

DSR

DTR

GND

CTS

DCD

RXD

TXD

GND

RTS

TXD

RXD

DSR

DTR

GND

CTS

DCD

RXD

TXD

Fig.2-5 PinOrderoftheSerialPort

Thepinassignmentof RS232 interface is showninFig. 2-6:

PinNo. SignalSource Description

2 RXD HostPrinterreceivesdatafromhost

3 TXD Printer Printertransmits datatohost

5 RTS Printer Signal “MARK”indicatesthat

theprinteris “BUSY”and

unabletoreceivedata;

“SPACE”indicatesthatthe

printeris “READY”for

receiving data.

7 GND —SignalGround

Note: “Source”①denotesthesource thatsignalcomesfrom;

②Logicalsignallevelis EIA.

Fig.2-6 PinAssignmentof SerialInterface

Thebaud rateand datastructureinRS232interface modearesetto

9600bps, 8databits, no paritybit and1or over1stop bit(s).

TheRS232 interface of SP-POS58canbeconnectedtostandard RS-232C

interface.WhenconnectedtoIBMPC or compatiblemachine, connection

canaccord toFig.2-7.

SPRT Компания АВИОР www.avior.ru

SPRT

９

Fig. 2-8

Cash DrawerInterface

Fig.2-9 PowerSocket

Printer 25pinIBM PC SerialPrinter 25pinIBM PC Serial

SocketInterface DB-9SocketInterface DB-25

Fig.2-7 ConnectionbetweenSP-POS58ⅣSand

IBMPC SerialInterface SketchMap

2.3.3CashDrawer Interface

Thecash drawerinterface of SP-POS58Ⅳ

adoptsRJ-116-pinsocket, asFig.2-8 shows:

Thepinassignmentof thecash drawerinterface is asfollows:

PinNo. Signal Direction

1 Chassis Ground ---

2 Cash drawerdriversignal Out

3 Cash draweron/offstatus signal In

4 +12VDC Out

5 N.C ---

6 Cash draweron/offstatus signalground

---

2.3.4Power Connection

SP-POS58Ⅳusesexternalpowersupplyas9/12VDC±10％,3.5A,

powersocketis A-1009-3Pmodel, asFig. 2-9 shows:

Thepinassignmentof thepowersupplyconnection isasfollows:

PinNo. Definition

1 +9/12VDC

2 GND

3 N.C.

Компания АВИОР www.avior.ru
