Speco INTENSIFIER CVC6246IHR Manuel utilisateur

CVC6246iHR

580 Line Color Dome Camera

Intensifier 2 Series

Wall & Ceiling Mountable

Please read this manual thoroughly before operation and keep

it handy for further reference.

WARNING & CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED

SERVICE

PERSONNEL

CAUTION

The lighting flash with an arrowhead symbol, within an equilateral triangle is

Intended to alert the user to the presence of un-insulated “dangerous voltage”

within the product’s enclosure that may be of sufficient magnitude to constitute

ariskofelectricshocktopersons____________________________________

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (serving) instructions

the

literature

accompanying

the

appliance

SERVICE

PERSONNEL

_____________

the

literature

accompanying

the

appliance

_________________

INFORMATION -This equipment has been tested and found to company with

limits for a class “A” digital device Pursuant to part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful

Interference When the equipment is operated in a commercial environment.

This equipment generates, uses, and Can Radiate radio frequency energy and

if not installed and used in accordance with the instruction manual, may Cause

Harmful interference to radio communications. Operation of this equipment in a

id ti l

lik l

hfl

it f

hi h

DO NOT use power sources other than that specified.______

res

area

lik

ocause

arm

erence

Casetheuserwillberequiredtocorrecttheinterferenceathisownexpense.

WARNING – Change or modification not expressly approved by the manufacturer could void

the user’s authority to operate the equipment__________________________________

CAUTION : To prevent electric shock and risk of fire hazards.

NOT

expose

this

appliance

rain

moisture

000

NOT

expose

this

appliance

rain

moisture

000

This installation should be made by a qualified service person and should conform to all local codes.

CONTENTS

Package Contents 4

Precautions 5

Camera Installation 6-7

OSD Menu Tree

Features 8-9

OSD Menu Details 11-14

Troubleshooting 15-16

Specifications 17

Dimensions 18

Warranty 19

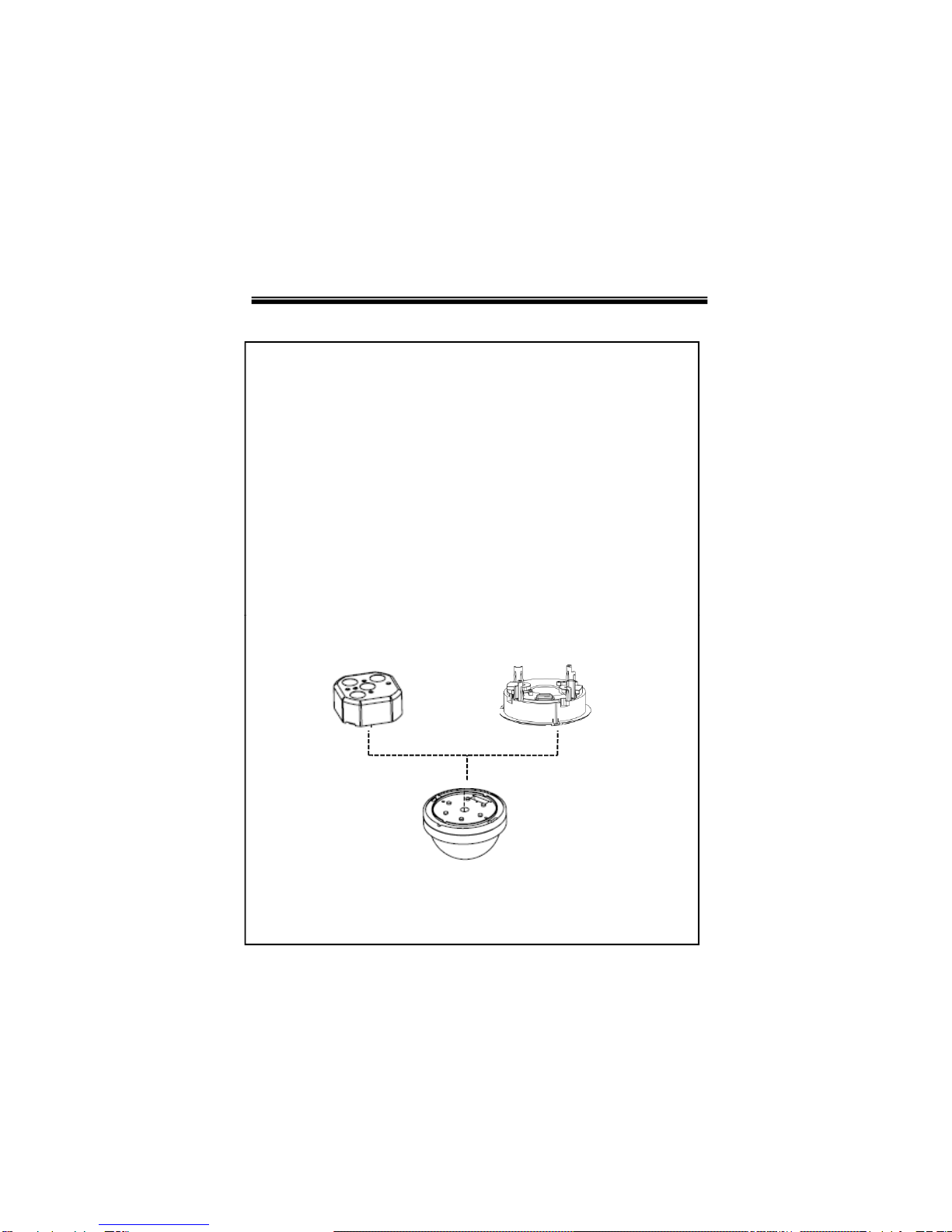

PACKAGE CONTENTS

Please make sure that the following items are included

in the package:

1 CVC6246iHR Camera

2 Mounting Screws

1 Video Test Connector

Please leave this manual with the end-user for future

reference.

COMPATIBILITY

DFM Series

“A” type Box

Electrical Box is not included in the package but

Is compatible with the camera

PRECAUTIONS

•THIS CAMERA SHOULD BE ONLY INSTALLED BY QUALIFIED

PERSONNEL

•TO PREVENT A FIRE OR ELECTRICAL HAZARD PLEASE USE

PROPER POWER CABLE

•DO NOT CLEAN THE DOME COVER WITH AN ABRAISIVE

CLEANING MATERIAL - PLEASE USE A SOFT CLOTH OR

TISSUE TO CLEAN THE DOME COVER

•THERE ARE NO USER-SERVICEABLE PARTS INSIDE.

PLEASE DO NOT DISASSEMBLE THIS CAMERA OTHER THAN

TO MAKE INITIAL ADJUSTMENTS

•

PLEASE USE A UL APPROVED REGULATED 24 VOLT AC OR

•

PLEASE

USE

APPROVED

REGULATED

VOLT

12 VOLT DC POWER SUPPLY

•PLEASE USE APPROPRIATE LOW VOLTAGE POWER CABLE

TO PREVENT FIRE OR ELECTRICAL SHOCK

•PLEASE INSURE THAT YOUR INSTALLATION AREA CAN

SUPPORT THE WEIGHT OF THE CAMERA

•PLEASE HANDLE THIS CAMERA CAREFULLY:

- DON’T USE A STRONG OR ABRASIVE DETERGENT WHEN

CLEANING THE CAMERA.

- DON’T EXPOSE THE CAMERA TO DIRECT SUN

CAMERA INSTALLATION

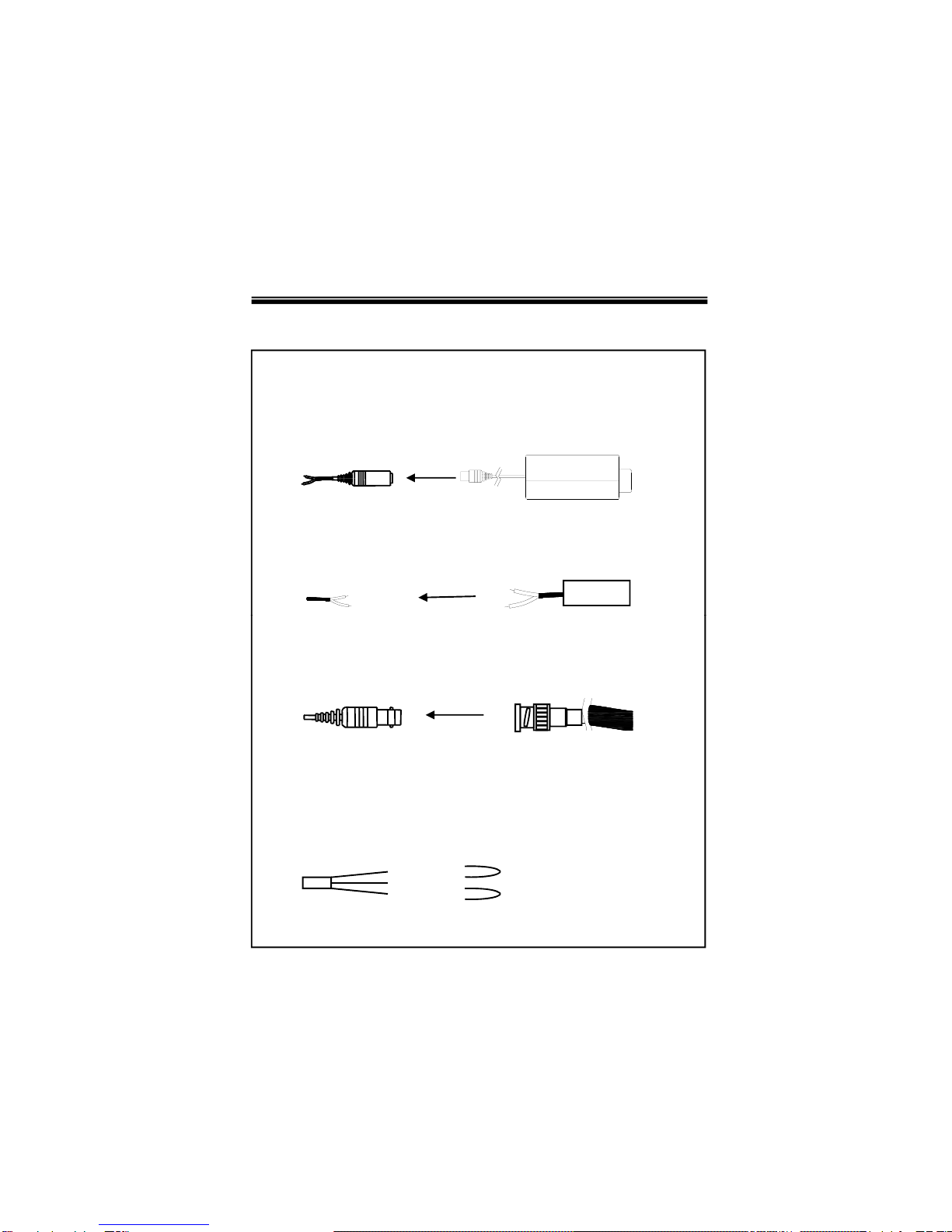

CONNECT POWER CABLE

1. WHEN USING 12 VOLTS DC (constant voltage 500 mA)

Power Input :RED

2. WHEN USING 24 VOLTS AC (40 Volt Amps)

DC 12V Power Supply

Center : (+)

BLACK:(

)

RED(+)

AC 24V

3. CONNECT VIDEO CABLE

-CONNECT BNC CABLE TO THE BNC JACK.

BLACK:(

)

Power Suppl

4. CONNECT Alarm output (Relay output)

-Connect (+ , COM) for Positive activation and (-. COM) for

Negative activation of External Alarm Device when Motion

Detection is ‘ON’ in the camera.

+ RED Positive Alarm Device (NO)

-WHITE

COM (GREY)

Alarm Output

Negative Alarm Device(NC)

CAMERA INSTALLATION

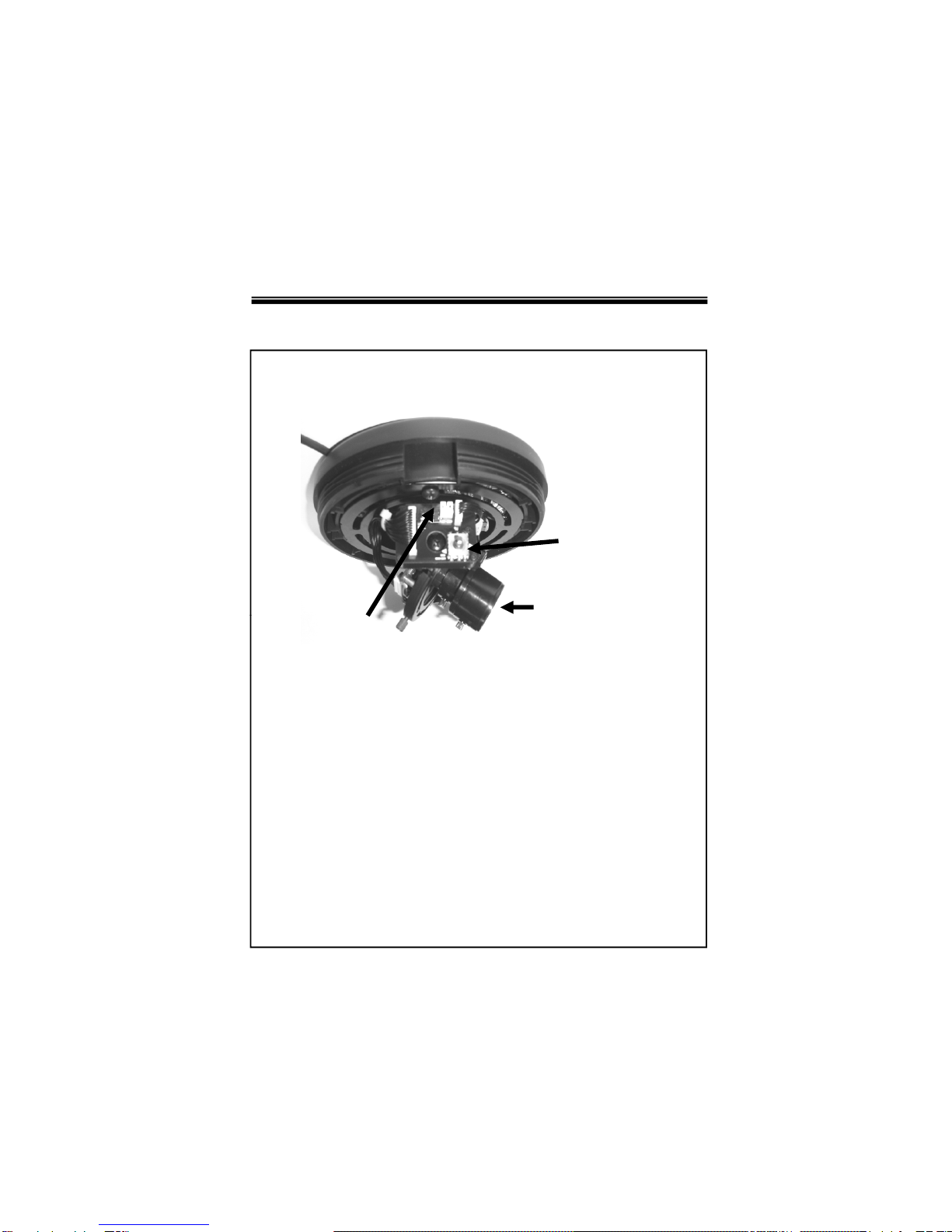

MECHANICAL

(1) DC Auto iris Lens

(2) JOY STICK

(1) DC AUTO-IRIS LENS

Adjust between TÅÆW (TELE ÅÆ WIDE) to set the

angle (focal length). Set the focus by adjusting ∞ÅÆN

(3) Video Test Terminal

NOTE: BOTH OF THE ABOVE ADJUSTMENTS GET LOCKED

INTO POSITION THROUGH THE USE OF "LOCKING HANDLES".

(2) JOY STICK

TO SET THE OSD (ON SCREEN DISPLAY) , PRESS THE JOY

STICK FOR ONE SECOND AND SET AS DESCRIBED

IN THE MANUAL

(3) VIDEO TEST TERMINAL

FEATURES

Horizontal resolution of 580 TV lines is achieved by using a

SONY Super-HAD CCD with 410,000 pixels, and a custom DSP

yielding pictures with a high S/N ratio..

High Resolution

1/3 inch High-inch density CCD and digital processor permit high

quality Pictures to be captured in very low light condition.

INTENSIFIER

SPECO DNR

Motion Detection with Alarm Output

The Intensifier camera has a DSP chip that can remove image

noise efficiently showing clean images in low light conditions.

SPECO

DNR

Built in motion detector with adjustable areas of coverage will

Send a signal to an external alarm device when motion is detected.

Motion

Detection

with

Alarm

Output

DAY/NIGHT

The Intensifier camera can show color pictures in all lighting

conditions, or you can have it automatically switch to a B/W

picture in low light conditions

FEATURES

Wh th i i i f t f t b k d li hti

SLC

All camera functions are menu driven for easy use.

OSD

mage

ron

rong

groun

hti

ng,

your camera allows you to get a clear image.

This function reverses bright spots in the picture (such as

HLC (High Light Compensation)

headlights). This enables the entire system to do a better job of

resolving and displaying grayscale information such as a

license plate.

STABILIZATION

This function removes image jitter that is caused by vibrations in

the building and reduces the amount of hard drive space.

PRIVACY

It also has the ability to mask up to 8 areas of the picture where

Viewing is not desired. Each zone can be independently

programmed via the OSD

OSD MENU TREE

ADJUST LENS

INTENSIFIER

COLOR TEMP

DC IRIS

E SHUTTER AUTO GAIN INTENSIFY RETURN

COLOR

TEMP

WDR SET

SPECO DNR

SLC HLC OFF

ATW INDOOR OUTDOOR AWC SET MANUAL

DAY & NIGHT

TWEAK VIDEO

ON OFF

COLOR B/W AUTO

CAM TITLE SYNC TYPE V MOTION

PRIVACY STABILIZE LANGUAGE

PAGE 2

STILL PIX V-REVERSE

DIGI-ZOOM CLARITY

H-REVERSE

RETURN

DEFAULTS PAGE 1

EXIT
