Speco 700Line IntensifierH CVC6246H Manuel utilisateur

Please read this manual thoroughly before operation and keep

it handy for future reference.

700Line IntensifierH

TM Series

CVC6246H (Black Housing)

CVC6246HW (White Housing)

INDOOR DOME

Wall/Ceiling Mount

DC auto iris 2.8~12mm

Dual Voltage (12VDC / 24VAC)

DO NOT use power sources other than that specified.______

The lighting flash with an arrowhead symbol, within an equilateral triangle is

Intended to alert the user to the presence of un-insulated “dangerous voltage”

within the product’s enclosure that may be of sufficient magnitude to constitute

a risk of electric shock to persons____________________________________

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (serving) instructions

in the literature accompanying the appliance__________________

INFORMATION -This equipment has been tested and found to company with

limits for a class a digital device Pursuant to part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful

Interference When the equipments operated in a commercial environment.

This equipment generates, uses, and Can Radiate radio frequency energy and

if not installed and used in accordance with the instruction manual, may Cause

Harmful interference to radio communications. Operation of this equipment in a

r e s i d e n t i a l a r e a is l i k e l y to c a u s e h a r m f u l i n t e r f er e n c e in w h i c h

Case the user will be required to correct the interference at his own expense.

WARNING –Change or modification not expressly approved by the manufacturer could void

the user’s authority to operate the equipment__________________________________

CAUTION : To prevent electric shock and risk of fire hazards.

This installation should be made by a qualified service person and should conform to all local codes.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (O R BACK).

NO USER SERVICEABLE PARTS INSIDE

R E F E R S E R V I C I N G TO Q U A L I F I E D

SERVICE PERSONNEL._______________

CAUTION

WARNING & CAUTION

PACKAGE CONTENTS

Please make sure that the following items are included

in the Package:

-2 Mounting Screws

-1 Video Test Connector

-1 Power Cable

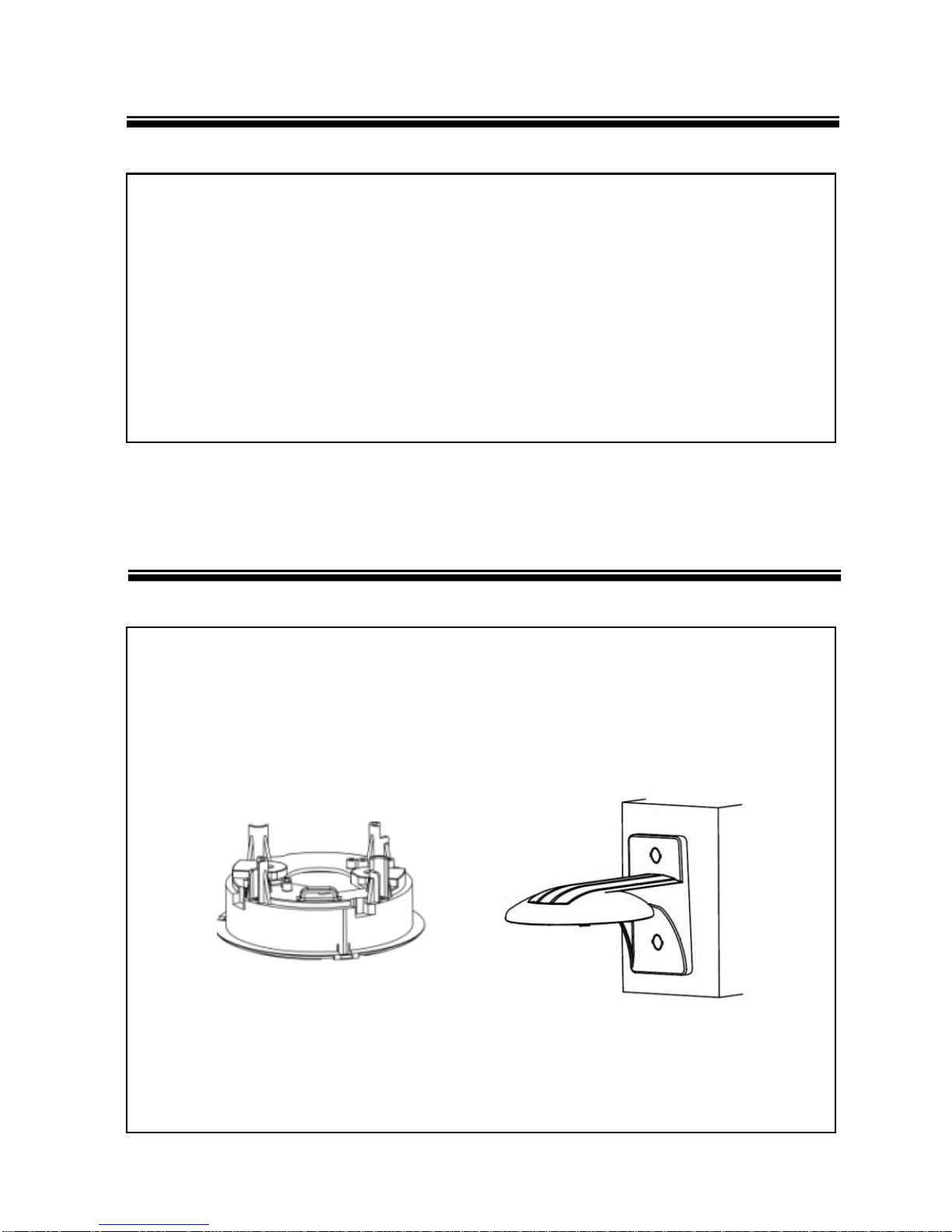

OPTIONAL ACCESSORIES

DFM

(Tile Ceiling Flush Mount) CVCWMTIND

(Indoor Wall Mount)

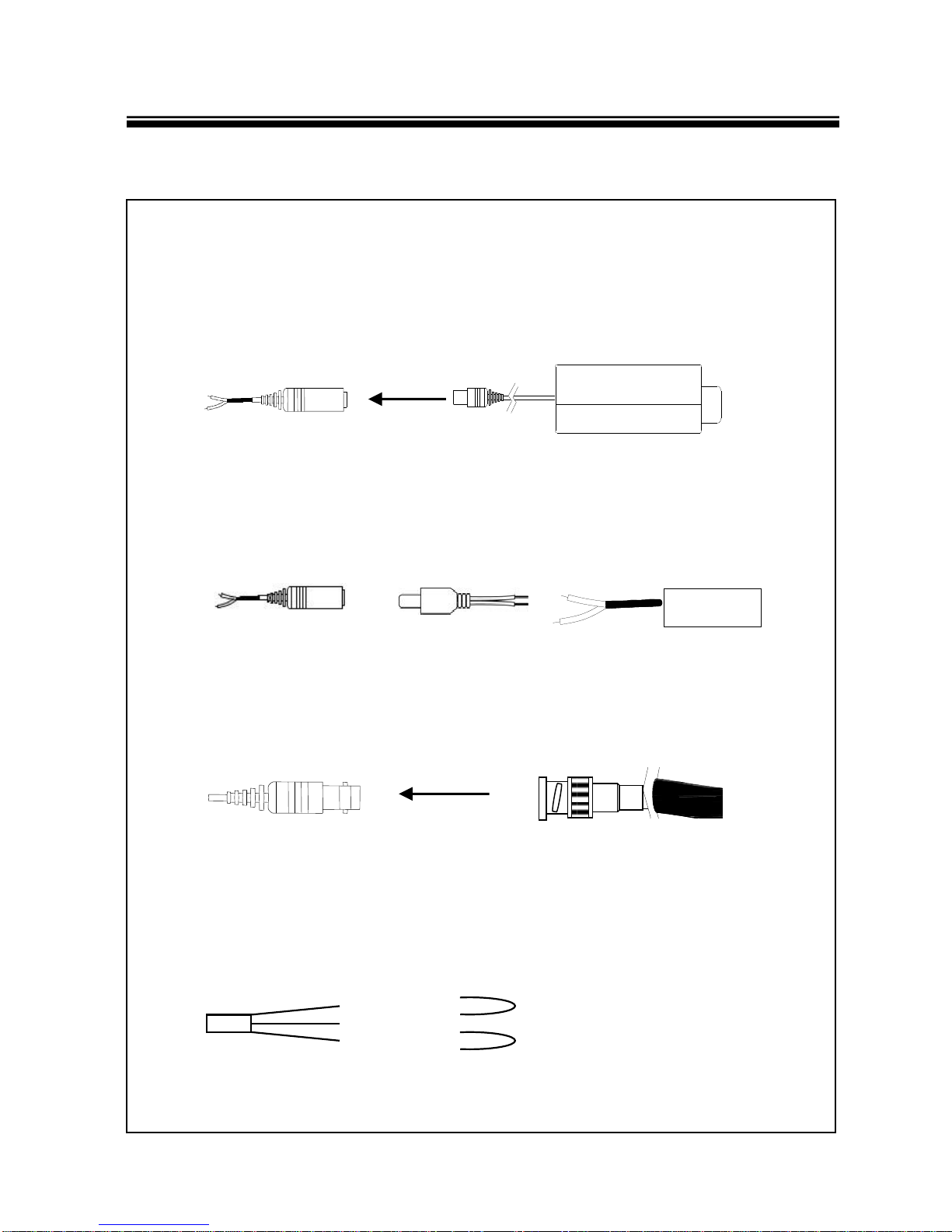

CONNECT POWER CABLE

1. When using 12 VOLTS DC (constant voltage 500mA)

2. When using 24 VOLTS AC (40Volt Amps)

3. CONNECT VIDEO CABLE

-CONNECT BNC CABLE TO THE BNC JACK.

4. CONNECT Alarm output (Relay output)

-Connect (+ , COM) for Positive activation and (-. COM) for

Negative activation of External Alarm Device when Motion

Detection is ‘ON’ in the camera.

DC 12V Power Supply

Power Input :RED

Center : (+)

CAMERA INSTALLATION

+ RED

-WHITE

COM (GREY)

Alarm Output

Positive Alarm Device

Negative Alarm Device

Power Supply

AC 24V

Power Input :RED

Center : (+)

Cable Lead (Accessory)

FEATURES

More Powerful Performance in low light condition.

High quality pictures to be captured in very low light condition.

INTENSIFIER H

Horizontal resolution of 700 TV lines is achieved by using a

SONY Super-HAD CCD with 520,000 pixels, and a custom DSP

yielding pictures with a high S/N ratio.

700TVL Resolution

The Intensifier camera has a DSP chip that can remove image

noise efficiently showing clean images in low light conditions.

SPECO DNR

PRESETS (Outdoor, Indoor, Elevator, Lobby, Hallway & Low Light)

Used for a quick and easy setup for the installation environment.

Now with “PRESETS”

More Powerful WDR in strong back lighting.

WDR

This function reverses bright spots in the picture (such as

headlights).This enables the entire system to do a better job of

resolving and displaying grayscale information such as a

license plate.

HLC (High Light Compensation)

FEATURES

This function removes image jitter that is caused by vibrations in

the building and reduces the amount of hard drive space.

STABILIZER

All camera functions are menu driven for easy use.

OSD

It also has the ability to mask up to 8 areas of the picture where

viewing is not desired. Each zone can be independently

programmed via the OSD.

PRIVACY MASK

The IntensifierH camera can show color pictures in all lighting

conditions, or you can have it automatically switch to a B/W

picture in low light conditions

DAY/NIGHT

Built in motion detector with adjustable areas of coverage will

send a signal to an external alarm device when motion is detected.

Motion Detection with Alarm Output

The picture could be enlarged by using this digital zoom function.

DIGITAL ZOOM

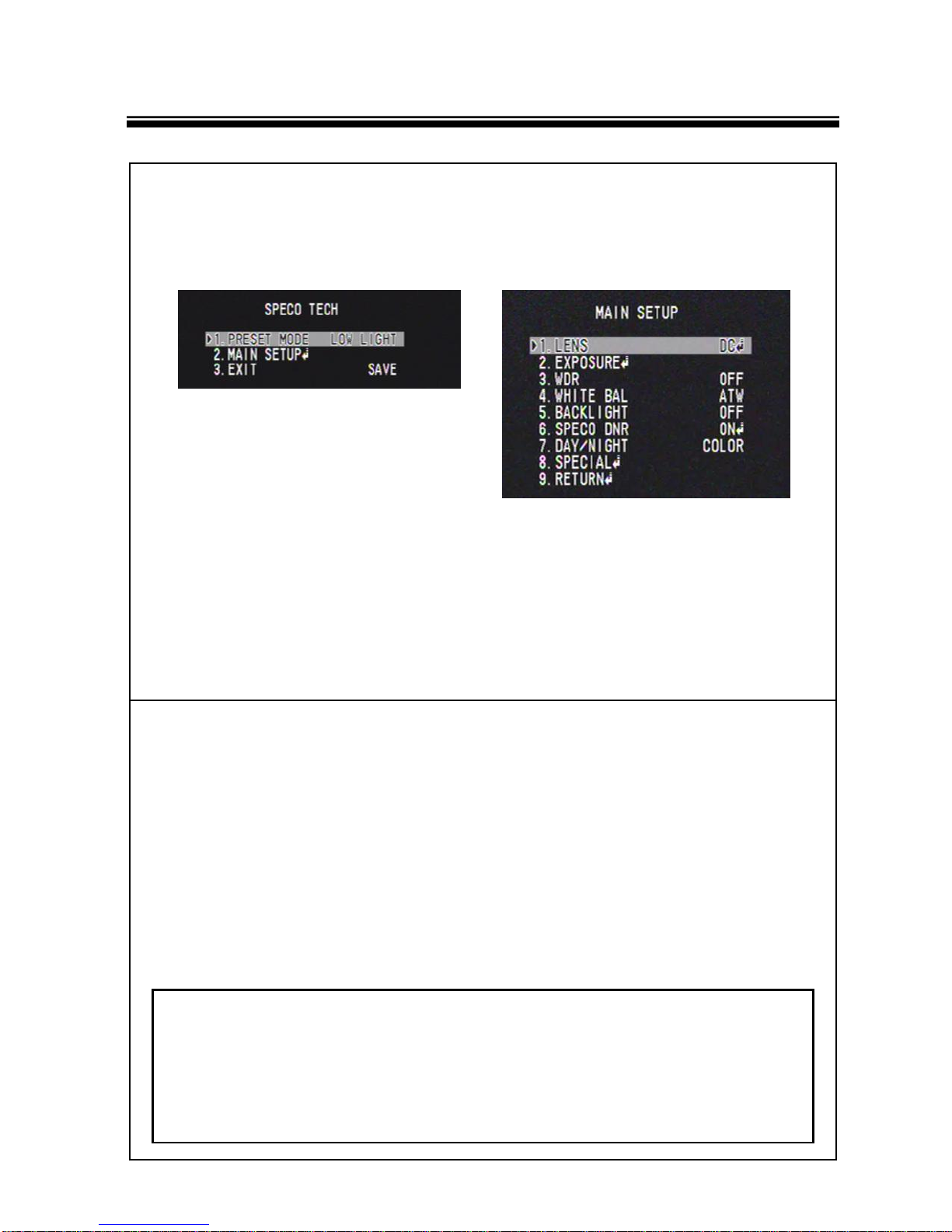

OSD MENU DETAILS

1. PRESET

[INDOOR / OUTDOOR / LOW LIGHT / LOBBY / HALLWAY / ELEVATOR]

- Used for quick and easy setup for the installation environment.

2. LENS SETUP

- BRIGHTNESS : Adjusts the video brightness (selectable from 1-70)

- IRIS SPEED : Adjusts Iris control speed of the DC lens. If the control

speed is too slow or fast, use this menu to adjust the speed.

- FOCUS ADJ : To adjust the DC lens focus correctly, you must change

MODE to ON under the FOCUS ADJUST menu. Adjust the lens

focus and after the lens focus had been adjusted, change MODE

to OFF.

3. EXPOSURE SETUP

◆BRIGHTNESS : Adjusts the video brightness.

◆SHUTTER : You can select either auto or manual shutter.

* A.FLK : Select this when you see picture flicker, this can happen when

the frequency of the local lighting clashes with the camera.

* ESC : Select this to control the shutter speed automatically. If ESC is

selected, the shutter speed is automatically controlled depending

on the ambient illumination of the subject.

* MANUAL : You can control shutter speed manually. (1/60 ~ 1/120,000)

•--- : Shutter speed is fixed at 1/60 sec. (1/50 sec.)

☞NOTE

■When using a DC lens, set the shutter mode to A.FLK if color rolling occurs.

■When the SHUTTER is set to ESC after selecting Internal Synchronization Type,

the picture may become unstable if the camera faces a bright fluorescent light.

Therefore, take care when choosing the installation position.

■When the SHUTTER is set to MANUAL or A.FLK mode, INTENSIFY will be

disabled.

OSD MENU DETAILS

◆AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter

the screen, but higher the noise.

* OFF : Deactivates the AGC function.

* LOW : Allows automatic gain control from 5.3dB to 32dB.

* HIGH : Allows automatic gain control from 5.3dB to 37dB.

◆INTENSIFY : When it is night or dark, the camera automatically detects

the light level and maintains a clear picture if this mode is activated.

* OFF : Deactivates the INTENSIFY function.

•AUTO : Activates the INTENSIFY function.

☞NOTE

■If you press the SET button in ‘AUTO’ mode, you can adjust brightness by

increasing or decreasing the shutter speed. (x2 ~ x512)

■Note that the higher the INTENSIFY level, the brighter the screen, but the more

likely there will be a ghosting effect.

■It is normal for noise, spots and whitish symptoms to appear in INTENSIFY

mode when the D-ZOOM level is increased.

4. WDR SETUP

WDR illuminates darker areas of an image while retaining the same light

level for brighter area to even out the overall brightness of images

with high contrast between bright and dark areas.

5. WHITE BALANCE SETUP

◆ATW : Select this when the color temperature is between 1,700˚K and

11,000˚K.

◆OUTDOOR : Select this when the color temperature is between

1,700˚K and 11,000˚K.(sodium light inclusion)

◆INDOOR : Select this when the color temperature is between 4,500˚K

and 8,500˚K.

◆MANUAL : Select this to fine-tune White Balance manually. Set White

Balance first by using the ATW or AWC mode. After that switch to

MANUAL mode, fine-tune the White Balance and then press the

SET button.

◆AWC→SET : To find the optimal luminance level for the current

environment, point the camera towards a sheet of white paper and

press the Function Setup switch. If the environment changes,

readjust it.

OSD MENU DETAILS

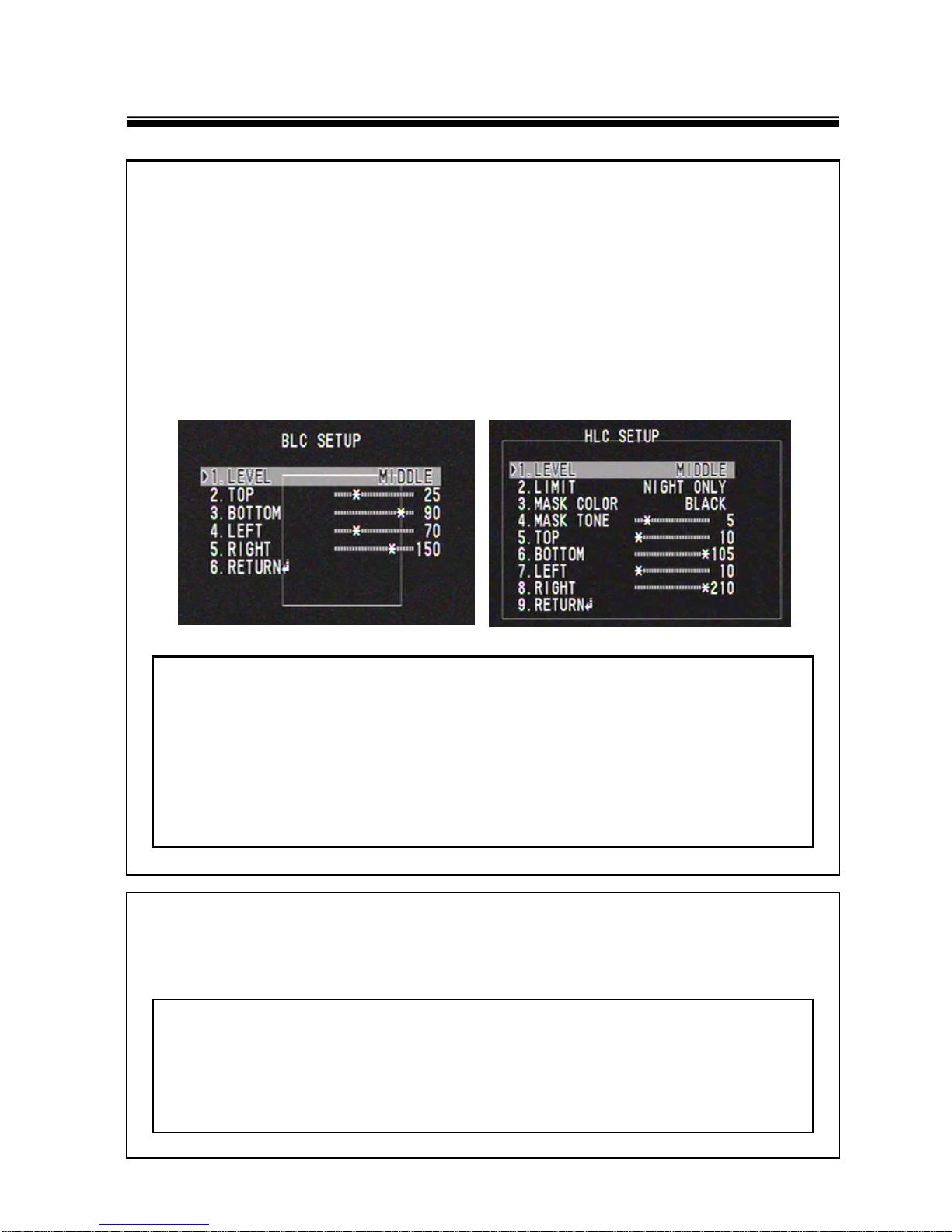

6. BACK LIGHT SETUP

◆USER BLC : Enables a user to select a desired area on a picture and

view that area more clearly.

◆HLC (High Light Compensation) : If the scene contains extremely bright

light areas such as from car headlight, the light can mask out much

of the on-screen detail. Use HLC feature to remove these

exceptionally bright light areas to allow detail such as car license

plate number to become visible.

☞NOTE

■Because there can be a difference in the effectiveness of HLC according to the

amount of light area in the screen, optimize the installation angle for the best HLC

performance.

■When dark, the HLC is only activated when a bright light exceeding a specific

size in NIGHT ONLY mode.

■The HLC is not activated in day light or when bright light is not present at night

in NIGHT ONLY mode.

■BLC Function doesn't work in the B/W mode of the DAY/NIGHT menu.

7. SPECO DNR SETUP

This function reduces the background noise in a low light environment.

☞NOTE

■When the AGC mode of the EXPOSURE menu is ‘OFF’, you cannot set the

SPECO DNR to ‘ON’ or ‘OFF’.

■When adjusting the noise reduction level in DNR3 mode, remember that the

higher level is set, the greater reduction in noise level, as will the brightness of

the image.

OSD MENU DETAILS

8. DAY / NIGHT SETUP

◆EXTERN : This mode allows you to supply a desired filter to external

signals.

◆COLOR : The picture is always displayed in color.

◆B/W :The picture is always displayed in black and white.

You can turn on or off the burst signal on B/W mode.

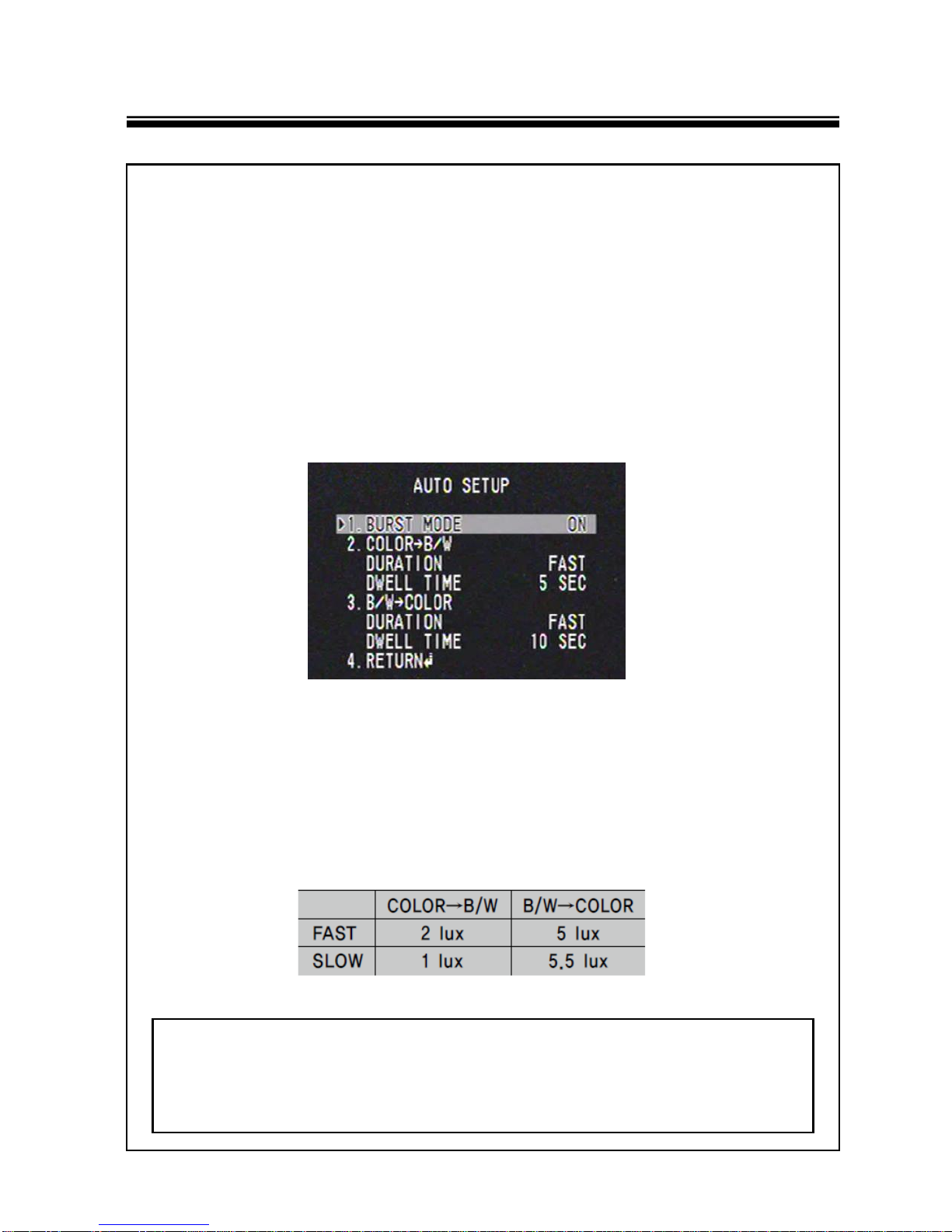

◆AUTO : The mode is switched to ‘Color’ in a normal environment, but

switches to ‘B/W’ mode when ambient illumination is low. To set up

the switching time for AUTO mode, press the SET button.

You can turn on or off the burst signal on B/W mode.

- BURST MODE : You can turn on or off the burst signal on B/W mode.

- DURATION : You can select the brightness level at which the camera

switches from day to night mode.

- DWELL TIME : You can select the duration the camera changes from

day to night mode and night to day.

☞NOTE

■When using a Video Auto Iris Lens, if you set the lens level to low, automatic

switching between Color and Black&White may not occur.

■When AGC in the EXPOSURE menu is ‘OFF’, '---' mode operates as ‘COLOR’

mode and ‘AUTO’ mode cannot be selected.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Speco Caméra de sécurité

Speco

Speco WDR-B1 Manuel utilisateur

Speco

Speco LEDome Manuel utilisateur

Speco

Speco CVC-635N Manuel utilisateur

Speco

Speco CVC-6700 Series Manuel utilisateur

Speco

Speco CCLR13D1G Manuel utilisateur

Speco

Speco O5B2M Manuel utilisateur

Speco

Speco O4D6WM Manuel utilisateur

Speco

Speco Intensifier H HINT81H Manuel utilisateur

Speco

Speco ONSIP O2D3 Manuel utilisateur

Speco

Speco HT-7246IHR Manuel utilisateur

Speco

Speco HT770PH Manuel utilisateur

Speco

Speco VL-634 Manuel utilisateur

Speco

Speco PROVIDEO CVC-627 Manuel utilisateur

Speco

Speco ProVideo CVC-724EXTP Manuel utilisateur

Speco

Speco HT7040T Manuel utilisateur

Speco

Speco HT5943T Manuel utilisateur

Speco

Speco Intensifier O2iD8M Manuel utilisateur

Speco

Speco VL-62 Manuel utilisateur

Speco

Speco CVC-635CR Manuel utilisateur

Speco

Speco CVC-510C Manuel utilisateur

Speco

Speco O2iD5M Manuel utilisateur

Speco

Speco O4VD1 Manuel utilisateur

Speco

Speco O4VT1M Manuel utilisateur

Speco

Speco CVC-M160 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
