Soundstream VIR-7200 Manuel utilisateur

DVD/VCD/CD/WMA/MP3/FM/AM RECEIVER

Operating Instructions

Vir-7200

Thank you for buying this product, please read through these operating

instructions, so you will know how to operate your model properly. after

you have finished reading the instructions, put them away in a safe place

for future reference .

PRECAUTIONS

FRONT PANEL

SYSTEM MENU

REMOTE CONTROL

RADIO OPERATION

DVD/VCD/CD OPERATION

SYSTEM SETUP

CABLE CONNECTION

ACCESSORIES

INSTALLATION

TROUBLE SHOOTING

SPECIFICATION

CONTENTS

MP3 OPERATION 21

BASIC OPERATION 11

Note:

Due to continuous product improvement, specifications and design are

subject to change without prior notice.

PRECAUTIONS

The unit is designed for 12VDC,

negative ground operation

system only. Before installing

the unit,make sure your vehicle

is ed to DC 12V negative

tem.

connect

ground sys

Be sure to connect the color

coded leads according to the

diagram.Incorrect connections

may cause the unit to malfunc-

tion or damage the vehicle s

electrical system.

Be sure to connect the speaker (-)

to the speaker (-) terminal.

Never connect the left and right

channel speaker cables each

other or to the vehicle body.

leads

Do not block vents or radiator

nels. Blocking them will cause

to build up inside and may

fire.

heat

result in

After completing the installation

beginning to play the unit

replacing the battery),

RESET button on the base

with pointed as ball-

point pen) to initial

status.

and

(including

please remove the guard against

theft front-panel at first, and then

press

object (such

set the unit to

Notes on Installation

When replacing the fuse(s), the

placement must be of the same

perage as shown on the fuse

holder.

Make sure all the connections

are before

turning on your unit.

completely correct

FRONT PANEL

345 6 7

17 17 18

14 13

FRONT PANEL

1PWR/SRC:Press PWR/SRC button

to turn on the unit, press and hold the

button for 1 second or longer to turn off

the unit. In power on, press PWR/SRC

button to select one of the source:

RADIO/DVD/SD/USB/AUX.

2VOL:Rotate VOL button clockwise

to increase the volume level;and rotate

VOL button anticlockwise to decrease

the volume level.

Touch the VOL-/VOL+ button on the

TFT panel also performs the same

operation.Press the button to select

one of the audio control:BALANCE/

FADER/BASS/TREBLE/VOL.

3REL:Press to open the guard

against theft front-panel.

4MUTE:Press to shut off the sound

output, press it again to resume previous

sound.

5 / / / :In radio mode,

Touch the SEEK-/SEEK+ button on the

TFT panel can also automatic

seek.

In disc playback mode, short press to

select previous or next track or chapter.

Long press will perform fast reverse or

fast forward.

7AUX A/V IN: Insert the A/V cord,

then press PWR/SRC button to select

AUX1 source.

8SD slot:Insert SD card, the

PTID-8200 will play the files of SD card

automatically.

long

press switches to manual station seek.

Short press switches to automatic.

switch to

6 /BAND:Press to pause or play

DVD/SD/USB.

In radio mode, press to change current

band.

9USB slot:Insert USB device, the

PTID-8200 will play the files of USB

automatically.

10 IR window

11 :Short press to eject a disc and

long press to eject the disc coercively

except mode.

13 OPEN:Press to open or close the

TFT panel.

16 RESET

17 / (ANGLE):Press to set the

angle of TFT panel.

DVD

12 DISP: In DVD/SD/USB mode, if

play DVD, short press to display Title

Elapsed Title Remain Chapter

Elapsed Chapter Remain Display

Off.

In VCD/CD mode, press to display

Single Elapsed Single Remain Total

Elapsed Total Remain Display Off.

In other mode, to display current time.

Long press to display current time in

any mode.

14 LOUD: Press to select the

loudness control.

15 EQ: Press to select the corres-

ponding preset modes to adjust the

sound quality perfectly.

18 MENU: In DVD/SD/USB mode,

short press to display DVD MENU;

Long press to display MAIN MENU.

In other mode to display MAIN MENU.

SYSTEM MENU

CH1 CH2 CH3

CH4 CH5 CH6

In radio mode, the TFT displays the

following menu:

Pressing the SETUP button on the

remote control, touching the MENU

button on the TFT will show the

following:

The menu includes AUDIO VIDEO

SOURCE SYSREM EXIT.Touch the

corresponding item to select it.

1.AUDIO

When selecting the AUDIO, the TFT

displays the following:

Here you can adjust the BASS

TREBLE VOLUME BALANCE or

FADER. For example, when touching

FAD, the TFT displays the following:

FADE F3

Touch the or to adjust the fader.

Touch EXIT to input the chosen value.

Note:

the other items of this menu have the

same operations.

2.VIDEO

In main menu, when selecting VIDEO,

the TFT displays the following:

In this menu you can adjust

BRIGHTNESS COLOR PICTURE

CONTRAST TINT to adjust.

Adjust PICTURE

For example, when touching the

PICTURE button, the TFT displays the

following:

PICTU 30

SYSTEM MENU

Touch the or to adjust the picture.

And touch SAVE to save the setting.

Then touch EXIT to exit this item.

Note:

the other items of this menu have the

same operations.

3.SOURCE

In main menu, to select SOURCE, the

TFT displays the following menu:

On this page you can choose the input

source DVD AUX USB SD or

RADIO.

Touch to select the source you want.

4.SYSTEM

When selecting SYSTEM in main

menu, the TFT displays the following:

This page includes CLOCK SYSTEM

KEY BEEP MONITOR FLEX etc.

CLOCK SYS

KEY BEEP

MONI FLEX

TIME FORMAT

Touch to select 24 HOUR or 12 HOUR.

Default setting is 24 HOUR .

KEY BEEP

CLOCK SYS

KEY BEEP

MONI FLEX

OFF

Touch to open or close the key beep.

Default setting is ON .

MONITOR FLEX

CLOCK SYS

KEY BEEP

MONI FLEX

12 HOUR

24 HOUR

CLOCK SYS

KEY BEEP

MONI FLEX

AUTO

MANUAL

Touch to set the angle of the monitor

when powering.

Default setting is AUTO .

NEXT SETUP PAGE

Touch to select the next setup page,

touch to select the previous setup

page.

SYSTEM MENU

REVER POLA

SUBWOOFER

AMS FULLUP

REVER POLA

SUBWOOFER

AMS FULLUP GROUND

BATTERY

Touch to set REVERDE POLA. If your

car is +12V when reversing, please

set this variable to BATTERY. If it is 0V,

please set the value to GROUND.

Default setting is BATTERY .

SUBWOOFER

REVER POLA

SUBWOOFER

AMS FULLUP

SUB ON

SUB OFF

Touch to select SUBWOOFER OFF/

ON.

Default setting is OFF .

AMS (Stored station automatically)

REVER POLA

SUBWOOFER

AMS FULLUP

OFF

Touch to turn on or off the auto tuning

mode. If selecting ON, when all the

stations are stored, it will prohibit new

AMS function. If selecting OFF, it will

search for stations even is stations

have been stored.

Default setting is OFF .

NEXT SETUP PAGE

Touch to select the next setup page,

touch to select the previous setup

page.

LOCAL AREA

LOCAL

GOTO FREQ

LOCAL AREA

LOCAL

GOTO FREQ

U.S.A

EUROPE

Touch to select EUROPE or U.S.A.

This will insure easy station search.

SYSTEM MENU

LOCAL

LOCAL AREA

LOCAL

GOTO FREQ

OFF

Touch to toggle LOCAL OFF/ON.When

local is ON, it only receives the strong

local stations. When local is OFF, it can

receive the long distance stations.

Default setting is OFF .

GOTO FREQUENCY

LOCAL AREA

LOCAL

GOTO FREQ

OFF

In radio mode, touch to select ON,

press GOTO button and Number

buttons(1-9) on the remote control

to input the frequency of a station.

Default setting is ON .

NEXT SETUP PAGE

Touch to select the next setup page,

touch to select the previous setup

page.

SCREEN ADJUST

Please press the button

ADJUST MENU

Touch SCREEN ADJ. The is

displayed on the top left corner of TFT,

the system says: Please press the

button. Then move to . and

touch and hold the and move

to .Move to in the same way. Now

adjust successful is displayed,

press SAVE to save the setup.

CLOCK ADJUST

00 : 00 : 00

Touch to adjust clock.

PWR

LOUD

RDM

SRC

ZOOM

P/N

AUDIO

GOTO 0

BAND

OSD

VOLVOL

A-B

PROG

AMS

SUB-T

LOC

ENTER

TITLE

SETUP

RPT

123

456

789

ANGLE

CLEAR

SEL

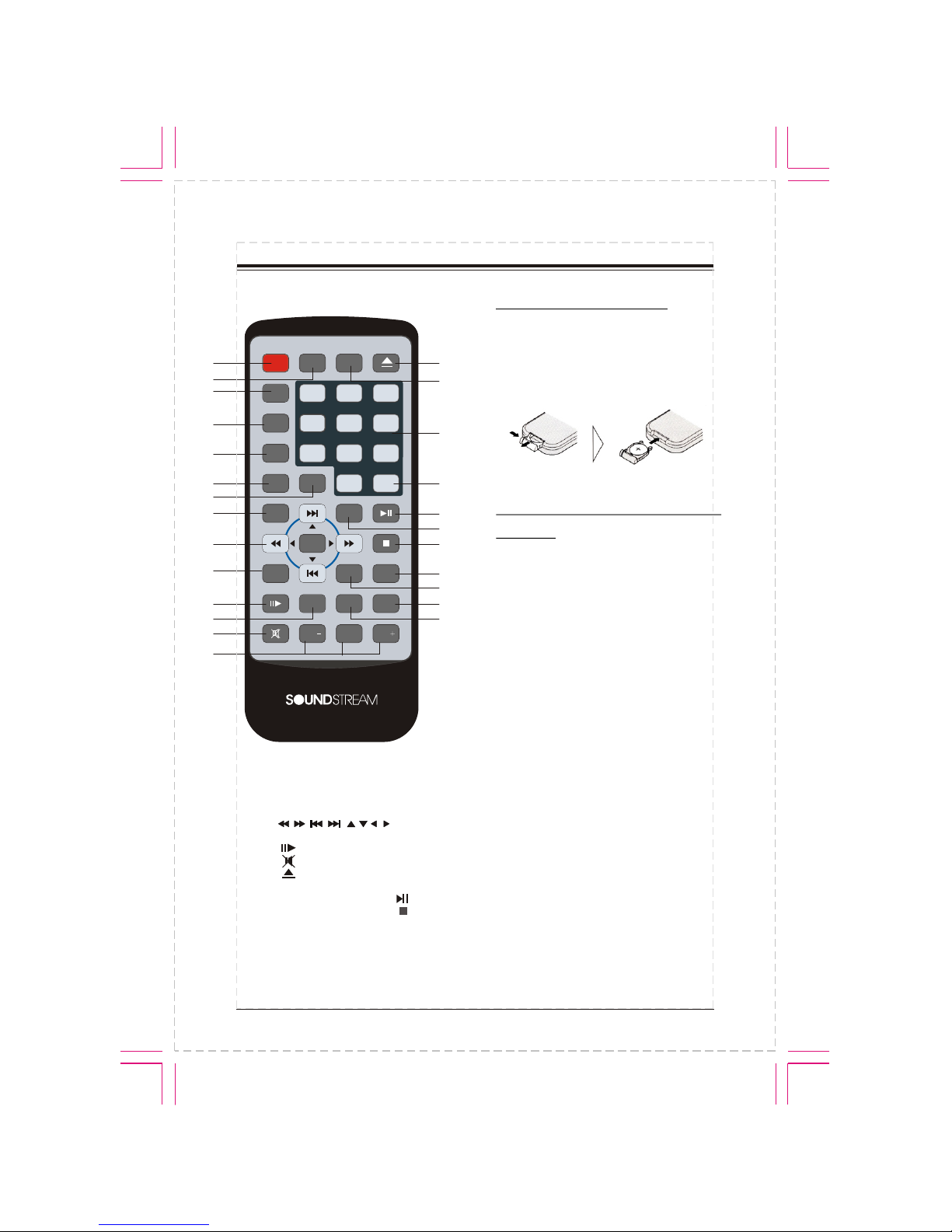

REMOTE CONTROL

REMOTE CONTROL Installing the battery

Slide the tray out on the back of the

remote control and insert the battery

with the plus (+)and minus(-)poles

pointing in the proper direction.

Use and care of the remote

control

Point the remote control in the direction

of the front panel to operate to use it.

Notes:

Using batteries improperly can cause

them to explode. Take note of the follo-

wing points:

* Keep the battery out of the reach of

children. Should the battery be swallo-

wed, immediately consult a doctor.

* Use one CR2025(3V)lithium battery.

* Remove the battery if the remote con-

trol is not to be used for a month or

longer.

* Do not short-circuit, disassemble or

heat batteries.

* Do not dispose of batteries into fire or

flames.

* Dispose of spent batteries properly.

* Do not let the remote control fall onto

the floor, where it may become jam-

med under the brake or accelerator

pedals.

1. SPC/PWR 2. EQ

3. ANGLE/AMS 4. SUB-T/LOC

5. PROG/A-B 6. OSD

7. GOTO 8. MENU

10. RPT

11. 12. ZOOM

13.

[ / ][ / ][ / / / ]/ENTER

14. VOL-/SEL/VOL+

15. 16. LOUD

17. 0-9 Number button

18. CLEAR 19.

20. TITLE 21.

22. BAND/P/N 23. SETUP

24. AUDIO/ST 25. RDM

1 15

11 24

Autres manuels pour VIR-7200

Table des matières

Autres manuels Soundstream Récepteur de voiture

Soundstream

Soundstream PCD-41B Manuel utilisateur

Soundstream

Soundstream VR-450 Manuel utilisateur

Soundstream

Soundstream VR-722HB Manuel utilisateur

Soundstream

Soundstream VIR-8310NRB Manuel utilisateur

Soundstream

Soundstream VR-535 Manuel utilisateur

Soundstream

Soundstream VR-345 Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Soundstream

Soundstream VR-74H2B Manuel utilisateur

Soundstream

Soundstream VR-103 Manuel utilisateur

Soundstream

Soundstream VIR-7200 Manuel utilisateur

Soundstream

Soundstream VR-701 T Manuel utilisateur

Soundstream

Soundstream VIR-4344 Manuel utilisateur

Soundstream

Soundstream SDR-342B Manuel utilisateur

Soundstream

Soundstream VR-732T Manuel utilisateur

Soundstream

Soundstream VCD-21B Manuel utilisateur

Soundstream

Soundstream VR-65B Manuel utilisateur

Soundstream

Soundstream SDR-342 Manuel utilisateur

Soundstream

Soundstream VDVD-300R Manuel utilisateur

Soundstream

Soundstream mobile video system Manuel utilisateur

Soundstream

Soundstream TFT Monitor /DVD/AM/FM/Bluetooth Manuel utilisateur

Soundstream

Soundstream VR-701 T Manuel utilisateur

Soundstream

Soundstream SDR-762 Manuel utilisateur

Soundstream

Soundstream VCD-32B Manuel utilisateur

Soundstream

Soundstream DVD Entertainment system Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur

Medion

Medion Car Audio Manuel utilisateur
