Soundstream VIR-4344 Manuel utilisateur

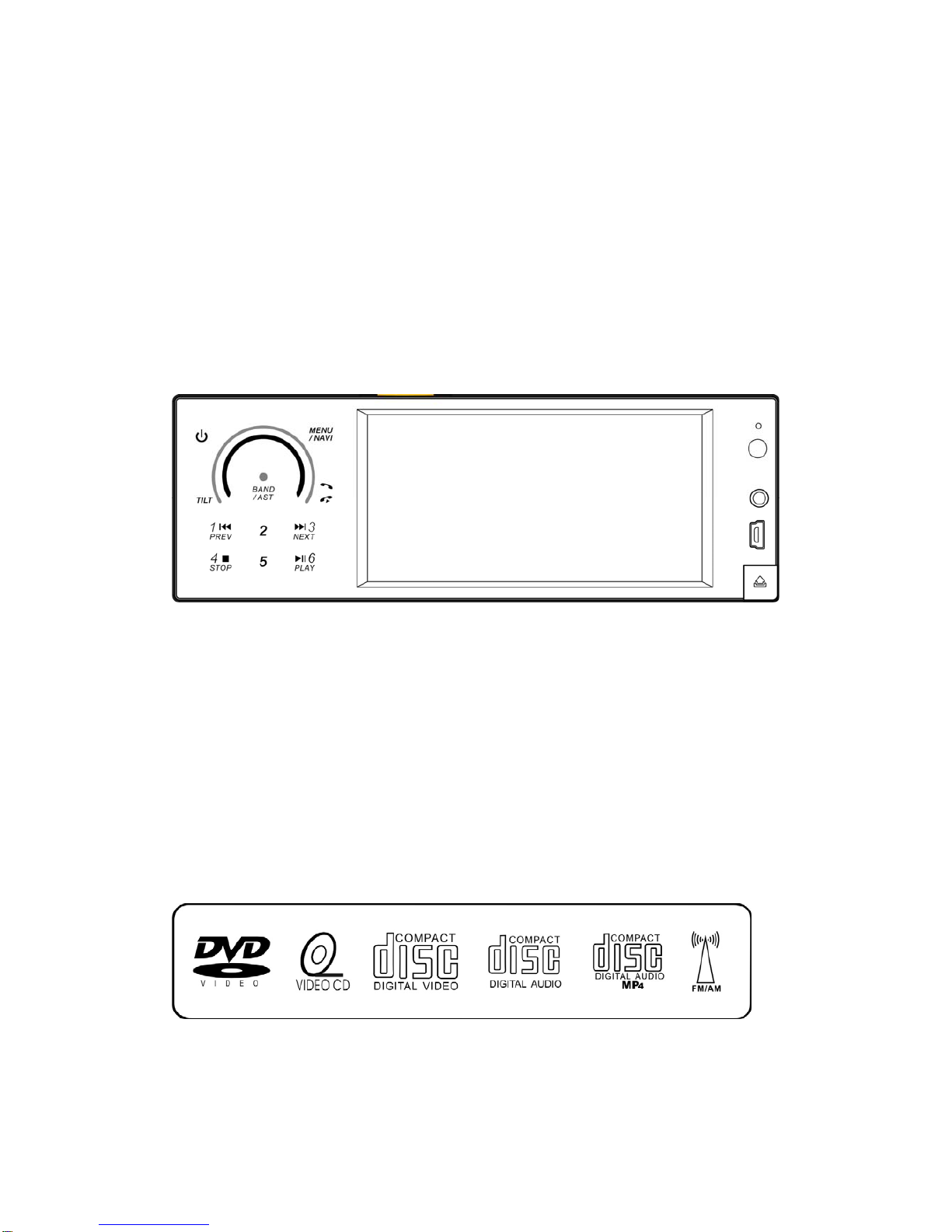

OWNER’S MANUAL

Mobile Video System

- 1 -

TABLE OF CONTENTS

Table of Contents…………………………………….…………….………………………..1

Safety Information………………………………………………….………………………2

Features…………………………………………………………….………………………3

Accessories……………………………………….…….………………………………….4

Wire Connection……………...……………………………..……………………………….5

Unit Installation and Removal………………………….….………………………………8

Front Panel………………………………………………………..…..……………………12

Base Panel.………………………………………………………..…..……………………14

Remote Control……………………………………………………………………………15

Touch Screen Operations………………………………………………….……………20

Touch Screen Calibrate…………………………………….………………………20

Main Menu…………………………………………………….………………………21

Radio Operations…………………………………………………….……………….22

DVD Operations…………………………………………………….……………….23

Bluetooth Operations…………………………………………………….…………28

i-POD Operations………………………………………………….………………..34

SD CARD Operations……………………………………………….………………..35

USB Operations…………………………………………………….………………..35

AV IN Operations…………………………………………………….………………36

AUX IN Operations………………………………………………….………………36

NAVI Operations…………………………………………………….…………….…37

ATSC Operations…………………………………………………….…………….…41

System Parameters Setup………………………………..….……………….……42

Specifications…………………………………………………………………………….....45

Trouble shooting………………………….……………………………………….….…...46

Disc Notes…………………………….…………………………………………….….…...48

- 2 -

SAFETY INFORMATION

Please read the manual carefully before operating this unit and keep it for

future reference.

CAUTION: This unit is a class 1 laser product. To prevent direct exposure to the

laser system, do not open the unit. The laser beam may hurt your eyes.

If the unit requires adjustments, contact an authorized service centre.

USE THIS PRODUCT SAFELY

Be sure you fully understand the following safety information:

When driving

Keep the unit at an appropriate sound level. Driving with the sound at a level

preventing you from hearing sounds outside and around the car may cause an

accident.

When cleaning

Do not expose the product to water or excessive moisture. This could cause short

circuit, fire or other severe damage.

When parked

Parking in direct sunlight can result in very high temperature levels inside your car.

Let the interior and unit cool down before switching the unit on.

NOTE:

Do not use and store the player in dusty, hot or humid environment.

FUSE REPLACEMENT – WARNING!

Never replace any fuse with one of a higher value than the fuse supplied

with your unit. Using a higher current rated fuse may cause damage to

your unit and/or electrical wiring.

- 3 -

FEATURES

•Motorized TFT-LCD w/ 4 Pre-Set Angles & Last Angle Memory

•Theft Deterrent Detachable Faceplate

•Accepts Add-On GPS Navigation Module, NAVIBOX-1

•Accepts Add-On Digital TV Tuner Module, DTV-1

•Car-Spec DVD Transport for Extreme Temperature Exposure

•Playback from DVDR/RW & CDR/RW Including VCD, MP3, MP4 & DiviX

•Recall Memory for Last DVD Position

•i-Pod Input Connection （requires IP-1C cable)

•Mini-USB Connection for MP3 & MP4 Playback From 4GB Flash Drive

•4GB SD Card Reader for MP3, MP4, DiviX & Xvid Playback

•1GB Internal Memory for Background & Screen Saver Images

•18 FM / 12 AM Station Memory

•50w x 4 MOSFET Powered Speaker Level Outputs

•Front & Rear Pre-Amp Outputs

•Dedicated Variable Subwoofer Pre-Amp Output w/ LPF (80, 120, 160Hz)

•A/V Outputs for Multiple Components

•A/V Inputs for Secondary Source

•Front Panel 3.5mm Auxiliary A/V Input

•Reverse Camera Input w/ Trigger

•Custom & Pre-Set EQ Settings

•Audio Staging Controls

•12/24 Hour Clock

•USA/European Frequency Stepping

•NTSC/PAL Auto Selection

•432 x 240 Screen Resolution

•400cd Backlight Brightness

Bluetooth Features

•Work with Most Bluetooth V2.0 Enabled Phones

•Noise & Echo Cancellation

•Contacts List Transferred for Easy Access Dialing

•Caller ID Shows Name and Number from Contacts List

•Recent Calls & Talk Time Logs

•A2DP for MP3 Playback

NOTE:

This user's manual is only for reference.

Modifying rights are reserved.

Specifications are subject to change without notice.

- 4 -

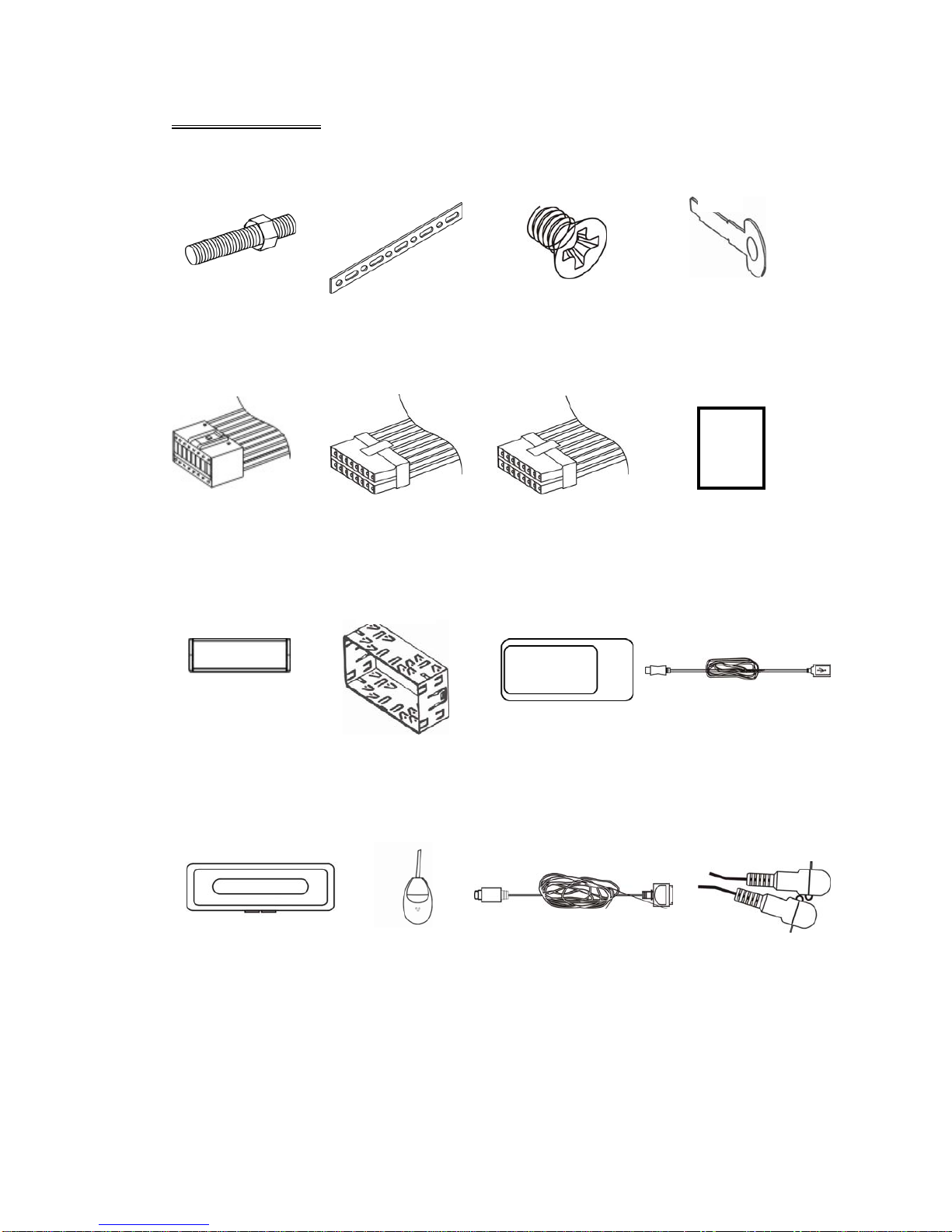

ACCESSORIES

Bolt x 1 Back Strap x 1 M5X5 Screws x 4 Keys x 2

Power Wire x 1 Connecter Wire x 1 Connecter Wire x 1 Operational Manual x1

（White）（Yellow）

Trim Bezel x 1 Mounting Sleeve x 1 Remote Control x 1 USB Cable x 1

Faceplate Case x 1 Microphone x 1 iPod Cable x 1 AUX Cable x 1

(Optional)

13 14 15 16

- 5 -

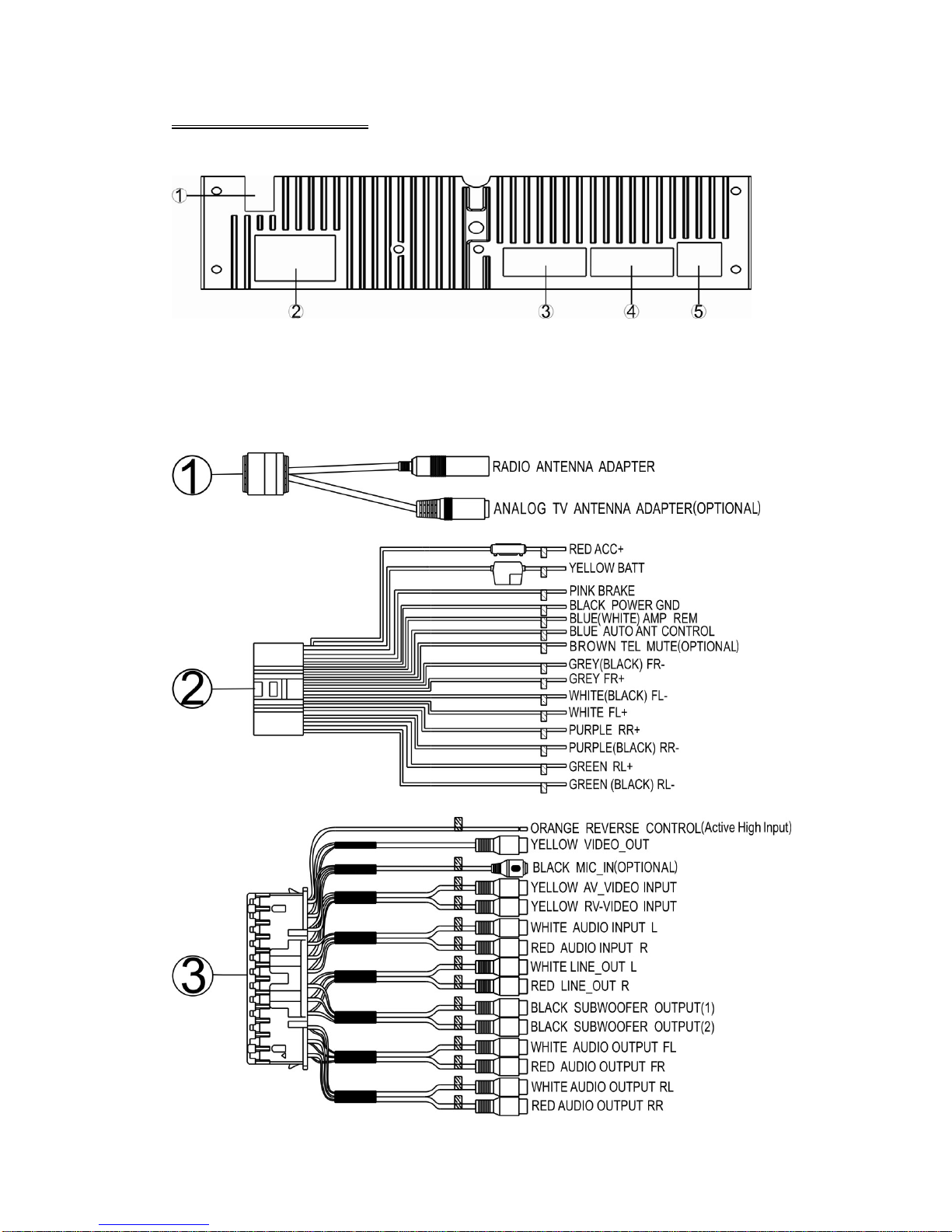

WIRE CONNECTION

1. RADIO & ANALOG TV ANTENNA (OPTIONAL)

2. 15PIN SOCKET

3. AUDIO / VIDEO OUTPUT & INPUT

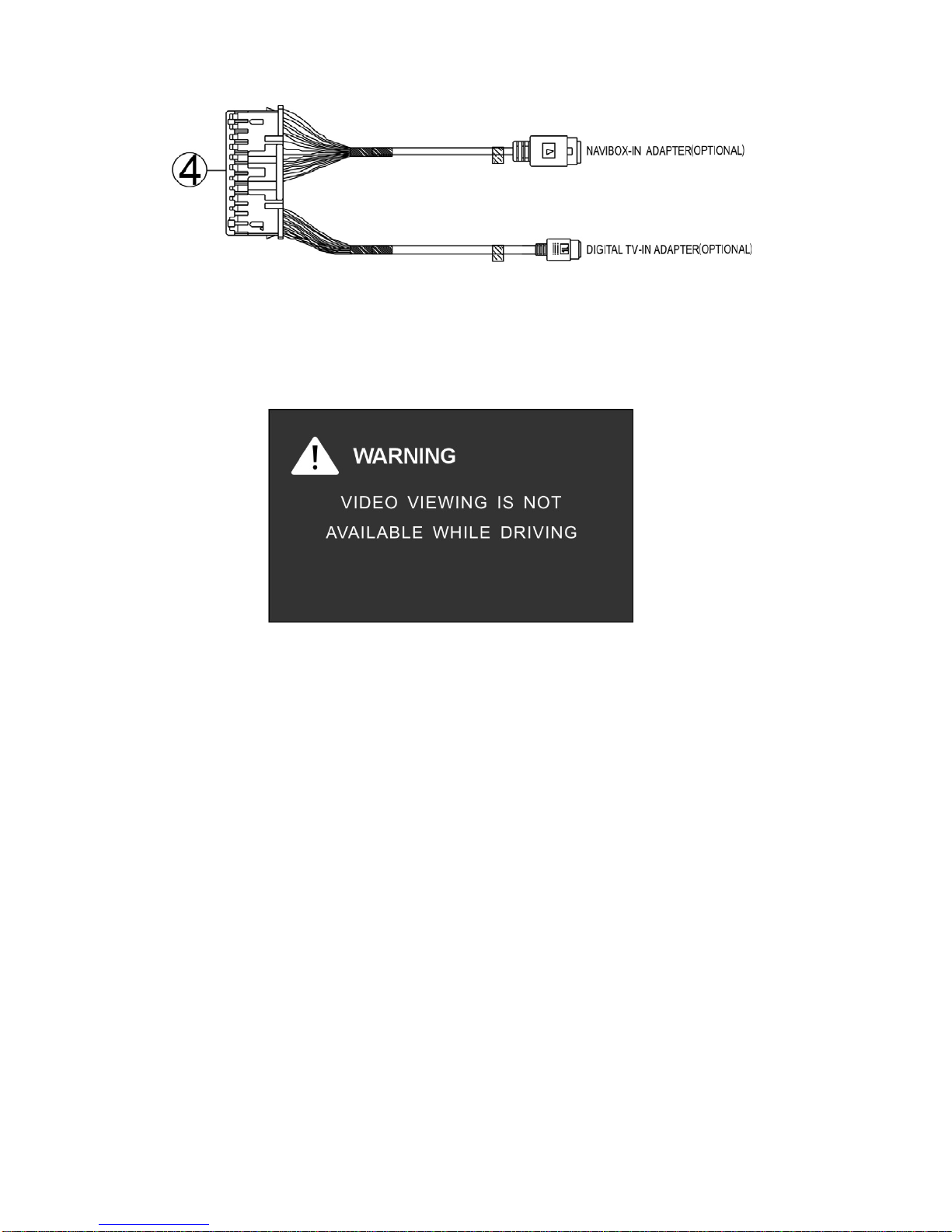

4. NAVI & DIGITAL TV ADAPTER (OPTIONAL)

5. IPOD ADAPTER

- 6 -

Brake Control

Connect the brake control wire AUTO_ANT (see Wiring Diagram). It is necessary to

connect the Brake Control wire to the Hand-brake switch of the car. While driving, the

TFT monitor will display the alarm picture (see as follows) in order to ensure the

safety.

Under the Rear View Mode, the Brake Control function is no effective.

Telephone Mute Control (Optional)

Connect the telephone mute control wire TEL_MUTE (see Wiring Diagram). If there

is a vehicle call comes in, the sound volume will mute off automatically, and TFT

monitor shows: PHONE…; when call finished, the sound volume will recover to

former volume, and the words PHONE… disappear.

Auto Antenna Control

Connect the auto antenna control wire AUTO_ANT (see Wiring Diagram). The

antenna will lift when the unit startup; it will descend when the unit turnoff.

- 7 -

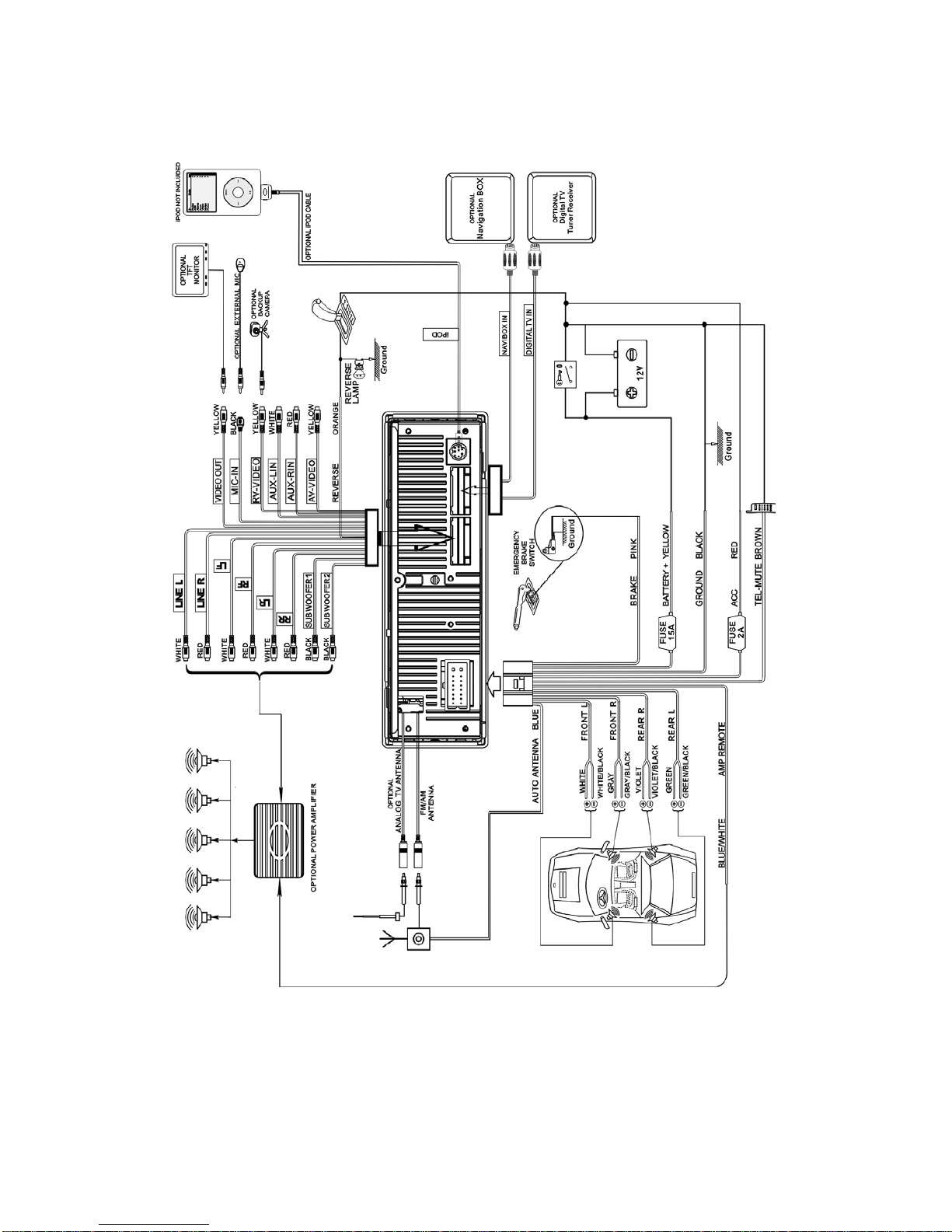

Wiring Diagram

- 8 -

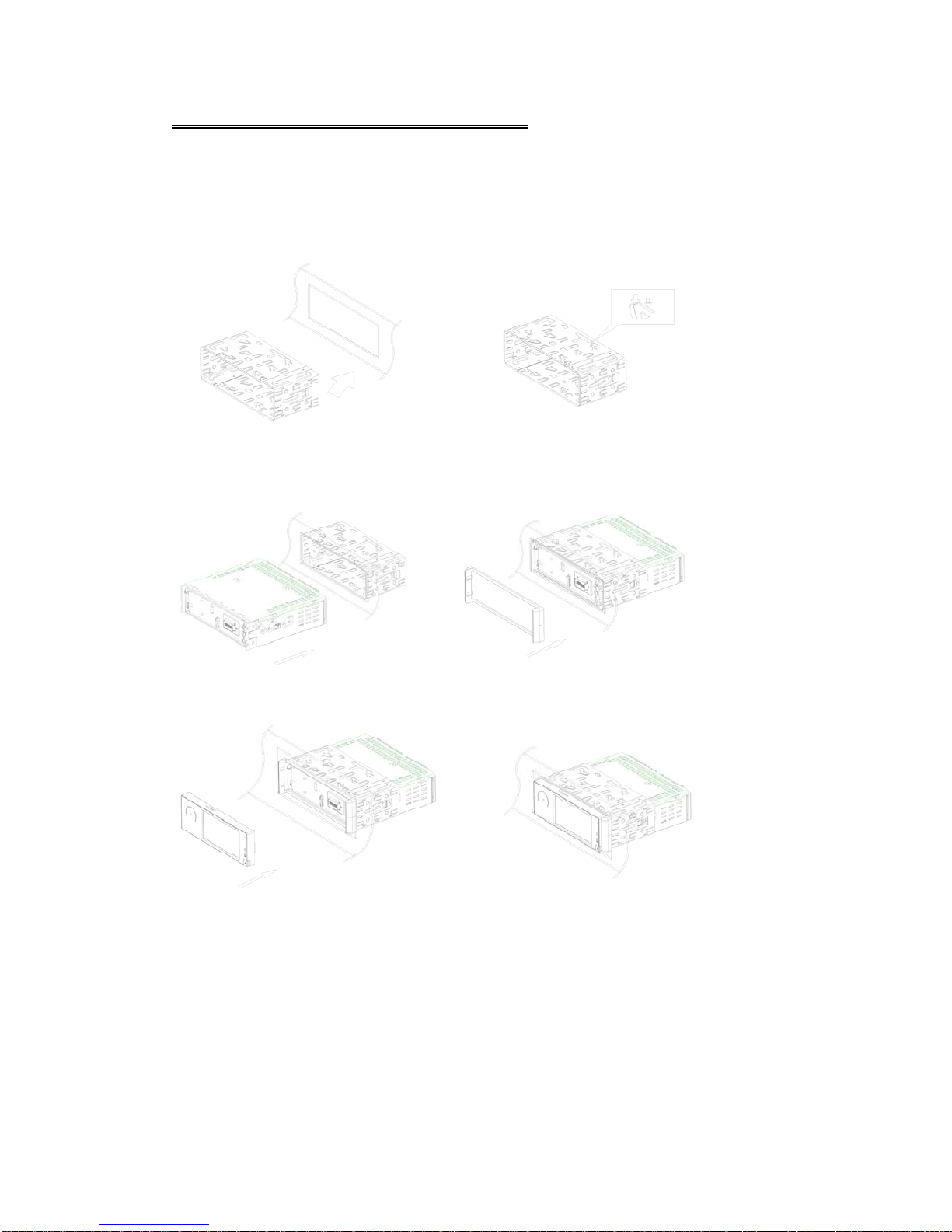

UNIT INSTALLATION AND REMOVEL

Installation Method 1:

1 Install the mounting sleeve 2 Bend the claws into place

into the dashboard. to secure the sleeve.

3 Slide the units into the mounting 4 Install the trim bezel onto the unit.

sleeve.

5 Install the face panel onto the unit. 6 Sketch map when installation is finished.

- 9 -

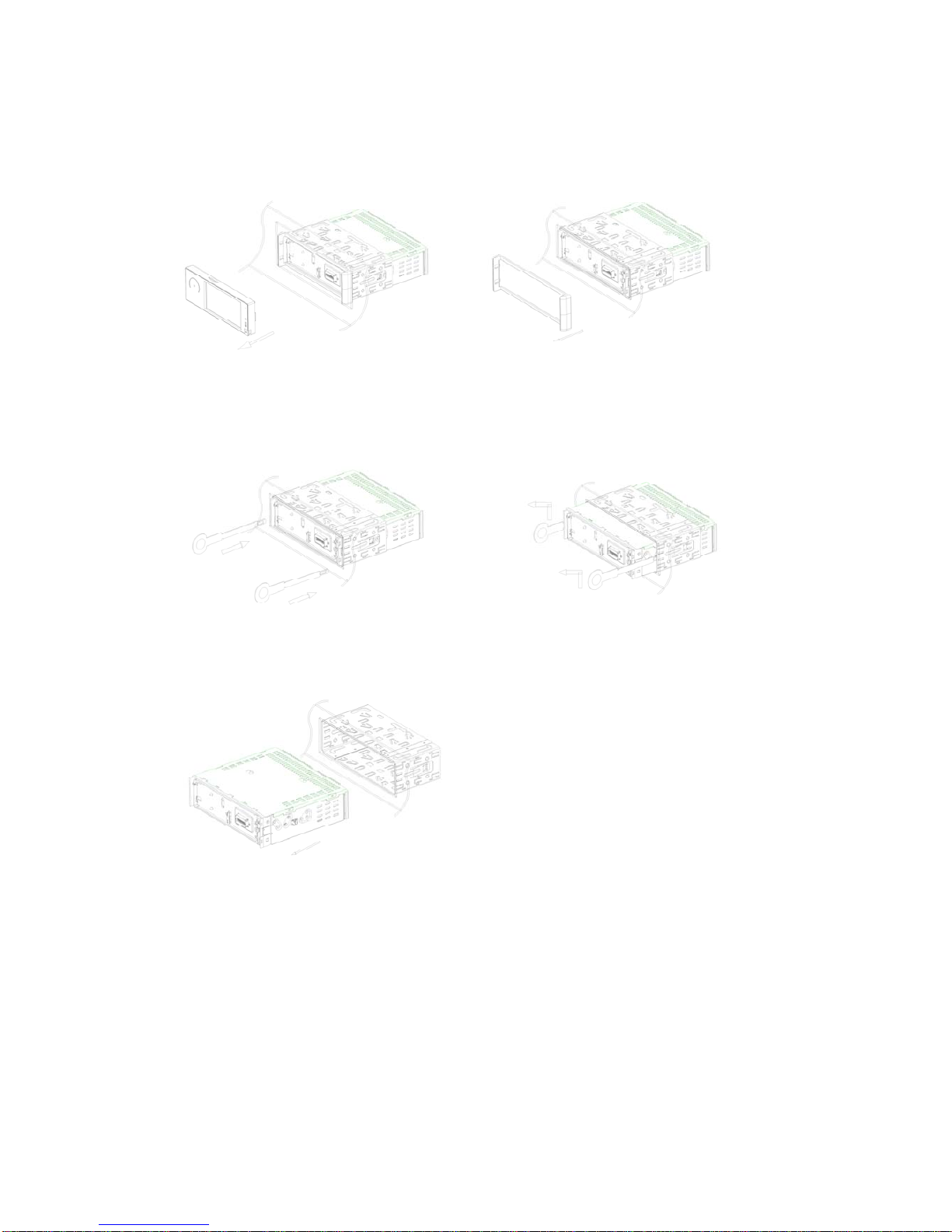

Removal Method 1:

1 Detach the face panel by 2 Detach the trim bezel.

pushing the release button.

3 Insert the keys into the aperture 4 Pull the unit out of the

between the unit and the mounting mounting sleeve.

sleeve to release the internal locks.

5 Sketch map when removal is finished.
