Soundcore Life Note 3 Manuel utilisateur
Soundcore Life Note 3
USER MANUAL
Charging
•Fully dry off the earbuds and the USB port before charging.
•Use a certified USB-C charging cable and charger to prevent any damage.
•Fully charge both the earbuds and the charging case before the first use.
1. Place the earbuds in the charging case and close it.
2. Connect the charging case to the power supply by using a USB-C charging
cable.
•The LED indicators on the charging case indicate the charging status.
Wearing
1. Choose the EarTips that fit your ears best.
2. Insert the earbuds into the inner canal of your ears and turn gently until you
find the most comfortable and secure position.
1
•Your earbuds come with multiple pairs of EarTips, among which Medium-sized
are pre-installed.
Powering On/Off
Open the charging case, the earbuds will automatically power on.
To power off, place the earbuds in the charging case and close it.
•The earbuds will automatically power off after 30 minutes if no device is
connected.
2
Bluetooth Pairing
1. Open the charging case, the earbuds will automatically enter the Bluetooth
pairing mode.
•The 3 LED indicators on the charging case will flash white in sequence
continuously.
2. Select “Soundcore Life Note 3” on your device’s Bluetooth list to connect.
When successfully connected, the LED indicators on the charging case will turn
white for 3 seconds.
•Pairing with another device: Place the earbuds in the charging case and leave
the case open. To enter pairing mode, press and hold the button on the case for
3 seconds until the 3 LED indicators flash white in sequence continuously.
•Each time you power on your Soundcore earbuds, they will automatically
connect to your last successfully connected device if available within the
Bluetooth range.
•Mono mode: When Bluetooth connected, you can use either one of the earbuds
only by placing the other one into the charging case.
•When powered on and connected, if either one of the earbuds is out of battery
and powered off, you can keep using the other one.
•When you are on a call, place either one of the earbuds into the charging case,
and the microphone in the other earbud will be activated.
3
Controls
Play/Pause
Press twice (R)
Next track
Press twice (L)
Switch ambient sound modes (Noise
Cancellation/Normal)
Press and hold for 2 seconds
(L/R)
Answer a call
Press twice (L/R)
Answer a second incoming call and put the
current call on hold
End/Reject a call
Press and hold for 2 seconds
(L/R)
Switch between a call on hold and an active call
Mono mode
Play/Pause
Press twice
Answer a call
Press twice
End/Reject a call
Press and hold for 2 seconds
Activate Siri or other voice assistant software
Press and hold for 2 seconds
4

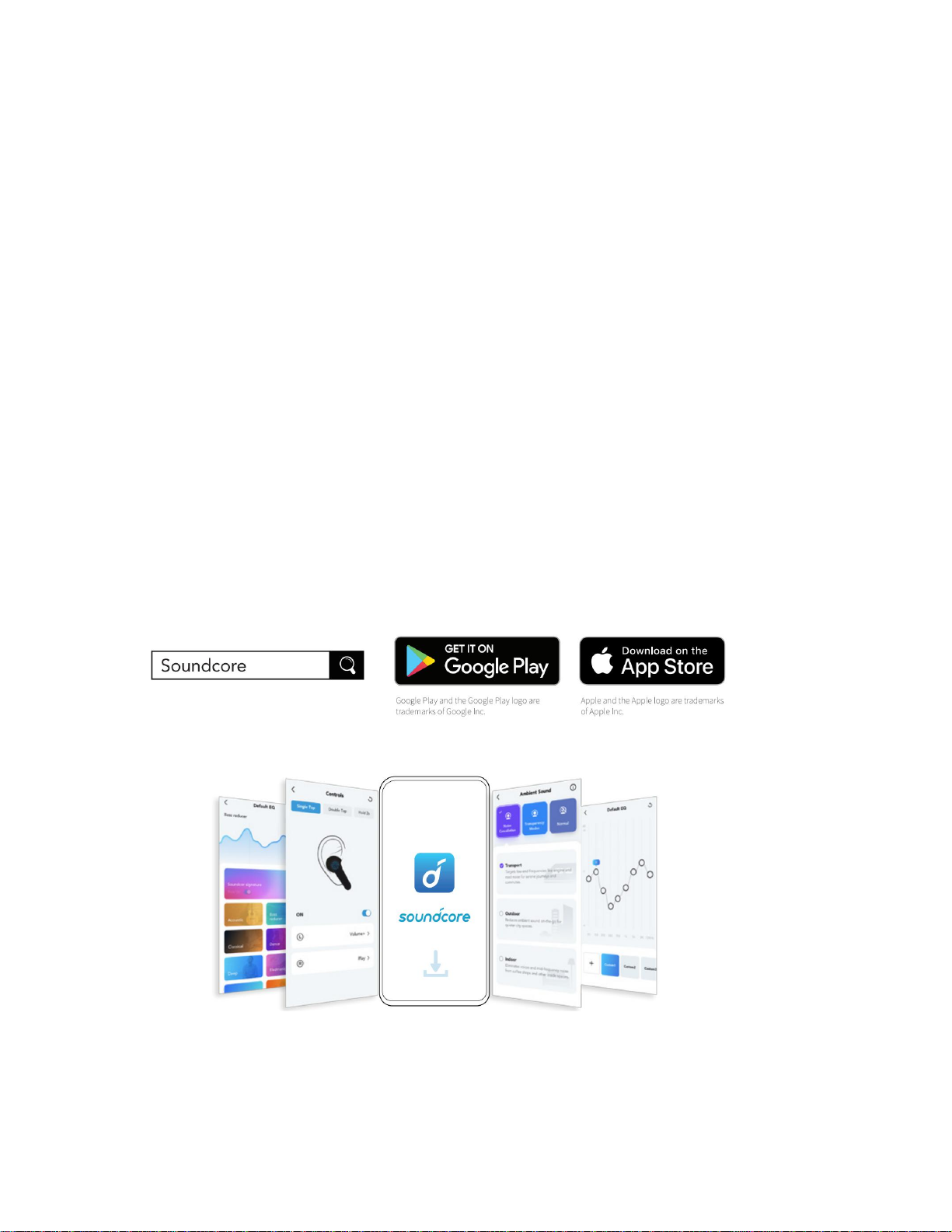

Soundcore App
Download the Soundcore app to enhance your experience.
User interface customization: In stereo mode, all of the controls (e.g. adjust
volume, control playback, activate Siri) can be customized in the app.
EQ settings: There are more than 20 EQ settings you can choose from in the
app to optimize your experience while enjoying different music genres.
Noise cancellation: Choose an active noise cancellation mode to reduce
ambient noise according to your surroundings.
•Transport: Targets low-end frequencies like engine and road noise for peaceful
journeys and commutes.
•Outdoor: Reduces ambient sounds in cities for less distractions.
•Indoor: Reduces voices and mid-frequency noise from coffee shops and other
inside spaces.
Earbuds firmware upgrade: You will be informed once the new version of
firmware is detected when you connect the earbuds with the app. Ensure the
earbuds are placed in the charging case and the case remains open until the
firmware upgrade is completed. During the upgrade, ensure the earbuds are
being charged and avoid any operation.
5
Reset
You might need to reset the earbuds if you experience any connectivity problems
or function issues.
1. Place the earbuds in the charging case and leave the case open.
2. Press and hold the button on the case for 10 seconds until the 3 LED
indicators flash white for 3 times and then flash white in sequence continuously.
This confirms that the reset was successful and your earbuds can be connected
normally.
Specifications
•Specifications are subject to change without notice.
Input
5V ⎓0.35A
Battery capacity
63 mAh x 2 (earbuds);
800 mAh (charging case)
Charging time
3 hours
Playtime (varies by volume level and
content)
Up to 7 hours (Total 35 hours with the
charging case)
Playtime (with ANC mode turned on)
Up to 6 hours (Total 30 hours with the
charging case)
6
Driver size
11 mm x 2
Frequency response
20 Hz - 20 kHz
Impedance
16 Ω
Waterproof level
IPX5
Bluetooth version
V 5.0
Bluetooth range
15 m / 49 ft
7
