Sony SDX-700V Series Manuel utilisateur

AIT Drive

2-108-088-11(1)

2004 Sony Corporation

AIT-3 TAPE DRIVE

SDX-700V Series

User’s Guide

This document contains proprietary

information which is protected by

document may be photocopied,

reproduced or translated to another

language without prior written consent

of Sony.

The information contained in this

document is subject to change without

notice.

SONY MAKES NO WARRANTY

OF ANY KIND WITH REGARD TO

THIS DOCUMENT.

Sony shall not be liable for errors

contained herein, indirect, special,

incidental or consequential damages in

connection with the furnishing,

performance or use of this document.

Your AIT TAPE DRIVE is assigned a

Model No. ATDNA3 for regulatory

compliance certifications.

The number is indicated on the model

number label on your drive along with

the rated voltoge and current.

VORSICHT

Diese Ausrüstung erfüllt die

Europäischen EMC-Bestimmungen für

die Verwendung in folgender /

folgenden Umgebung(en):

•Wohngegenden

• Gewerbegebiete

•Leichtindustriegebiete

(Diese Ausrüstung erfüllt die

Bestimmungen der Norm EN55022,

Klasse B.)

IMPORTANT SAFEGUARDS

For your protection, please read these

safety instructions completely before

operating the appliance, and keep this

manual for future reference.

Carefully observe all warnings,

precautions and instructions on the

appliance, or the one described in the

operating instructions and adhere to

them.

USE

Power Sources –This unit should be

operated only from the type of power

source indicated on the marking label.

If you are not sure of the type of

electrical power, consult your dealer or

local power company.

For the unit with a three-wire

grounding type ac plug:

If you are unable to insert the plug into

the outlet, contact your electrician to

have a suitable plug installed. Do not

defeat the safety purpose of the

grounding plug.

AC Power cord: (for AC mains

operating unit only)

The AC power cord should have

appropriate safety approvals or

marking for the country in which the

equipment will be used. Consult your

dealer or local power company.

Cleaning –Unplug the unit from the

wall outlet before cleaning or

polishing it. Do not use liquid

cleaners or aerosol cleaners.

Use a cloth lightly dampened with

water for cleaning the exterior of the

unit.

Object and Liquid Entry –Never

push objects of any kind into the unit

through openings as they may touch

dangerous voltage points or short out

parts that could result in a fire or

electric shock. Never spill liquid of

any kind on the unit.

INSTALLATION

Water and Moisture –Do not use

power-line operated units near water -

for example, near a bathtub,

washbowl, kitchen sink, or laundry

tub, in a wet basement, or near a

swimming pool, etc.

Power-Cord Protection –Route the

power cord so that it is not likely to be

walked on or pinched by items placed

upon or against them, paying

particular attention to the plugs,

receptacles, and the point where the

cord exits from the appliance.

Accessories –Do not place the unit on

an unstable cart, stand, tripod, bracket,

or table. The unit may fall, causing

serious injury to a child or an adult,

and serious damage to the unit. Use

only a cart stand tripod, bracket, or

table recommended by the

manufacturer.

Ventilation –The slots and openings

in the cabinet are provided for

necessary ventilation. To ensure

reliable operation of the unit, and to

protect it from overheating, these slots

and openings must never be blocked or

covered.

•Never cover the slots and openings

with a cloth or other materials.

•Never block the slots and openings

by placing the unit on a bed, sofa,

rug or other similar surface.

•Never place the unit in a confined

space, such as a bookcase, or built-

in cabinet, unless proper ventilation

is provided.

SERVICE

Damage Requiring Service –Unplug

the unit from the wall outlet and refer

servicing to qualified service

personnel under the following

conditions:

•When the power cord or plug is

damaged or frayed.

•If liquid has been spilled or objects

have fallen into the unit.

•If the unit has been exposed to rain

or water.

•If the unit has been subject to

excessive shock by being dropped,

or the cabinet has been damaged.

•If the unit does not operate normally

when following the operating

instructions. Adjust only those

controls that are specified in the

operating instructions. Improper

adjustment of other controls may

result in damage and will often

require extensive work by a

qualified technician to restore the

unit to normal operation.

•When the unit exhibits a distinct

change in performance - this

indicates a need for service.

Servicing –Do not attempt to service

the unit yourself as opening or

removing covers may expose you to

dangerous voltage or other hazards.

Refer to all servicing to qualified

service personnel.

Table of Contents

Overview ..................................................................................................................6

Introduction ..............................................................................................................7

About AIT Drives ............................................................................................7

Precautions .......................................................................................................8

Installation ..............................................................................................................10

SCSI Connection/Setting the SCSI ID ...........................................................10

Option Switches (DIP Switch) .......................................................................11

Mounting Holes..............................................................................................14

Reconfiguring from 5.25" Model to 3.5" Model............................................15

Orientation......................................................................................................16

Attaching and Removing the Dust Cover...............................................................17

Attaching the Dust Cover............................................................................... 17

Removing the Dust Cover .............................................................................. 19

Operation ................................................................................................................20

Location of 3 LEDs ........................................................................................ 20

Drive Operation..............................................................................................21

Emergency Tape Removal Procedure ............................................................ 23

WORM Function .................................................................................................... 25

Interface Implementation........................................................................................27

Supported SCSI Messages .............................................................................27

Supported SCSI Commands........................................................................... 27

Specifications .........................................................................................................28

Product Specifications....................................................................................28

Sony Contacts ......................................................................................................... 30

Overview

The Sony SDX-700V series drives are high capacity data storage devices

using Advanced Intelligent tape (AIT) technology. The SDX-700V series

drives achieve high data reliability through Read-After-Write, an additional

level of Error Correction Code, and other features.

The Sony SDX-700V series drives store data on tape using standard

formats called AIT (Advanced Intelligent Tape) and ALDC.

Introduction

About AIT Drives

SDX-700V series drives are internal AIT drive units that use data cartridges

conforming to the AIT-3 format. SDX-700V series drives support AIT-1,

AIT-2, and AIT-3 formats.

Features

The SDX-700V series drives have the following features:

• Support reading and writing to data cartridges conforming to the AIT-1,

AIT-2, and AIT-3 formats.

•The Read After Write Function and third-level error correction code

guarantee high data reliability.

•Data compression provides 260 gigabytes of storage on 230 m tape-

length cartridge.*1

The native capacity is 100 gigabytes of storage on 230 m tape-length

cartridge.

•Stored data is automatically checked for compression.

• Ultra 160 Wide SCSI LVD/SE interface is fully supported for host

computer access.

*1 This is assuming 2.6 : 1 compression ratio.

The degree of data compression attained while recording data varies according to

system environment and data type.

Precautions

Installation

Avoid placing the drives in locations subject to:

–high humidity

–high temperature

– mechanical shock and vibration

–direct sunlight

*For details, see “Specifications” on page 28.

Operation

• Do not move the drives while they are operating. It may cause

malfunctions.

•Avoid exposing the drives to sudden changes from a low to high

temperatures. This may cause water condensation to collect inside the

drives. If the ambient temperature should suddenly rise while the drives

are turned on, wait at least one hour before turning on the drives. If you

attempt to operate the drives immediately after a sudden increase in

temperature, malfunctions may occur.

•Turning off the power to the drives while they are writing to tape may

cause the tape to become unreadable. All previously negotiated

parameters will be lost, whenever power to the drives is cycled.

Transportation

•Keep the original packing materials to facilitate safe transportation of the

drives.

•Always remove the tape/media cartridge before moving the drives. After

removing the drives from the computer, repack them into their original

packing.

Useable Cartridges

SDX-700V series can be used with data cartridges marked with the AIT-1,

AIT-2 or AIT-3 logo.

Note

Be sure to use only data cartridges designed specifically for AIT (do not use 8 mm video

cartridges) as this may damage the drives.

SCSI Termination

The SDX-700V series drives conform to the Microsoft PC97 standard,

which requires the internal (naked) drive to be terminated with an external

terminator.

Microsoft PC97 SCSI requirements

SCSI peripherals must not terminate the bus. Both internal and external cable ends are

instead terminated by plug-in connectors.

Example of SCSI setup

SDX-700 series drive

68-pin cable

Host Computer Wide SCSI

Terminator

Installation

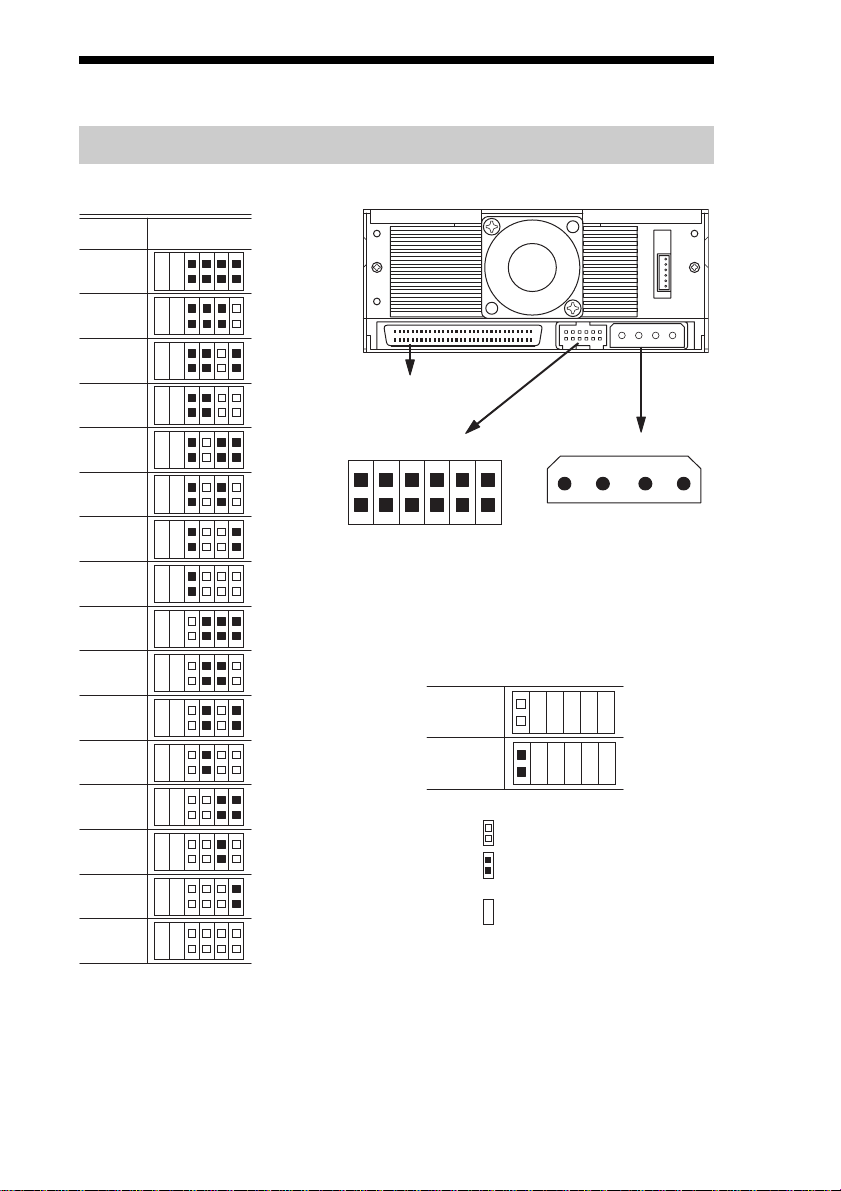

SCSI Connection/Setting the SCSI ID

SCSI 68pin Connector

5 V

Power Connector

1234

GND GND 12 V

Disable

Enable

Parity

Note :

= CLOSED/Jumper

Don’t care

OPEN/Jumper not

installed

Parity Disable

No Connection

SCSI ID 3

SCSI ID 2

SCSI ID 1

SCSI ID 0

Jumpers

SCSI ID

P.D.

N.C.

Parity Disable Jumper

Parity check function can be disabled by Jumper. Parity check is disabled

while left end jumper is installed. Parity generate function is always

enabled.

Table des matières

Autres manuels Sony Stockage

Sony

Sony MICROVAULT USM4GR Manuel utilisateur

Sony

Sony StorStation AITe200-UL Manuel utilisateur

Sony

Sony SDX-700 Series Manuel utilisateur

Sony

Sony MRW68E/D1/181 - Pro Duo USB Manuel d'utilisation et d'entretien

Sony

Sony SDX-S500C Manuel

Sony

Sony PCV-LX810 - Vaio Slimtop Computer Manuel utilisateur

Sony

Sony MSX-M1GST Manuel utilisateur

Sony

Sony CompactFlash NCFB1G Manuel utilisateur

Sony

Sony SR-2A1 Manuel utilisateur

Sony

Sony Memory Stick MSA-32A Manuel utilisateur

Sony

Sony USM128DS Manuel utilisateur

Sony

Sony SDT-S9000 - DDS Tape Drive Manuel

Sony

Sony VGN-FJ170 Mode d’emploi

Sony

Sony VGP-UHDM25 Manuel utilisateur

Sony

Sony SCPH-4000 Manuel utilisateur

Sony

Sony AIT-SDX800 Instructions d'installation

Sony

Sony M2 MS-A Series Manuel utilisateur

Sony

Sony MSH-128S2 Operating Instructions (primary... Manuel utilisateur

Sony

Sony CSM-200C Manuel utilisateur

Sony

Sony USM4GL Manuel d'instructions d'installation

Sony

Sony MS-A512N Manuel utilisateur

Sony

Sony StorStation LIB-D81 Manuel de l'opérateur

Sony

Sony ERA-MS008 Manuel utilisateur

Sony

Sony HD-E1 Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
