Sony SRS-XB12 Guide de référence
Help Guide
Wireless Speaker
SRS-XB12
The following explains how to use this speaker. Select a topic from the navigation pane.
Getting started
Parts and controls
Included items
Using the strap
Power source/charging
Charging the speaker
Turning the power on
Turning the power off
Auto power off function
Making connections
BLUETOOTH
Pairing and connecting with BLUETOOTH® devices
1
Connecting with a computer via a BLUETOOTH connection (Windows)
Connecting with a computer via a BLUETOOTH connection (Mac)
Listening to music
BLUETOOTH device
Listening to music of a device via BLUETOOTH connection
Selecting the BLUETOOTH audio streaming playback quality (Codec)
Terminating the BLUETOOTH connection (After use)
Speaker Add function
Listening to music wirelessly with 2 speakers (Speaker Add function)
Switching between double mode and stereo mode (Speaker Add function)
Terminating the Speaker Add function
Listening to music of a portable audio device, etc.
Phone calls
Receiving a call
Making a call
Using the voice assist function
Using the voice assist function (Google app)
Using the voice assist function (Siri)
Information
About the indicators
Notes on use
Precautions
Notes on charging
Notes on waterproof and dust proof features
How to care for the speaker
About the BLUETOOTH wireless technology
Trademarks
Notes on software
Troubleshooting
2
4-748-100-11(1) Copyright 2019 Sony Corporation
What can I do to solve a problem?
Power supply
Unable to charge the speaker
Unable to turn on the speaker or the speaker suddenly turns off
Sound
No sound/Distorted sound/Humming or noise in the speaker output/No voice from callers
Sound becomes low while in use
BLUETOOTH
Unable to pair the speaker with a BLUETOOTH device
Unable to connect a BLUETOOTH device with the speaker in the Speaker Add function
Reset
Using the RESET button
Initializing the speaker
3
Help Guide
Wireless Speaker
SRS-XB12
Parts and controls
Related Topic
About the indicators
(power)/ PAIRING button1.
–/+ (volume) buttons2.
(play)/ (call) button3.
ADD button4.
Strap hole5.
Power/ (BLUETOOTH) indicator (blue)6.
L (left)/R (right) indicators (white)7.
MIC (microphone)8.
CHG (charge) indicator (orange)9.
DC IN 5V jack*
10.
RESET button11.
AUDIO IN jack12.
Cap13.
Strap14.
To charge the speaker, connect a USB AC adaptor to this jack.
*
4
4-748-100-11(1) Copyright 2019 Sony Corporation
5
Help Guide
Wireless Speaker
SRS-XB12
Using the strap
You can hang the speaker from your bag or backpack by using the strap attached to the speaker.

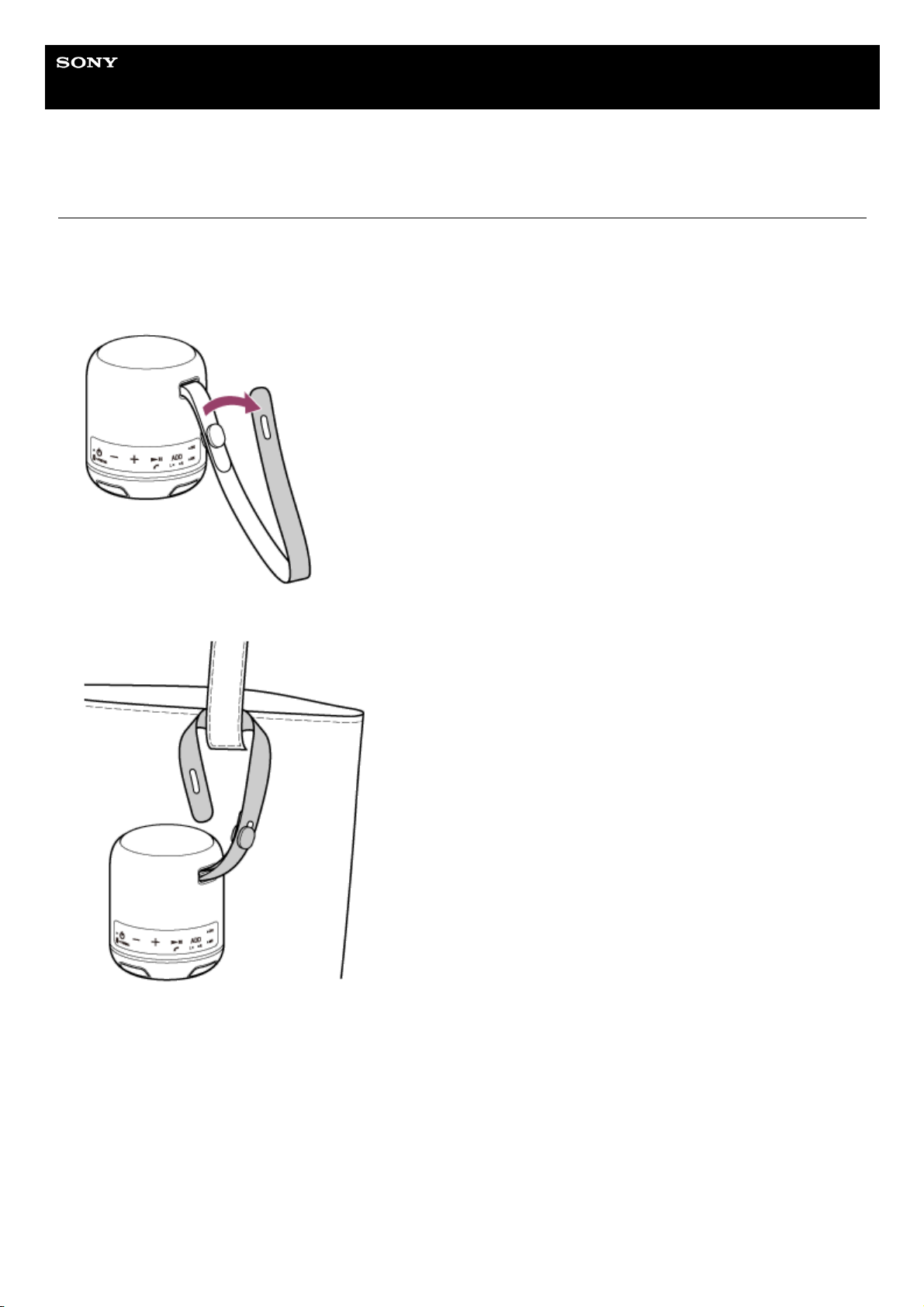

Using the unit on its strap
Remove the longer belt from the fastening button.
1.
Pass the belt around the handle of your bag, or similar item.
2.
Bring the belt back around to the fastening button.3.
6
Attaching the strap
You can reattach the strap you removed from the speaker by doing the following procedure.
Note
Do not use anything other than the supplied strap.
If you have reattached the belt, make sure that the belt and the button are attached securely.
Do not pull hard on the strap attached to the speaker or swing the speaker around.
Do not use the strap with any device other than the speaker.
Pass the shorter belt through the speaker's strap hole ( ), and fasten the shorter belt with the fastening button (
).
1.
Fasten the opposite side of the longer belt with the fastening button.
2.
7
4-748-100-11(1) Copyright 2019 Sony Corporation
8
Help Guide
Wireless Speaker
SRS-XB12
Charging the speaker
The speaker can be operated by connecting it to an AC outlet via the USB AC adaptor (commercially available) or by
using the built-in battery.
When using the speaker for the first time, be sure to charge the built-in battery for more than 1 hour before turning on the
power. You can operate the speaker with the built-in battery by charging the speaker before use.
Connect the speaker to an AC outlet or a booted computer to charge it.
When charging from an AC outlet
Connect the micro-USB cable (supplied) to the DC IN 5V jack on the speaker, and then connect the other end
to a USB AC adaptor (commercially available). After that, plug the USB AC adaptor into an AC outlet.
When charging from a booted computer
Connect the micro-USB cable (supplied) to the speaker, then connect the other end to a booted computer.
When charging is completed, make sure that the side with the mark faces up, and then close the cap securely.
The cap plays a very important role in maintenance of the waterproof and dust proof performance.
1
9
Checking the charging completion
If the built-in battery is fully charged when you connect the speaker to an AC outlet or a booted computer, the CHG
(charge) indicator lights up in orange then turns off after about 1 minute.
Lithium-ion battery life (with playback via a BLUETOOTH connection)
About 16 hours
The volume level of the speaker is set to 27.
About 5 hours
The volume level of the speaker is set to maximum.
The built-in battery life above is measured using the specified music source.
Actual performance time may vary from the listed time due to the volume, songs played, surrounding temperature, and
usage conditions.
When the built-in battery is running low
When the CHG (charge) indicator flashes slowly in orange, the battery is running low and needs to be charged.
Hint
You can also charge the speaker by connecting it to a booted computer via the micro-USB cable. However, operation with all
computers is not guaranteed. Operation with a home-built computer is also not covered by the warranty.
A speaker that is in use can be charged if it is connected to an AC outlet or if connected to a booted computer. In this case, it may
take longer to charge the built-in battery compared to when the speaker is turned off depending on the conditions of use.
Therefore, it is recommended to turn off the speaker when charging.
Note
When you use the speaker at a loud volume, the built-in battery may run low even if the speaker is connected to an AC outlet or a
booted computer. If you want to use the speaker while charging, lower the volume of the speaker. Otherwise, turn off the speaker
and charge the built-in battery sufficiently.
The CHG (charge) indicator lights up in orange while charging. Charging is completed in about 4 hours and 30
minutes* and the indicator turns off.
The speaker supports a USB AC adaptor (commercially available) with an output current of 500 mA or more.
However, using a supplied micro-USB cable or micro-USB cable conforming to the USB standard is recommended.
Charging from the other device is not guaranteed.
Time that is required to charge the empty battery to its full capacity when the speaker turns off.
*
