Sony RM-AV3000 Manuel utilisateur

Operating distance

Approx. 32.8 ft. (10 meters) (varies depending

on components of different manufacturers)

Power requirements

Remote control and backlight: Four size AA

(R6) batteries

Battery life

Approx. 5 months (varies depending on

frequency of use)

Dimensions

Approx. 4

×7 ×1

in. (w ×h ×d)

(120 ×175 ×38 mm)

Mass

13 oz. (380 g) (not including batteries)

Learnable signals*

Capacity par signal: up to 300 bit

Signal frequency range: up to 500 kHz

Signal interval: up to 1 second

*Some signals cannot be learned by the

Commander, even though the signals comply

with these specifications.

Design and specifications are subject to change

without notice.

RM-AV3000

US Model

Canadian Model

INTEGRATED REMOTE COMMANDER

Sony Corporation

Personal Audio Company

Published by Sony Engineering Corporation

9-874-032-02

2004I16-1

SPECIFICATIONS

SERVICE MANUAL

Ver 1.1 2004. 09

TABLE OF CONTENTS

RM-AV3000

1. GENERAL ······································································ 3

2. DISASSEMBLY

2-1. Case (lower)········································································ 8

2-2. SUB Board ········································································· 8

2-3. MAIN Board and LCD Unit ··············································· 9

3. TEST MODE

3-1. EEPROM Check ······························································· 10

3-2. LCD, All Keys and EL Check ·········································· 10

4. DIAGRAMS

4-1. IC Pin Function ································································ 11

4-2. Printed Wiring Board – MAIN Board – ··························· 12

4-3. Schematic Diagram – MAIN Board – ······························ 13

4-4. Printed Wiring Board – SUB Board – ······························ 14

4-5. Schematic Diagram – SUB Board – ································· 14

5. EXPLODED VIEWS ·················································· 15

6. ELECTRICAL PARTS LIST ··································· 16

Notes on chip component replacement

•Never reuse a disconnected chip component.

•Notice that the minus side of a tantalum capacitor may be

damaged by heat.

Flexible Circuit Board Repairing

•Keep the temperature of soldering iron around 270˚C

during repairing.

•Do not touch the soldering iron on the same conductor of the

circuit board (within 3 times).

•Be careful not to apply force on the conductor when soldering

or unsoldering.

RM-AV3000

SECTION 1

GENERAL This section is extracted

from instruction manual.

Location and Function

of Controls

1Clock Display key (page 8)

Displays the clock, the transmission

mark, the battery mark and the timer

mark.

2Mode Display key (page 8, 13, 20, 30,

32, 40)

Displays the status of the selected

mode.

Function of the key changes according

to the selected mode.

3LCD touch key display

The keys used for operating each

component and setting the

Commander are displayed.

Note

Do not press the touch keys using sharp

objects such as pins or ball-point pens.

MENU EXIT

COMMANDER

OFF

MORE321

TV STB VCR DVD CD AMP

OTHER

TIMER LIGHT

MUTING RECALL

CHANNELVOLUME

SYSTEM CONTROL

qj 8

4Label keys (page 8, 13, 20, 23, 30,

32, 40, 79)

The selected modes (up to 8 characters

in each Label key) are displayed.

Labels change in the order from the

first stage to the third stage and come

back to the first, and so on, each time

you press the Mode Display key,

OTHER, MORE, or TIMER button

according to the selected mode.

5Component Select buttons (page 12)

Selects the component to control.

6OTHER button (page 13)

Label keys change in the order from

the first stage to the third stage and

come back to the first, and so on, each

time you press the OTHER button

when the selected component name is

displayed on the Label keys.

7TIMER button (page 68)

Used to set the timer program, and to

set the timer program on or off.

8LIGHT button (page 76)

Used to light up the LCD display in

the dark. Press the button once to turn

on the light, and once again to turn it

off.

COMMANDER OFF button

Turns the power of the Commander

off. Then all the display contents are

turned off.

CHANNEL +/– buttons (page 88, 89,

90, 91)

Select the channel.

RECALL button (page 88)

VOLUME +/– buttons*(page 19, 29)

Adjust the volume.

MUTING button*(page 19, 31)

Mutes the audio. Press the button

once again to resume at the previous

volume.

Getting Started

RM-AV3000

qf EXIT button (page 89)

Used to exit the setting menu.

qg MENU button (page 88)

Calls up the menu display of the

buttons or keys that have menu

function.

qh OK button and Cursor Control

buttons (page 9, 64, 88)

qj SYSTEM CONTROL buttons (page 31)

You can program up to 32 consecutive

key operations to each of the three

SYSTEM CONTROL buttons . You can

automatically carry out the entire

program by pressing one button.

qk MORE button (page 32)

Label keys change in the order from

the first stage to the third stage and

come back to the first, and so on, each

time you press the MORE button in

the system mode.

*Note on the VOLUME +/– and

MUTING buttons

The Commander controls or mutes the TV’s

volume when you select a visual component.

The Commander controls or mutes the

amplifier’s volume when you select an audio

component.

You can change this setting also (page 29).

Note on the power on and off of the

display of the Commander

To turn on the display, press any button except

the COMMANDER OFF button.

To turn off the display, press COMMANDER

OFF, or if you don’t use the Commander, the

display automatically turns off after 10

minutes. This interval can also be changed

(page 74).

Setting the Clock

Setting the clock for the first

time after installing batteries

For the first time after installing batteries,

the Commander is in the clock setting

mode. “CLOCK” is displayed on the

Mode Display key, and “ –:– –” flashes on

the Clock Display key, and “STD TIME”

and “DS TIME” on the Label keys are

flashing.

Select STD TIME (standard time)

or DS TIME (daylight saving time).

If the summer time (daylight saving

time) is used in your area, press the

DS TIME key when it is in the

summer time. If not, press the STD

TIME key.

If the summer time is not used in your

area, press the STD TIME key.

The selected STD TIME or DS TIME

key lights.

“SET” and “SU” flash and “12:00 AM”

lights on the Clock Display key.

RM-AV3000

2Set the day of the week.

Select the day of the week by pressing

the or button.

Selected day of the week flashes.

SU : Sunday

MO : Monday

TU : Tuesday

WE : Wednesday

TH : Thursday

FR : Friday

SA : Saturday

Then press the button. The day of

the week is set.

“12”, “ AM” and “SET” flash.

Note

If you press the button, the day of the week

is set and setting mode skips to Step 4.

3Set the hour and AM (or PM) by

pressing the or button.

The selected hour and AM (or PM)

flash.

Then press the button.

The hour and

AM (or PM) are set.

“00”(minute) and “SET” flash.

Note

If you press the button, the hour and AM

(or PM) are set and the setting mode

returns to Step 2.

button

Continued

button

RM-AV3000

Adjusting the clock after

setting the clock

1While pressing COMMANDER

OFF, press MUTING.

“SET” appears on the Mode Display

key.

2Press the Mode Display key (SET)

twice.

MENU EXIT

COMMANDER

OFF

MORE321

TV STB VCR DVD CD AMP

OTHER

TIMER LIGHT

MUTING RECALL

CHANNELVOLUME

SYSTEM CONTROL

4Set the minute by pressing the

or button.

The selected minute flashes.

Notes

• If you press the button, the minute is set

and the setting mode returns to Step 2.

• If you press the button, the minute is set

and the setting mode returns to Step 3.

• If you want to finish the clock setting, go to

Step 5.

5Press the SET key.

The clock starts from 0 second.

Note

If you press the SET key in any step above, the

clock is set then. The clock starts from 0

seconds.

COMMANDER

OFF

MUTING

Setting the Clock (continued)

button

RM-AV3000

Each time the SET key is pressed, the

Label keys change as follows.

“CLOCK” appears and flashes on one

of the Label keys on the display.

3Press the CLOCK key.

The Commander enters clock setting

mode.

“CLOCK” appears on the Mode Display

key and the current time flashes.,

To select STD TIME (standard

time) or DS TIME (daylight

saving time)

When the Commander enters the clock

setting mode when the clock is already

set, the time mode previously set (STD

TIME or DS TIME) stays lit and the other

time mode flashes, and the setting mode

goes to Step 4.

If you want to change the time mode, press

the flashing key (STD TIME or DS TIME).

The selected STD TIME or DS TIME key

lights, and the setting mode goes to Step 4.

If you do not want to change the time

mode, press the or button. The

setting mode goes to Step 4.

When the time mode is changed from

STD TIME to DS TIME

The time of the clock returns by one hour.

When the time mode is changed from

DS TIME to STD TIME

The time of the clock advances by one hour.

4To set the clock, follow Steps 2 - 5

on page 9-10.

Note

If you press the SET key in Step 3 or 4, the

clock is set then. The clock starts from 0 second.

RM-AV3000 SECTION 2

DISASSEMBLY

Note: Follow the disassembly procedure in the numerical order given.

2-1. Case (lower)

2-2. SUB Board

case (upper

)

case (lower)

claw

2battery case lid

case (upper)

two claws

3four screws

(+BTP 2 ×6)

4two screws

(B 1.7 ×5)

two claws

case (lower)

two screws

(+BTP 2

)

screw

(+BTP 2

SUB board

rubber key

lead wire 14p

LCD section

two screws

(+BTP 2

RM-AV3000

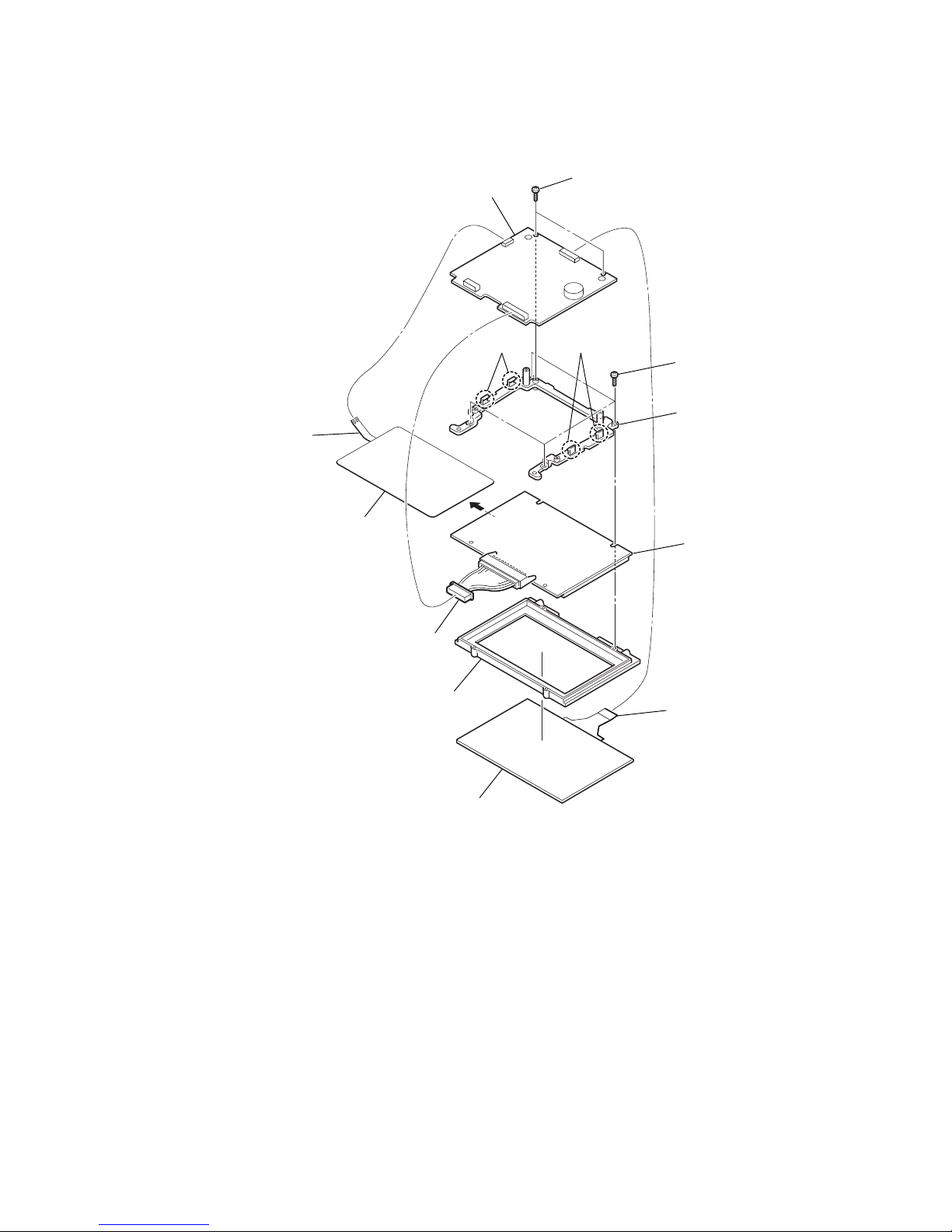

2-3. MAIN Board and LCD Unit

two screws

(+BTP 2

two claws

four screws

(+BTP 2

LCD unit

electro luminescent

holder (A)

holder (B)

touch panel

MAIN board

connector

(CN4)

flexible board (CN1

)

flexible board

(CN2)

RM-AV3000 SECTION 3

TEST MODE

3-1. EEPROM Check

Connection Method:

1) While pressing at the same time the [VOLUME -] key and the

[CHANNEL -] key, turn on the main power of the regulated power

supply (DC +6V).

2) After sounding buzzer, Fig.3-1 is displayed.

3) In order to escape from this mode, the [VOLUME -] key and the

[CHANNEL -] key are pushed simultaneously again.

4) After sounding buzzer, EEPROM is initialized and clock setting

mode is displayed.

5) For ending this mode, the [COMMANDER OFF] key is pushed

two seconds or more.

Fig.3-1

–

Regulated power supply

(+6V constant voltage output)

set

3-2. LCD, All Keys and EL Check

Connection Method:

1) While pressing at the same time the [VOLUME +] key and the

[CHANNEL +] key, turn on the main power of the regulated power

supply (DC +6V).

2) After sounding buzzer, EL is light up and LCD carries out all-

points light.

3) A code is transmitted to all keys.

4) A push on the [MORE] key changes the display of a dot charactor

portion.

5) A push on the [LIGHT] key changes lighting of EL.

6) A push on the [OTHER] key changes the display of the segment

section.

7) In order to escape from this mode, the [VOLUME +] key and the

[CHANNEL +] key are pushed simultaneously again.

8) After buzzer sound turns two, clock setting mode is displayed.

9) For ending this mode, the [COMMANDER OFF] key is pushed

two seconds or more.

–

Regulated power supply

(+6V constant voltage output)

set

VER-X

EEPROM TEST OK

Autres manuels pour RM-AV3000

Table des matières

Autres manuels Sony Télécommande

Sony

Sony Cloud Remote Manuel utilisateur

Sony

Sony RM-VL600T Manuel utilisateur

Sony

Sony RM-VL610A (RM-VL610A Remote Commander®) Manuel utilisateur

Sony

Sony RM-C950 Manuel utilisateur

Sony

Sony RM-V3E Manuel utilisateur

Sony

Sony RMR-TP1 - Digital Link Touch Panel Manuel utilisateur

Sony

Sony RM-KZ1 Operating Instructions and Manufacturers Code... Manuel utilisateur

Sony

Sony RM-NWS1 Manuel utilisateur

Sony

Sony RMT-P1BT Guide de référence

Sony

Sony RM-B750 Manuel utilisateur

Sony

Sony Bravia KE-55XH9005 Instructions de fonctionnement

Sony

Sony VCT-D580RM Manuel utilisateur

Sony

Sony RM-V8A Manuel utilisateur

Sony

Sony RM-VL610 - Integrated Remote Commander Manuel utilisateur

Sony

Sony RM-VL1000T Manuel utilisateur

Sony

Sony Remote Commander RM-V40 Manuel utilisateur

Sony

Sony RM-VZ950T Manuel utilisateur

Sony

Sony RM-V8A Manuel utilisateur

Sony

Sony RM-VZ220 Manuel utilisateur

Sony

Sony Remote Commander RM-V30 Manuel utilisateur

Sony

Sony RM-AX5000 Manuel utilisateur

Sony

Sony RM-V12 Mode d’emploi

Sony

Sony RM-AV2000 Operating Instructions (primary... Manuel utilisateur

Sony

Sony FY15 Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
