SONY VISCA

Polycom Terminal

Remote Control Unit

User Manual

Please read carefully before using

WARNING!

Do not use Gasoline, Thinner, etc. wipe the surface, soft cloth dipped

in clean water or alcohol is acceptable

WARNING!

1. Do not touch the water or other liquid，keep the surface clean.

2. This product is for indoor use only, Do not rain or let it be wet

3. When the tem is below -10 centigrade，LCD may can’t show properly.

4. Please use our own power adaptor, If you wannar change it, please sure the voltage is 9-15V/1000ma

5. Avoiding collided with hard objects

IMPORTANT

This product is manufactured to comply with requirements of following

directives:

89/336/EEC, 92/31/EEC, 93/68/EEC

Function Intro：

Sony VISCA RS-422/RS485 communication，Hi-speed、long distance control.

Two RS422/485 communicate interface，The Max. can reach 2000 meters.

6-16 cameras preset，Like PTZ Control, Lens position, white balance, Mirror, Freeze, ect.

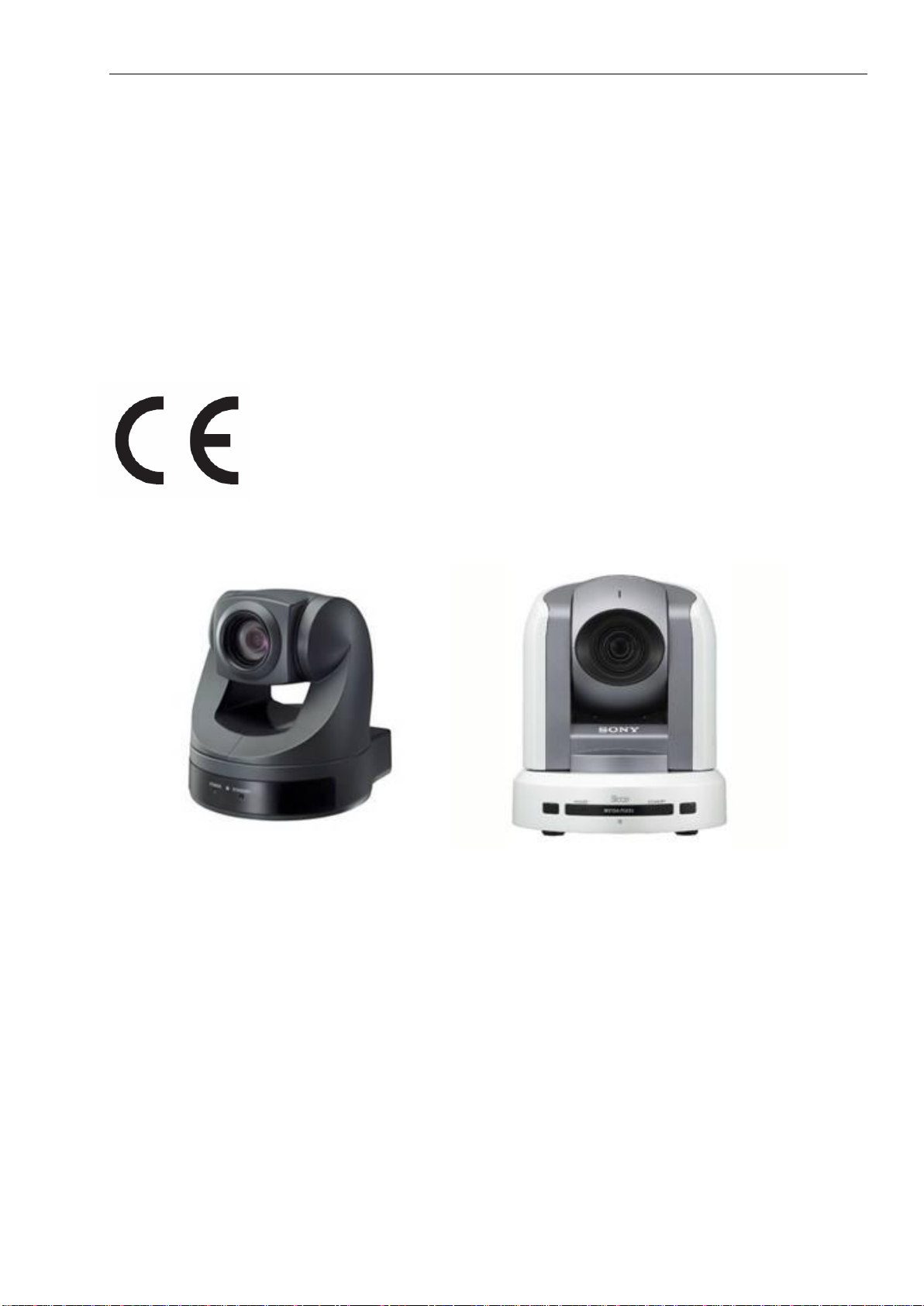

Equipment that can be connected：

BRC-H700/Z700 3CCD Color Video Camera

BRC-300/300P 3CCD Color Video Camera

EVI-D100/D100P/S Color Video Camera

EVI-D70/D70P/W Color Video Camera

EVI-D30/D30P Color Video Camera

SNC-RZ30N/RZ30P Network Camera

SONY EVI-HD1

EVI-HD3V

SONY EVI-HD7V

BRC-Z330 CMOS

Sony DXC-390/390P——1/3 DSP 3-CCD camera

Sony DXC-990/990P——1/2 DSP 3CCD camera

Polycom series camera

Joystick：6-axis, zoom function, shuttle, jog in the knob, auto returning

Buttons: 28, multifunction, silicon + keystoke

Display: LCD, 2 lines of 20 characters, backlight

Performance Index:

Dimensions: 355(L) ×150(W) ×155(H)mm

Weight: 1.47kg (w/o Power supply)

1.89 kg (with Power supply)

2.4kg (prepared for shipping)

Operating Temperature: -10°C - 70°C

Humidity: 30% - 90% (w/o condensation)

Adapter: DC12V / 1000mA

ELECTRICAL SPECIFICATION

Power source: 12 VDC

Power consumption: 2.7 W (not loaded line)

Recommended adapter: AC100-240V-12VDC/1000mA

Connectors:

1 x RJ-45 (RS-485) (for digital video recorders)

RS485(COM1)RS485 transmit Power output 2000M(for camera)

RS485(COM2)RS485 two way, standard 485 bus，1200M(for camera)

USB-D:USB2.0(for computer)

Accessories：1. Power adaptor x 1

2. RJ45 signal cable x 1

3. Junction box x1

4. 120 Ohm 1/4Wresistance x3

SONY VISCA Usage （EVI-D70TECH）

Home Press Home

Set preset position Number (1-6)+Set

Delete preset position Number (1-6)+Del

Call preset position Number (1-6)+Preset

Backlight compensation [ ]

Picture Freeze [ ]

Image Mirror [ ]

Screen information display 99+ON

Screen information off：99+OFF

WB Mode

Press [TOUR] to change mode

6 WB Modes

Press TOUR, 6WB Modes as follow

Auto

Indoor

Outdoor

One Push WB

ATW

Manual

Manual WB Mode

There are three parameters adjustable by Press“SEQ”

R Gain、B Gain、RB Stop

(1)Manual WB R Gain

(1)Under Manual WB, Press SEQ，LCD display“R Gain”

(2)Joystick“shuttle”clockwise +, anticlockwise -

(2) Manual WB B Gain

(1) Under Manual WB, Press SEQ，LCD display“B Gain”

(2) Joystick“shuttle”clockwise -, anticlockwise +

(3) Manual WB R/B Gain stop

(1) Under Manual WB, Press SEQ，LCD display“Gain Stop”

ONE PUSH

Under ONE PUSH WB mode，Press“SEQ”

Right&Left exchange

1) Right&Left exchange: 200+ON

2) Normal: 200+OFF

Attention: This function is not storage,need to be set every time

：

6 Axis non-contact, High resolution, Long life

Cursor Control（2 Axis）

KX KY Axis

KX、KY Axis：

Mainly for Cursor Control or User

defined; 16Angle each way

Z Axis：ZOOM control

ZAxis：B Axis：shuttle

ZOOM control，±36

Degree,64 at Max. different protocols with

different parameters

Main Axis X Y（2）

BAxis：

shuttle jog: General for frame

control of VCR, or User defined

Main Axis X、Y：

PTZ Control,±36 degree ，0-100

adjustable, different protocols with

different parameters

Front Panel:

Button Backlight

Two lights under each button，Blue, Red; Blue for backlight, Red for function remind. Press it the blue

backlight will blink about 1S,Red for 2S

Press DVR and CAM, The blue will blink twice, Red(always), stats indicate

Brief Description

Glossary：

CAM：CAMERA

DVR：Digital Video Recorder

PRESET：Call Preset

SET：Set Preset

DEL：Delete Preset

HOME：home

TOUR：Cruise switch to WB

SCAN：Scan

MENU：menu

SAVE：Store(video),Backlight Compensation

PAUSE：Suspend, Frame, Freeze

RUN：Run, picture mirror

ON：Auxiliary open, open,99+ON,Screen information display

OFF：Auxiliary close, close, 99+OFF, Screen information off

FAR：Focus Far

NEAR：Focus Near

OPEN：Aperture on

CLOSE：Aperture off

PATTERN：Pattern Learn

Easy Operation

Delete Dispaly：Press“0”for 2S

Switch to Cam：No.+ CAM

Switch to DVR：No.+DVR

From DVR to CAM：CAM or“No.+CAM”

From CAM to DVR：DVR or“No.+DVR”

Call preset position：No.+PRESET

Set preset position：No.+SET

Delete preset position：No.+DEL

LCD info display：99+ON

LCD info off：99+OFF

Backlight Compensation On/Off Press [ ]

Mirror Press [ ]

Picture Freeze press [ ]

WB Mode Press [ TOUR] ,6 Mode

符号解释：

POWER 、Stop 、Backlight Compensation/Recording 、

Freeze/Suspend/Frames

Mirror/Play ; Multi Picture Switch ; Former ; Later ; Fast Reverse ;

Fast Forward

LCD Display

Camera Operating Mode

CAM：001

>> 0000

Camera Operating Mode Function(Call Preset Position)

DVR Operating Mode

CAM：001 Means controlling“Address Number is 001 Camera”

DVR：001 Means controlling “Address Number is 001DVR”

>> 0000 Number Display Zone, 4 digits at most

[MENU→] Menu operation of DVR

[MOVE] PRESET Function display: show the pressing button’s function, it’ll auto disappear after

Direction Control: SONY VISCA Command

8 above direction control, 24 level speed

ZOOM Control: SONY VISCA Command

ZOOM：8 level, Multi zoom speed control

Real-time Control:

Joystick can control direction and zoom at the same time

Keyboard Control:

Joystick in Menu:

B Axis-- shuttle：Switch to Menu N01-10

Z Axis –Lens Control：Change parameter

Enter into the submenu: Turn “shuttle”clockwise

Back to the former menu: Turn shuttle anticlockwise

Parameter+ ：turn Z axis clockwise

Parameter - ：turn Z axis anticlockwise

CAM: 001

>> 0000 DVR:001

CAM:001

[MENU→] DVR:001

CAM：001 [MOVE]

>> 0000 PRESET

Keyboard set in OSD Menu

Menu structure

LCD OSD

Main Menu (1-10)

1. Key Backlight =On （On/Off/Active）

2. LCD Backlight =On/Off

3. Camera Protocol

=PelcoP /PelcoD /AD /Samsung /Panasonic/ DaHuaDome/Sony Visca

4. Camera Baud rate =9600 /4800 /2400

5. DVR Protocol =/Dahua/Hikvision/Dali/Hanbang/Appro

6. Alarm In = RS485 /USB

7. Alarm output =All Red /Led Blink

8. Keyboard ID =001

9. Password1 =****

Password2 =****

10. Exit

Enter in Keyboard menu set

1) Press CAM, If under CAM status，can be omitted

2) Press MUNU

3) Input Password：9999

Enter in menu set, LCD display as following

No1：Backlight

Back to Keyboard menu set：

1) Press MENU

2) Under No10：Exit ,Turn Z axis

No1：Key Backlight

Enter into the submenu: Turn “shuttle”clockwise

Back to the former menu: Turn shuttle anticlockwise

Change present status: Turn Z Axis, clockwise +，anticlockwise -

With bracket is optional，Like [ O N ] upper

No2：LCD Backlight

No1：key Backlight

[on] off

No1：key Backlight

[on] off

No2：LCD Backlight

[on] off

No3：Camera Protocol

Camera protocol as follows:

Pelco-P、Pelco-D、AD、Samsung、Panasonic、DaHuA

DH-PELCO-P、Sony Visca(default)

Turn Z Axis Zoom (clockwise+，anticlockwise-) select camera protocol

Turn shuttle clockwise to the submenu

（back to former menu：Turn shuttle anticlockwise）

No4：Camera Baud rate

Camera Baud rate：2400、4800、9600（default）

Turn Z Axis Zoom (clockwise+，anticlockwise-) select camera Baud rate

Turn shuttle clockwise to the submenu

（back to former menu：Turn shuttle anticlockwise）

No5：DVR Protocol

DVR Protocol：Baud rate：9600

Dahua、Hikvision、Dali、Hanbang、Appro、HighEasy

Turn Z Axis Zoom (clockwise+，anticlockwise-) select DVR protocol

Turn shuttle clockwise to the submenu

（back to former menu：Turn shuttle anticlockwise）

No6：Alarm In

USB：USB Port

RS485：DVR RS485control；Baud rate：9600

Turn Z Axis Zoom (clockwise+，anticlockwise-) select

Turn shuttle clockwise to the submenu

（back to former menu：Turn shuttle anticlockwise）

No7：Alarm Do: select alarm signal output

No3：Camea Protocol

[Sony Visca]

No4：Camea Baudrate

[9600]

No5：DVR Protocol

[Hikvision]

No6：Alarm In

[Usb] RS485

No7：Alarm Do

[LED Blink]

Led Blink、RS485（DVR port RS485signal output）

Turn Z Axis Zoom (clockwise+，anticlockwise-) select

Turn shuttle clockwise to the submenu

（back to former menu：Turn shuttle anticlockwise）

No8：Keyboard ID

Keyboard Address ：00 -99

Turn Z Axis Zoom (clockwise+，anticlockwise-) select

Turn shuttle clockwise to the submenu

（back to former menu：Turn shuttle anticlockwise）

No9：Password 1、2

Turn shuttle clockwise to Password2

1) Input keyboard password

2) Turn Z Axis Zoom (clockwise+，anticlockwise-) confirm

Turn shuttle clockwise to the submenu

（back to former menu：Turn shuttle anticlockwise）

No10：Exit

Turn Z Axis Zoom (clockwise+，anticlockwise-) quit

Turn shuttle clockwise to the next menu

（back to former menu：Turn shuttle anticlockwise）

Keyboard Controller with EVI-D70/D70P

No8：Keyboard ID=[01]

No9：Passwordl [****]

Password2

No9：Password1

Password2[****]

No10：Exit
