SOMFY Roller Blind Manuel utilisateur

somfy

Roller Blind - Installation/Program Guides

Stay up to date with the online version

https://poweredblinds-somfy.swipeguide.com/guide/roller-blind-installationprogram-

guides

Version 41 | en_USCreated 2/1/2022 10:24 AM

Table of Contents
Roller Blind Installation Guide 3
Simplicity Roller Blind Installation Guide 12
Adjust the Uppper Stop Position 16
Adjust the Lower Stop Position 18
Set a 'MY' Position 20
Somfy Rollup Motor Reset 22
Somfy Rollup 28 Motor Control Programming 25
Pairing-Deleting A Single Channel Control 25
Pairing-Deleting A Multi Channel Control 27
Delete All Recorded Controls And Pair A New Control-Channel 29
Version 41 2

Roller Blind Installation Guide

Step 1 / 14

Check the blind type (standard, cassette) and fabric

match your order and the dimensions are correct.

Each blind will have the following components:

• Standard roller blind: 2 x universal brackets

• Cassette roller blinds: Blind up to 1M: 2 brackets,

blind 1M to 2M: 3 brackets, blind over 2M: 4 brackets.

• Screws and rawl plugs

Step 2 / 14

Somfy Motor

The Somfy motor powering your roller blind has an

integral rechargeable li-ion battery.

The battery within the motor is supplied with enough

charge to provide blind operation before a recharge is

required.

The program/reset button on the motor will vary

depending on the model and charger connection. The

images show the different buttons, however the

procedure when pressing the buttons is exactly the

same.

Version 41 3

Step 3 / 14

Charging the Motor

When the batteries are running low, the motor

program/reset button will blink red slowly for 3

seconds before and after blind operation.

To charge the motor battery:

• Connect the charger to the motor cable

• The LED on the charger will light up as follows:

• Solid Red = Charging

• Solid Orange = Charging is near completion

• Solid Green = Charging is complete

• Disconnect the cable when charging is complete

Warning

Do not operate the blind while the

motor is charging

Step 4 / 14

STANDARD ROLLER BLIND INSTALLATION

Marking and tting the brackets

Put the blind into the corresponding ends of the

brackets, then offer the blind into the position where it

will t in your window.

Mark the positions of 2 holes per bracket for xing or

drilling.

Secure the brackets in place at the marks previously

made.

Fix the brackets in place using the screws supplied.

Tip

If securing the brackets to plaster, brick,

stone, etc., drill the holes at the marked

positions using a 5.5mm masonry drill bit

and insert the raw plugs supplied.

Version 41 4

Step 5 / 14

STANDARD ROLLER BLIND INSTALLATION

Mounting the roller blind

Hold the blind to the brackets with the fabric in the

correct position based on your order (front or rear roll)

– the motor program/reset button should be

accessible from the front.

1. Secure the idle end (opposite the motor end) into

position by locating the ‘+’ shaped plunger into the ‘+’

shaped part of the bracket. When correctly aligned,

the plunger should pop into the bracket and secure in

place.

2. Now angle the motor head side into position and

slot the prongs of the motor head plate into the

bracket, ensuring that the central prong drops into

position on the bracket.

Warning

Important note: Ensure that the plunger

at the idle end (opposite the motor

end) is depressed by at least 5mm

when marking the hole positions.

Tip

Make sure the 'Somfy' logo on the motor

plate is orientated 'UP' for easy coupling

with the bracket.

Version 41 5

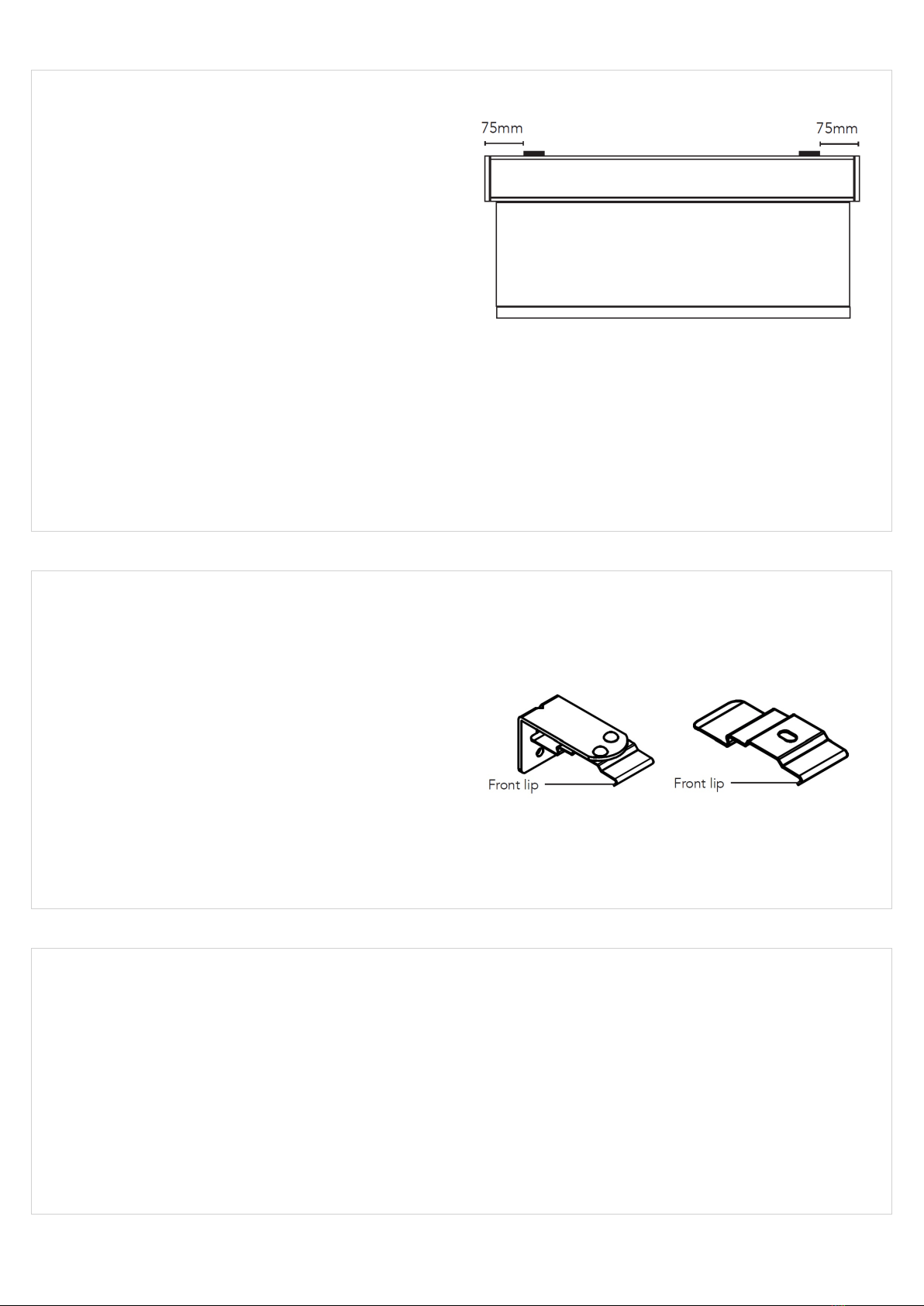

Step 6 / 14

CASSETTE ROLLER BLIND INSTALLATION

Bracket Types

There are two bracket options for open cassette

blinds, face x and top x.

For a blind up to 1 metre wide attach two brackets

tted approximately 75mm from each end of the

blind. Additional brackets with blinds >1M wide

should be spaced evenly between these:

• Up to 1M = 2 brackets

• >1M to 2M = 3 brackets

• >2M = 4 brackets.

Step 7 / 14

CASSETTE ROLLER BLIND INSTALLATION

The release lip on the bracket must face the back of

the blind.

Use the supplied screws per bracket ensuring that the

brackets are level.

Remember to allow room for the blind to clear any

obstacles when deployed, e.g. door or window

handles.

Version 41 6

Step 8 / 14

CASSETTE ROLLER BLIND INSTALLATION

Marking and tting the top & face x brackets

SPACING - Mark 2 x brackets approx 75mm in from

each end, with any additional brackets spaced evenly

between them.

TOP FIX - Position each bracket from the centre of the

xing hole a minimum distance of 45mm from the

back of any obstruction and with the lip to the back.

Mark the position of the holes, then secure in place.

FACE FIX - Position the back of your bracket against

the wall to the height of the blind drop, then mark the

position of the holes and secure the brackets in place.

Step 9 / 14

CASSETTE ROLLER BLIND INSTALLATION

Fitting the cassette

Once all the brackets are in place offer the blind to the

brackets. With the cassette tilted away from you

locate the front lip into the bracket and push upwards

to click the cassette into the back lip of the bracket.

Step 10 / 14

CASSETTE ROLLER BLIND INSTALLATION

Mounting the roller assembly

Hold the roller assembly to the brackets within the

cassette prole with the fabric in the correct position

based on your order (front or rear roll) – the motor

program/reset button should be accessible from

Version 41 7

below.

1. Secure the idle end (opposite the motor end) into

position by locating the ‘+’ shaped plunger into the ‘+’

shaped part of the bracket. When correctly aligned,

the plunger should pop into the bracket and secure in

place.

2. Now angle the motor head side into position and

slot the prongs of the motor head plate into the

bracket, ensuring that the central prong drops into

position on the bracket.

Warning

Important note: Ensure that the plunger

at the idle end (opposite the motor

end) is depressed by at least 5mm

when marking the hole positions.

Tip

Make sure the 'Somfy' logo on the motor

plate is orientated 'UP' for easy coupling

with the bracket.

Version 41 8

Step 11 / 14

POWER UP & TESTING

Your roller blind is tested to ensure it is operating

correctly prior to dispatch. During this process, the

upper and lower stop positions are preset based on

your height measurement. We also pair the control

ordered to the motor (if a control was ordered).

Wake up the motor

To preserve battery charge, the motor is supplied in

‘Sleep Mode’ and requires waking up once the blind is

tted and ready to operate.

To wake up the motor, briey press the program/reset

button on motor head - the blind will jog briey Up/

Down and is ready to operate.

Step 12 / 14

BLINDS SUPPLIED WITH A CONTROL

If you ordered a Somfy control with your blind(s), then

the control supplied will be paired to the motor. Once

you have woken the motor up, test your blind by

pressing the down button on your control.

The blind will travel down and stop at the factory

preset position (this can be adjusted).

Use the directional buttons to test operation.

Tip

Refer to the ‘Adjusting the stop positions’

section to ne tune the stop positions to

your desired position.

Version 41 9

Step 13 / 14

BLINDS SUPPLIED WITHOUT A SOMFY CONTROL

If you didn’t order a control with your blind(s), then the

control you already have requires pairing to the blind.

The blind supplied has been set up with the up/down

direction correctly dened and the stopping positions

preset.

• Wake the motor up (see previous step)

• Briey press the Up & Down buttons together on

your control and release – the blind will jog Up/Down.

• Briey press the program button on the back of the

control – the blind will jog Up/Down.

• The control is now paired to the blind motor.

Use the directional buttons to test operation and refer

to the ‘Stop Position Adjustment’ section to ne tune

the stop positions to your desired position.

Version 41 10
