3 Day Blinds ARCH Manuel de programmation

Congratulations on the purchase of your new arch! Included

with your purchase is all of the hardware you will need to

successfully install your new arch. Please take a moment

to read through these instructions before starting.

ARCH ASSEMBLY &

Installation Instructions

1-800-590-SHOP I www.3day.com

Your wood arch requires some assembly. In your shipment you

should have received the following items:

NOTE: The number of items shipped is dependent on the size of the arch.

• PleaseDONOTremovethe

wood shims in the grooves of

each support until installation

is complete. These shims are

necessary to keep the wood

supports from splitting during

installation

Please make sure that you have the following:

 •Steeltapemeasure

 •PowerDrilland1/16”DrillBit(forstandalonearchesonly)

 •FlatheadandPhillipsscrewdriver

 •Pencil

 •Level(foroutsidemount)

 •Awl(ortoolforstartingascrewhole)

Includedarethescrewsneededforanormalinstallation.Depending

on the mounting surface, fasteners other than the screws provided

may be required. Wall board and plaster require the use of anchors

suchasexpansionortogglebolts.Bricks,tileandstoneneed

special plugs and drill bits. Wood should always be pre-drilled to

avoid splitting.

a r c h a n d h a r d w a r e

GeTTInG STarTed

Page 1

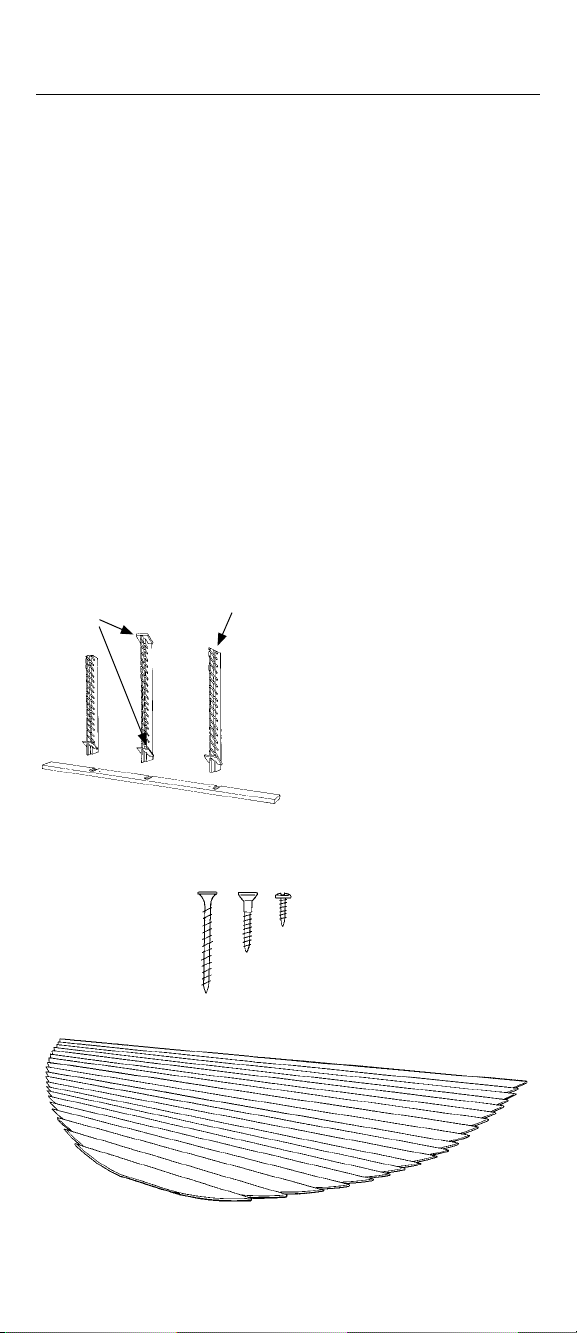

VerticalSupports

Screws

ArchBottomRail

1 1/4”DrywallScrew

#8 x 3/4”

#6 x 1/2”

Shim

WoodSlats

arch aSSeMBLY

Page 2

The wood arch is intended to be installed with the slats angled down

toward the window. This provides for maximum light control and will

keep the sun’s rays from damaging furniture and carpet. You will be

unable to install a stand alone arch with the slats angled in the

opposite direction.

WARNING: 3DayBlindsrecommendsthatyoufollowthese

instructions carefully. If you fail to attach the arch to a window sill

or wood blind support brackets, the arch could be dislodged and

fall from the window. This could result in damage to property. It

could also seriously harm people and/or animals.

 • Removethearchcomponents

from their protective wrapping.

  DONOTremovetheshims

located in the grooves.

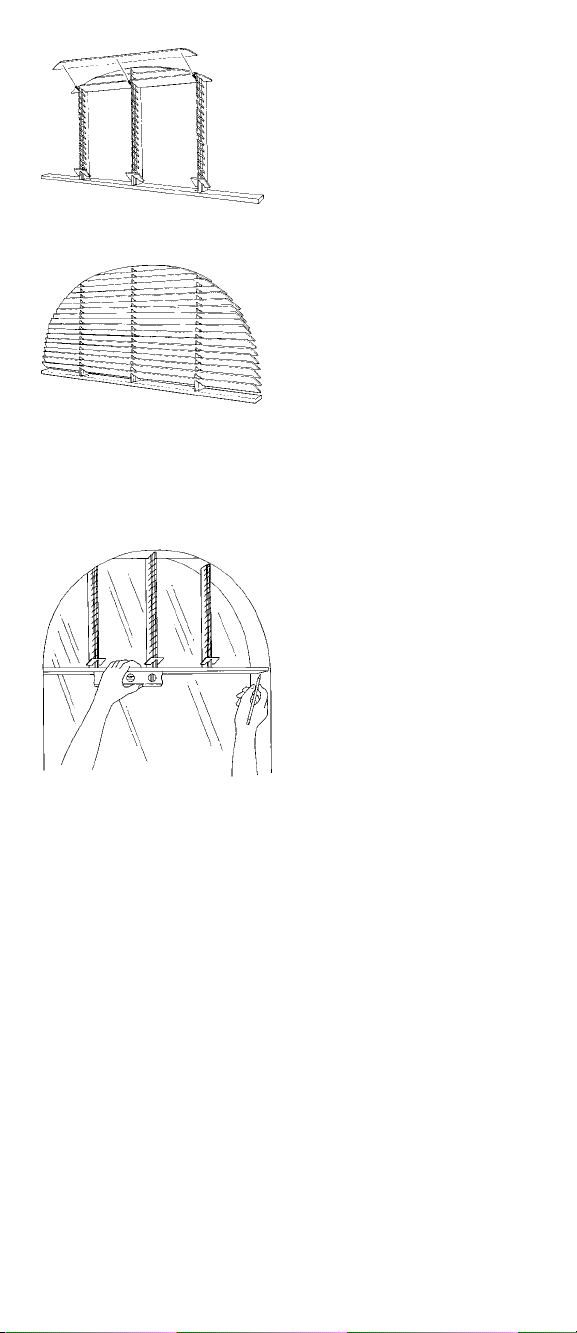

 • Attachtheverticalsupportsto

the bottom rail using a Phillips

screwdriver and the #8 x 3/4”

screws. The vertical supports

are numbered starting at 1 and

correspond to the same number

written inside the groove on the

  bottomrail.Becarefulnotto

over-tighten the screws, as this

may crack the vertical supports.

Make sure the screws are ﬂush

with the face of the bottom rail

and all vertical supports are

facing the same direction.

 • Removeanddiscardthewood

shim located at the top of center

vertical support. Insert the top

slat into the center vertical

support, making sure the slat is

centered on the support, using

the blue tape on the slat as a

guide.

 • Securethetopslattothecenter

vertical support using a Phillips

screwdriver and the 1 1/4”

  drywallscrew.Removetheblue

tape when ﬁnished.

If you are installing just an arch without a blind below it, proceed to

“SandAloneArchInstallation”.Ifyouareinstallinganarchoveranew

blind,proceedto“ArchOverANewBlindInstallation”.

Ifyouareinstallinganarchoveranexistingblind,proceedto“Arch

OverAnExistingBlindInstallation”.

•Thearchbottomrailcontains2pre-drilledholes.Positionthearch

bottom rail in the window sill 1/8” back from the front edge. Make

sure the slats slope down toward the glass.

• Usingadrillwitha1/16” drill bit and using the pre-drilled holes as

a guide, drill 2 pilot holes into the window sill. If a drill is unavailable,

use a ﬁnish nail to start a pilot hole.

• Arrangetheremainingindividualwoodslatsinorderaccordingto

 size(largetosmall).

Page 3

S T a n d a L o n e a r c h I n S T a L L a T I o n

arch InSTaLLaTIon

  • Usingalevel,holdthepartially

completed arch to the correct

position inside or outside the

window to determine where the

2” wood blind mounting

brackets will be placed for both

   thearchandtheblind.Usinga

pencil, draw a small line on the

wall under the arch bottom rail

at both ends of the arch to

establish where the 2” wood

blind ounting brackets will be

attached.

• Attachthebracketsasshowninthebottomblind’sInstallation

 Instructions.Continuebelowto“ArchOverAnExistingBlind

Installation”.

  • Startingatthetopofthearch

insert slats leaving enough

room for securing mounting

screws into the bottom rail

   (leaveoutapproximately4-8

   slatsfornow).

  • Attachthearchbottomrailto

the window sill using the 1 1/4”

drywall screws.

  • Removeanddiscardthewood

shims located in the bottom

groove of each vertical arch

support.

  • Continueinsertingtheremaining

wood slats to create the

completed arch.

Page 4

a r c h o v e r an e w B L I n d I n S T a L L a T I o n

Page 5

NOTE: If there is an existing blind in the brackets, remove the blind

before proceeding with the following step.

  • Positionthearchbottomrail

over the 2” wood blind

mounting brackets. The front

edge of the arch bottom rail

should be ﬂush with the front

top edge of the bracket. The

bottom rail should be centered

   in/overthewindow.Usinga

pencil, mark two screw holes

through the bracket onto the

underside of the arch bottom

   rail.Repeatfortheothersideof

the arch.

• Removethearchfromthewindowcasing.Usingadrillwith1/16”

drill bit or an awl, make a small pilot hole at each pencil mark not

more than 1/16” deep.

• Arrangetheremainingindividualwoodslatsinorderaccordingto

 size(largetosmall).

• Removeanddiscardthewoodshimslocatedinthebottomgroove

of each vertical arch support.

  • Startingatthetopofthearch

insert the remaining slats.

  • Placethearchontopofthe

mounting brackets and attach

the arch to the brackets using a

Phillips screwdriver and the

#6 X 1/2inch screws by

screwing from the underside of

the brackets into the underside

of the arch bottom rail.

a r c h o v e r a n e x I S T I n G B L I n d I n S T a L L a T I o n

Page 6

Caring for your arch is very easy. Periodic vacuuming with a soft brush

attachment is suggested. To dust the blinds, use a lamb’s wool duster

orasoftcleanclothtoavoidscratchingthenish.DONOTsponge

clean or use abrasive household cleansers. Corrosive chemicals may

stainordamagetheblind.3DayBlindsalsooffersproducts

specicallydesignedtosafelyandquicklycleanourproducts.See

showroom for details.

care & cLeanInG

3DayBlinds,Inc.,willrepairorreplaceanypartofthewindowcovering

found to be defective in materials or workmanship at no cost to you.

This warranty is limited to the original consumer purchaser of the

window covering. There is no time limit to our warranty. This warranty

does not apply to any defect caused by improper installation, alteration,

abuse, misuse or exposure to excess moisture. This warranty does not

cover normal wear and tear such as the natural deterioration of fabric

and changes in color that take place over time. This warranty does not

coverproductsthatexceed3DayBlinds’sizerecommendations.To

obtainservice,bringtheproduct(s)inquestiontoany3DayBlinds

showroom with this warranty and your purchase invoice. This warranty

gives you speciﬁc legal rights and you may also have other rights

which vary from state to state.

YoungchildrencanSTRANGLEin

cord and bead chain loops. They

can also wrap cords around their

necksandSTRANGLE.

• Alwayskeepcordsandbeadchains

out of children’s reach.

 • Movecribs,playpens,andother

furniture away from cords and bead

chains. Children can climb furniture

to get to cords.

 • Donottiecordstogether.Makesure

cords do not twist together and create

a loop.

LIMITed LIFeTIMe warranTY

3DayBlinds,INC.

1-800-590-SHOP I www.3day.com

warnInG
