USER NOTICE
Product Model: SL-75KV/75KV-X
Manual Revision : V1.0
Release Date : une 2000
This Users Guide & Technical Reference is for assisting system
manufacturers and end-users in setting up and installing the
mainboard.
Every effort has been made to ensure that the information in this
manual is accurate. Soltek omputer Inc. is not responsible for print-
ing or clerical errors. Information in this document is subject to
change without notice and does not represent a commitment on the
part of Soltek omputer Inc.
No part of this manual may be reproduced, transmitted, translated
into any language in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose
without the express written permission of Soltek omputer Inc.
ompanies and products mentioned in this manual are for identifi-
cation purpose only. Product names appearing in this manual may
or may not be registered trademarks or copyrights of their respec-
tive companies.
Soltek computer inc. Provides this manual “As is “ without warranty
of any kind, either express or implied, including but not limited to
the implied warranties or conditions of merchantability or fitness for
a particular purpose. In no event shall Soltek computer inc. Be li-
able for any loss or profits, loss of business, loss of use or data,
interruption of business, or for indirect, special, incidental, or con-
sequential damages of any kind, even if Soltek computer inc. Has
been advised of the possibility of such damages arising from any
defect or error in this manual or product.
Copyright © 2000 Soltek Computer Inc. All Rights Reser ed.
• AMD Athlon ThunderbirdTM, and DuronTM processors are trademarks of AMD orporation.
• VIA, KT-133, VT8363 and VT82 686A are trademarks of VIA orporation.
• Norton AntiVirus, Norton Ghost are trademarks of Symantec orporation.
SOLTEK AROUND THE WORLD
SOUL TECHNOLOGY EUROPE B.V.
Address : Sydneystraat 52-54 3047 BP Rotterdam, the Nether-
lands
Telephone : 31-10-2457492
Fax : 31-10-2457493
MOKA HOLDING B.V.
Address : De Run 4428 5503 LR Veldhoven, the Netherlands
Telephone : 31-402-556150
Fax : 31-402-546006
SOLTEK KOREA INC.
Address : 1002, hungjin Bldg. 53-5 Wonhyo-Ro, 3-Ka,
Yongsan-Ku Seoul 140-113, Korea
Telephone : 82-2-32717400
Fax : 82-2-32717405
E-mail : [email protected]
SOLTEK COMPUTER INC.
Address : 7F, No. 306-3, Ta-Tung Rd, Sec.1, Hsi- hin, Taipei-
Hsien, Taiwan, R.O. .
Telephone : 886-2-2642-9060
Fax : 886-2-2642-9065
E-mail : [email protected]
Web site : http://www.soltek.com.tw
4
75KV/75KV-X
C O N T E N T
Chapter 1
INTRODUCTION .......................................................... 6
1-1 ITEM LIST HE KUP .................................................................. 6
1-2 PRO ESSOR ............................................................................... 6
1-3 HIPSET ...................................................................................... 6
1-4 MEMORY...................................................................................... 7
1-5 BIOS ............................................................................................. 7
1-6 MULTI-I/O FUN TION.................................................................. 7
1-7 FORM FA TOR............................................................................ 8
1-8 A ’97 ODE FUN TION........................................................... 8
1-9 MIS ELLANOUS.......................................................................... 8
1-10.1 MOTHERBOARD LAYOUT --- 75KV ....................................... 9
1-10.2 MOTHERBOARD LAYOUT --- 75KV-X.................................. 10
1-11 HIPSET DIAGRAM..................................................................11
Chapter 2
HARDWARE SETUP ..................................................12
2-1 PU INSTALLATION .................................................................. 12
2-2 AMD SO KET A (SO KET 462) PRO ESSOR ........................ 13
2-3 PU FREQUEN Y..................................................................... 14
2-4 JUMPER DEFINITIONS ............................................................. 15
2-5 ONNE TORS .......................................................................... 19
2-5.1 J3 AND J4 ................................................................................ 19
2-5.2 HASSIS PANEL ONNE TOR............................................. 23
2-5.3 ATX POWER SUPPLY ONNE TOR..................................... 24
2-5.4 SE OND USB ONNE TOR ................................................. 25
2-5.5 PS/2 MOUSE AND PS/2 KEYBOARD..................................... 26
2-5.6 IRQ DES RIPTION ................................................................. 27
2-6 VOI E DIAGNOSIS TE HNOLOGY FOR 75KV-X.................... 28
5
75KV/75KV-X
Chapter 3
SOFTWARE SETUP...................................................29
3-1 ABOUT SUPPORT D ............................................................... 29
3-2 HARDWARE MONITOR INSTALLATION ................................... 29
3-3 VIA HIPSET DRIVER INSTALLATION (4-IN-1 DRIVER) ......... 31
3-4 A ’97 AUDIO ODE INSTALLATION ...................................... 35
Chapter 4
BIOS Setup ................................................................ 37
4-1 INTRODU E THE BIOS............................................................. 37
4-2 WHAT IS BIOS SETUP............................................................... 37
4-3 HOW TO RUN BIOS SETUP ...................................................... 37
4-4 WHAT IS MOS ......................................................................... 37
4-5 WHAT IS POST .......................................................................... 38
4-6 BIOS UPGRADE......................................................................... 38
4-6.1 BEFORE UPGRADE BIOS...................................................... 38
4-6.2 UPGRADE PRO ESS............................................................. 38
4-7 MOS SETUP UTILITY.............................................................. 41
4-8 STANDARD MOS SETUP........................................................ 42
4-9 ADVAN ED BIOS FEATURES................................................... 44
4-10 ADVAN ED HIPSET FEATURES .......................................... 48
4-11 INTEGRATED PERIPHERALS ................................................. 54
4-12 POWER MANAGEMENT SETUP............................................. 59
4-13 PNP / P I ONFIGURATION................................................... 65
4-14 P HEALTH STATUS ............................................................... 68
4-15 FREQUEN Y/VOLTAGE ONTROL ....................................... 69
4-16 LOAD FAIL-SAFE DEFAULTS.................................................. 70
4-17 LOAD OPTIMIZED DEFAULTS ................................................ 70
4-18 SET SUPERVISOR / USER PASSWORD................................ 71
4-19 SAVE & EXIT SETUP ............................................................... 72
4-20 EXIT WITHOUT SAVING .......................................................... 72
6
75KV/75KV-X
CHAPTER 1
INTRODUCTION
1-1 ITEM LIST CHECKUP
• Motherboard
• Support D
• User’s Manual
• 2-In-1 Bonus Pack D
• 2-In-1 Bonus Pack Manual
• Temperature Sensor able
• ATA66 IDE able
• RS232 able
1-2 PROCESSOR
• Supports AMD Athlon ThunderbirdTM 700MHz/ 750MHz/ 800MHz/ 850MHz/
900MHz/ 950MHz/1.0GHz processors or higher.
• Supports AMD Athlon DuronTM 600MHz/ 650MHz/ 700MHz processors or
higher.
• Supports 66MHz/ 100MHz/ 133MHz PU Front Side Bus(FSB).
• Supports processor voltage auto-detect circuit.
1-3 CHIPSET
• KT133 hipset: VT8363 system controller (552 pin BGA)and VT82 686A
P I to ISA bridge (352 pin BGA).
--- The VT8363 supports two 32-bit 3.3V / 5V system buses (one AGP and
one P I) that are synchronous / pseudo-synchronous to the PU bus.
--- Single chip Athlon system controller with 64-bit Socket-A Athlon PU,
64-bit system memory, 32-bit P I and 32-bit AGP interfaces.
--- P I-to-ISA bridge chip includes UltraDMA-33/66 EIDE, 4 USB Ports,
Integrated Super-I/O, A 97 / M 97 link(for Audio and Modem support).
Hardware Monitoring, Power Management, and Keyboard / PS2 Mouse
Interfaces plus RT / MOS on chip.
--- Supports separately powered 3.3V (5V tolerant) interface to system
memory, AGP, and P I bus.
7
75KV/75KV-X
--- 100MHz DDR(Double Data Rate) transfer on Athlon PU address and
data buses.
--- Supports full AGP v2.0 capability for maximum bus utilization including
1x, 2x, and 4x mode transfers.
--- Both Windows 95 VxD and Windows 98 / Windows 2000 miniport driv-
ers are supported for ineroperability with major AGP-based 3D and DVD-
capable multimedia accelerators.
1-4 MEMORY
• Supports P 133 and P 100 SDRAM and Virtual hannel Memory (V M)
up to 3 DIMMs.
• Supports up to 1.5GB memory space (256MB DRAM technology).
• The six banks of DRAM can be composed of an arbitrary mixture of 1M/
2M/ 4M/ 8M/ 16M/ 32MxN DRAMs.
• Different DRAM types may be used in mixed combinations.
• 64-bit data width and 3.3V DRAM Interface.
• oncurrenct PU, AGP, and P I access.
1-5 BIOS
• Award BIOS.
• Supports Plug & Play (PnP).
• Flash Memory for easy upgrade.
• Supports Advanced Power Management (APM) Rev 1.2 function.
• Advanced onfiguration Power Management Interface (A PI) Rev 1.0
compliant.
• Year 2000 compliant.
1-6 MULTI-I/O FUNCTION
• One floppy port supports up to 2.88MB.
• Provides 2 Built-In USB Ports. (Another 2 internal USB ports for extensible
purpose require an optional USB connect cable)
• Ultra ATA33/66 bus master IDE supports up to 4 IDE devices (including
ZIP/LS-120 floppy devices).
• 2x 16550A Built-In fast UART compatible serial port connectors.
• Built-In SPP/EPP/E P parallel port connector.
• Built-In standard IrDA TX/RX header.
• Peripherals boot-up function with ATX power.
8
75KV/75KV-X
1-7 FORM FACTOR
• ATX form factor, 4 layers P B.
• Motherboard size: 22.0cm x 30.5cm
1-8 AC’97 CODEC FUNCTION
• Adopts onboard A ’97 Audio odec controller chip.
1-9 MISCELLANOUS
• P I 2.2 compliant, 32-bit 3.3V P I interface with 5V tolerant inputs.
• Provides 5 P I master slots, 1 ISA slot, 1 4xAGP PRO slot, and 3 DIMM
slots.
• lock Generator supports 1MHz linear clock setting.
• Provides DIP switch for easy adjusting.
• Supports S SI, D-ROM, ZIP/LS-120, and USB boot-up function.
• Supports Wake On LAN(WOL) boot-up function.
• Supports BIOS Writing Protection.
• Supports BIOS PU ore Voltage setting. (optional)
• Supports Hardware Monitor function.
• Supports Voice Diagnosis Technology for easily debugging. (75KV-X only)
• Supports Suspend To RAM(STR) function.
9
75KV/75KV-X

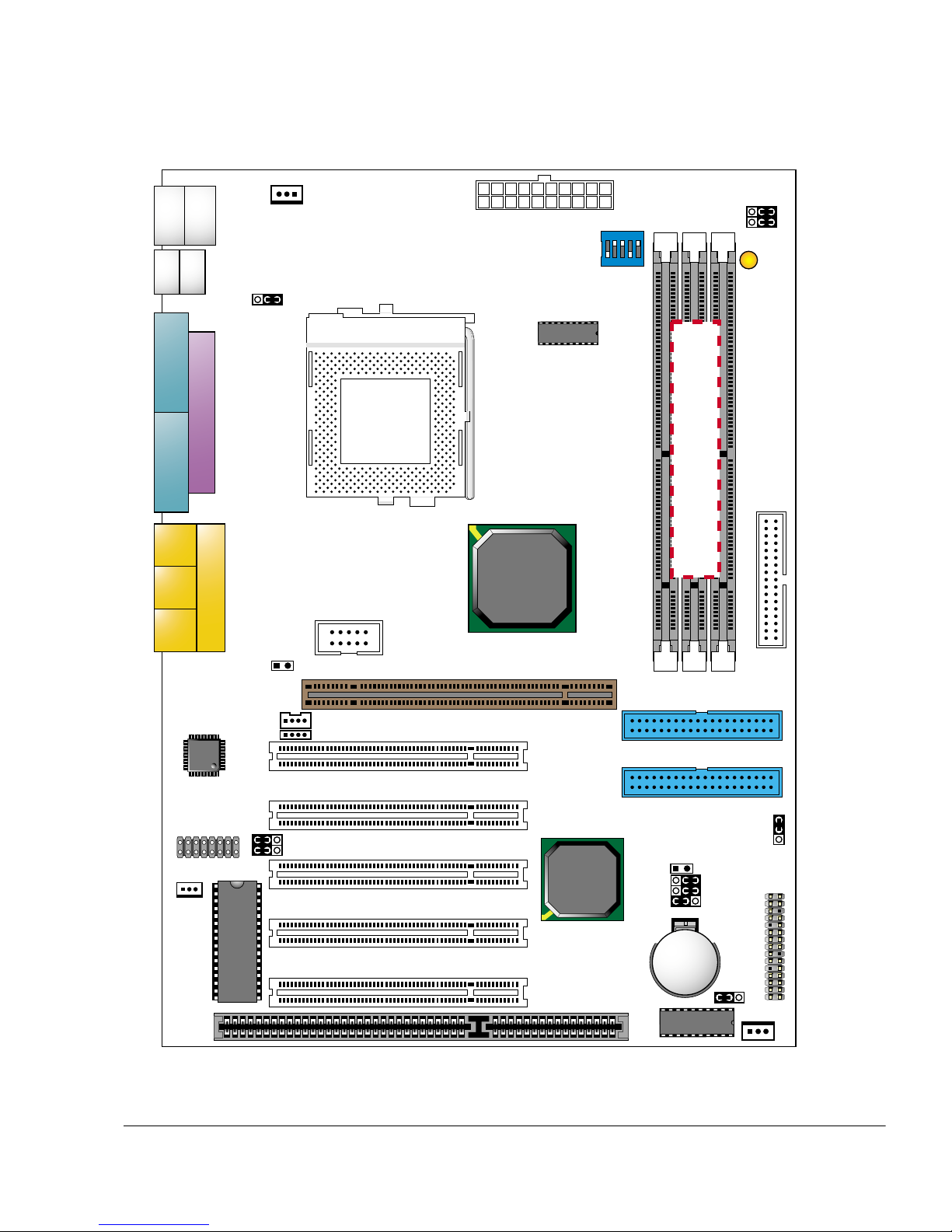

1-10.1 MOTHERBOARD LAYOUT --- 75KV
• Default Setting: AMD Athlon ThunderbirdTM 100MHz.
SOCKET A
FLASH BIOS
VIA
KT-133
VIA;
686A
ATX POWER
SW1
USB0
USB1 PS/2;
MOUSE
PS/2;
K/B
LPT1
COM 1
GAME/MIDI PORT
LINE;
OUT
LINE;
IN
MIC
USB1
2 16
1 15
AC'97;
Codec
Li
Battery
ISA
J3;
J4
SPK RST PWR/LED T/LED
HDD/LED IR PWR SMI
++
--
+-
1 15
1 15
4x AGP PRO
PCI 1
COM 2
PCI 2
PCI 3
PCI 4
PCI 5
FDD1
IDE2
IDE1
DIMM1;
DIMM2;
DIMM3
13
13
1 3
1 3
1 3
1 3
JBAT1
JP7
JP1;
JP2
1 3
JP9
PC100/PC133 SDRAM
WOL1
CD_IN2;
CD_IN1
FAN2
W5280
W210
FAN1
JP3
RT2
ZD1
1 3
1 3
JP10;
;
;
JP11
ON
DIP
5 4 3 2 1
10
75KV/75KV-X
1-10.2 MOTHERBOARD LAYOUT --- 75KV-X
• Default Setting: AMD Athlon ThunderbirdTM 100MHz.
SOCKET A
FLASH BIOS
VIA
KT-133
VIA;
686A
ATX POWER
SW1
USB0
USB1 PS/2;
MOUSE
PS/2;
K/B
LPT1
COM 1
GAME/MIDI PORT
LINE;
OUT
LINE;
IN
MIC
USB1
2 16
1 15
AC'97;
Codec
Li
Battery
ISA
J3;
J4
SPK RST PWR/LED T/LED
HDD/LED IR PWR SMI
++
--
+-
1 15
1 15
4x AGP PRO
PCI 1
COM 2
PCI 2
PCI 3
PCI 4
PCI 5
FDD1
IDE2
IDE1
DIMM1;
DIMM2;
DIMM3
13
13
1 3
1 3
1 3
1 3
1 3
1 3
JP4;
JP5;
JBAT1
JP7
JP1;
JP2
1 3
JP9
1 3
JP8
PC100/PC133 SDRAM
WOL1
CD_IN2;
CD_IN1
FAN2
W5280
W210
FAN1
JP3
RT2
ZD1
1 3
1 3
JP10;
;
;
JP11
ON
DIP
5 4 3 2 1
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels SOLTEK Carte mère
SOLTEK
SOLTEK SL-67G60 Manuel d'utilisation et d'entretien
SOLTEK
SOLTEK SL-54A2 Manuel utilisateur
SOLTEK
SOLTEK SL-845GVI Manuel utilisateur
SOLTEK
SOLTEK SL-65KVB Manuel utilisateur
SOLTEK
SOLTEK SL-65ME Manuel utilisateur
SOLTEK
SOLTEK SL-B9D-FGR Manuel utilisateur
SOLTEK
SOLTEK SL-B5A-FG Manuel utilisateur
SOLTEK
SOLTEK SL-75DRV3/75DRV3+ Manuel utilisateur
SOLTEK
SOLTEK 75DRV Manuel utilisateur
SOLTEK
SOLTEK SL-865G Manuel utilisateur
SOLTEK
SOLTEK SL-85DIV Manuel utilisateur
SOLTEK
SOLTEK SL-65D Manuel utilisateur
SOLTEK
SOLTEK NV400-64 Manuel utilisateur
SOLTEK
SOLTEK SL-85DR-C Manuel utilisateur
SOLTEK
SOLTEK SL-55B5 Manuel utilisateur
SOLTEK
SOLTEK K8AV2-R Manuel utilisateur
SOLTEK
SOLTEK SL-75KAV Manuel utilisateur
SOLTEK
SOLTEK SL-67D Manuel utilisateur
SOLTEK
SOLTEK SL-53A2 Manuel d'utilisation et d'entretien
SOLTEK
SOLTEK B9A-FGR Manuel utilisateur
Manuels Carte mère populaires d'autres marques
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuel utilisateur
Gigabyte
Gigabyte GA-9IVDT Manuel utilisateur
Texas Instruments
Texas Instruments ADS8372EVM Manuel utilisateur
Commell
Commell MS-C73 Manuel utilisateur
IBT Technologies
IBT Technologies MB860 Manuel utilisateur
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur
