Solt SQ100 Manuel utilisateur

Contents

Important Safety Instructions...............................................................................................3

Power precautions..............................................................................................................3

Use precautions .................................................................................................................3

Product Introduction.............................................................................................................4

Product Description............................................................................................................4

Product Specification..........................................................................................................4

Product Components..........................................................................................................5

How to install the product.....................................................................................................6

How to Charge Transmitter/Guest Pager.............................................................................7

Transmitter.........................................................................................................................7

Transmitter wireless mode..................................................................................................7

Guest Pager.......................................................................................................................7

Basic Usage of Transmitter..................................................................................................8

Transmitter Touch Pad Configuration.................................................................................8

Transmitter Display Description..........................................................................................9

Transmitter Default Setting.................................................................................................9

Guest PagerMessage Window Display Description ............................................................9

Registering Guest Pager Fixed Numbers..........................................................................10

Registering the Guest Pager Random Number.................................................................11

How to Call the Guest Pager...............................................................................................12

Calling by entering a call number......................................................................................12

How to use the Guest Pager registered with random numbers .........................................13

Call with shortcut button ...................................................................................................13

How to Set Guest Pager Add-ons.......................................................................................14

Set the calling mode (vibration, LED, sound) of the Guest Pager......................................14

Out of Range Setting........................................................................................................15

Setting Guest Pager Alarm Time......................................................................................16

Guest Pager Power Off ....................................................................................................17

Transmitter Key Sound setting..........................................................................................18

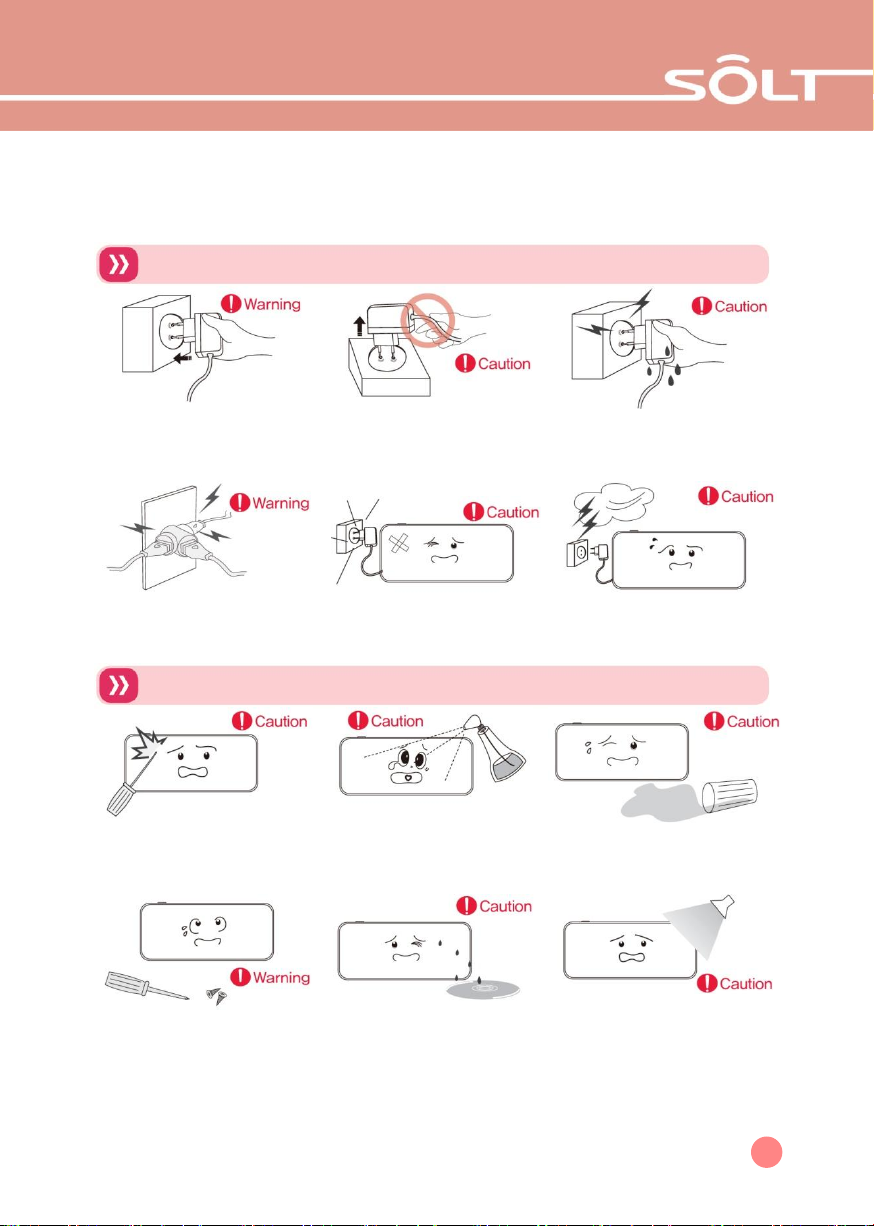

Important Safety Instructions

Safety Instruction contains the information to prevent the unexpected risk or damage in advance

by using the product in correct way and it should always be observed all the times.

Power precautions

Be sure to insert the power plug to the

end of the inner part.

[If the connection is unstable, it may

cause fire.]

Be sure to unplug the power plug while

holding it firmly. If cord is unplugged by

pulling out, some parts of the cord can be

disconnected and it may cause risky

situation. [It may cause fire.]

Do not touch the power plug with wet

hand.

[There is a risk of electric shock.]

Do not use one socket for multiple

devices at the same time. [It may cause

fire due to overheating of the socket.]

If power plug is dropped or case is

broken, unplug the power cord. [If it is

used as it is, it may cause fire or electric

shock, Please contact service center.]

In case of thunderstorm of lighting or if the

power plug is not used for olg time, unplug

the power cord. [There is the risk of

elcectric shock or fire.]

Use precautions

Not press or scrape the screen surface

strongly with hand or sharp object (nail,

pencil, pen, etc.)[The screen surface can

be damaged or it can cause failure.]

Do not spray inside or outside of the

product with water or clean it with

benzene or thinner. [This can lead to

poor insulation of the electric device and

cause electric shock or fire.]

If inside of the product is exposed to water

or foreign substance, contact service

center. [There is the risk of fire or electric

shock due to the damage to internal

components.]

Do not separate, repair or remodel the

product by user own decision. In case

repair is needed, contact service center.

[It may cause fire or electric shock.

do not install the product at humid, dusty

or watery place. [It may cause an electric

shock or fire.]

If possible, avoid installing the product at

the place near to metal sheet, wire or LED

light. [Distance between transmission and

reception can be shortened depending on

surrounding environment.]

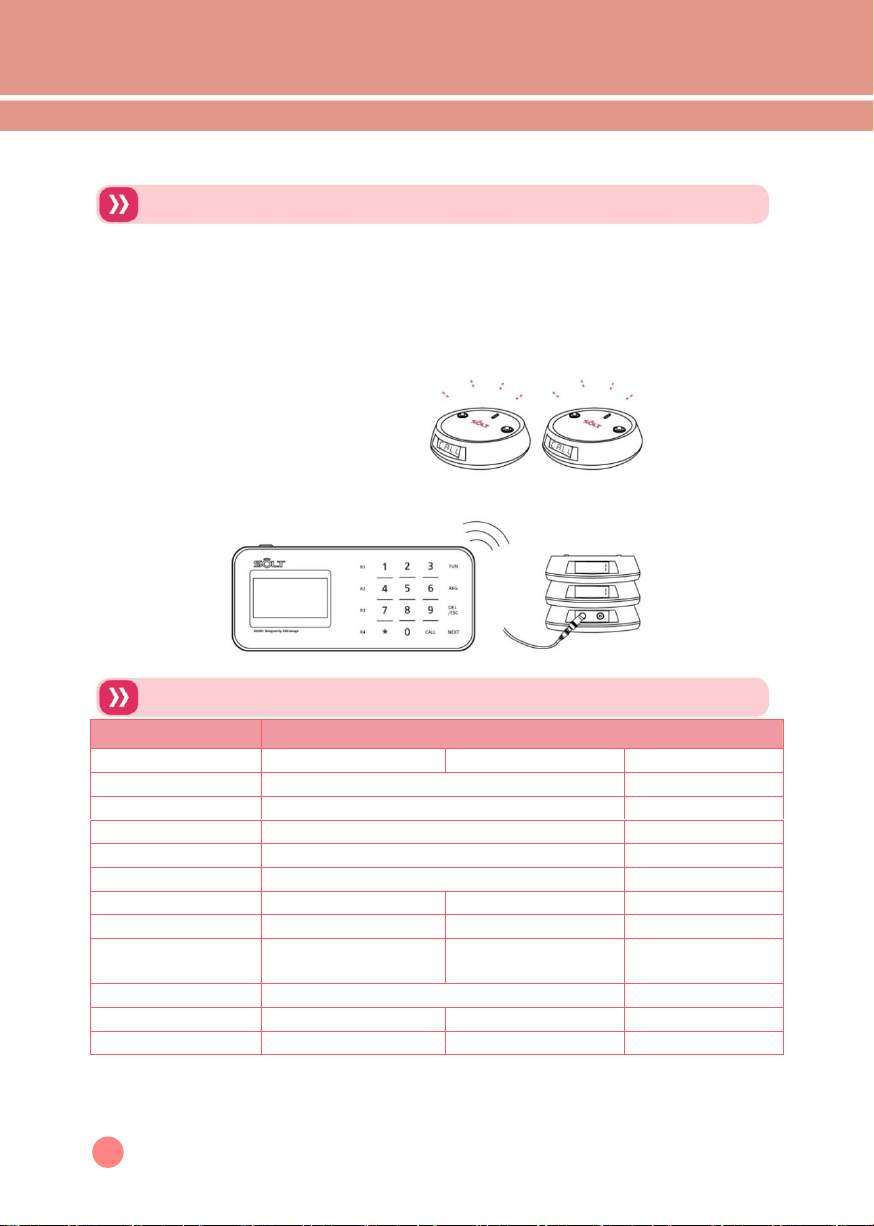

Product Introduction

Product Description

It is a wireless paging system that is used in restaurants, coffee shops, food courts,

hospitals and etc. where Guest Pager is required for customers to wait.

ㆍOne-way wireless paging method using close-range wireless communication

ㆍIt supports TXID, frequency change setting, and can be used simultaneously in

adjacent places of business without interference.

Product Specification

Category

Contents

Model

SQ-100 (Transmitter)

SG1 (Guest Pager)

SC1 (Charger)

Frequency

433-434 MHz

Freq Stability

± 10ppm

Data Rate

1200bps

Channel Space

12.5 KHz

Modulation

FSK (±3KHz)

RF Output Power

10mW(Max)

Power Supply

DC 12V/1A Adapter

DC 9V/3A Adapter

Battery

Rechargeable Li-Polymer

(600mA)

Rechargeable

Li-Polymer (250mA)

Antenna

Built-in Helical

Dimension

210W x 90H x 33T (mm)

88Ø x 20,4T(mm)

88Ø x 20,4T (mm)

Weight

237g

80g

68g

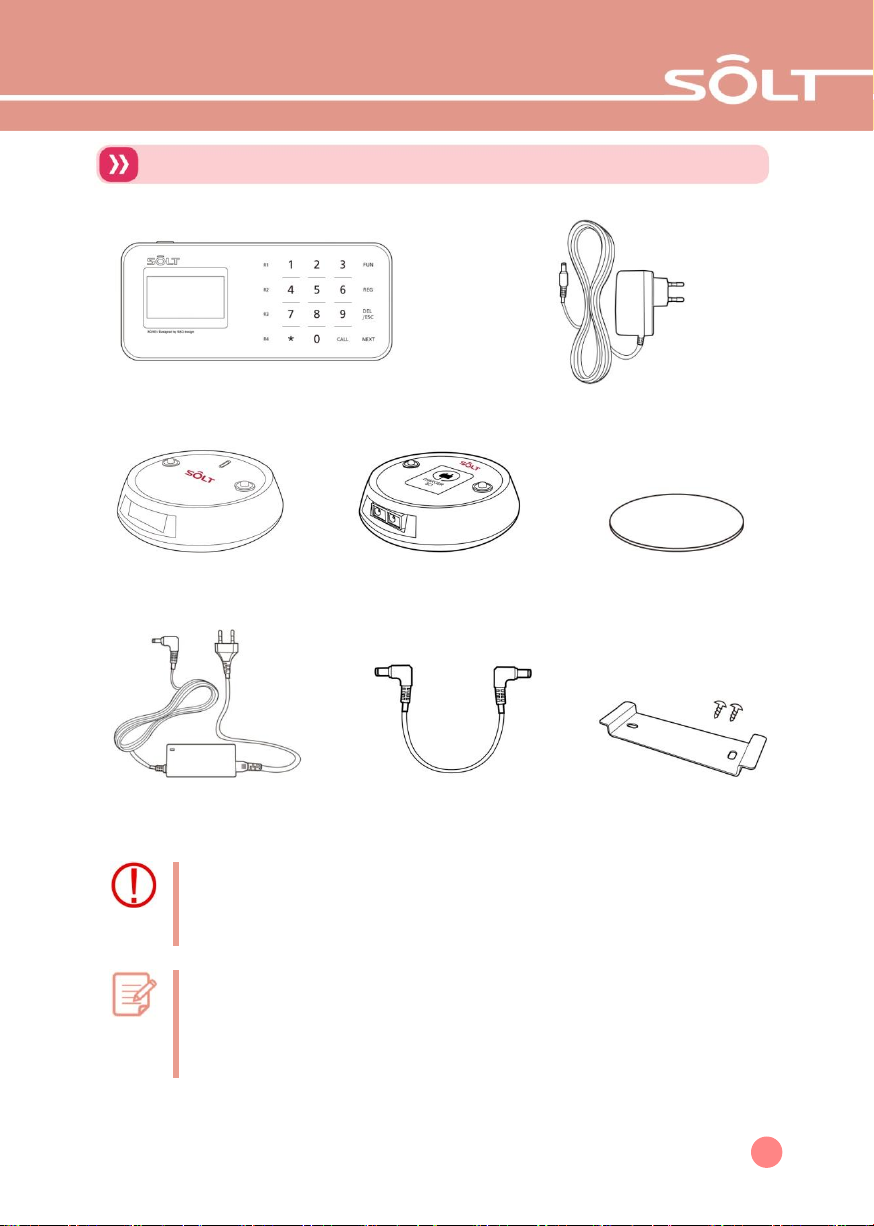

Product Components

Transmitter

Transmitter Adapter (12V 1A)

Guest Pager

Charger

Pad for fixing charger

Charger Adapter (9V 3A)

Jump Cable

(Purchase separately)

Transmitter wall mount

(Purchase separately)

Be sure to charge using the supplied adapter.

- A/S caused by using other adapter is to be charged.

Adapters and cables are consumables, and faults occurring during use do not

apply to A/S replacement criteria in the warranty.

Caution

Depending on the product purchase specifications, the product components

may be different.

More than 11 Guest Pagers require additional chargers and jump cables

- Available for purchase separately

Reference

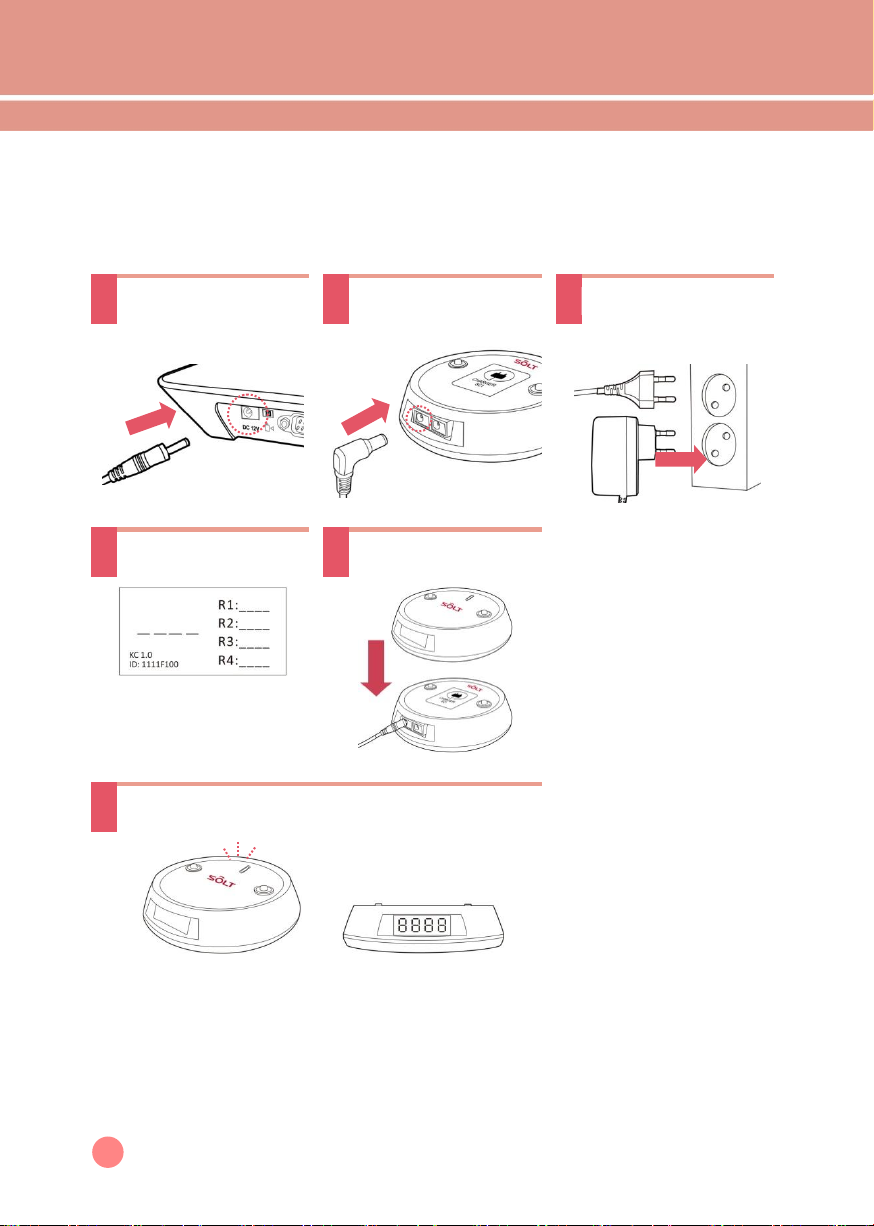

How to install the product

Place the product on a flat surface when installing the product.

Please proceed with the installation procedure below in order.

Connect the transmitter

power adapter’s terminal

(12V 1A) to the back of

the transmitter.

Connect the charger

power adapter’s terminal

(9V 3A) to the charger

Connect the transmitter’s

and the charger’s power

adapter’s plug to the

power outlets.

Check the standby status

of the transmitter.

- The alarm sounds. And the

SOLT logo are displayed on

the display and the standby

status is displayed.

Mount the Guest Pager

with the charger groove.

Check the charge status and the message window of the

Guest Pager.

- If the LED of the Guest Pager is "blinking, it indicates that it is under charging.

- Guest Pager: After [8888] is displayed in the message window, the currently registered number

is displayed. (If there is no registered number, [----] is displayed.)

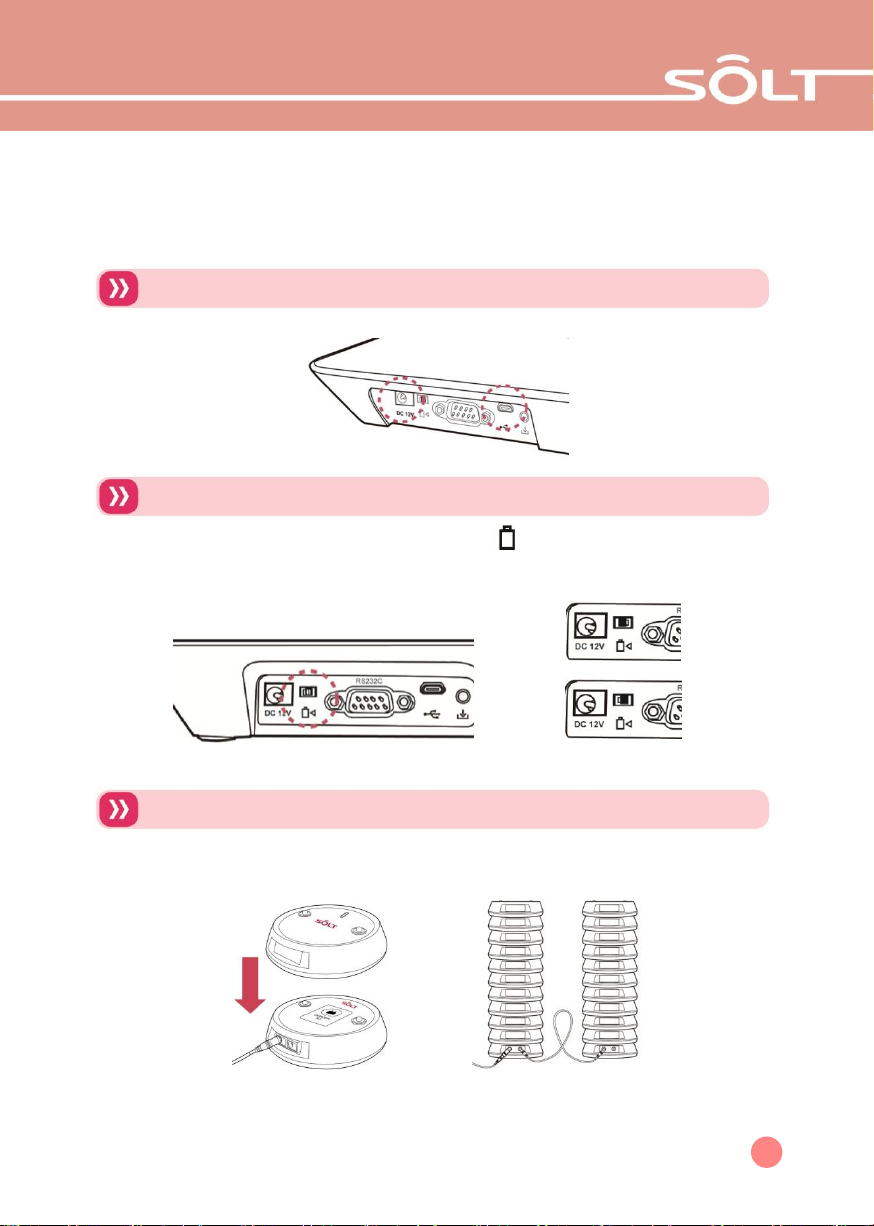

How to Charge Transmitter/Guest Pager

The transmitter and the Guest Pager have a built-in battery for charging.

When the battery is low, [Lo] is displayed in every 5 seconds in the message window

of the Guest Pager.

Transmitter

ㆍPower can be supplied by 12V power adapter or Micro 5 Pin USB cable.

Transmitter wireless mode

ㆍWhen theswitchon theback of the main bodyis turned in ( )direction,it operates in batterymode.

- When it is powered by 12V power adapter or Micro 5 Pin USB cable the built-in battery is

automatically charged.

Battery direction (when using battery)

Arrow direction

(when using DC power)

Guest Pager

ㆍMount the Guest Pager on the powered charger in order to charge it.

- You can charge 10 Guest Pagers per charger at the same time. If you extend the charger

with a jump cable, you can charge up to 20 Guest Pagers with 1 adapter.

Basic Usage of Transmitter

When purchasing the product, please use the transmitter to register the call number of

the Guest Pager.

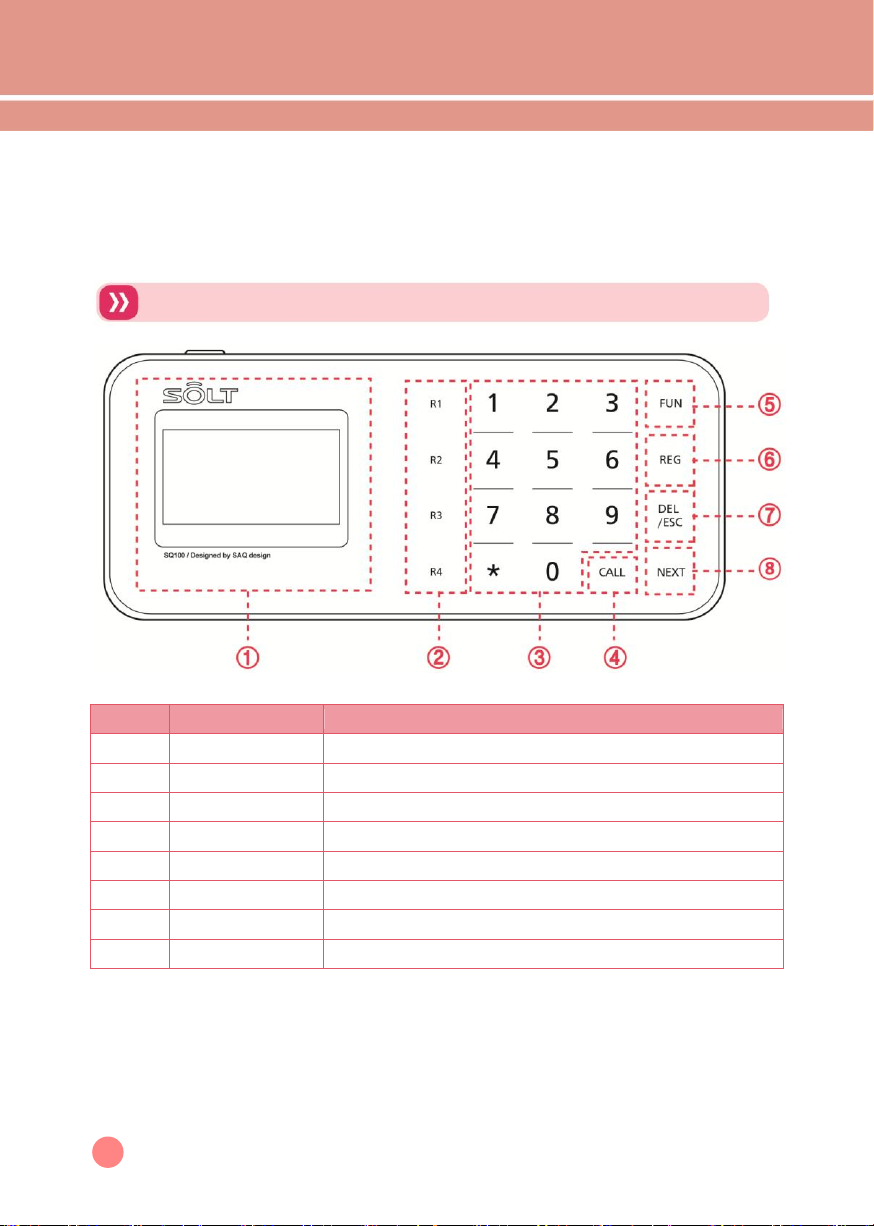

Transmitter Touch Pad Configuration

Category

Name

Contents

Display

Display to show the status of the transmitter

Shortcut Key

Button to call the stored number of R1 to R4 directly

Number buttons

Button to input 0 to 9, and to the display

CALL

Button to call or select the entered contents

FUN

Function setting button

REG

Call number registration button

DEL/ESC

Button to clear the entered contents or exit the screen

Button to move to the next item

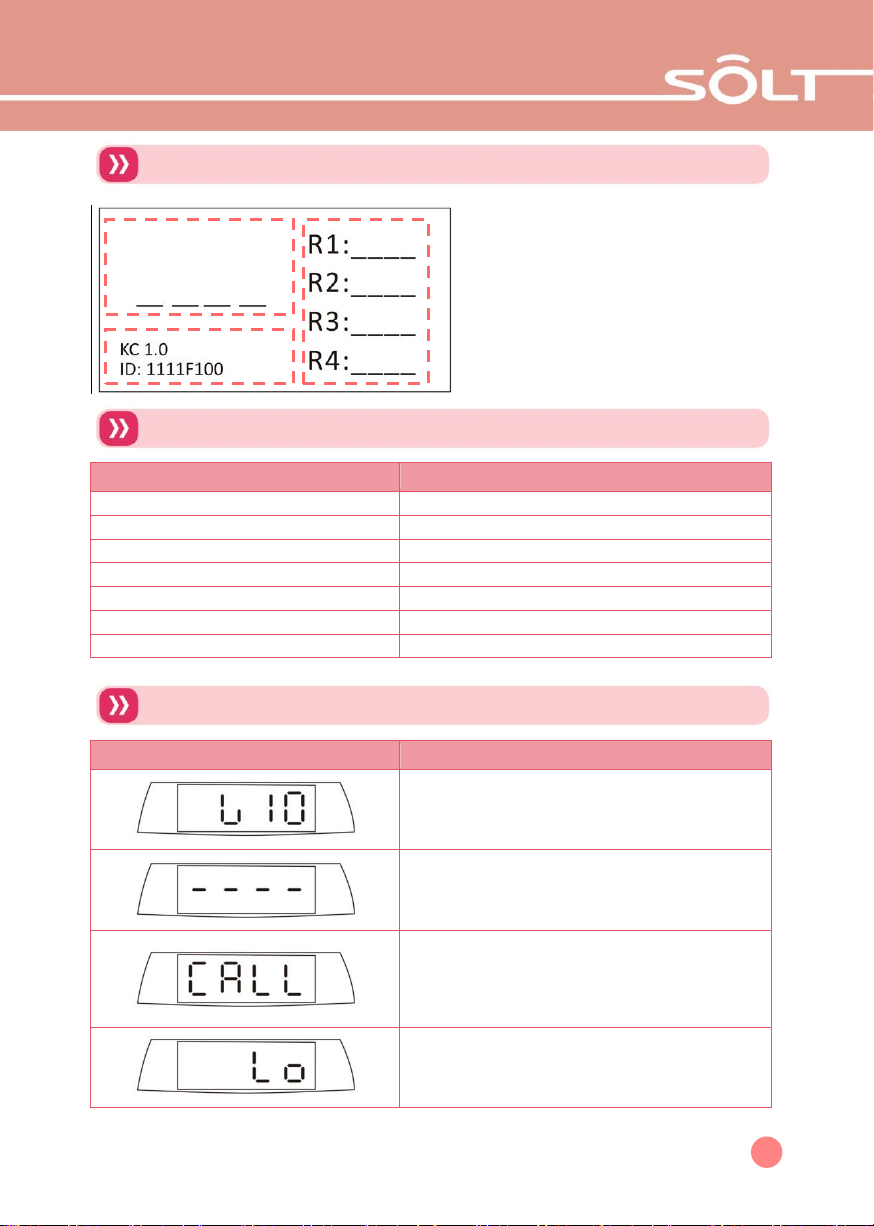

Transmitter Display Description

①Entered call number

②KC 1.0

KC / JC / CE / FC + version

ID:1111F100

TXID + frequency +GPID

③Recently used call number

Transmitter Default Setting

Name

Setting

VIBRATOR

LED

BUZZER

OFF

OUT OF RANGE

OFF

ALARM TIME

KEY SOUND

FREQUENCY

Guest PagerMessage Window Display Description

Message Window

Description

ㆍDisplays the program version.

Displayed for 1 second when Guest Pager is

mounted for the first time.

ㆍDisplays the standby state of the Guest Pager.

It displays the status when no call number is

entered or it is initialized.

ㆍDisplays when called from the transmitter.

When the transmitter calls the corresponding

Guest Pager it appears in the message window

of the Guest Pager.

ㆍDisplays when the battery is low.

Mount the Guest Pager on the charger and

charge it.

①

②

③

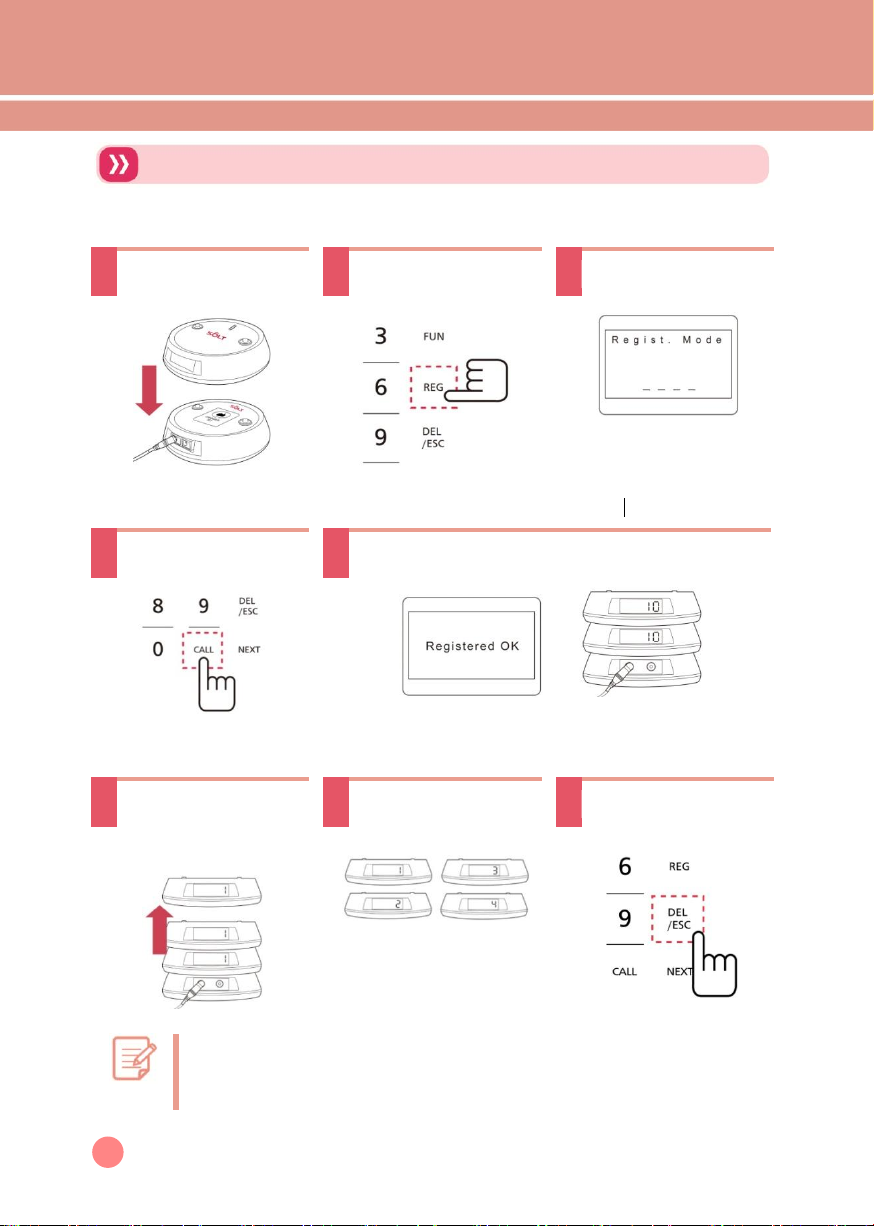

Registering Guest Pager Fixed Numbers

This is a method to set when the Guest Pager number is fixed and used.

Mount the Guest Pager to

the charger.

Press and hold the [REG]

button for 2 seconds.

Press the numeric buttons

to enter the desired

calling number.

- Call number can be registered

from "1 through 9999".

- If you press the [DEL/ESC]

button, themost recently

entered characters will be

deleted.

Press the [CALL] button.

"Regist OK" is displayed and the registered number is

displayed in the Guest Pager message window.

- The call number entered in the Guest Pager is displayed.

- When multiple Guest Pagers mounted if a call number is

registered, all mounted Guest Pagers will be registered with

the same number.

Remove the Guest Pager

that has registered the

calling number from the

charger.

Youcanregistermultiple

designatednumbersby

repeating"3~6" processes.

- Please register with a

number different from the

one previously registered.

When registering the same

call number, all the Guest

Pagers with the same

number will be called.

Press the [DEL/ESC]

button to exit to the

standby screen.

How to change the fixed number of the registered Guest Pager?

After mounting the Guest Pager to be changed into the charger, proceed with the

process of “Registering Guest Pager Fixed Numbers” again.

Reference

Ce manuel convient aux modèles suivants

Table des matières

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
