1
Barricade
Broadband Router with built in
4 port switch and Print server
Installation Guide
SMC7004ABR
2
Table of Contents
Hardware Setup 4
Conguring Your Computer 6
Conguring Your Computer with Windows 95/98/ME 6
Conguring Your Computer with Windows 2000 11
Conguring Your Computer with Windows NT 4.0 14
Conguring Your Macintosh Computer 18
Conguring Your Barricade 21
Conguring Your Barricade for a Dynamic IP Address 25
Conguring Your Barricade for a Static IP Address 28
Conguring Your Barricade for PPPoE 30
Conguring Your Barricade for Dialup on Demand 32
Conguring Your Computer for the Barricade Print Server 33
Congure the Network Printer in Unix Systems 36
PPtP Installation 37
Specications and Certication 38
3
Congratulations on your purchase of the
SMC Barricade™ Broadband Router.
The SMC Barricade is a Broadband Router designed to share Internet
Access, provide security, and to network multiple devices for a variety
of users. The Barricade’s simple installation setup can be used by the
least experienced of users, while providing networking professionals
with easy to congure advanced features. Please read the User Guide
for advanced features of this product.
Thank you for purchasing an SMC product. We know you will enjoy
the many features of the SMC Barricade.
This Package Contains:
•One SMC Barricade
•One Power Adapter
•This Quick Installation Guide
•One Installation CD
•One Category 5 Fast Ethernet Cable
Conrm That You Meet Installation Requirements
Before proceeding with the installation of your Barricade, please be
sure you have the following:
•A computer with an Ethernet network card installed.
•Your Windows CD, if your computer is running
Windows 95, 98, or ME
•An Internet connection through a cable or DSL modem or an
external dial-up or ISDN modem.
•An additional Ethernet network cable.
•A Web browser such as Internet Explorer or Netscape.
4
Hardware Setup
1. Connecting Computers: Connect computers directly to the
Barricade on ports 1-4 on the front panel. If you have more than 4
computers to plug in, connect a hub or a switch (using its uplink port)
and connect additional computers to that device.
2. Connecting a Cable Modem or DSL Modem: Connect your Cable
or DSL modem to the WAN port on the rear panel.
3. Connecting a Dial-up Modem: If you use an external dial-up
modem or ISDN modem, connect it to the COM port on the rear
panel.
4. Connecting a Printer: If you have a printer that you want to share
between computers, connect it to the Printer port using a standard
parallel printer cable.
5. Power: Plug the power cord into the power jack.
SMC7004ABR – Front Panel
SMC7004ABR – Rear Panel
5
Indicator LEDs
The front panel of the Barricade provides indicator LEDs (Light
Emitting Diodes) for easy monitoring. The following table denes the
function of each LED.
LED Condition Status
Power On Barricade is receiving power.
(green)
WAN On The WAN port has established a
(green) valid network connection.
Flashing The WAN port is transmitting or
receiving data.
Link/Act On The indicated LAN port has
(green) established a valid network
connection.
Flashing The indicated LAN port is
transmitting or receiving data.
10/100 On The indicated LAN port is
(amber) operating at 100Mbps.
Off The indicated LAN port is
operating at 10Mbps.
6
Conguring Your Computer
with Windows 95/98/ME
You may nd that the instructions here do not exactly match your
version of Windows. This is because these steps and screenshots
were created from Windows 98. Windows 95 and Windows
Millennium Edition are very similar, but not identical, to Windows 98.
Step 1. Congure TCP/IP Settings
After you have completed the hardware setup by connecting your
devices, you need to congure your computer to connect to your
Barricade. You need to determine how your ISP issues your IP
address. Many ISPs issue these numbers automatically using a
networking technology known as Dynamic Host Control Protocol, or
DHCP. Other ISPs will specify your IP address and associated
numbers, which you must enter manually. This is also known as a
static IP address.
How your ISP assigns your IP address determines how you will
congure your computer.
7
1. From the Windows desktop, click the
“Start” button. Choose “Settings,” then
click “Control Panel.”
2. From “Control Panel,”
double-click the “Network”
icon.
3. In the “Network” window, under the
“Conguration” tab, double-click the
“TCP/IP” entry that is listed with your
network card.
8

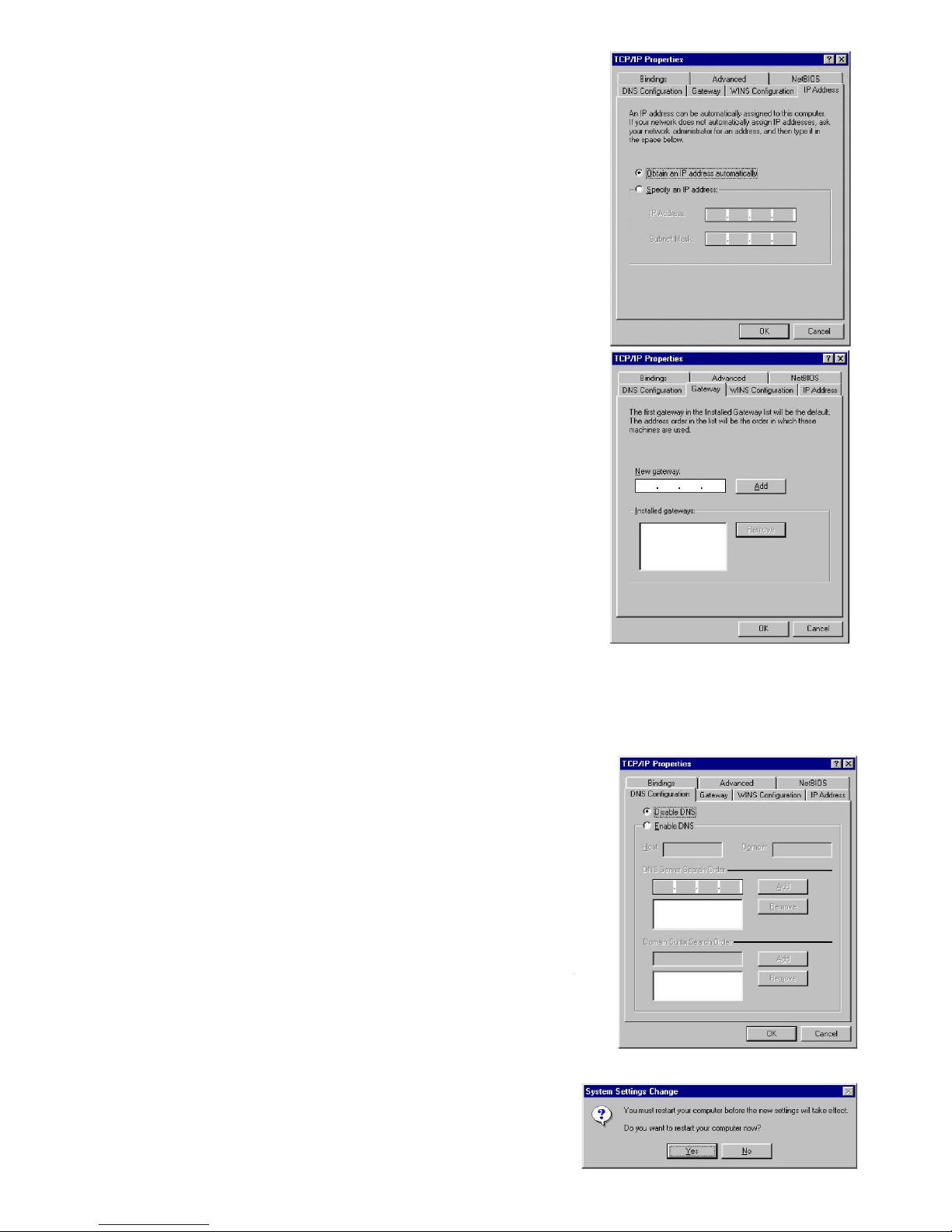

4. Select the “IP Address” tab.
If “Obtain an IP address automatically”
is already selected, your computer is
already congured for DHCP.
Click “Cancel” to close each window, and
skip to Step 2 “Disable HTTP Proxy.”
5. Locate your IP address and Subnet
Mask. Record them in the spaces
provided below.
6. Click the “Gateway” tab and record the
numbers listed under “Installed
gateways.”
7. Click the “DNS Conguration” tab.
Locate the DNS servers listed under
“DNS Server Search Order.” Record the
listed addresses.
8. After writing down your settings, check
to make sure you have recorded them
correctly. Click the “IP Address” tab and
then click “Obtain an IP address auto-
matically.” Click OK.
9. Windows may need your Windows
95/98/ME CD to copy some les. After it
nishes copying, it will then prompt
you to restart your system. Click “Yes”
and your computer will shut down and
restart.
9
TCP/IP Conguration Setting
IP Address ____.____.____.____
Subnet Mask ____.____.____.____
Primary DNS Server ____.____.____.____
Secondary DNS Server ____.____.____.____
Default Gateway ____.____.____.____
Step 2. Disable HTTP Proxy
You will need to verify that the “HTTP Proxy” feature of your Web
browser is disabled. This is so that your Web browser will be able to
view the conguration pages inside your Barricade.
The following steps are for Internet Explorer and for Netscape.
Determine which browser you use and follow the appropriate steps.

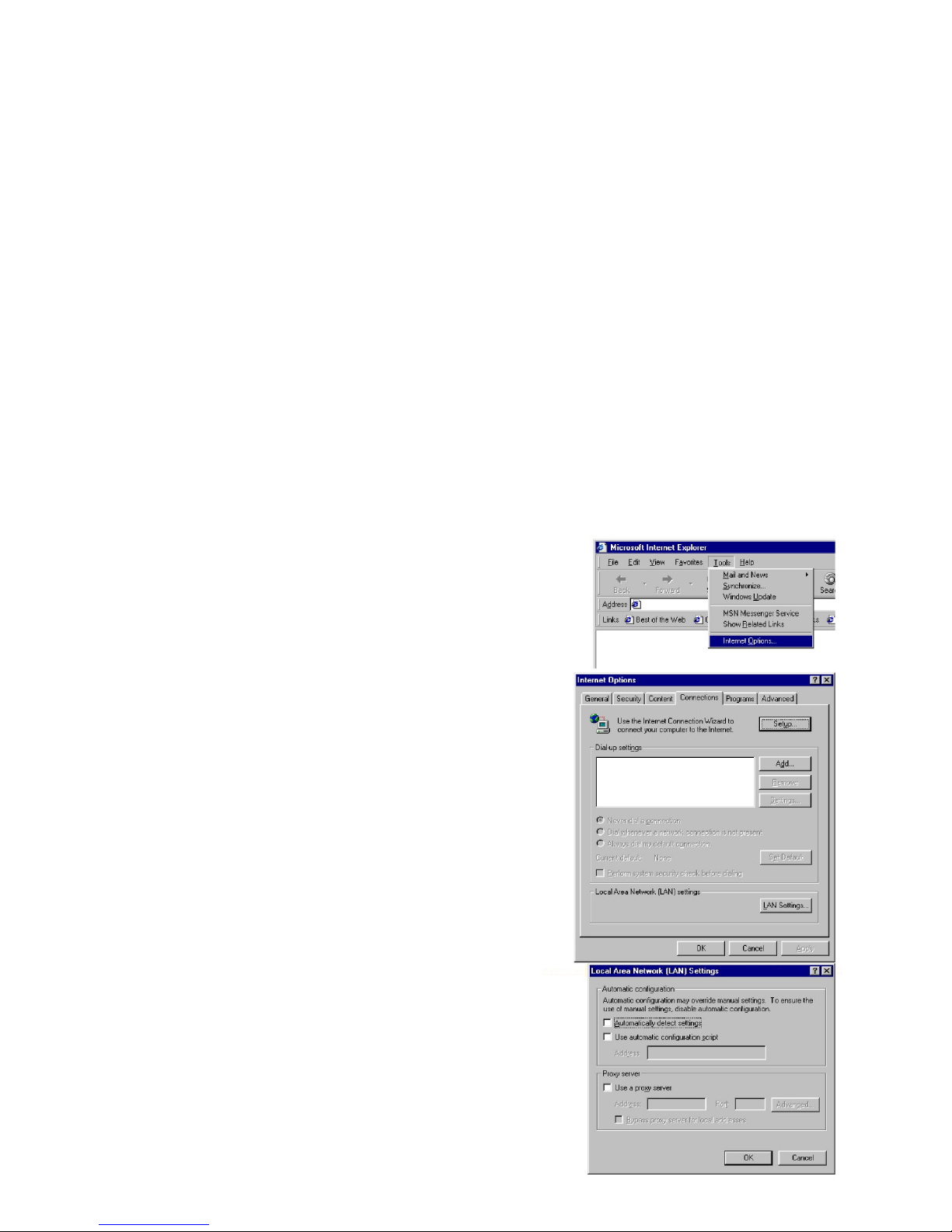

Internet Explorer
1. Open Internet Explorer and click the
stop button. Click “Tools,” then “Internet
Options.”
2. In the “Internet Options” window click
the “Connections” tab. Next, click the
“LAN Settings…” button.
3. Clear all the checkboxes.
4. Click “OK,” and then click “OK” again
to close the “Internet Options” window.
10
Netscape
1. Open Netscape and click the stop button. Click “Edit,” then click
“Preferences…”
2. In the “Preferences” window, under “Category” double-click
“Advanced,” then click “Proxies.” Select “Direct connection to the
Internet.” Click “OK.”
3. Repeat these steps for each Windows 95/98/Me computer
connected to your Barricade.
Now that you have congured your computer to connect to your
Barricade, it needs to obtain new network settings. By releasing any
old IP settings and renewing them with settings from your Barricade,
you will also verify that you have congured your computer correctly.
1. Click “Start,” then “Run…”
2. Type “WINIPCFG” and click “OK.” It may take a minute or two for
the “IP Conguration” window to appear.
3. From the drop-down menu, select your network card. Click
“Release” and then “Renew.” Verify that your IP address is now
192.168.2.xxx, your Subnet Mask is 255.255.255.0 and your Default
Gateway is 192.168. 2.1. These values conrm that your Barricade is
functioning. Click “OK” to close the
“IP Conguration” window.
Step 3. Obtain IP Settings from Your Barricade
