SMC Networks 7004FW - annexe 2 Manuel utilisateur

Barricade Plus

Quick Start Guide

SMC7004FW

Table of Contents

Chapter 1 Introduction

Chapter 2 Indicator LEDs

Chapter 3 Configuring your Computer

Chapter 4 Configuring your Barricade

Chapter 5 About SMC

For VPN configuration please refer to the Full Manual found on

CD-rom (included in this package). For additional information

visit www.smc-europe.com.

For Full Manuals in other languages please refer either to the

included CD-rom or to www.smc-europe.com.

Chapter 1. Introduction

The SMC Barricade is a Broadband Router designed to share Internet

Access, provide security, and to network multiple devices for a variety

of users. The Barricade’s simple installation and setup can be carried

out by the least experienced of users, while providing networking

professionals with easy to configure advanced features. Please read

the User Guide for advanced features of this product.

This Package Contains

•One SMC Barricade

•One Power Adapter

•This Quick Installation Guide

•One CD with Complete Documentation

•One Category 5 Fast Ethernet Cable

Confirm That You Meet Installation Requirements

Before proceeding with the installation of your Barricade, please be

sure you have the following:

•A computer with an Ethernet network card installed

•Your Windows CD, if your computer is running Win 95, 98, or ME

•An Internet connection through a cable or xDSL modem

•An additional Ethernet network cable

•A Web browser such as Internet Explorer or Netscape

Chapter 2. Indicator LEDs

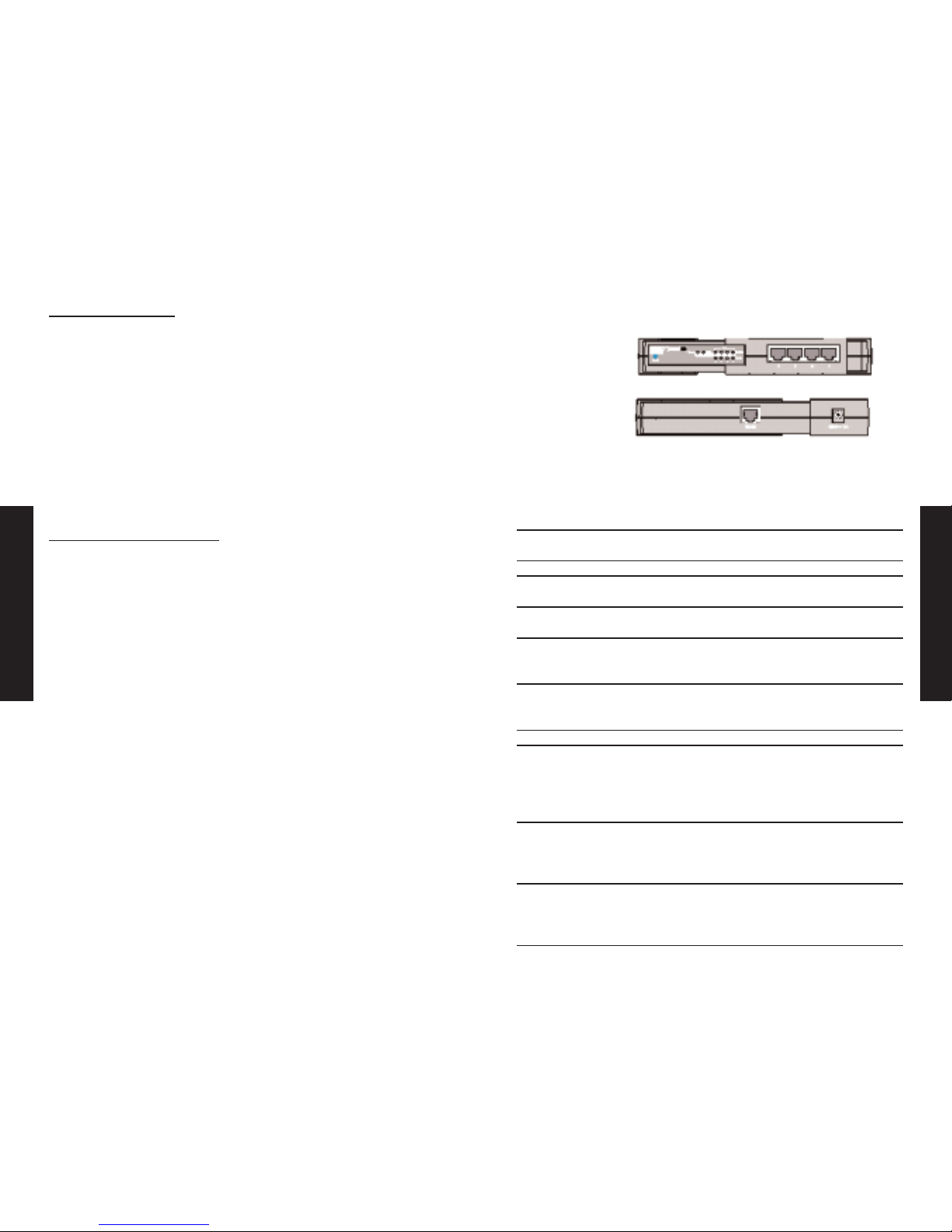

Front Panel

Rear Panel

The front panel of the Barricade provides indicator LEDs (Light

Emitting Diodes) for easy monitoring. The following table defines the

function of each LED.

Item Description

Reset Button Use this button to reset the power and restore the

default factory settings.

LEDs Power, WAN and LAN port status indicators.

LAN Ports Fast Ethernet ports (RJ-45). Connect devices on your local

area network to these ports (such as a PC, hub or switch).

WAN Port WAN port (RJ-45). Connect your cable modem, xDSL

modem, or an Ethernet router to this port.

Power Inlet Connect the included power adapter to this inlet.

Warning: Using the wrong type of power adapter may

cause damage.

LED Condition Status

Power (Green) On Barricade Plus is receiving power.

WAN (Green) On The WAN port has established a

valid network connection and

operates at 10 Mbps.

Flashing The WAN port is transmitting or receiving

traffic at 100 Mbps.

Link/Act (Green) On The indicated LAN port has established

a valid network connection.

Flashing The indicated LAN port is transmitting or

receiving traffic.

10/100 (Amber) On The indicated LAN port is operating

at 100 Mbps.

Off The indicated LAN port is operating

at 10 Mbps.

English

known as a static IP address. How your ISP assigns your IP address

determines how you will configure your computer.

Here is what to do:

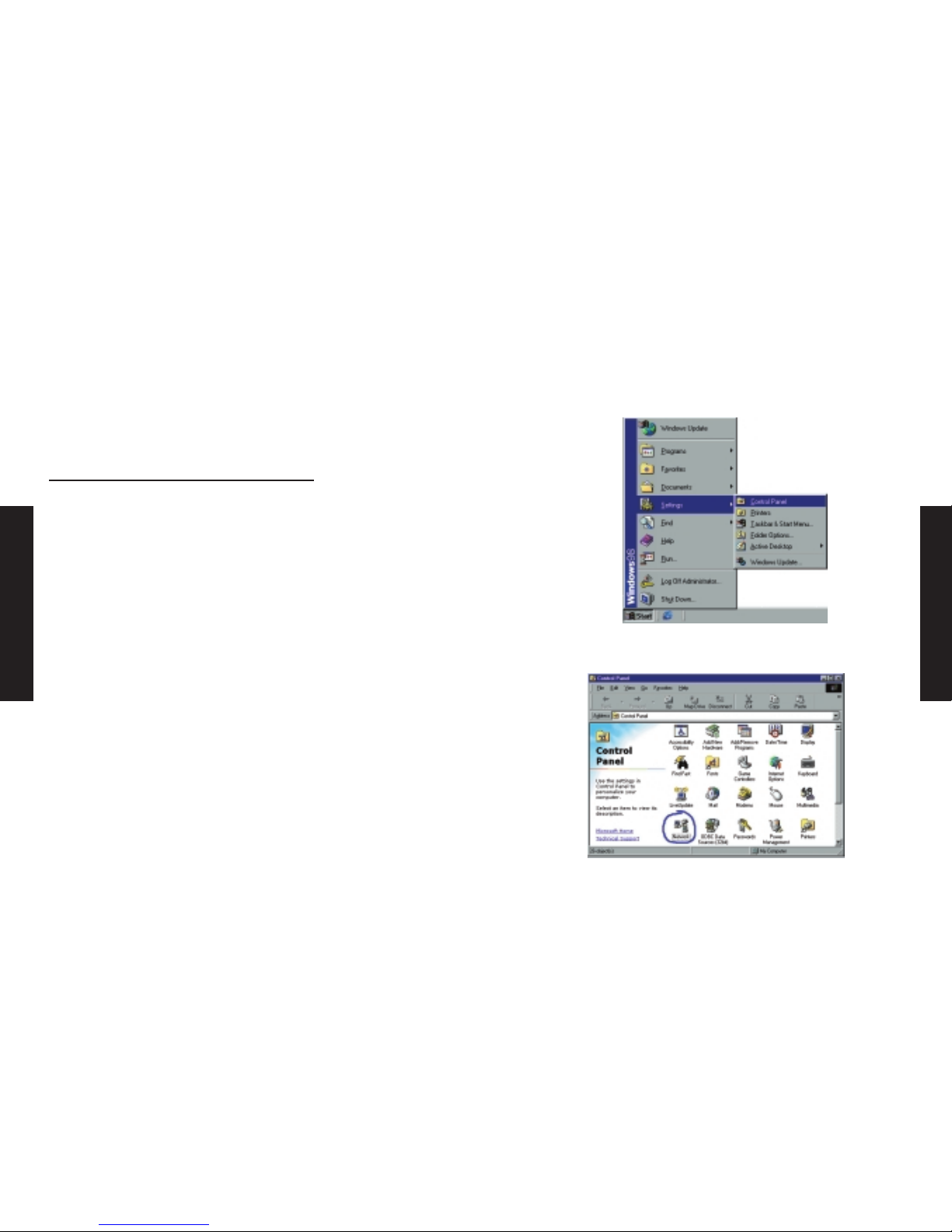

1. From the Windows desktop, click the "Start" button. Choose

"Settings," then click "Control Panel."

2. From "Control Panel," double-click the "Network" icon.

English

1. Connecting Computers: Connect computers directly to the

Barricade on ports 1- 4 on the rear panel. If you have more than 4

computers to plug in, connect a hub or a switch (using its uplink

port) and connect additional computers to that device.

2. Connecting a Cable Modem or DSL Modem: Connect your Cable or

DSL modem to the WAN port on the rear panel.

3. Power: Plug the power cord into the power jack.

Chapter 3. Configuring Your Computer

This Quick Installation Guide provides configuration instructions for

Windows 95, 98, ME, NT 4.0, 2000 and XP, and for Macintosh OS 7.x

and above. Please be sure that you are following the proper

instruction set for your operating system.

•Configuring Your Computer with Windows 95/98/Me.

•Configuring Your Computer with Windows 2000.

•Configuring Your Computer with Windows XP.

•Configuring Your Computer with Windows NT 4.0.

•Configuring Your Macintosh Computer.

Configuring Your Computer in Windows 95/98/Millennium Edition

You may find that the instructions here do not exactly match your

version of Windows. This is because these steps and screenshots were

created from Windows 98. Windows 95 and Windows Me are very

similar, but not identical, to Windows 98.

Step 1. Configure TCP/IP Settings

After you have completed the hardware setup by connecting your

devices, you need to configure your computer to connect to your

Barricade. You need to determine how your ISP issues your IP

address. Many ISPs issue these numbers automatically using a

networking technology known as Dynamic Host Configuration

Protocol, or DHCP. Other ISPs will specify your IP address and

associated numbers, which you must enter manually. This is also

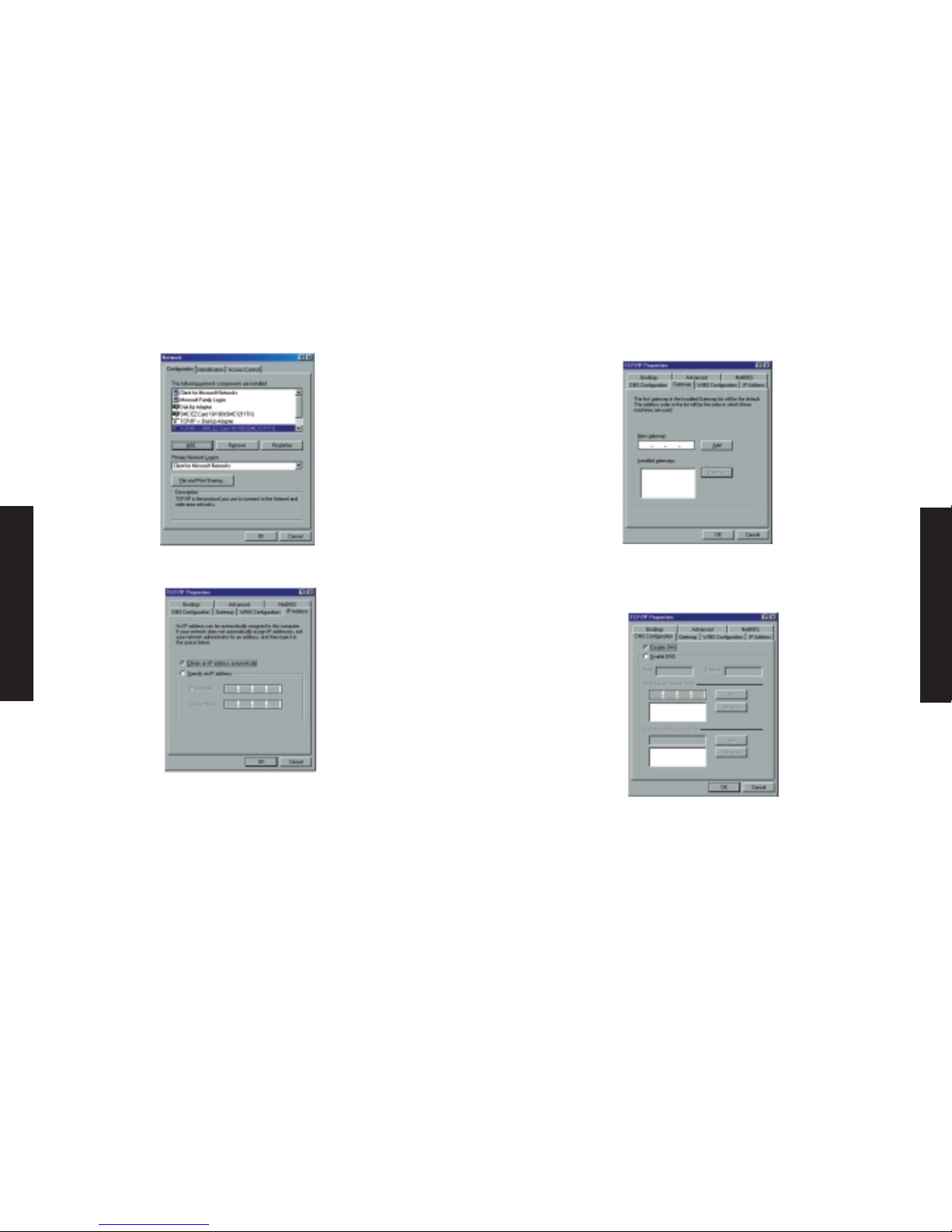

3. In the "Network" window, under the "Configuration" tab, double-

click the "TCP/IP" entry that is listed with your network card.

4. Select the "IP Address" tab.

If "Obtain an IP address automatically" is already selected, your

computer is already configured for DHCP. Click "Cancel" to close each

window, and skip to Step 2. Disable HTTP Proxy.

5. Locate your IP address and Subnet Mask. Record them in the

spaces provided after step 9 in this section.

6. Click the "Gateway" tab and record the numbers listed under

"Installed gateways."

7. Click the "DNS Configuration" tab. Locate the DNS servers listed

under "DNS Server Search Order." Record the listed addresses.

English

8. After writing down your settings, check to make sure you have

recorded them correctly. Click the "IP Address" tab and then

click "Obtain an IP address automatically." Click OK.

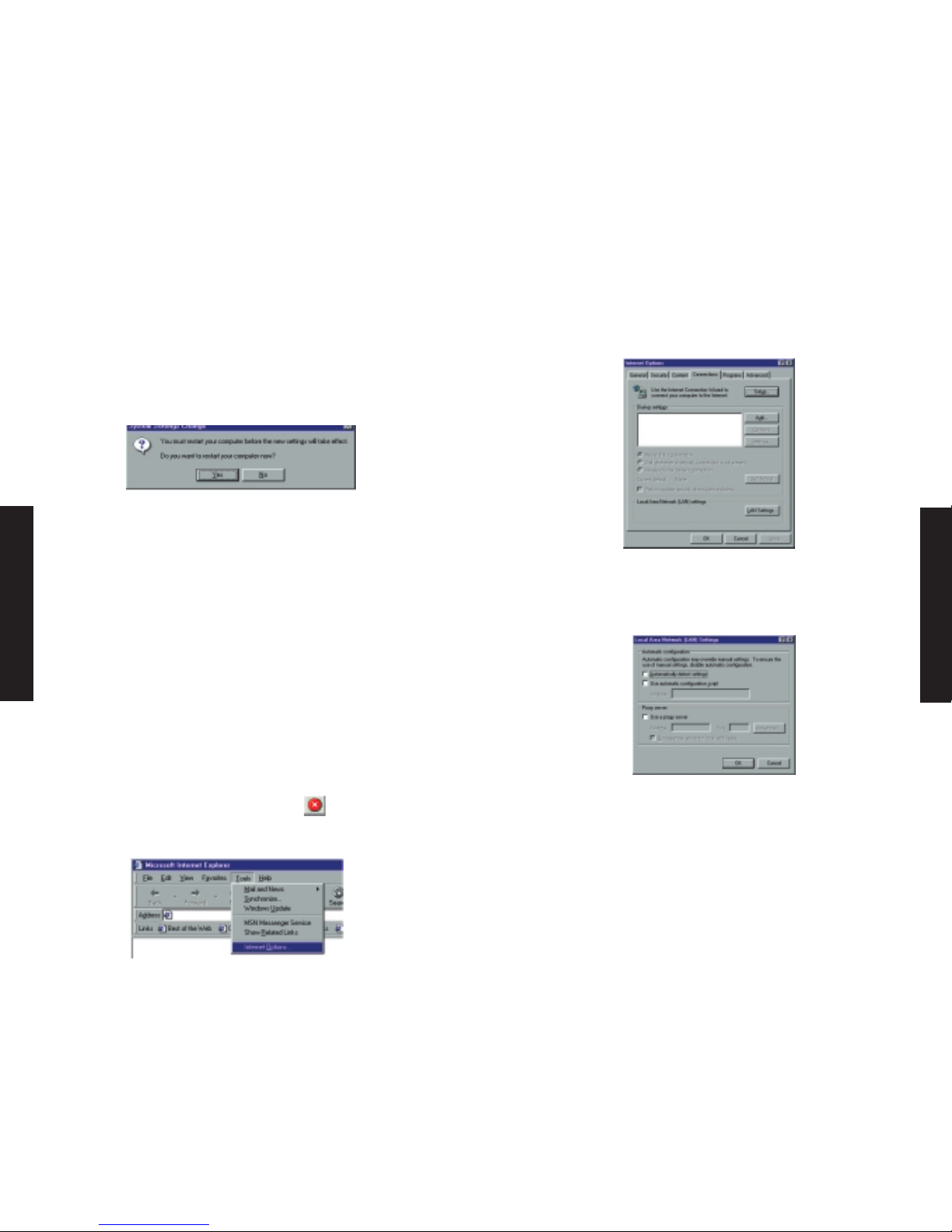

9. Windows may need your Windows 95/98/ME CD to copy some files.

After it finishes copying, it will then prompt you to restart your

system. Click "Yes" and your computer will shut down and restart.

TCP/IP Configuration Setting

IP Address ____.____.____.____

Subnet Mask ____.____.____.____

Primary DNS Server ____.____.____.____

Secondary DNS Server ____.____.____.____

Default Gateway ____.____.____.____

Step 2. Disable HTTP Proxy

You will need to verify that the "HTTP Proxy" feature of your Web

browser is disabled. This is so that your Web browser will be able

to view the configuration pages inside your Barricade. The

following steps are for Internet Explorer and for Netscape.

Determine which browser you use and follow the appropriate steps.

Internet Explorer

1. Open Internet Explorer and click the stop button. Click

"Tools," then "Internet Options."

English

2. In the "Internet Options" window click the "Connections" tab.

Next, click the "LAN Settings…" button.

3. Clear all the checkboxes.

4. Click "OK," and then click "OK" again to close the "Internet

Options" window.

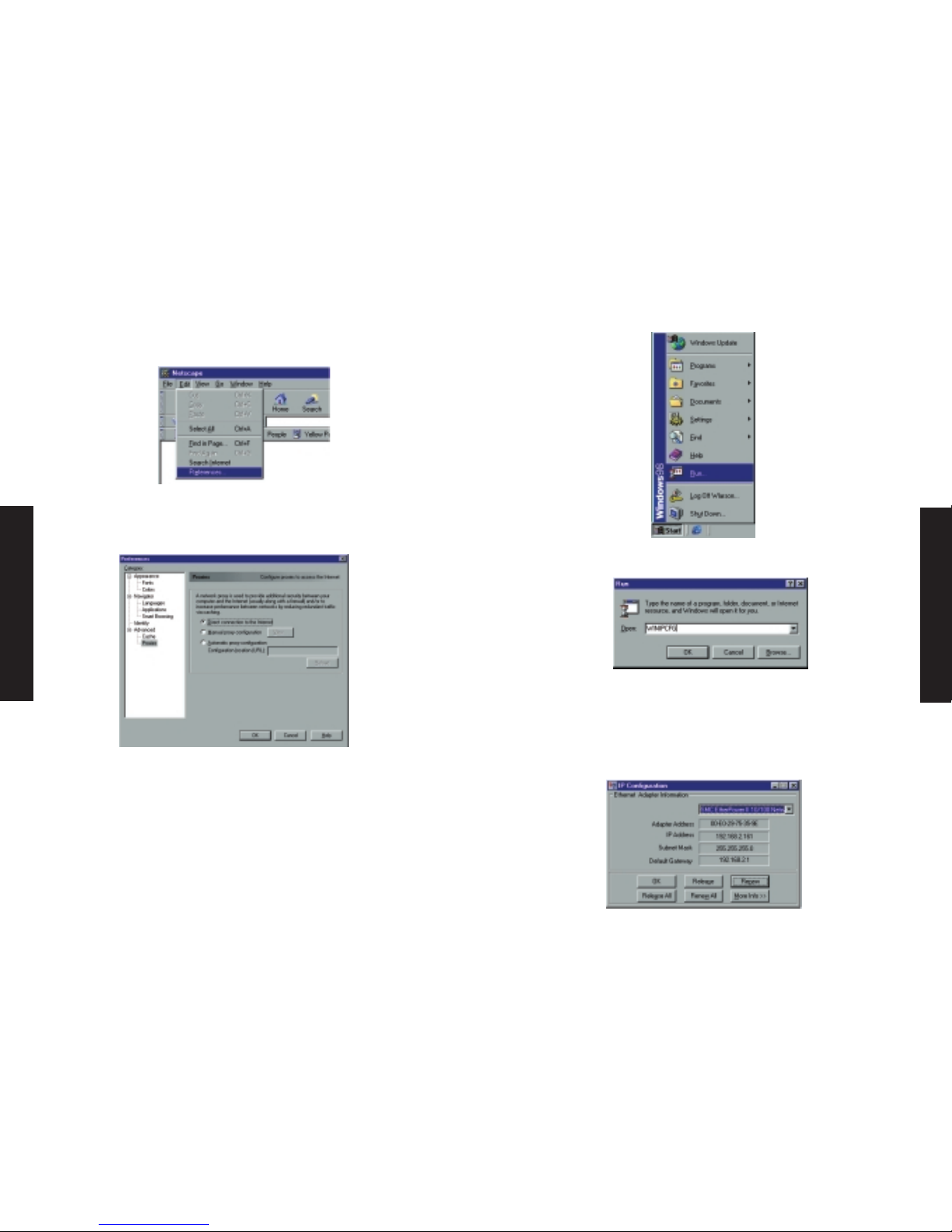

Netscape

1. Open Netscape and click the stop button. Click "Edit," then

click "Preferences…"

2.In the "Preferences" window, under "Category" double-click

"Advanced," then click "Proxies." Select "Direct connection to

the Internet." Click "OK."

3. Repeat these steps for each Windows 95/98/Me computer

connected to your Barricade.

Step 3. Obtain IP Settings from Your Barricade

Now that you have configured your computer to connect to your

Barricade, it needs to obtain new network settings. By releasing

any old IP settings and renewing them with settings from your

Barricade, you will also verify that you have configured your

computer correctly.

1. Click "Start," then "Run…"

2.Type "WINIPCFG" and click "OK." It may take a minute or two

for the "IP Configuration" window to appear.

3. From the drop-down menu, select your network card. Click

"Release" and then "Renew." Verify that your IP address is now

192.168.2.xxx, your Subnet Mask is 255.255.255.0 and your

Default Gateway is 192.168. 2.1. These values confirm that your

Barricade is functioning. Click "OK" to close the "IP

Configuration" window.

Now that your computer is configured to connect to your

Barricade, please skip to "Configuring Your Barricade".

English

Configuring Your Computer with Windows 2000

Step 1. Configure TCP/IP Settings

After you have completed the hardware setup, you need to

configure your computer to connect to your Barricade. You also need

to determine how your ISP issues your IP address. Many ISPs issue

these numbers automatically, using a networking technology known

as Dynamic Host Control Protocol, or DHCP. Other ISPs will specify

your IP address and associated numbers, which you must enter

manually. This is also known as a static IP address. How your ISP

assigns your IP address determines how you will configure your

computer.

Here is what to do:

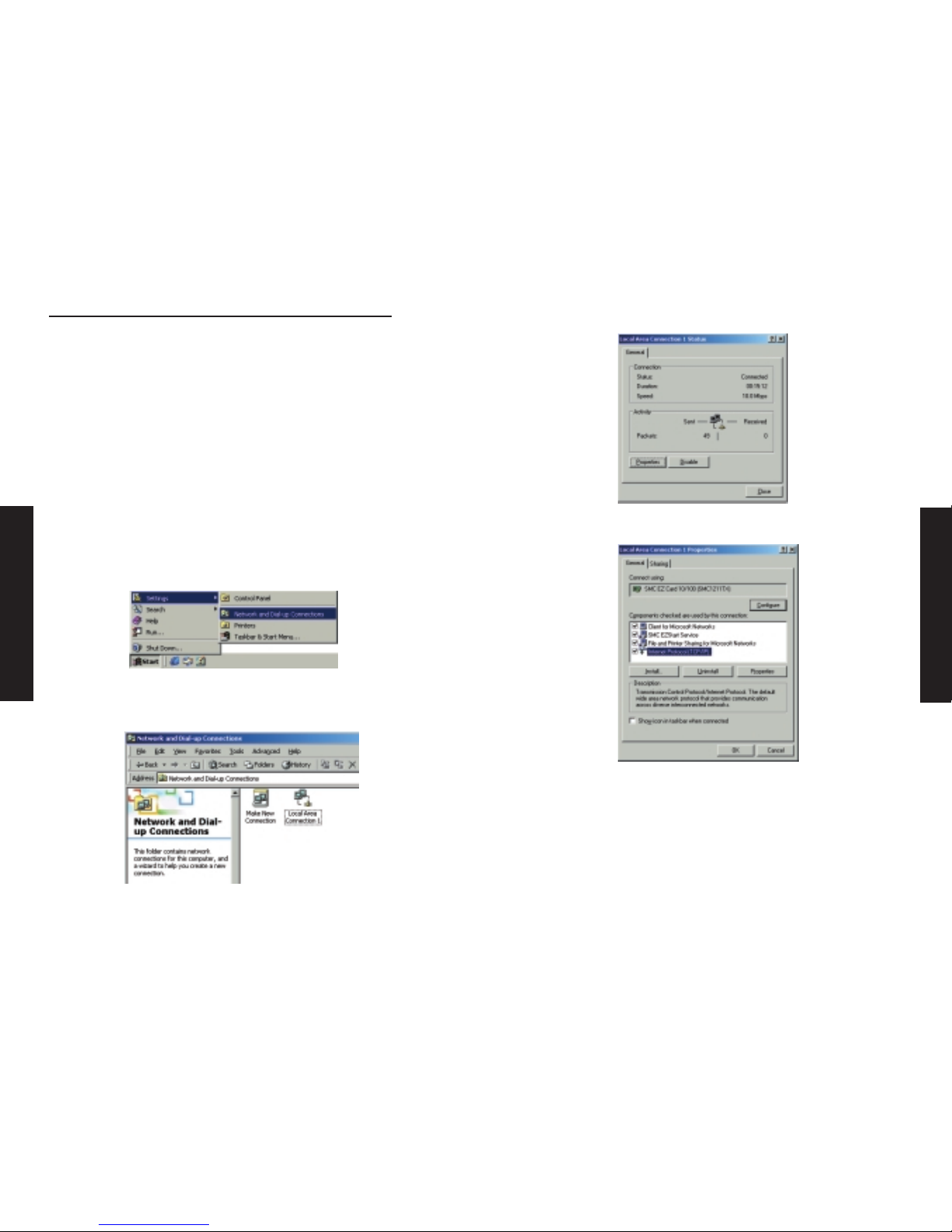

1. From the Windows desktop, click the "Start" button. Choose

"Settings," then click "Network and Dial-Up Connections" icon.

2. Double-click the icon that corresponds to the connection to

your Barricade.

3. Click "Properties."

4. Double-click "Internet Protocol (TCP/IP).

5. All the information that you need to record is on the "Internet

Protocol (TCP/IP) Properties" dialog box. Use the spaces below

to record the information.

If "Obtain an IP address automatically" and "Obtain DNS server

address automatically" are already selected, your computer is

already configured for DHCP. Click "Cancel" to close each window,

and skip to to Step 2. Disable HTTP Proxy.

English

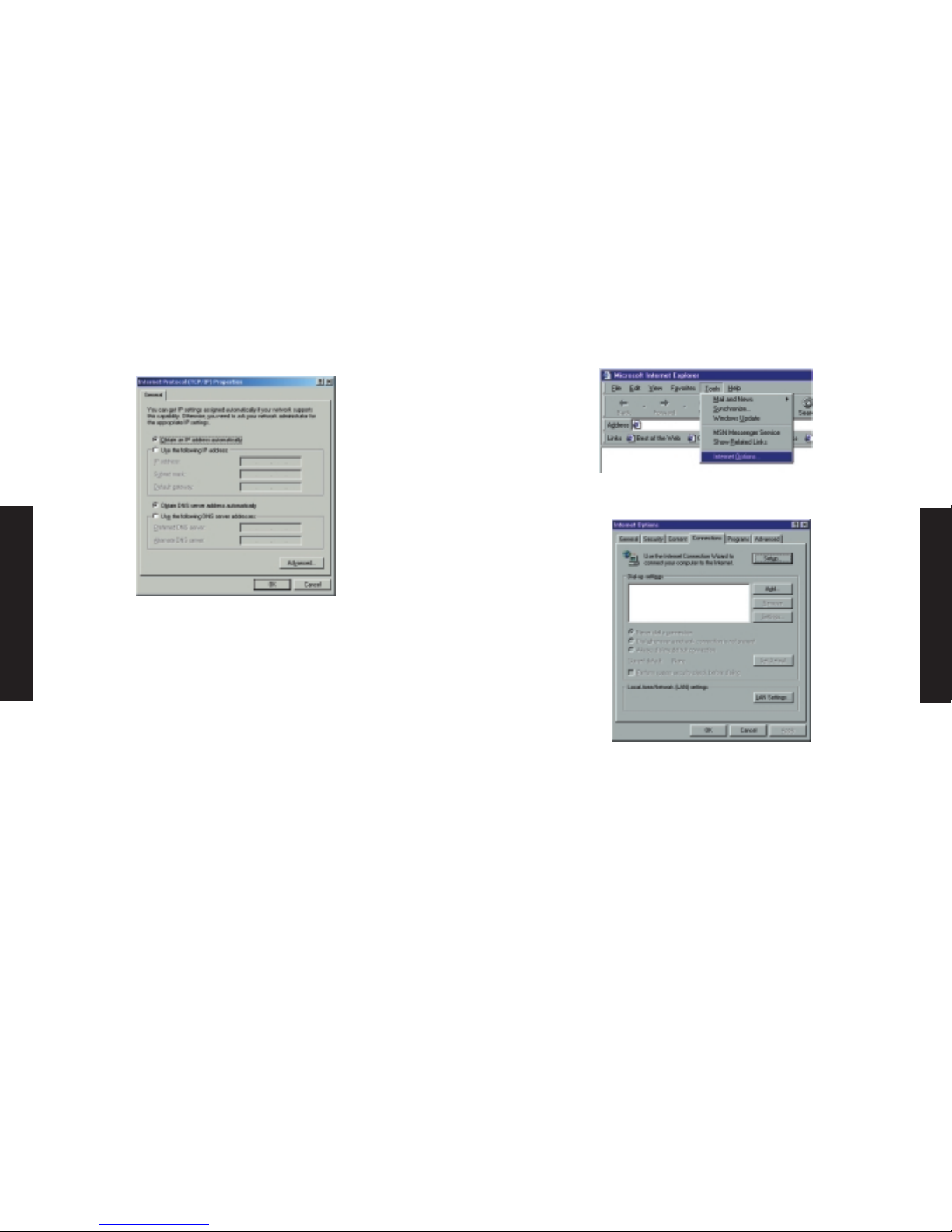

6. Select "Obtain an IP address automatically" and then select

"Obtain DNS server address automatically." Click "OK" or "Close"

to close each window

TCP/IP Configuration Setting

IP Address ____.____.____.____

Subnet Mask ____.____.____.____

Primary DNS Server ____.____.____.____

Secondary DNS Server ____.____.____.____

Default Gateway ____.____.____.____

Step 2. Disable HTTP Proxy

You will need to verify that the "HTTP Proxy" feature of your Web

browser is disabled. This is so that your Web browser will be able

to view the configuration pages inside your Barricade. The

following steps are for Internet Explorer and for Netscape.

Determine which browser you use and follow the appropriate steps.

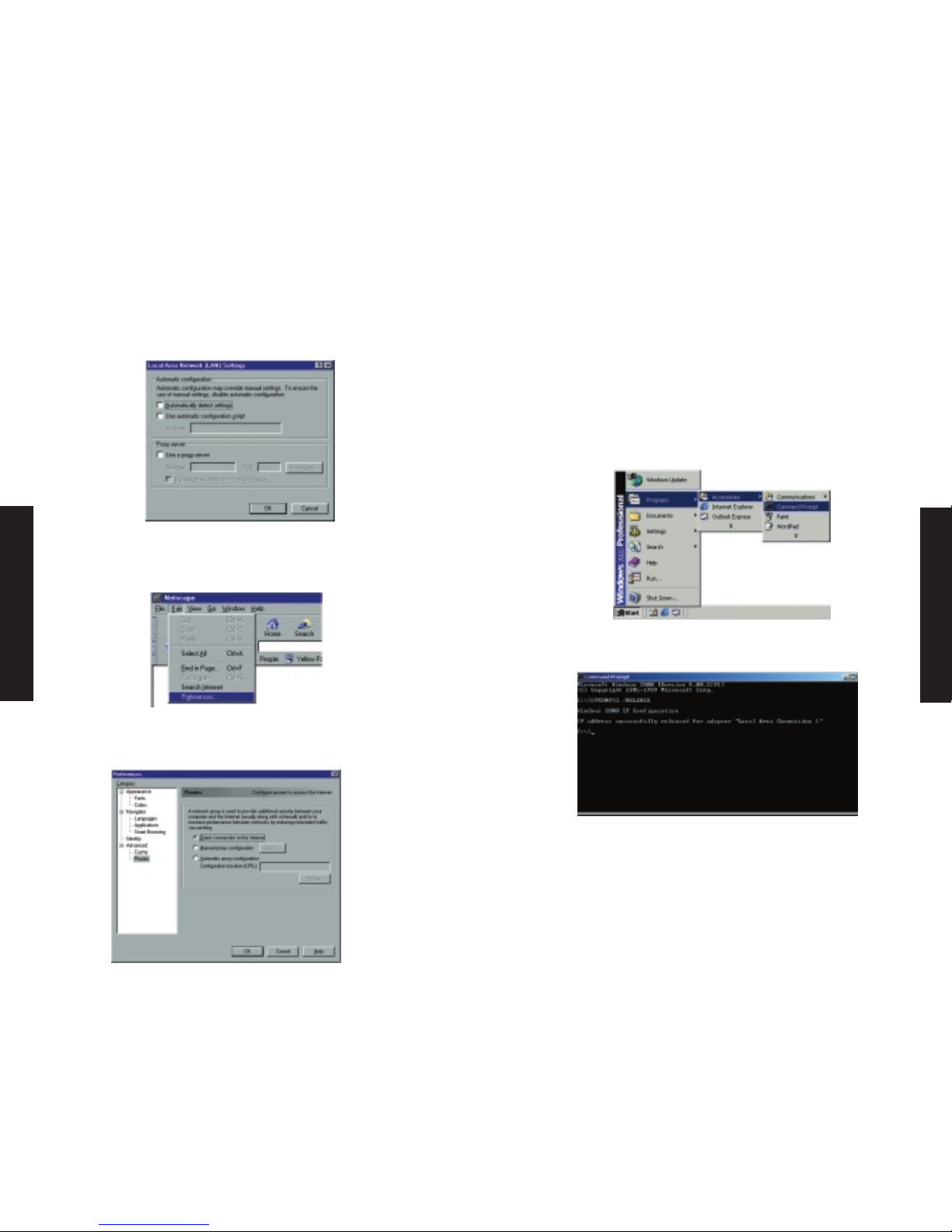

Internet Explorer

1. Open Internet Explorer and click the stop button. Click "Tools,"

then "Internet Options."

2.In the "Internet Options" window click the "Connections" tab.

Next, click the "LAN Settings…" button.

3.Clear all the checkboxes.

English

4. Click "OK," and then click "OK" again to close the "Internet

Options" window.

Netscape

1. Open Netscape and click the stop button. Click "Edit," then

click "Preferences…"

2. In the "Preferences" window, under "Category" double-click

"Advanced," then click "Proxies." Select "Direct connection to

the Internet." Click "OK."

Step 3. Obtain IP Settings From Your Barricade

Now that you have configured your computer to connect to your

Barricade, it needs to obtain new network settings. By releasing

any old IP settings and renewing them with settings from your

Barricade, you will also verify that you have configured your

computer correctly.

1. From the Windows desktop, click the "Start" button, then

"Programs," then "Accessories," and then click "Command Prompt."

2. In the "Command Prompt" window, type "IPCONFIG /RELEASE"

and press the <ENTER> key.

English

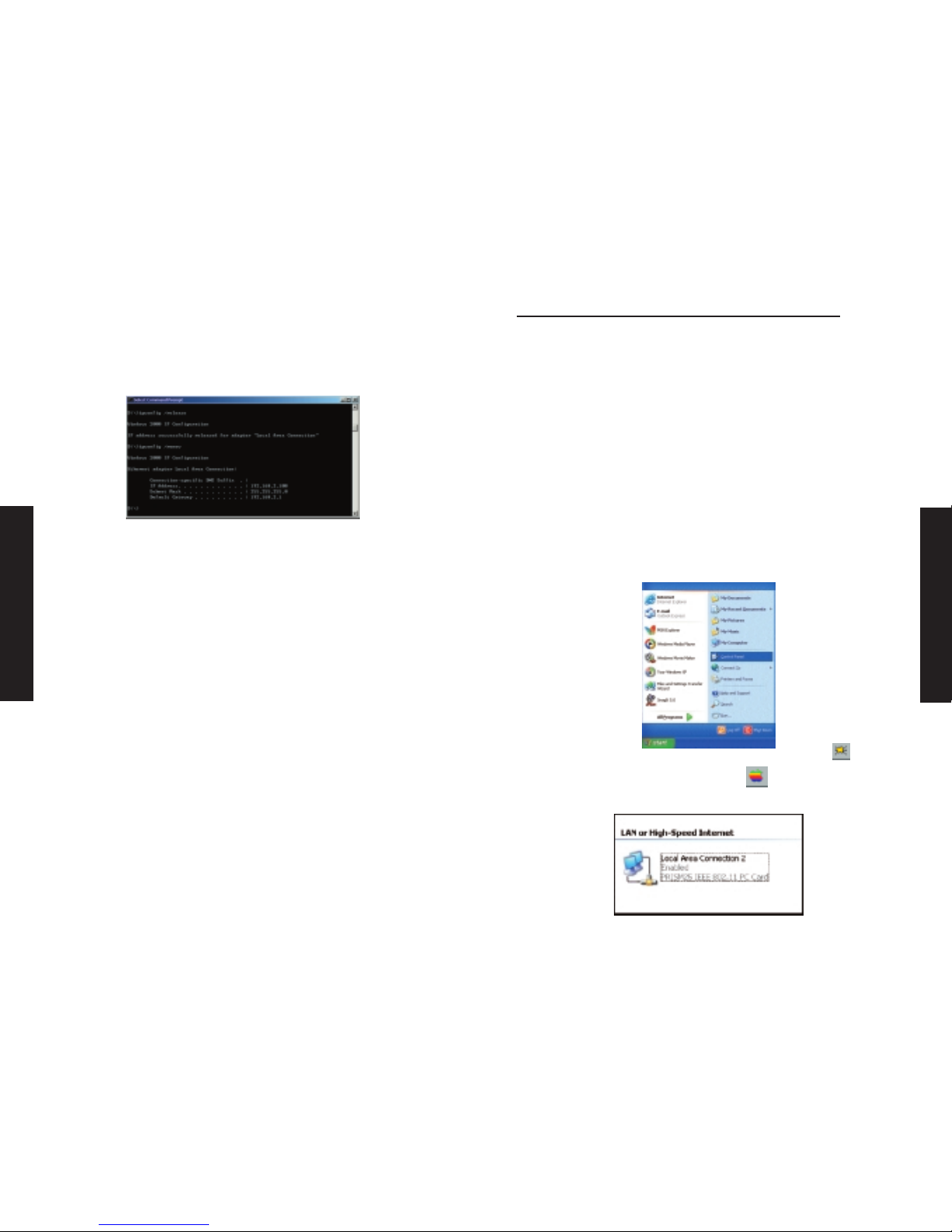

3. Type "IPCONFIG /RENEW" and press the <ENTER> key. Verify that

your IP address is now 192.168.2.xxx (2-254), your Subnet Mask

is 255.255.255.0 and your Default Gateway is 192.168.2.1.

These values confirm that your Barricade is functioning.

4. Type "EXIT" and press <ENTER> to close the "Command Prompt"

window.

Now that your computer is configured to connect to your

Barricade, please skip "Configuring Your Barricade".

Configuring Your Computer with Windows XP

Step 1. Configure TCP/IP Settings

After you have completed the hardware setup, you need to configure

your computer to connect to your Barricade. You also need to

determine how your ISP issues your IP address. Many ISPs issue these

numbers automatically, using a networking technology known as

Dynamic Host Configuration Protocol, or DHCP. Other ISPs will specify

your IP address and associated numbers, which you must enter

manually. This is also known as a static IP address. How your ISP

assigns your IP address determines how you will configure your

computer.

Here is what to do:

1. From the Windows desktop, click the "start" button. Choose

"Control Panel."

2. Select the "Network and Internet Connections" icon ,then

click the "Network Connections" icon ,and and double-click

on the adapter you will use for this connection.

English

Ce manuel convient aux modèles suivants

Autres manuels SMC Networks Routeur réseau

SMC Networks

SMC Networks 7904BRA3 - annexe 1 Manuel utilisateur

SMC Networks

SMC Networks Barricade SMC7404WBRA EU Manuel utilisateur

SMC Networks

SMC Networks Barricade Cable/DSL Router Manuel utilisateur

SMC Networks

SMC Networks SMC Barricade SMCBR24Q Manuel utilisateur

SMC Networks

SMC Networks TigerAccess SMC7824M/VSW Guide d'installation

SMC Networks

SMC Networks 7724M/VSW - annexe 1 Manuel utilisateur

SMC Networks

SMC Networks Barricade SMCBR21VPN Guide d'installation

SMC Networks

SMC Networks SMCGS501P Manuel utilisateur

SMC Networks

SMC Networks EZ Switch SMC-EZ1016DT Manuel utilisateur

SMC Networks

SMC Networks 48-Port Manuel utilisateur

SMC Networks

SMC Networks SMC6405TX Manuel utilisateur

SMC Networks

SMC Networks EZ109DT Manuel utilisateur

SMC Networks

SMC Networks 7004VBR Manuel utilisateur

SMC Networks

SMC Networks Barricade SMC2804WBR38 Manuel utilisateur

SMC Networks

SMC Networks 7908A-ISP Manuel utilisateur

SMC Networks

SMC Networks 24/16 Manuel utilisateur

SMC Networks

SMC Networks WUSB32 Manuel utilisateur

SMC Networks

SMC Networks 7908VOWBRA Manuel utilisateur

SMC Networks

SMC Networks SMCFS1601 - FICHE TECHNIQUE Manuel utilisateur

SMC Networks

SMC Networks SMCBR14VPN Manuel utilisateur

SMC Networks

SMC Networks TigerSwitch 100 SMC6724L3 Manuel utilisateur

SMC Networks

SMC Networks Barricade g SMC2804WBRP-G Manuel utilisateur

SMC Networks

SMC Networks TigerSwitch SMC6709FL2 Manuel de programmation

SMC Networks

SMC Networks Console Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
