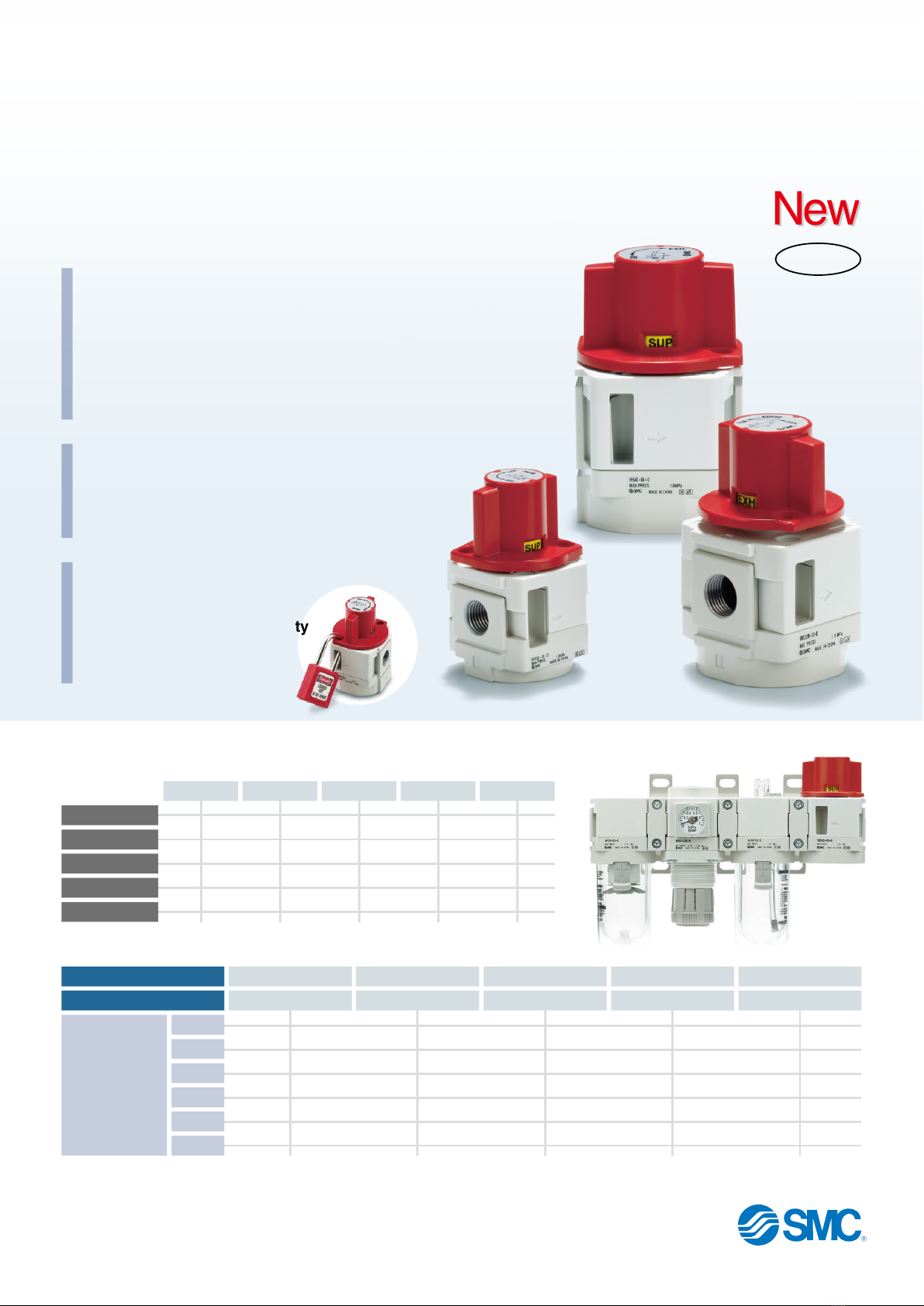

Modular design with uniform body style to F.R.L units.

Max.

%increase

Improved ﬂow rate characteristics

Energy saving

Safety measure

*1 VHS40-04-D

Zero blow-by of the air during

switching of the handle

OSHA (Occupational Safety

and Health Administration)

standard compliant

Variations

Single action VHS20-D VHS30-D VHS40-D VHS40-06-D VHS50-D

Double action VHS20W-D VHS30W-D VHS40W-D VHS40W-06-D VHS50W-D

Port size

(Rc, NPT, G)

1/8 V

1/4 VVV

3/8 V V

1/2 V

3/4 V V

Single Action

VHS20/30/40/50-D

Series

Double Action

VHS20W/30W/40W/50W-D

Series

CAT.ES13-12A

OSHA Standard Compliant

Pressure Relief 3-Port Valve

with Locking Holes

RoHS

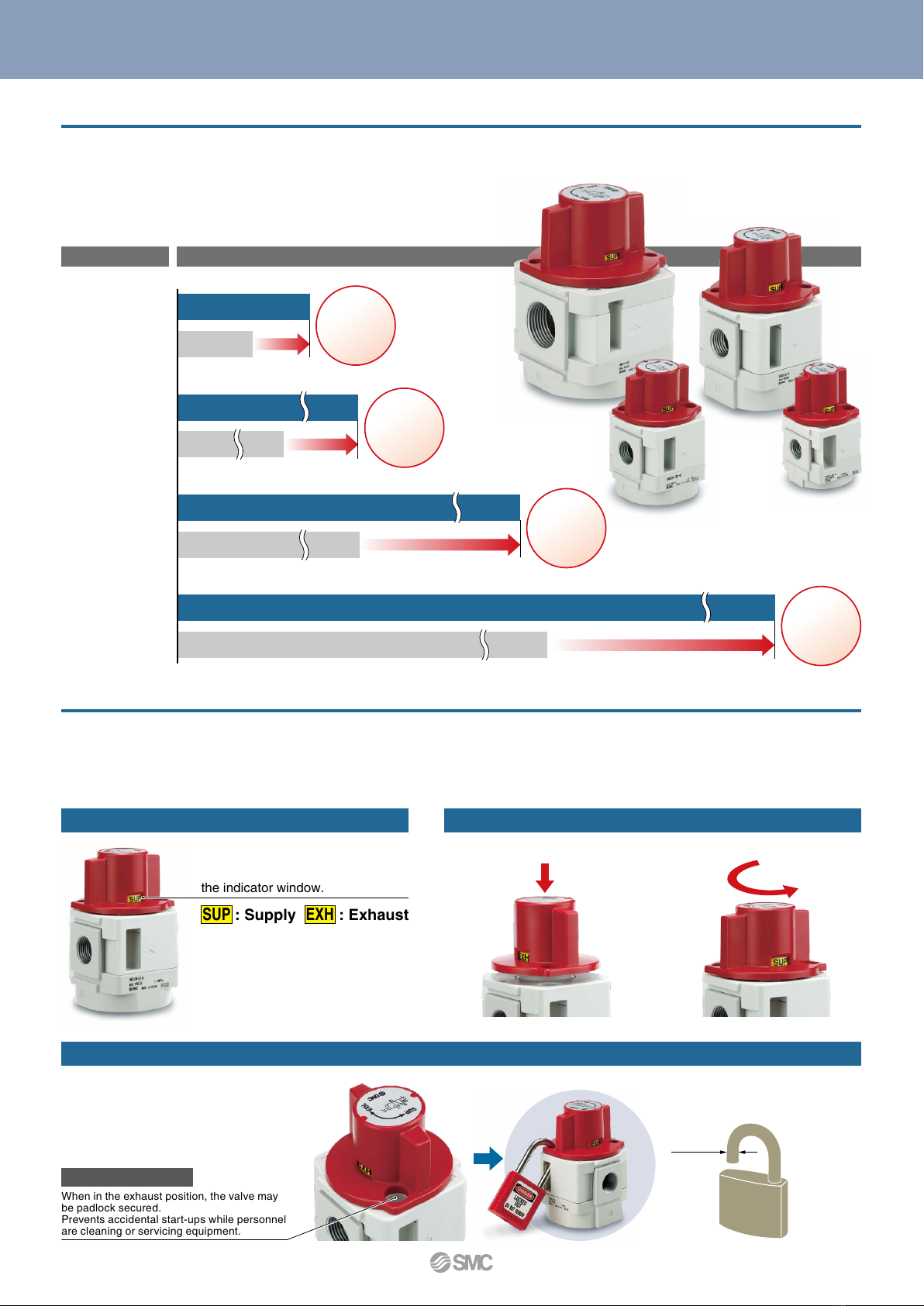

Safety measure

With locking holes

Push the handle and then turn,

2-step

action prevents

malfunction.

The supply/exhaust status of the air

ﬂow can be veriﬁed at a glance in

the indicator window.

When in the exhaust position, the valve may

be padlock secured.

Prevents accidental start-ups while personnel

are cleaning or servicing equipment.

: Supply : Exhaust

SUP EXH

Step 1

Push down

the handle.

Turn the handle.

Step 2

Can prevent accidents caused by inadvertent air supply problems

VHS20-02-D

VHS30-03-D

VHS40-04-D

VHS50-10-D

Single Action VHS20/30/40/50-D

Series

Double Action VHS20W/30W/40W/50W-D

Series

Model Sonic conductance C [dm3/s·bar] (IN aOUT)

Existing model

Max. 88%increase

Shackle

diameter

*Recommended lock shackle

diameter size: ø5 or more

For safety control, OSHA rule requires

energy sources for certain equipment

be turned off or disconnected and that

the device either be locked or labelled

with a warning tag.

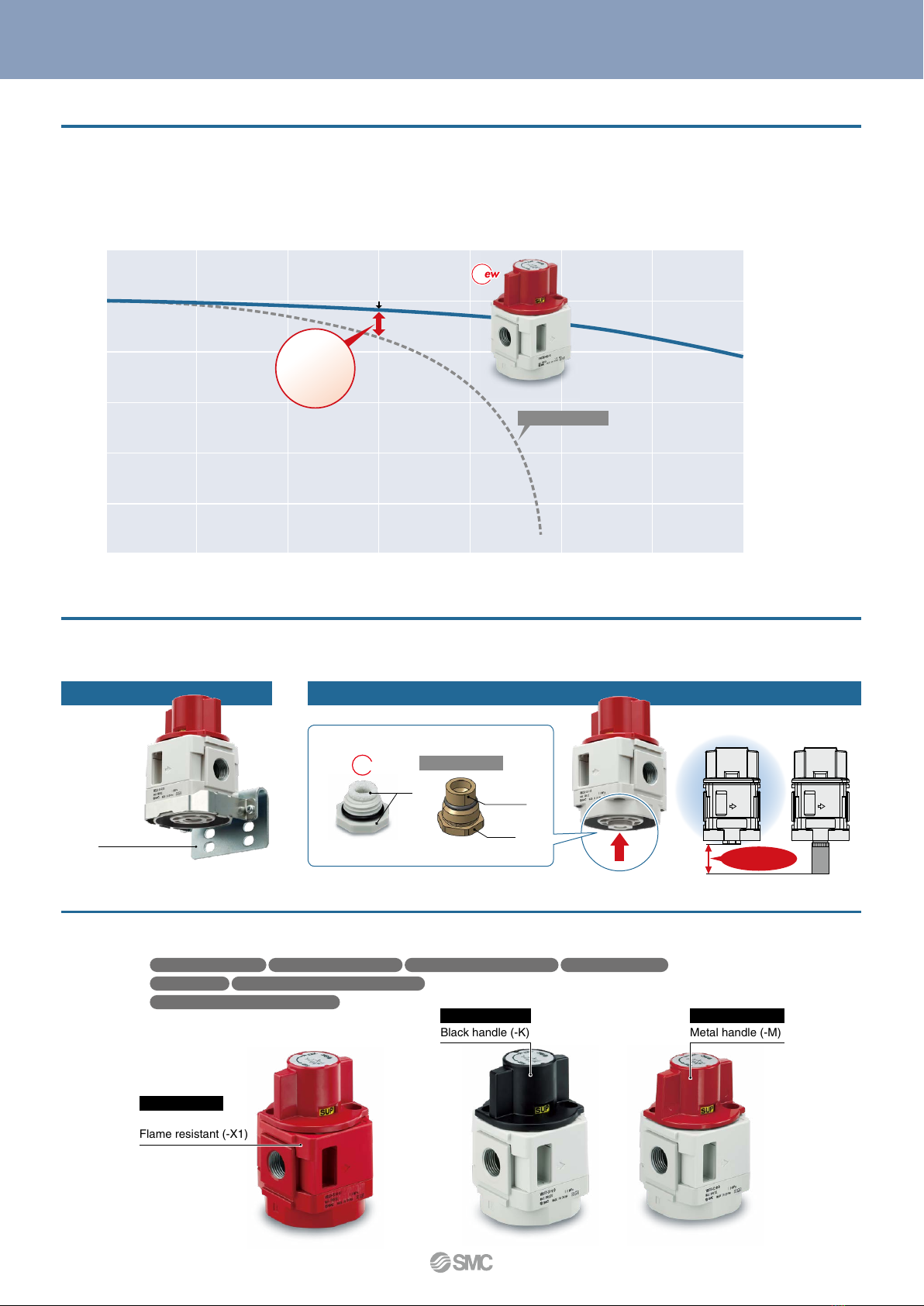

Improved ﬂow rate characteristics

5.8

14.1

26.7

53.3

3.3

8.3

14.2

31.9

With the indicator window

OSHA (Occupational Safety and Health Administration) standard compliant

Double action

79%

increase

69%

increase

88%

increase

67%

increase

With bracket With built-in silencer (for EXH port)

Options

Lower pressure drop contributing to energy saving

Semi-standard/Made to Order

Bracket

With a built-in

silencer option

When a silencer

is mounted

afterwards.

Space saving

OSHA Standard Compliant: Pressure Relief 3-Port Valve with Locking Holes

Semi-standard … Handle color: Black

Handle material: Metal

Flow direction: Right to left

Pressure unit: psi

Option ………………

With bracket

With built-in silencer (for EXH port)

Made to Order …

Body color: Red + Flame resistant

Pressure drop: reduced by up to 73%

0.5

00 1000 2000 3000

Outlet pressure [MPa]

Flow rate [L/min (ANR)]

<Typical example> VHS30-03-D Inlet pressure: 0.5 MPa

Black handle (-K)

Red body +

Flame resistant (-X1)

Semi-standard

Made to Order

Semi-standard

Metal handle (-M)

Silencer assembly

Reduced

73%

Existing model

NewNew

Flame resistant PBT

· Handle

· Body cover

· Valve guide

NewNew

Copper-free

PP Bronze

element

Brass

Existing model

(*for ﬂow rate up to 1500 L/min.)

OSHA Standard Compliant Pressure Relief 3-Port Valve with Locking Holes

Single Action

VHS20/30/40/50-D Series

VHS20W/30W/40W/50W-D

Series

How to Order

Double Action

Symbol

3 1

q e r yw

· Option/Semi-standard: Select one each for ato f.

· Option/Semi-standard symbol:

When more than one speciﬁcation is required, indicate in

alphanumeric order.

Example) VHS30-N03-BS-RZ-D

VHS 30 03 D

Made to Order

(For details, refer to page 8.)

Symbol Description

q

Body size

20 30 40 50

wHandle operation Nil Single action 

WDouble action 

ePipe thread type

Nil Rc*1

NNPT 

FG

rPort size

01 1/8 ———

02 1/4 —

03 3/8 —   —

04 1/2 — — —

06 3/4 — —  

10 1 — — — 

t

Option

aMounting Nil Without mounting option 

BWith bracket 

bSilencer Nil Without silencer 

SWith built-in silencer (for EXH port) 

y

Semi-standard

cHandle color Nil Red 

KBlack 

dHandle material Nil Resin 

MMetal 

eFlow direction Nil Flow direction: Left to right 

RFlow direction: Right to left 

fPressure unit Nil Product label in SI units: MPa 

Z*2Product label in imperial units: psi v*3v*3v*3v*3

*1 The pipe thread type for the EXH port is G.

For the pipe thread type: NPT only. This product is for overseas use only according to the New Measurement Act. (The SI unit type is provided for use in Japan.)

*3 v: For the pipe thread type: NPT only

A system designed to respond quickly and easily to your special ordering needs

Short lead times

This system enables us to respond to your

special needs (additional machining, accessory

assembly, or the designing of a modular unit) and

deliver your personalized products as quickly as

standard products.

Repeat orders

Once we receive a simple special part num-

ber from one of your previous orders, we will

process the order, manufacture the product,

and deliver it to you as quickly as possible.

Simple Specials System

For modular connection units (shipped assembled), the simple specials system can be used.

Please contact your local sales representative for more details.

Flow Rate Characteristics

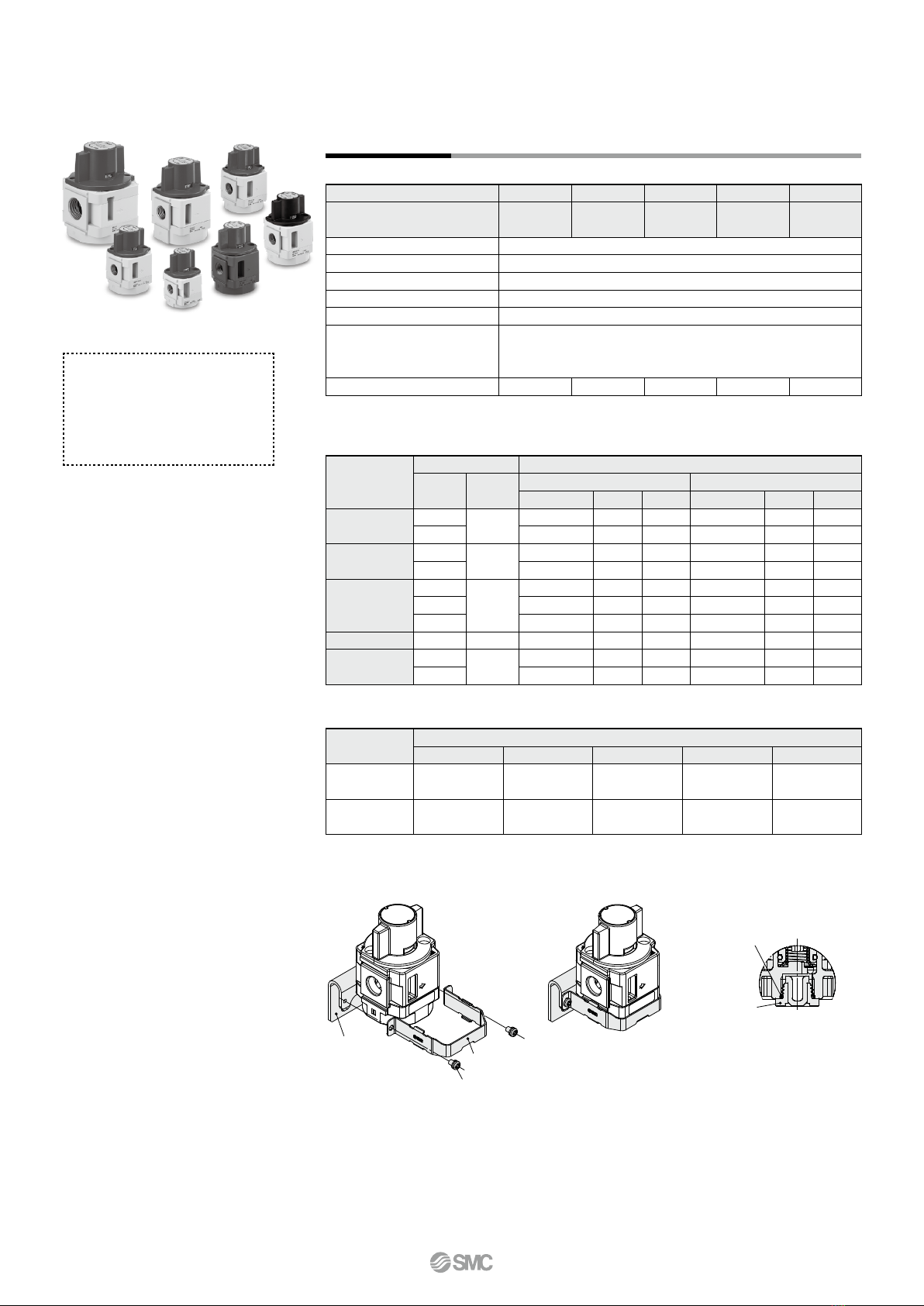

Standard Speciﬁcations

Option/Part Nos.

Speciﬁcations

Model VHS20-D VHS30-D VHS40-D

VHS40-06-D

VHS50-D

Applicable AC size AC20-D AC30-D AC40-D AC40-06-D AC50-D

AC60-D*1

Fluid Air

Ambient and fluid temperatures

−5 to 60°C (No freezing)

Proof pressure 1.5 MPa

Max. operating pressure 1.0 MPa

Handle switching angle 90°

Paint color

Handle: Red

Body: White

Body cover: White

Weight 0.10 kg 0.18 kg 0.40 kg 0.43 kg 0.82 kg

*1 The VHS50 can be connected to the AC60.

Optional

speciﬁcations

Model

VHS20-D VHS30-D VHS40-D VHS40-06-D VHS50-D

Bracket

assembly*1VHS24P-180AS VHS34P-180AS VHS44P-180AS VHS44P-180AS VHS54P-180AS

Silencer

assembly*2VHS24P-190AS VHS34P-190AS VHS44P-190AS VHS54P-190AS VHS54P-190AS

*1 The assembly consists of a bracket A/B and 2 mounting screws.

*2 The assembly consists of the element assembly and an O-ring.

Model

Port size Flow rate characteristics

IN, OUT EXH IN ROUT OUT REXH

C (dm3/s·bar) b Cv C (dm3/s·bar) b Cv

VHS20-D 1/8 1/8 4.0 0.41 1.1 3.7 0.42 1.1

1/4 5.8 0.31 1.4 3.8 0.42 1.1

VHS30-D 1/4 1/4 8.8 0.44 2.4 8.0 0.46 2.3

3/8 14.1 0.28 3.5 7.8 0.46 2.2

VHS40-D

1/4

3/8

9.5 0.49 2.8 13.3 0.47 3.6

3/8 17.2 0.47 4.8 13.6 0.47 3.7

1/2 26.7 0.29 6.3 13.4 0.43 3.7

VHS40-06-D 3/4 1/2 34.0 0.22 7.6 16.1 0.41 4.4

VHS50-D 3/4 1/2 45.0 0.26 10.6 23.0 0.49 6.4

1 53.3 0.36 13.5 22.8 0.49 6.3

OSHA standard (Occupational Safety and Health

Administration, U.S. Department of Labor)

For safety control, OSHA rule requires

energy sources for certain equipment

be turned off or disconnected and that

the device either be locked or labelled

with a warning tag.

Cross section of EXH port

with built-in silencer assembly

Bracket assembly

Option “S”

With built-in silencer

(for EXH port)

Option “B”

With bracket

O-ring

Bracket A

Mounting screw

Bracket B

Element

assembly

OSHA Standard Compliant

Pressure Relief 3-Port Valve with Locking Holes VHS20/30/40/50-D Series

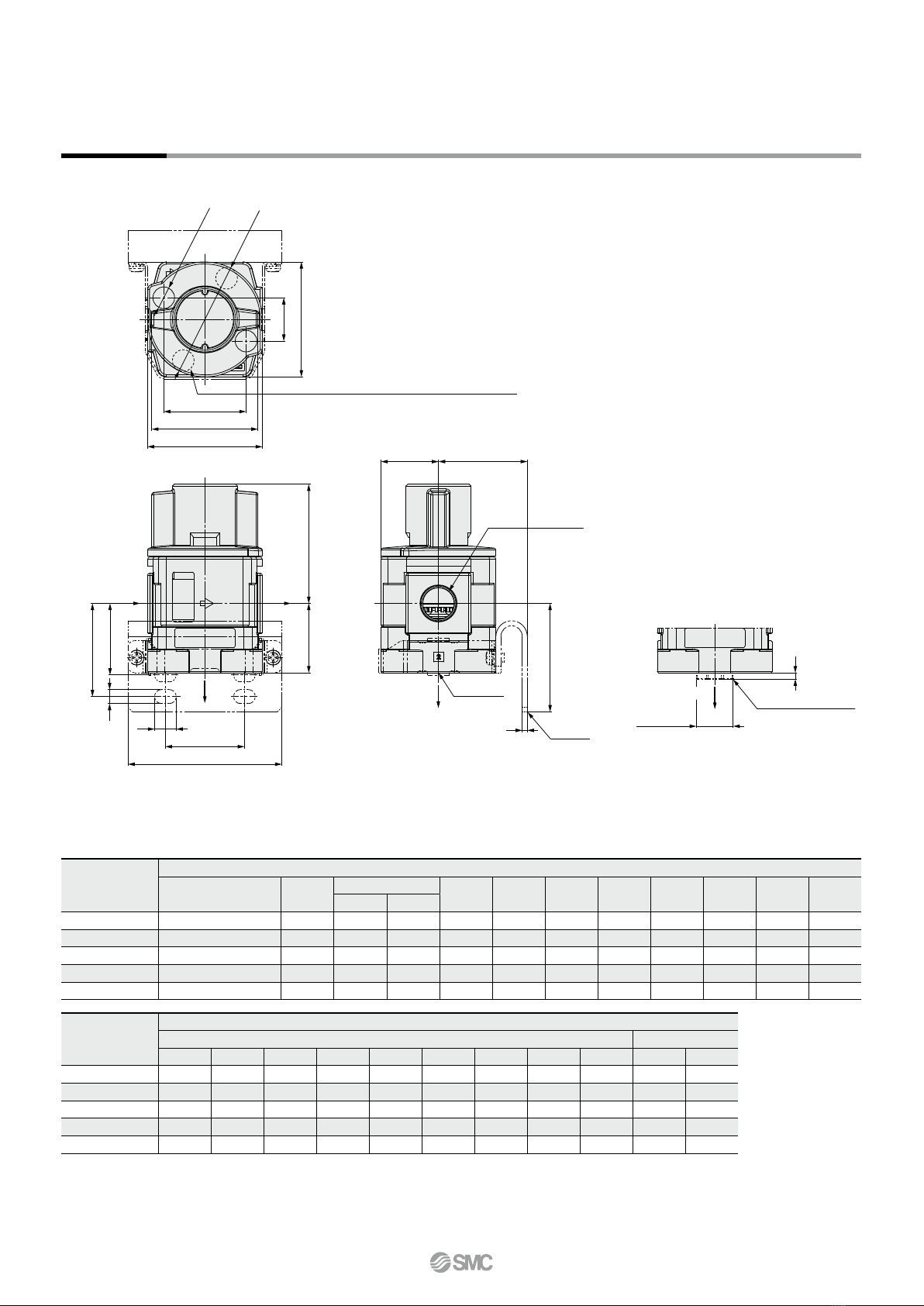

Dimensions

Dimensions [mm]

Model

Options specifications

With bracket With silencer

K L M N Q R S T U V W

VHS20-D 30 25.3 34 5.4 8.4 27 60 40 2.3 3 13

VHS30-D 41 33 43 6.5 10 36.5 71 50 2.3 3 17

VHS40-D 50 44 57 8.5 19 43.5 88 66 2.3 3 21

VHS40-06-D 50 46 59 8.5 19 43.5 88 68 2.3 4 27

VHS50-D 70 60 — 11 27.5 49.5 113 71 3.2 4 27

Model

Standard specifications

P1P2AB C D E F G H J

Single Double

VHS20-D 1/8, 1/4 1/8 48.5 51.7 23 40 37 28 42 17.5 40 21

VHS30-D 1/4, 3/8 1/4 55 58.2 32 53 49 38 53 20 53 26.5

VHS40-D 1/4, 3/8, 1/2 3/8 69.7 73.9 41.3 70 63 52 71 29 70 35.5

VHS40-06-D 3/4 1/2 71.7 75.9 43.3 75 63 52 71 29 70 35.5

VHS50-D 3/4, 1 1/2 86.5 90.7 44.5 90 80 72 90 33 90 45

EXH

OUT

Key mounting position for residual pressure exhaust

2 x P1

(Port size)

UBracket

(Option)

(Port size) With built-in silencer

(Option)

Width across flats

SUP

VHS20/30/40/50-D Series

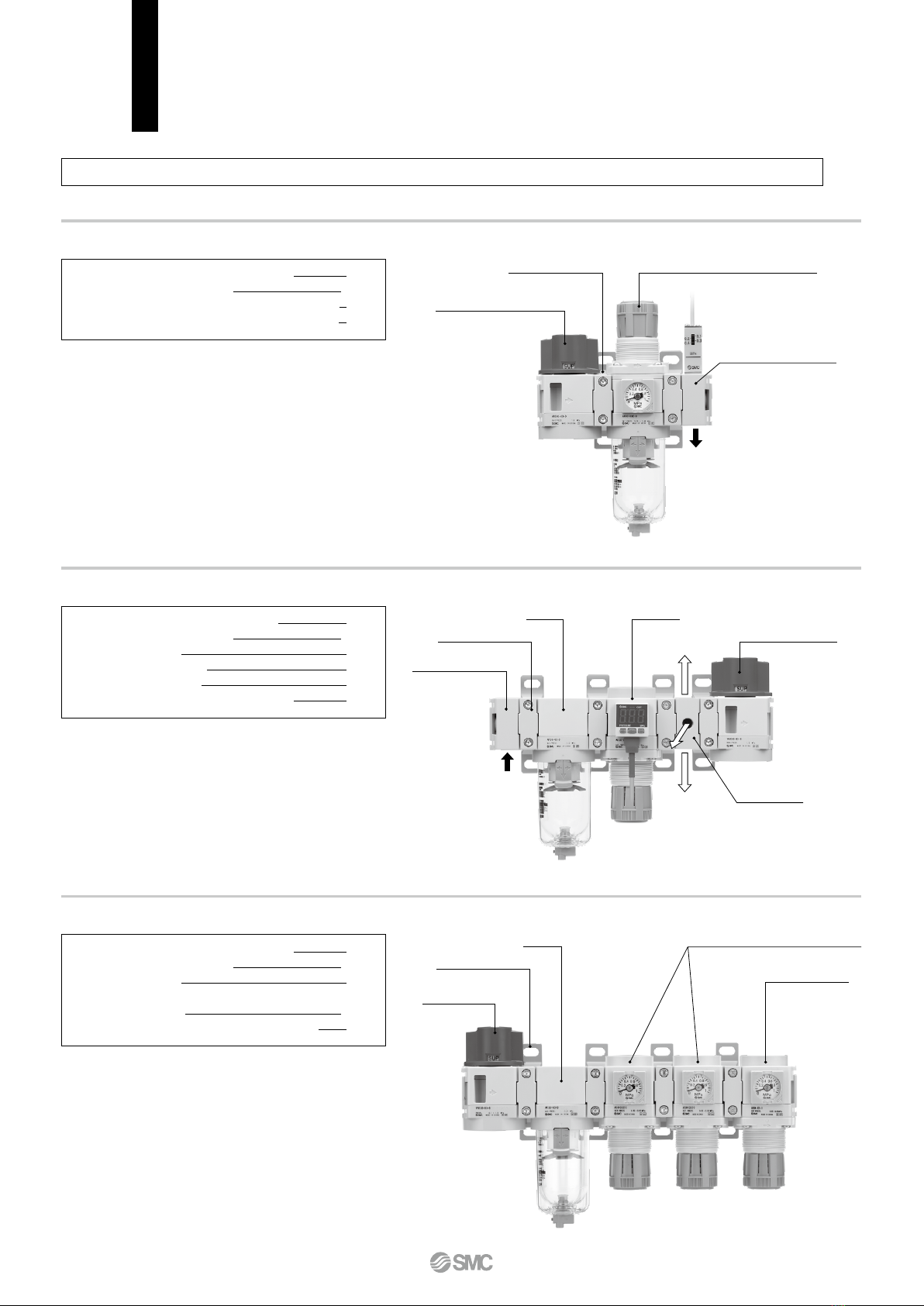

Modular Connection Example

Pressure relief 3-port valve VHS30-03-D 1 pc.

Spacer with bracket Y300T-D 4 pcs.

Air ﬁlter AF30-03-D 1 pc.

Common supply regulator with backﬂow function

AR30MK-0302E-D 2 pcs.

Regulator with backﬂow function

AR30K-03E-D 1 pc.

Pressure relief 3-port valve VHS30-03-D 1 pc.

Spacer with bracket Y300T-D 2 pcs.

Filter regulator with backﬂow function

AW30K-03E-D 1 pc.

Pressure switch with L-shaped piping adapter

IS10L-30-03-D 1 pc.

L-shaped piping adapter E300L-03-D 1 pc.

Spacer with bracket Y300T-D 4 pcs.

Air ﬁlter AF30-03-D 1 pc.

Regulator AR30-03E1-D 1 pc.

Cross spacer Y34-03-D 1 pc.

Pressure relief 3-port valve VHS30-03-D 1 pc.

Combination example e

Combination example q

Combination example w

Pressure relief

3-port valve

Spacer with bracket Regulator with

backﬂow function

Air ﬁlter

Common supply regulator with backﬂow function

For modular connection units (shipped assembled), the simple specials system can be used. For details, refer to page 3.

Please note that products do not come assembled. They should be ordered separately and assembled by the customer.

OUT

Pressure relief 3-port valve

Filter regulator with backﬂow function

Pressure switch with

L-shaped piping adapter

Spacer with bracket

Bypass port

Pressure relief 3-port valve

RegulatorAir ﬁlter

L-shaped piping adapter

Spacer with bracket

Cross spacer

(Except Y300T-D)

(Spacer width)

Center of body

Spacer/Spacer with Bracket

Replacement Parts

Description Material

Part number

Y200-D

Y200T-D

Y300-D

Y300T-D

Y400-D

Y400T-D

Y500-D

Y500T-D

Y600-D

Y600T-D

Seal HNBR Y220P-050S Y320P-050S Y420P-050S Y520P-050S Y620P-050S

Part no. A B C D E EE F G H J K

Applicable model

Y200T-D 3.2 67 29 51 24 33 11.5 5.5 15.5 3.5 30 VHS20-D

Y300T-D 4.2 85 42.5 67.5 35 — 14 7 20 6 41 VHS30-D

Y400T-D 5.2 115 50 85.5 40 55 18 9 26 7 50 VHS40-D

Y500T-D 5.2 115 50 85.5 40 55 18 9 26 7 50

VHS40-06-D

Y600T-D 6.2 140 60 115 50 70 20 11 31.2 8 70 VHS50-D

Part no. ABCDE Applicable model

Y200-D 3.2 35 13.2 42 0.6 VHS20-D

Y300-D 4.2 43 16.2 53 — VHS30-D

Y400-D 5.2 51 19.2 71 — VHS40-D

Y500-D 5.2 54 21.2 71 — VHS40-06-D

Y600-D 6.2 64 27.2 90 — VHS50-D

Symbol

Description

q

Body size

[Applicable VHS size]

200

[VHS20]

300

[VHS30]

400

[VHS40]

500

[VHS40-06]

600

[VHS50]

wBracket

Nil Spacer 

TSpacer

with bracket 

Standard Specifications

Fluid Air

Ambient and ﬂuid temperatures

−5 to 60°C (No freezing)

Proof pressure 1.5 MPa

Max. operating pressure 1.0 MPa

q w

Y 300 D

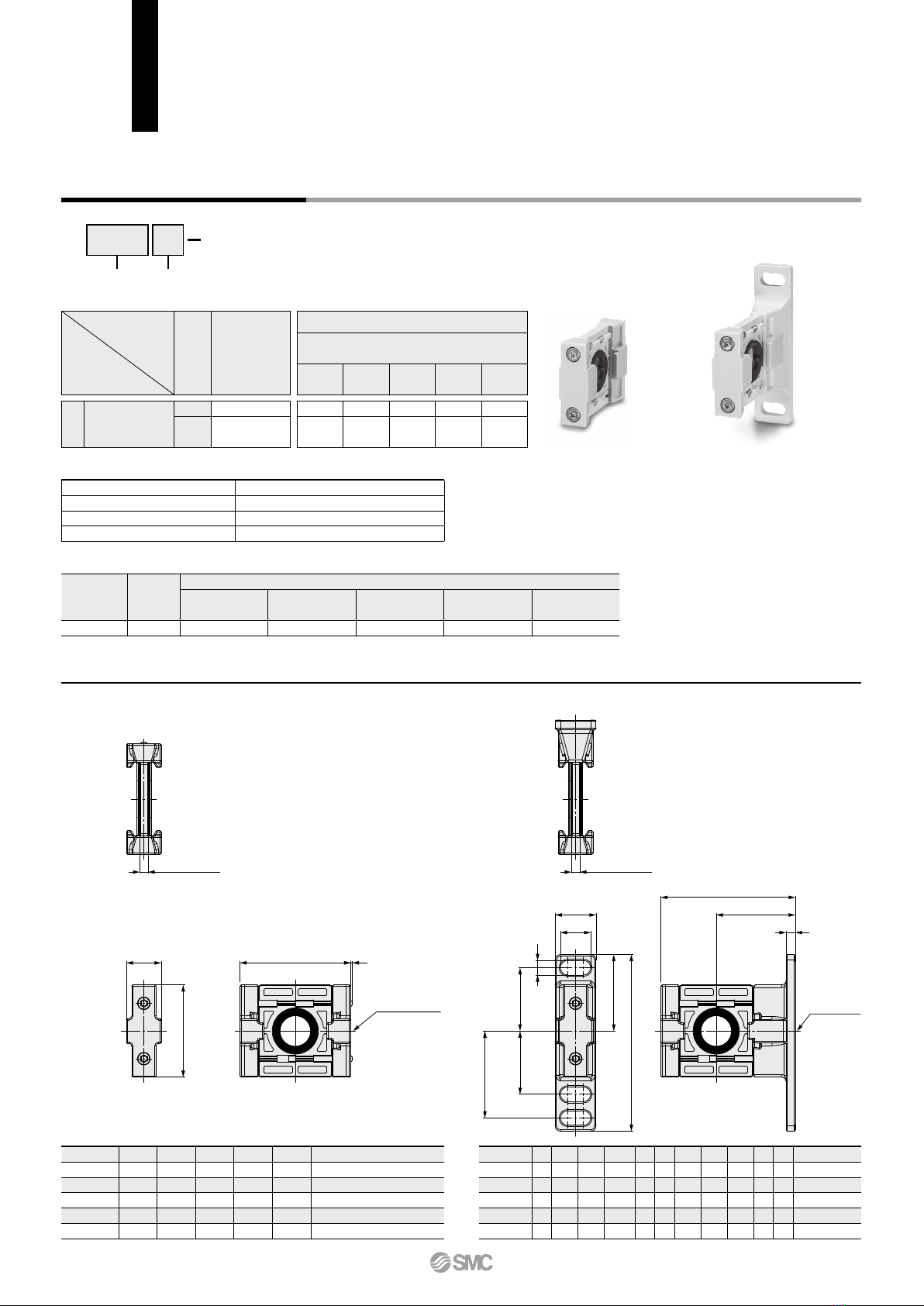

Dimensions

Spacer

(Ym-D)

Spacer with bracket

(YmT-D)

Spacer Spacer with bracket

VHS20/30/40/50-D Series

Accessories Sold Separately (for Individual Parts)

qBody Color: Red + Flame Resistant

VHS 30 03 D X1

Symbol Description

q

Body size

20 30 40 50

wHandle operation Nil Single action 

WDouble action 

ePipe thread type

Nil Rc*1

NNPT 

FG

rPort size

01 1/8 ———

02 1/4 —

03 3/8 —   —

04 1/2 — — —

06 3/4 — —  

10 1 — — — 

t

Option

aMounting Nil Without mounting option 

BWith bracket 

bSilencer Nil Without silencer 

SWith built-in silencer (for EXH port) 

y

Semi-standard

cHandle color Nil Red 

KBlack 

dHandle material Nil Resin 

MMetal 

eFlow direction Nil Flow direction: Left to right 

RFlow direction: Right to left 

fPressure unit Nil Product label in SI units: MPa 

Z*2Product label in imperial units: psi v*3v*3v*3v*3

*1 The pipe thread type for the EXH port is G.

For the pipe thread type: NPT only. This product is for overseas use only according to the New Measurement Act. (The SI unit type is provided for use in Japan.)

*3 v: For the pipe thread type: NPT only

The body color is red. Flame resistant resin is used for the exterior parts.

· Option/Semi-standard: Select one each for ato f.

· Option/Semi-standard symbol: When more than one speciﬁcation is required, indicate in alphanumeric order.

Example) VHS30-N03-BS-RZ-D-X1

q w t ye r Red body + Flame resistant

VHS20/30/40/50-D Series

Made to Order

Please contact SMC for detailed dimensions, speciﬁcations, and delivery times.

Piping

Warning

1. Piping load and moment

Avoid any torsional or bending moments other than those

caused by the equipment’s own weight as failure to do so may

result in damage.

Support external piping separately.

If moment application is unavoidable during operation, the

moment should be lower than the max. moment shown below.

Piping materials without flexibility, such as steel tube piping,

are prone to being affected by excess moment loads or

vibrations from the piping side. Use flexible tubing in between

to avoid such effects.

Unit: N·m

Applicable

model

VHS20

[AC20]

VHS30

[AC30]

VHS40

[AC40]

VHS40-06

[AC40-06]

VHS50

[AC50/AC60]

Max. moment

(M)14.5 16 19.5 35 45

Max. moment (M) = Length (L) x Load (F)

Load (F)

Length (L)

2. Before piping is connected, the pipes should be

thoroughly blown through with air (flushing) or

washed to remove chips, cutting oil and other

debris from inside.

Should they remain, they could cause a malfunction.

3. When connecting pipes and ﬁttings, etc., be sure

that neither chips from the pipe threads nor sealing

material get inside the valve.

When using sealant tape, leave 1.5 to 2 thread ridges

exposed at the end of the pipe/ﬁtting.

4. Connect piping/fittings using the recommended

torque while holding the female thread side tightly.

Insufficient tightening torque can result in loose piping or

sealing failure. Over tightening may break the thread. If the

female side is not held while tightening, excessive force will be

applied to the bracket directly, resulting in breakage.

Recommended Tightening Torque Unit: N·m

Connection thread

1/8 1/4 3/8 1/2 3/4 1

Torque 7 to 9 12 to 14 22 to 24 28 to 30 28 to 30 36 to 38

Precautions on Design

Warning

1. Do not supply air pressure from ports other than

the 1 (P) port.

The valve will malfunction when air pressure is supplied from

other ports.

2. We recommend using a lock with a shackle

diameter of ø5 or more. If a lock with a shackle

diameter of less than ø5 is to be used, please test it

on the actual machine.

Installation and Adjustment

Caution

1. The valve must be switched to each position

instantly and securely. Stopping the handle

between the extreme positions may cause a

malfunction.

2. Double action type requires two actions (push the

handle and turn it). Confirm that the handle is

pushed properly before turning it. If the handle is

not pushed properly to the end, the internal parts

will be broken by turning the handle.

3. Tighten the 2 holding screws on the spacer with

bracket or spacer evenly.

Tighten them to the recommended tightening torque.

Insufficient tightening torque may result in loosening or sealing

failure. Excessive tightening torque may damage the thread,

etc.

Recommended Tightening Torque Unit: N·m

Applicable

model

VHS20

[AC20]

VHS30

[AC30]

VHS40

[AC40]

VHS40-06

[AC40-06]

VHS50

[AC50/AC60]

Spacer with bracket

part number

Y200T-D Y300T-D Y400T-D Y500T-D Y600T-D

Spacer part number

Y200-D Y300-D Y400-D Y500-D Y600-D

Torque 0.36

±0.036

1.2

±0.05

1.2

±0.05

1.4

±0.05

2.0

±0.1

Holding screw

Spacer with bracket

VHS20/30/40/50-D Series

Speciﬁc Product Precautions 1

Be sure to read this before handling the products. Refer to the back cover for safety instructions.

For 3/4/5-port solenoid valve precautions, refer to the “Handling Precautions for SMC Products”

and the “Operation Manual” on the SMC website: https://www.smcworld.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SMC Networks Unité de contrôle

SMC Networks

SMC Networks VKF300 Series Manuel

SMC Networks

SMC Networks ProtoCessor FPC-ED2 Guide de l'utilisateur

SMC Networks

SMC Networks EX260-SEN2-X205 Manuel utilisateur

SMC Networks

SMC Networks SY3000 SERIES Manuel utilisateur

SMC Networks

SMC Networks S070 Series Manuel utilisateur

SMC Networks

SMC Networks JSY5000-H Series Manuel utilisateur

SMC Networks

SMC Networks XT323-4 Manuel utilisateur

SMC Networks

SMC Networks VQD1000 Series Manuel utilisateur

SMC Networks

SMC Networks VV100 Series Manuel utilisateur

SMC Networks

SMC Networks SX3000 Series Manuel utilisateur

SMC Networks

SMC Networks VQ1000 Series Manuel utilisateur

SMC Networks

SMC Networks ASR Series Manuel utilisateur

SMC Networks

SMC Networks VTA301 Series Manuel utilisateur

SMC Networks

SMC Networks EX600-DX Series Manuel utilisateur

SMC Networks

SMC Networks VP Series Manuel utilisateur

SMC Networks

SMC Networks VF1000 Series Manuel

SMC Networks

SMC Networks SV Series Manuel utilisateur

SMC Networks

SMC Networks ProtoCessor FPC-ED2 Guide de l'utilisateur

SMC Networks

SMC Networks VXP Series Manuel utilisateur

SMC Networks

SMC Networks VP500 Series Manuel utilisateur

SMC Networks

SMC Networks VK300 series Manuel utilisateur

SMC Networks

SMC Networks SYA3000 Manuel utilisateur

SMC Networks

SMC Networks SYA5000 Series Manuel utilisateur

SMC Networks

SMC Networks JSXFA Series Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
