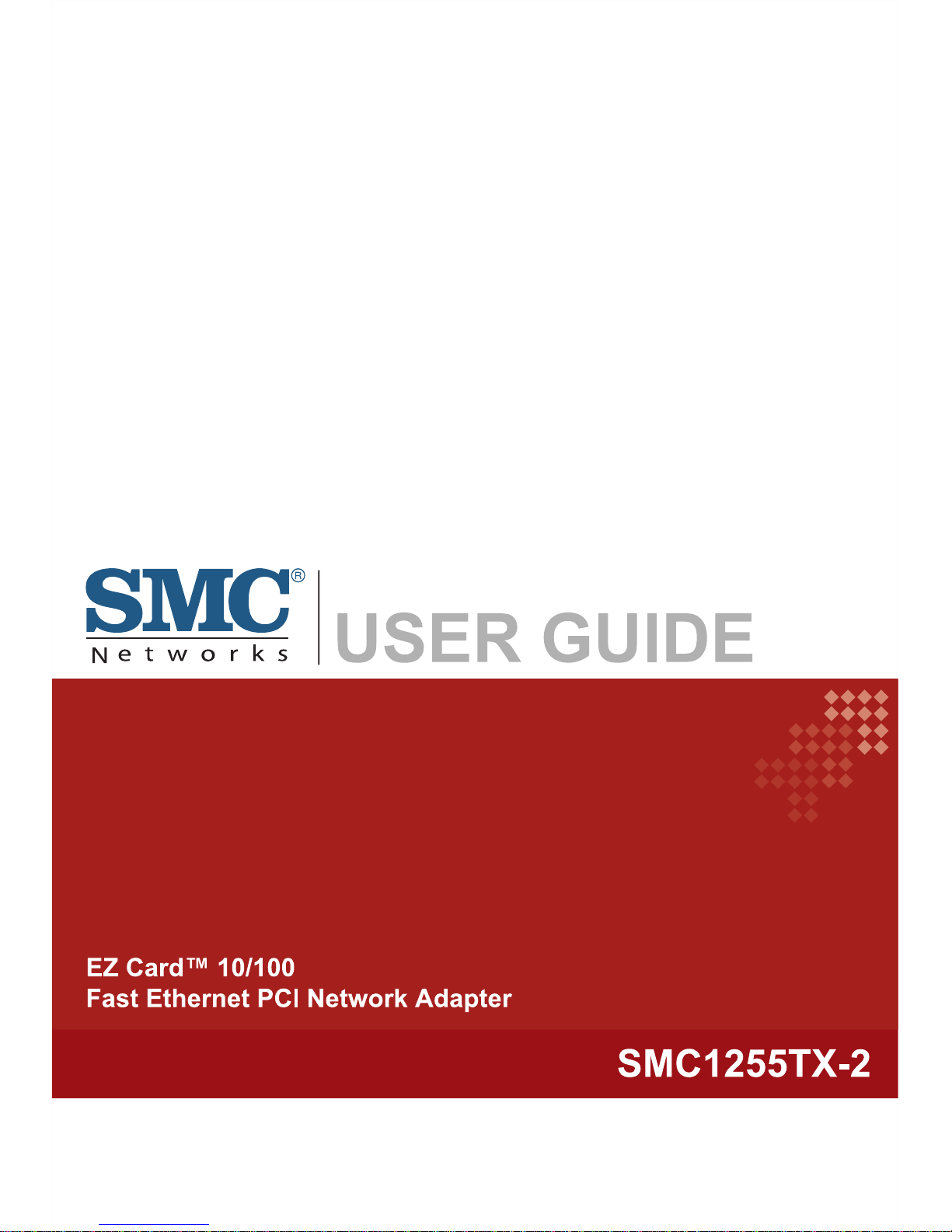

SMC Networks 1255TX-2 - annexe 1 Manuel utilisateur

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and

reliable. However, no responsibility is assumed by SMC for its use, nor for any

infringements of patents or other rights of third parties which may result from its use.

No license is granted by implication or otherwise under any patent or patent rights of

SMC. SMC reserves the right to change specifications at any time without notice.

SMC Networks, Inc.

20 Mason

Irvine, CA 92618

Trademarks:

SMC is a registered trademark; and EZ Card™ 10/100 is a trademark of SMC

Networks, Inc. Other product and company names are trademarks or registered

trademarks of their respective holders.

Warranty and

Product Registration

To register SMC products and to review the detailed warranty statement, please check

www.smc.com for the warranty terms in your country/region.

SMC Networks, Inc.

20 Mason

Irvine, CA 92618

Compliances

FCC Statement

This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired

operation.

Warning! This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. Operation

of this equipment in a residential area is likely to cause harmful interference in which case the user will

be required to correct the interference at his own expense.

CE-Mark Warning

Countries of Operation & Conditions of Use in the European Community

SMC contact for these products in Europe is:

SMC Networks Spain, S.L.

Edificio Conata II,

Group CTSG

Fructuos Gelabert 6-8 2o2a

08970 Sant Joan Despi, Barcolona,Spain

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The

following test methods have been applied in order to prove presumption of conformity with the

essential requirements of the R&TTE Directive 1999/5/EC:

EN 55022:2006+A1:2007 Class B

EN 55024:1998+A1: 2001+A2: 2003

IEC 61000-4-2: 2001

IEC 61000-4-3: 2006

IEC 61000-4-4: 2004

IEC 61000-4-5: 2005

IEC 61000-4-6: 2006

IEC 61000-4-8: 2001

IEC 61000-4-11: 2004

LVD: EN60950-1:2006/A11:2009

1. Introduction

Thanks for choosing the SMC 10/100 Fast-Ethernet PCI Card, the SMC1255TX-2. This document

describes the Installation of SMC1255TX-2. This adapter supports 10BASE-T/100BASE-TX Fast

Ethernet and complies with the electrical and protocol requirements of the PCI Local Bus Specification,

revision 2.2. The Wake-On-LAN feature is supported by the adapter.

1.1 Features

The 10/100 Fast Ethernet PCI adapter is a cost effective, high-performance network interface card. It

operates in 10BASE-T and 100BASE-TX modes and integrates easily with any Fast Ethernet hub,

switch or router.

IEEE 802.3 (10BASE-T) and IEEE 802.3u (100BASE-TX) standards

32-bit bus master for high throughput and low CPU utilization

Wake-On-LAN

Full-duplex operation at both 10Mbps and 100Mbps

10/100Mbps auto-sensing

Diagnostic LED for troubleshooting

Single shield RJ-45 connector for using at either Speed (Category 3, 4 or 5 UTP cable for 10Mbps

Operation, and Category 5 UTP cable for 100Mbps Operation)

Plug and Play installation.

Test program (including Wake-On-LAN events)

Network drivers on the CD for Windows 95, 98, ME, NT, 2000, XP, Vista, NetWare, SCO Unix

and Packet driver.

FCC, CE certification

1.2 System Requirements

To use the adapter, you need the following components:

A PCI master mode expansion slot that is compliant with PCI bus specifications, revisions 2.2

Driver/ Manual CD

The following cables:

To operate at 10Mbps, a Category 3, 4, 5 UTP Cable

To operate at 100Mbps, a Category 5 UTP cable

2. Installation

This section describes how to install the adapter. For connecting to the network, you must have the

following:

1. Network adapter card installed to your computer.

2. Cabling (compatible with network topology)

3. CD-ROM for the adapter card containing the drivers

2.1 Unpack and Inspect

Caution:

Under ordinary circumstances, this adapter card will not be affected by static charge as

may be received through your body during handling of the unit. In special circumstances

where you may carry an extraordinarily high static

charge, it’s recommended to reduce the

charge by touching a ground before handling the adapter card.

Open the shipping gift box and carefully remove all items. In addition to this User’s Manual, please

check the following items:

One 10/100 Fast Ethernet PCI Adapter Card

One Driver/Manual CD

One Low Profile Bracket

Note:

If any of the listed items are missing, please contact your distributor or reseller

2.2 Install the Adapter

1. Turn off the computer.

2. Open the computer’s cover, in accordance with its manual, remove any screws that fasten the

cover to the case.

3. Find a free PCI slot and remove the slot cover from the case (keep the screw).

4. Insert the PCI card directly into the PCI slot by pushing it down carefully until it slides into

the PCI connector.

5. Fasten the PCI card to the computer case with the screw from the slot cover (step 3).

6. Close the computer cover and fix it with the screws that were previously removed to the case.

7. Connect the network cable (CAT3 or CAT5 UTP)* to the RJ-45 network connector of the new

installed adapter card and the other end to router, switch or any other networking device.

8. Turn on the computer.

If the BIOS section of your computer’s boot program is Plug and Play compliant, then at power up the

BIOS will configure any newly installed adapter automatically.

Note:

Due to some Plug-and-Play BIOS problems, it happens occasionally that a newly installed

adapter is assigned an Interrupt Number which is already used by another device. In such a

case, the conflict of Interrupt Number will cause faults in the behavior of both devices. Then

it is necessary to run the CMOS Setup utility, and manually assign a non-conflict Interrupt

Number.

2.3 Fast Ethernet Connection (100Mbps)

Category 5 UTP cable is required for Fast Ethernet (100Mbps) operation. The maximum cable run

between the adapter and the supporting hub, switch or router is 300ft (100m). Make the network

connection by plugging one end of the cable into the RJ-45 receptacle of the adapter, and the other end

into one port in the hub, switch or router.

2.4 Ethernet Connection (10Mbps )

Category 3, Category 4, and Category 5 UTP cable, as well as EIA/TIA 568 100 ohm STP cable is

required for Ethernet (10Mbps) operation. The maximum cable length run between this adapter and the

supporting hub, switch or router is 300 ft (100m). Make the network connection by plugging one end of

the cable into the RJ-45 receptacle of this adapter, and the other end into the hub, switch or router.

2.5 Drivers and Utilities CD

The [Divers/Manual] CD contains drivers for all popular operating systems:

Novell NetWare(client /server)

Windows NT3.5/NT4.0/2000

Windows 95/98/ME/XP/Vista/Win7

Microsoft Client (NDIS 2.0 DOS/OS2)

Windows For Workgroup 3.11

MacOS 10.1

Linux Kernel 2.4 or later

2.6 Test Program

Note:

This test program verifies the configuration of the adapter and helps to isolate any faults in the

operation. The test procedures are optional, and will only be useful in the unlikely event that there is a

problem, such as an interrupt number conflict among your computer’s add-on cards. If your adapter

provides normal operation, you don’t need to follow the test procedures.

At your DOS prompt, type the following command (considering your CD-ROM drive is E:):

E:\rset8139.exe <Enter>

A menu will open as follows below:

View Current Configuration

Set Up New Configuration

Run Diagnostics

Exit RSET8139

Choose <Set Up New Configuration> to set up the Network Speed, 10Mbps or 100Mbps, and

Transmission Mode, Full- or Half Duplex, and so on.

Choose <Run Diagnostics> to run the adapter test program.

Adapter test program includes:

<Run EEPROM Test>,

<Run Diagnostics on Board>,

<Run Diagnostics on Network>, and

<Run Power Management Test>.

After choosing the <Run Diagnostics on Board>, you will see the following screen:

Node ID........: 00 e0 7d c0 00 01

Network Speed..: 100Mbps

I/O Base ......: E000H

Interrupt .....: 11

Full-Duplex ...: Disabled

The test program can not be used in Windows 95/98

DOS mode. Do not load any device drivers, memory

manager, and anti-virus software. The test program

can only work in clean DOS prompt.

Pass Count Fail Count

A.I/O Register

B.100Mbps Loopback

C.10Mbps Loopback

D.Cable Connection

<Cable Connection> test shows you that the connection link might fail because either the cable is not

connected or the cable link fails.

For the <Run Diagnostics on Network> test, it is necessary to connect your computer with a

supporting hub, switch, router or another computer. This is a "Ping-Pong" test. This test cannot be

completed unless there are minimum two computers on the LAN for sending or receiving the test

packets.

For the <Run Diagnostics On Network> test

Master Machine: Master machine sends magic packet or

Wake up frame through the network.

Target Machine: Target machine is notified whenever a

qualified wakeup packet is received.

To Wake-Up The Target Machine With A Magic Packet

Step1: Target Machine:

Check BIOS <POWER MANGEMENT SETUP> ACPI, Wake-On-LAN function must be

enabled.

Step2: Target Machine:

Select <Target Machine> then the system will setup a wake-up event and wait for a magic packet

to do the system wake-up

Step3: Master Machine:

Select <Magic Packet> to send a magic packet and wake-up the target machine. The MAC

address of the target machine is required, such as: 00 e0 7d c0 00 02.

Step4: Target Machine:

ACPI Testing events will be displayed

Device State 1:

PASS

Device State 2:

PASS

Device State 3:

PASS

Step5: Target Machine:

Power down the target machine.

Step6: Master Machine:

Send a magic packet to wake-up the target machine.

Network

Ethernet Address

00E07DC00002

Target Machine

Ethernet Add

ress

00E07DC00001

Master Machine
