SMC Networks SMCWUSBT-G Manuel utilisateur

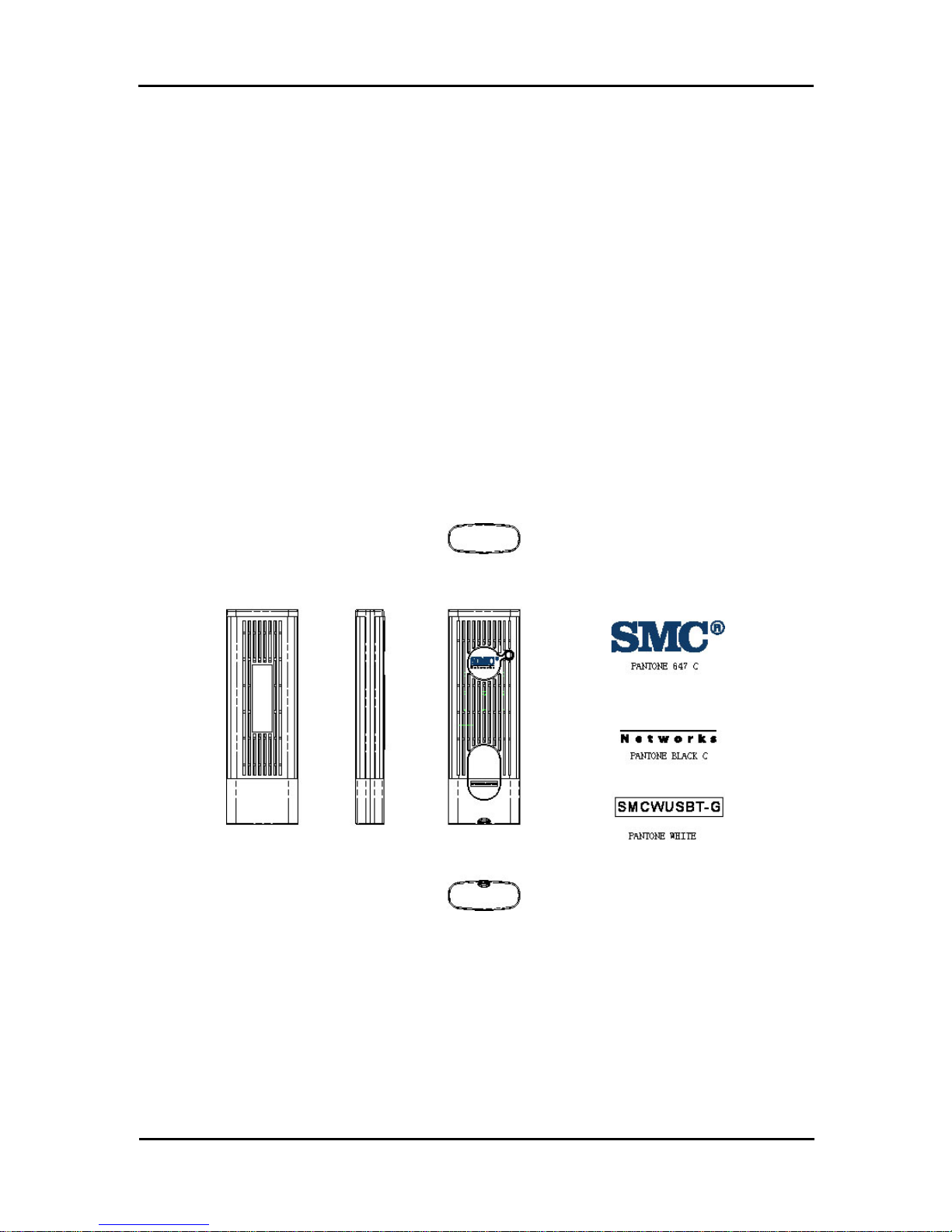

SMCWUSBT-G

Wireless USB 2.0 Adapter

802.11b/g (54 Mbps)

User’s Manual

Version 1.02.000

July 11, 2005

Contents

Wireless USB 2.0 Adapter

iii

by any means, electronic or mechanical, for any purpose, without the express written permission of the

seller.

Information in this document is subject to change without notice. The statements, configurations,

technical data, and recommendations in this document are believed to be accurate and reliable, but

are presented without express or implied warranty. The seller therefore assumes no responsibility and

shall have no liability of any kind arising from the supply or use of this document or the material

contained herein.

In the interest of improving internal design, operational function, and/or reliability, the seller reserves

the right to make changes to the products described in this document without notice.

The seller does not assume any liability that may occur due to the use or application of the product(s)

or circuit layout(s) described herein.

In addition, the program and information contained herein are licensed only pursuant to a license

agreement that contains restrictions on use and disclosure (that may incorporate by reference certain

limitations and notices imposed by third parties).

All other product or service names mentioned in this document may be trademarks of the companies

with which they are associated.

Contents

Before You Use............................................................................................................vi

Packing List............................................................................................................vi

System Requirements............................................................................................vi

Notes and Cautions ...............................................................................................vi

Chapter 1 Overview..................................................................................................1

Wireless LAN Basics..............................................................................................1

Local Area Network (LAN) ...............................................................................1

Ad Hoc Mode ...................................................................................................1

Infrastructure Mode..........................................................................................2

Roaming...........................................................................................................2

General Specification.............................................................................................3

Chapter 2 Software Installation...............................................................................5

Installing WirelessAdapter Driver and Utility.........................................................5

Chapter 3 Utility Configuration ............................................................................. 11

Action Tab ............................................................................................................15

Options Tab..........................................................................................................15

Help Tab...............................................................................................................16

Current Status Tab...............................................................................................16

Advanced Tab ................................................................................................17

Profile Management.............................................................................................19

Creating or Modifying a Configuration Profile................................................19

General Tab....................................................................................................20

Security Tab ...................................................................................................20

Advanced Tab ................................................................................................22

Contents

Import and Export Profiles .............................................................................25

Order Profiles.................................................................................................26

Scan Available Networks ...............................................................................27

Remove a Configuration Profile.....................................................................27

Diagnostics Tab....................................................................................................28

Adapter Information Button............................................................................28

Advanced Statistics........................................................................................29

Before You Use

For brevity, throughout this manual USB Wireless LAN Card is used to indicate all the types. Also, the

following terms/abbreviations are used interchangeably:

Packing List

Before using the wireless USB 2.0 adapter, check all the following items are present and in good

condition. If any of the items is damaged or missing, contact your retailer immediately.

9Companion CD x 1

9Wireless USB 2.0 adapter x 1

System Requirements

To use the Wireless LAN Card, your computer must meet the following minimum requirements:

zLaptop/ PC containing:

932-bit CardBus slot (or Desktop PC with PC Card-PCI adapter)

9Mini PCI

932 MB memory or greater

9300 MHz processor or higher

9Hard disk space at least 30 Mbytes

zMicrosoft Windows 2000, Windows Millennium Edition, Windows 98 Second Edition,

Windows XP, or Windows NT 4.0 (with Service Pack 6)

Notes and Cautions

Note and Caution in this manual are highlighted with graphics as below to indicate important

information.

Note Contains information that corresponds to a specific topic.

Caution Represents essential steps, actions, or messages that should not be

ignored.

This User’s Manual contains information on how to install and configure your USB Wireless LAN Card.

From now on, we will guide you through the correct configuration steps to implement your device.

Chapter 1: Overview

Chapter 1 Overview

This product is an IEEE 802.11b/g Wireless LAN Card with USB interface solution. This solution provides

compatibility with 802.11b and 802.11g standard devices. Now users have the flexibility to connect to

802.11b or 802.11g networks effortlessly.

It allows your computer to connect to a wireless network and to share resources, such as files or printers

without being bound to the network wires. Operating in 2.4GHz Direct Sequence Spread Spectrum

(DSSS) radio transmission, the Wireless LAN Card transfers data at speeds up to 54Mbps. BothAd hoc

and Infrastructure mode are supported. For network security concern, 64/128-bits Wired Equivalent

Privacy (WEP) encryption is used. In addition, its standard compliance ensures that it can communicate

with any 802.11b/g networks. It also supports Microsoft WHQL software for Windows XP.

Wireless LAN Basics

This section contains some Wireless LAN basics to help you better understand how the products work

together to create a wireless network.

Local Area Network (LAN)

LAN is a local network that exists in a relatively limited area. Within the network, two or more computers

are connected together sharing files and peripheral devices such as printers.

The Wireless LAN Card allows you to interact with other computers without having to run cables

normally associated with networks. This lets you move your computer around while staying connected to

your network.

There are two ways to use the Wireless LAN Card. One way is to connect directly to one or more

Wireless LAN Card equipped computers, forming an Ad hoc wireless network. The second way is to

connect to anAccess Point that gives you access to an existing wired LAN, forming an Infrastructure

wireless network.

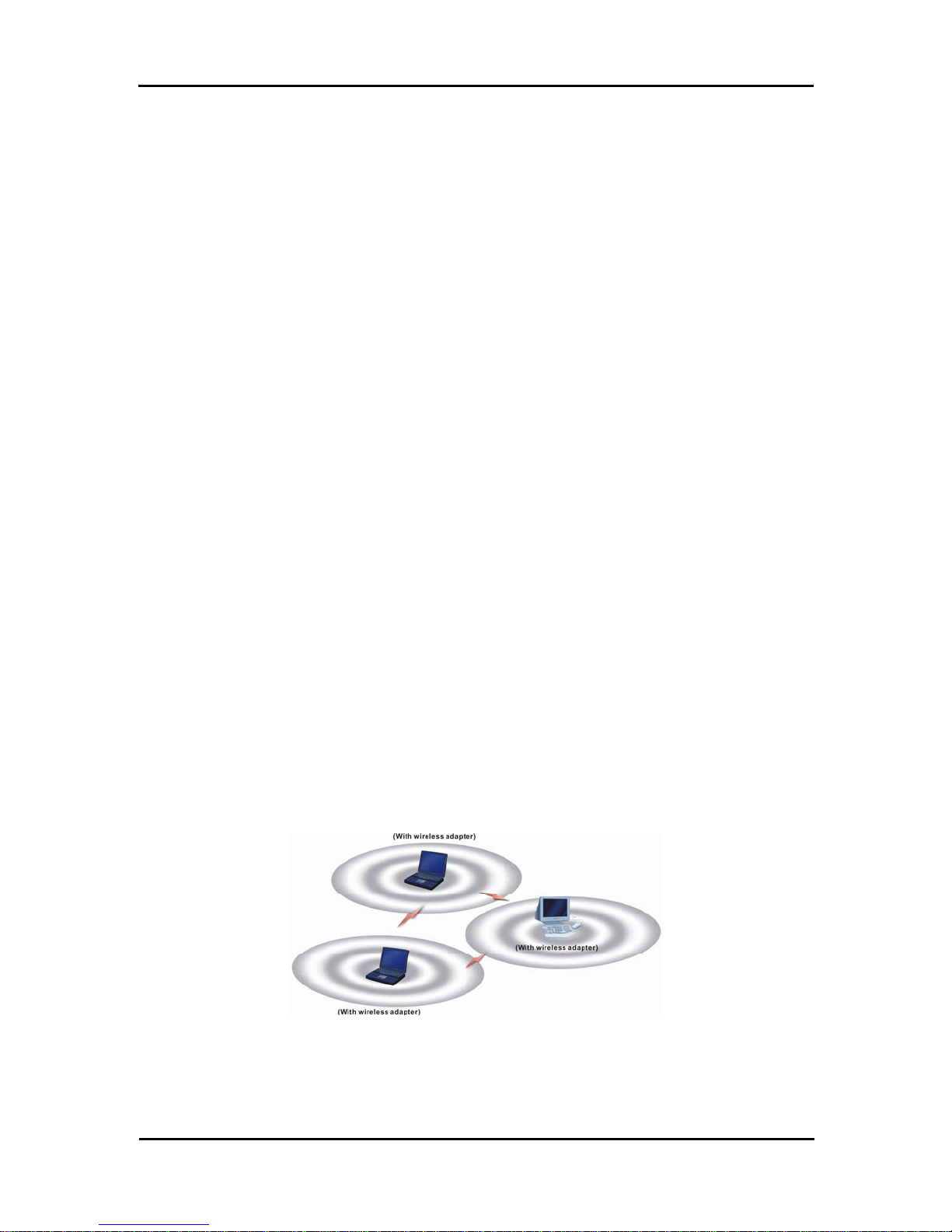

Ad Hoc Mode

An Ad Hoc network offers peer-to-peer connections between wireless stations that are in range of each

other. The stations communicate directly with each other without using an Access Point or any

connection to a wired network. This mode is useful for quickly and easily setting up a wireless network

anywhere that a wireless infrastructure does not exist or is not required for services. In an Ad Hoc

network, all wireless stations must have the same SSID, channel and WEP keys (if enabled) to

communicate with each other.

Wireless USB 2.0 Adapter

Infrastructure Mode

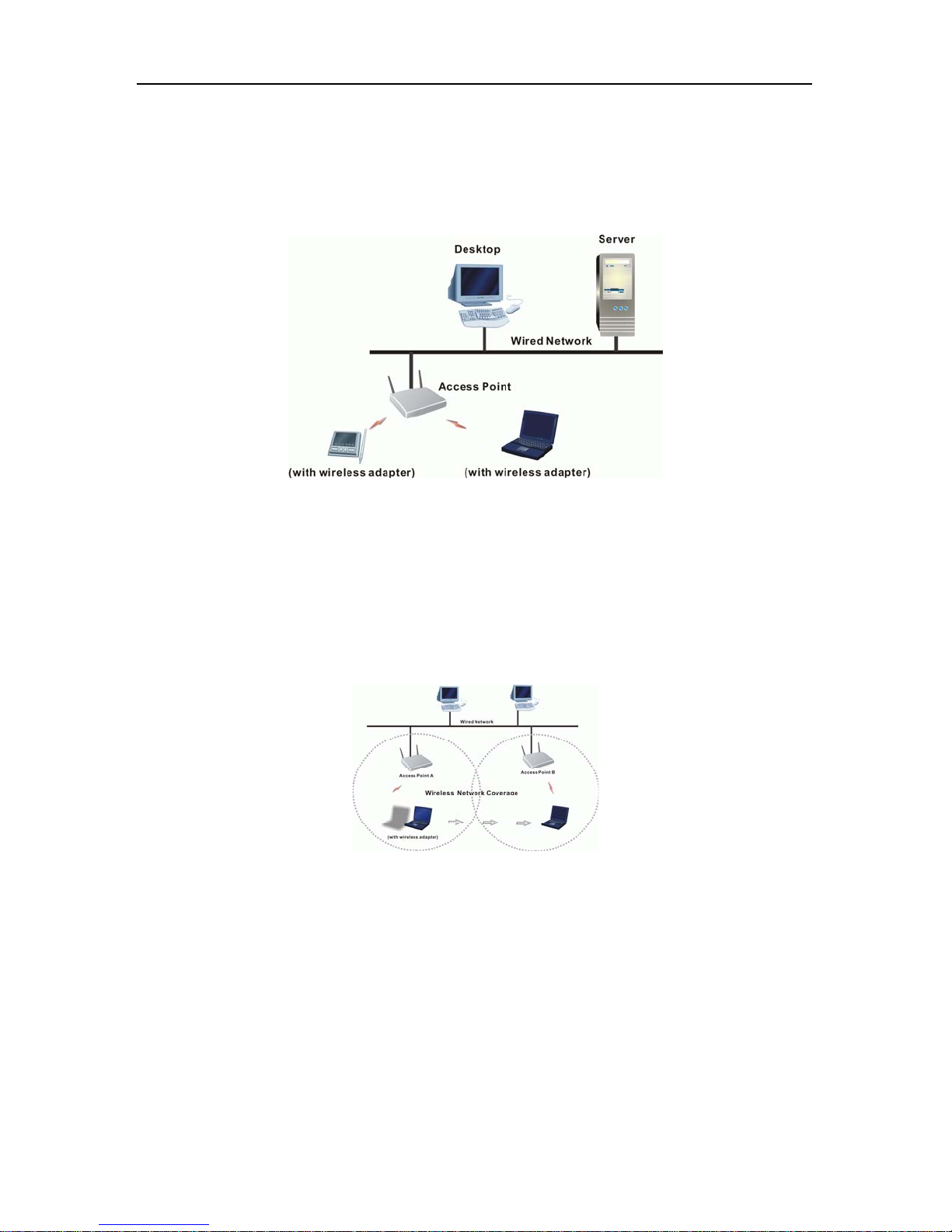

An Infrastructure wireless network consists of at least one Access Point connected to the wired network

infrastructure and a set of wireless end stations. The AP acts as a gateway, linking the wireless network

to a wired LAN.As a result, wireless stations have access to all of the features of your wired LAN

including e-mail, Internet, network printers and files server access.

Roaming

For large environments, multipleAccess Points can be implemented to extend the wireless service

coverage area for seamless wireless access. It allows wireless clients to roam from oneAP to another

while maintaining the wireless connectivity at all times. A wireless client wandering across multipleAPs

will automatically change the operating radio frequency as required.

In a roaming network, all APs and wireless clients must have the same Service Set Identity (SSID) and

security setting (if enabled).Alternatively the mobile station may use an SSID of “any” to associate with

any available AP, regardless of theAP’s SSID. Roaming among different Access Points is controlled

automatically to maintain the wireless connectivity at all times.

Chapter 1: Overview

General Specification

Host Interface USB 2.0

Form Factor USB Wireless Module

Chipset ATHEROS AR5523A + AR2112A

Operation Voltage 5.0VDC

Network Standard IEEE 802.11b / IEEE 802.11g

Hardware Encryption AES, TKIP ,and WEP

Quality of Service 802.11e draft

Network Architectures Ad hoc / Infrastructure

Modulation Technology OFDM with BPSK, QPSK, 16QAM, 64QAM

DBPSK, DQPSK, and CCK

Media Access

Technique CSMA/CA

Supported Data Rates IEEE 802.11b: 1 – 11 Mbps

IEEE 802.11g: 1 – 54 Mbps

Atheros Super G Mode: up to 108 Mbps

Antenna Type Printed PCB antenna

OS Compatibility WIN 98SE, WIN ME, WIN 2000, and WIN XP

Client Utility Automatic location profile, site monitor, current link status, and

diagnostics
