SMARTfit Mini On-Wall Adjustable Manuel utilisateur

SMARTfit Mini User Manual

Version 5.6

Mini On-Wall Adjustable - 1-30111

Mini On-Frame - 1-30100

Mini On-Frame Portable - 1-30101

1-800-900-8542

www.smartfitinc.com

Table of Contents

IMPORTANT SAFETY INSTRUCTIONS ....................................................................................................... 2

Maintenance.......................................................................................................................................... 3

Battery Operations................................................................................................................................. 3

Getting Started....................................................................................................................................... 4

What’s in the Box ................................................................................................................................... 5

Assembly Instructions ............................................................................................................................ 6

SMARTfit Mini 9 Operating Instructions.................................................................................................. 6

Powering On Your SMARTfit Mini System ............................................................................................... 7

Wheel Kit Operation............................................................................................................................... 8

Strike Target Options.............................................................................................................................. 9

Controller Settings ............................................................................................................................... 10

Downloading the SMARTfit App and Creating a New Account on the SMARTfit Cloud........................... 12

Register Your Controller ....................................................................................................................... 20

Four Icons on the Sign on Page....................................................................Error! Bookmark not defined.

Choosing Between a Local and Cloud Account...................................................................................... 25

Modes and License Keys....................................................................................................................... 27

Trainer Requests & Client Accepts........................................................................................................ 29

Start a Game ........................................................................................................................................ 32

Standard Settings ................................................................................................................................. 33

Pre-designed Activities ......................................................................................................................... 38

Pre-designed Programs ........................................................................................................................ 41

Create an Activity ................................................................................................................................. 43

Create a Program ................................................................................................................................. 48

Search and Export Data ........................................................................................................................ 57

EU Declaration of Conformity (DoC) ..................................................................................................... 64

IMPORTANT SAFETY INSTRUCTIONS

(READ ALL INSTRUCTIONS)

CAUTIONS, WARNINGS and DANGERS

•This is not a toy and is intended for use by or under the supervision of adults.

•To reduce the risk of fire, replace only with a fuse of the same type and electrical rating.

•“No” user serviceable parts with the exception of the fuse.

•Please note the yellow CAUTION and WARNING labels on the device.

•Note all pinch points on the device before using.

•If an extension cord is used pay close attention to the current requirement and routing to

eliminate tripping hazards.

•Pay close attention to the pinch points pointed out in yellow CAUTION labels.

•Do not climb on the device.

•Weights in the back of the unit are required for safety.

•This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.

•Children should be supervised to ensure that they do not play with the appliance.

•PLEASE SAVE THESE INSTRUCTIONS

Maintenance

•Clean all surfaces with a water-based disinfectant, such as Windex Disinfectant.

•Check all bolts and ensure they are tightened.

•Check all mechanical parts for wear.

•Check wiring for wear and fraying.

Battery Operations

Power Banks are found in certain configurations of SMARTfit systems. This section only applies to such

systems.

•Only a power bank from SMARTfit Inc. may be used.

•Power banks must be removed from the system prior to charging the pack.

•Exhausted power banks must be disposed of properly in accordance with your local laws.

•If the system is to be dormant for an extensive period remove all power banks.

Getting Started

Welcome to your new SMARTfit Mini!

The SMARTfit Mini System Includes the Following:

•Software License including downloadable iOS/Android mobile application and data

gathering/reporting module.

•CPU controller, timeclock, score display, sound system with 4 tracks of voice /tones/music.

•LED targets: multicolored high resolution, super bright, 16 x 16 dot matrix. Allows for images,

symbols, numbers up to 999 and three letter words.

•37 categories consisting of hundreds of options that can be scaled to the ability level of players

regardless of capability.

•Adjustable touch sensitivity to suit the light touch of a hand or the weight of a medicine ball.

•18-month warranty and SMARTfit’s exclusive Platinum Service Plan. Extended warranty

available.

What’s in this Document?

This manual will familiarize you with your SMARTfit Mini and guide you to set it up quickly. Setup

instructions include system components, On-Wall and On-Frame assembly and integration with

SMARTfit Strike Targets. The remainder of the manual guides you through the setup of the SMARTfit

app for iOS and Android including setup of open and closed platforms, playing and creating activities

and programming and both searching and exporting data. Additional resources for setup and

installation can be found at www.smartfit.rocks

Customer Service

If you need assistance, feel free to give our Customer Service a call at 1-800-900-8542 x 116, between

the hours of 9:00 a.m. and 4:30 p.m. PST, Monday through Friday or watch our easy to follow

instruction at https://www.smartfit.rocks/Customer-Resources/SMARTfit-Mini-videos

What’s in the Box

Power Requirements for the Mini System: 100-240VAC/50-60HZ/3Amp, receptacle

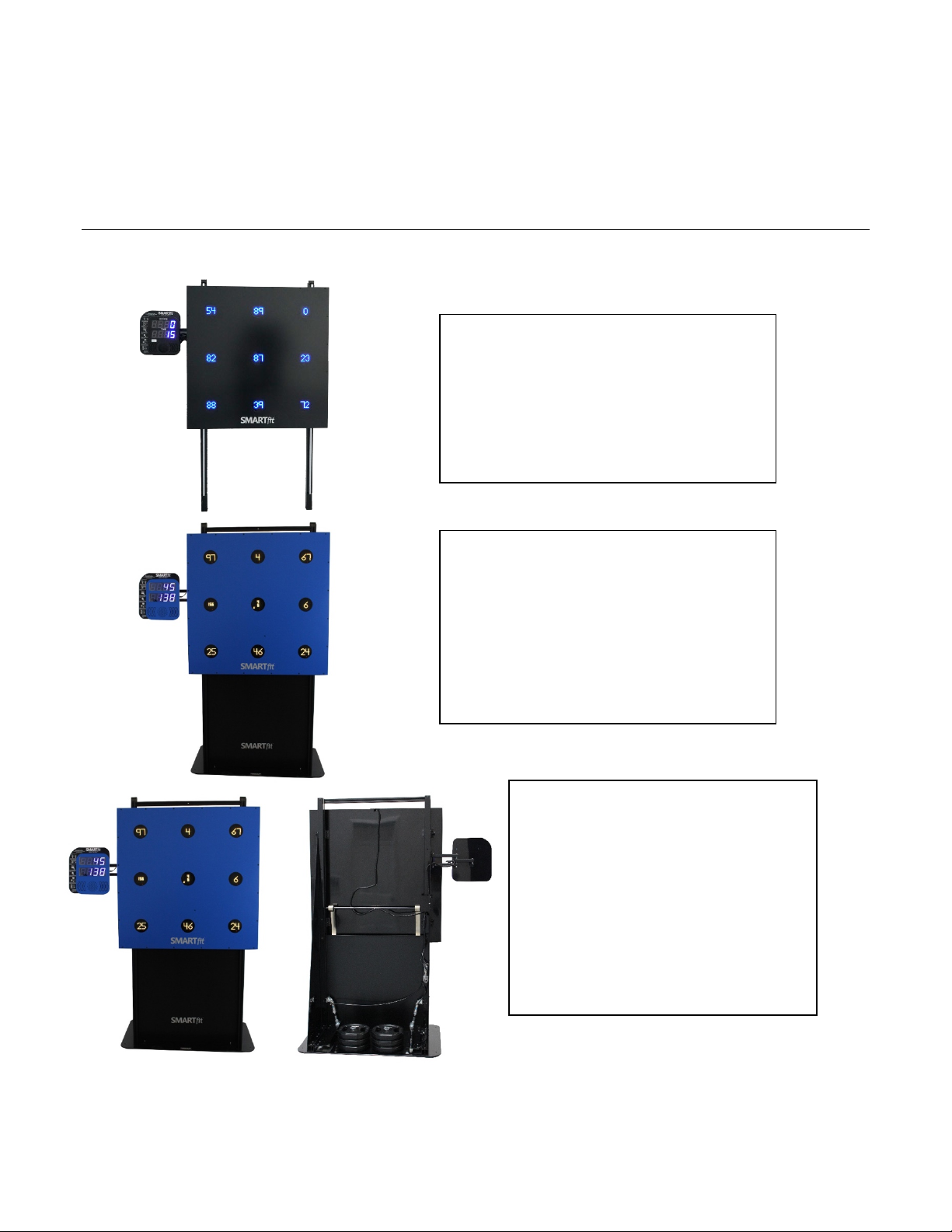

SMARTfit Mini On-Frame

1. One Interactive 46’’x 46’’ Station

2. 9 Multi-Functional Targets

3. AC CPU controller

4. 4 22lb. Rubber Coated Weights

5. Frame w/Adjustable Height System

(range from floor to 7’)

SMARTfit Mini On-Wall

1. One Interactive 46’’x 46’’ Station

2. 9 Multi-

Functional Targets

3. AC CPU controller

4. Adjustable Height System (range

from floor to 7’)

SMARTfit Mini On-Frame Portable

1. One Interactive 46’’x 46’’ Station

2. 9 Multi-Functional Targets

3. AC CPU controller

4. 4 22lb. Rubber Coated Weights

5. Frame w/Adjustable Height

System (range from floor to 7’)

6. Pneumatic Lift Kit for portability.

Assembly Instructions

Visit the links below for detailed assembly instructions. If you have any questions or need assistance

call our Customer Service at 1-800-900-8542 x 116, between the hours of 9:00 a.m. and 4:30 p.m. PST,

Monday through Friday

Mini On-Wall Assembly Instructions: https://www.youtube.com/watch?v=DskOyKvhqzY

Mini On-Frame Assembly Instructions:

https://smartfitinc.com/wp-content/uploads/2018/02/Min-On-Frame-Installation.pdf

On-Frame Portable Assembly Instructions: https://www.youtube.com/watch?v=DskOyKvhqzY

SMARTfit Mini 9 Operating Instructions

ADJUSTING THE PANEL HEIGHT (On-Frame and On-Frame Portable Systems)

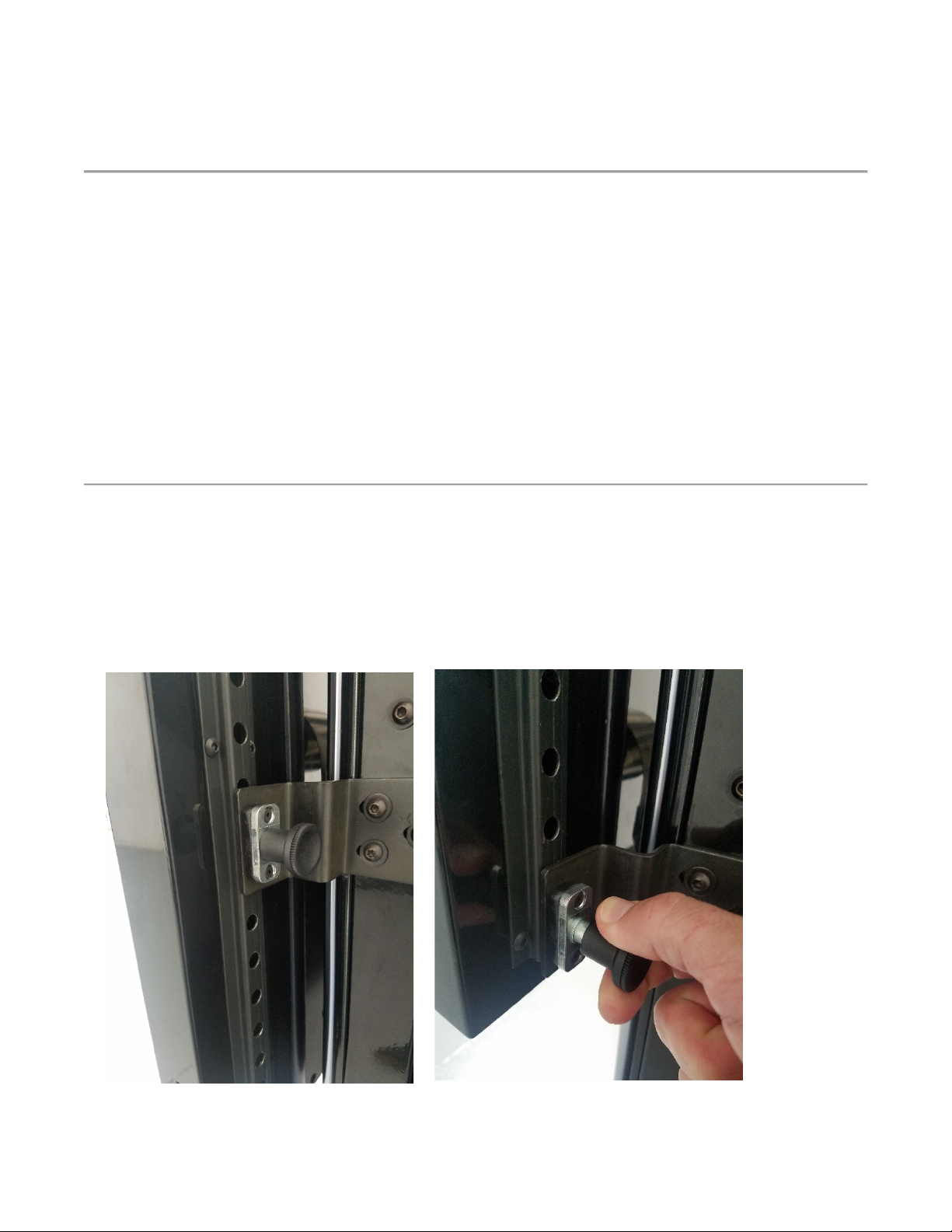

The brake system is located on the left post behind the panel (see photo below).

To adjust the panel height, pull the brake knob and move the panel to the desired height.

Release the knob to engage the brake and lock it into desired position.

Powering On Your SMARTfit Mini System

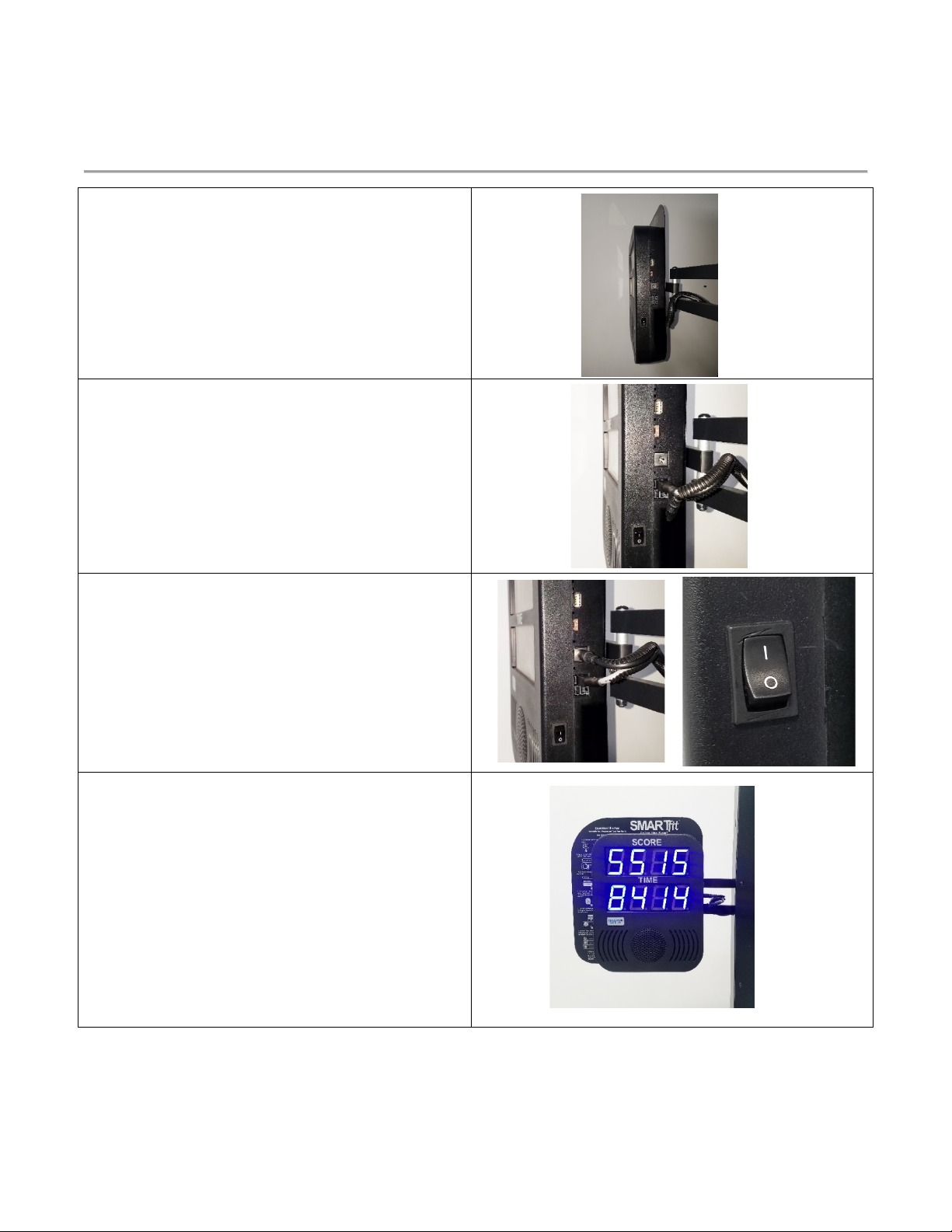

1. Locate the Power and Target Ports on the

CPU.

2. Plug in the Target Wire as shown in the

photo. Use the top target wire port on the

CPU.

3. Plug in the Power Cord as shown in the

picture.

4. Turn the Toggle Switch to the “on”

position.

5. Your CPU is now ready for play!

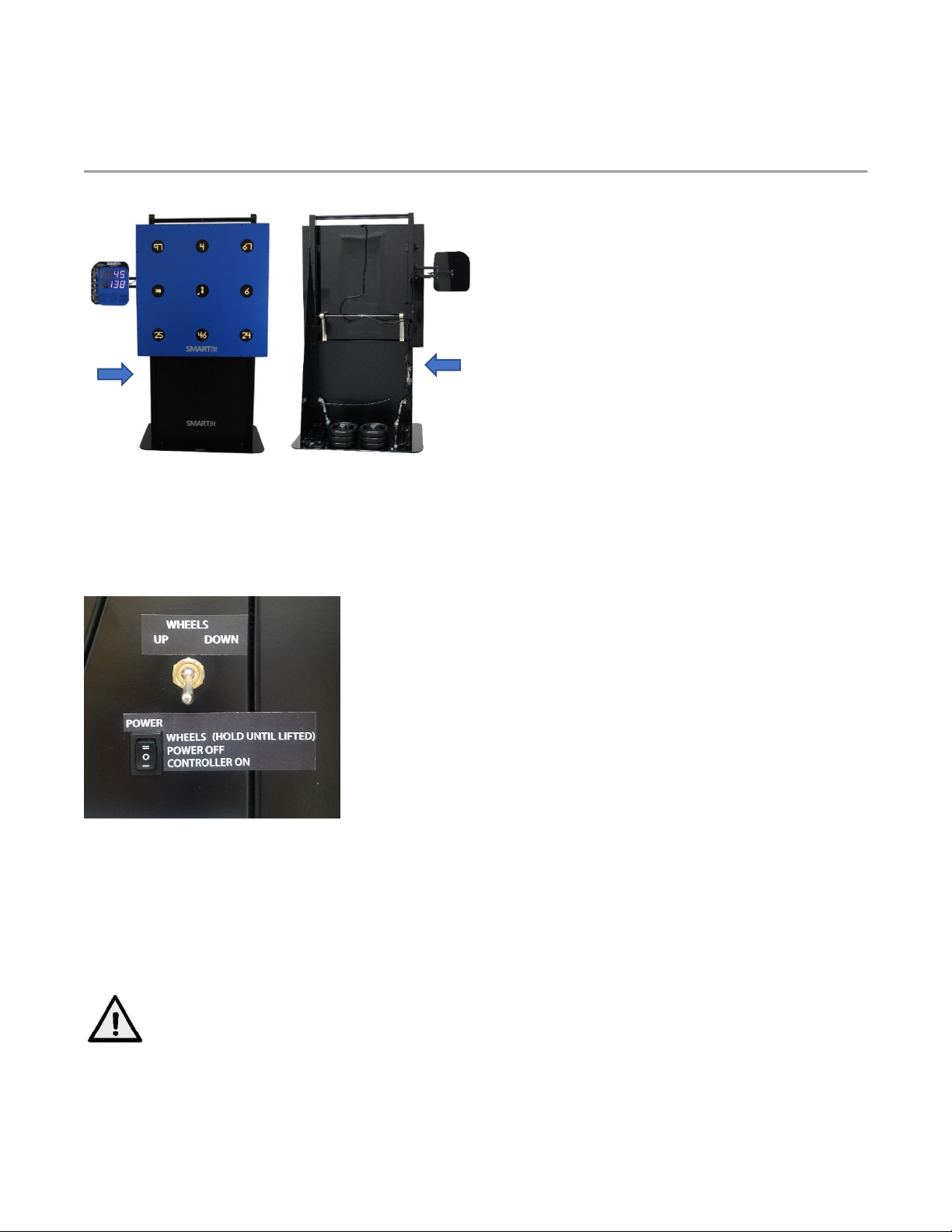

Wheel Kit Operation

The Mini On-Frame Portable comes with a

pneumatic lift kit and wheels built into the frame

for easy portability.

Locate the single rocker switch that is labeled

Controller On. Set the switch to the center

position (Off). Plug the power cord into an outlet.

Note: The power supply will adjust to any voltage

between 100 and 240 VAC/50-60Hz. All electrical

devices are low voltage DC devices and are

To power the system on, push the rocker switch down so that it is

in the Controller On position.

To power the system off, push the rocker switch to the center in

the Power Off position.

To use the wheel kit, flip the Wheels Up/Down toggle switch to Up.

Now press and hold the top of the Power switch in the “Wheels”

position for approximately 15 seconds. When you release the

switch, the compressor will stop.

Now unplug the power cord to move the system easily to another location.

When the system is in the desired location, plug the power cord into an outlet. Flip the Wheels toggle

switch to the down position so that the wheels will retract.

Caution! Ensure Nothing is underneath the base plate when lowering the

system. Failure to do so could cause serious injury.

Strike Target Options

Add SMARTfit Strike Pods to your Mini System to create a 360-degree playing environment. The

SMARTfit Controller can run up to 15 wireless targets at a time. We recommend adding 3 to 5 Strike

Pods to a Mini System. Optional Strike Pod Stands recommended.

1. SMARTfit Strike Pods: Available

colors are Black, Red, Blue, Orange,

and Yellow.

Note: Each Pod comes with a Power

Bank, Mounting Plate & Rack Strap

2. SMARTfit Power Bank Charging

Station. Charges up to 6 power banks

at a time.

3. Optional Extra Power Banks

4. SMARTfit 68’’ Strike Pod Stand.

Includes two 22-lb rubber coated

weights. Provides a pod location

range from floor to 68″.

5. SMARTfit 48’’ Portable Strike Pod

Stand.

Includes an 18-lb removable base.
