This chapter introduces the SMARTBoard® 6000S and 6000S Pro series interactive displays.

About this guide

This guide explains how to use a SMARTBoard 6000S or 6000S Pro series interactive display.

Chapter 1 Welcome

smarttech.com/kb/171415 7

This guide is for people who use SMART Board interactive displays. Documentation and resources for

those who install and maintain displays is also available (see

More information

on page17).

About the display

The SMART Board 6000S or 6000S Pro series interactive display with iQ is the hub of your classroom or

meeting room.

Note

The following features are available on the SMART Board 6000S (V3) models. SMART Board 6000S

and 6000S (C) models don’t include a microphone array, and the sensors are located in the top-left

corner of the display’s frame.

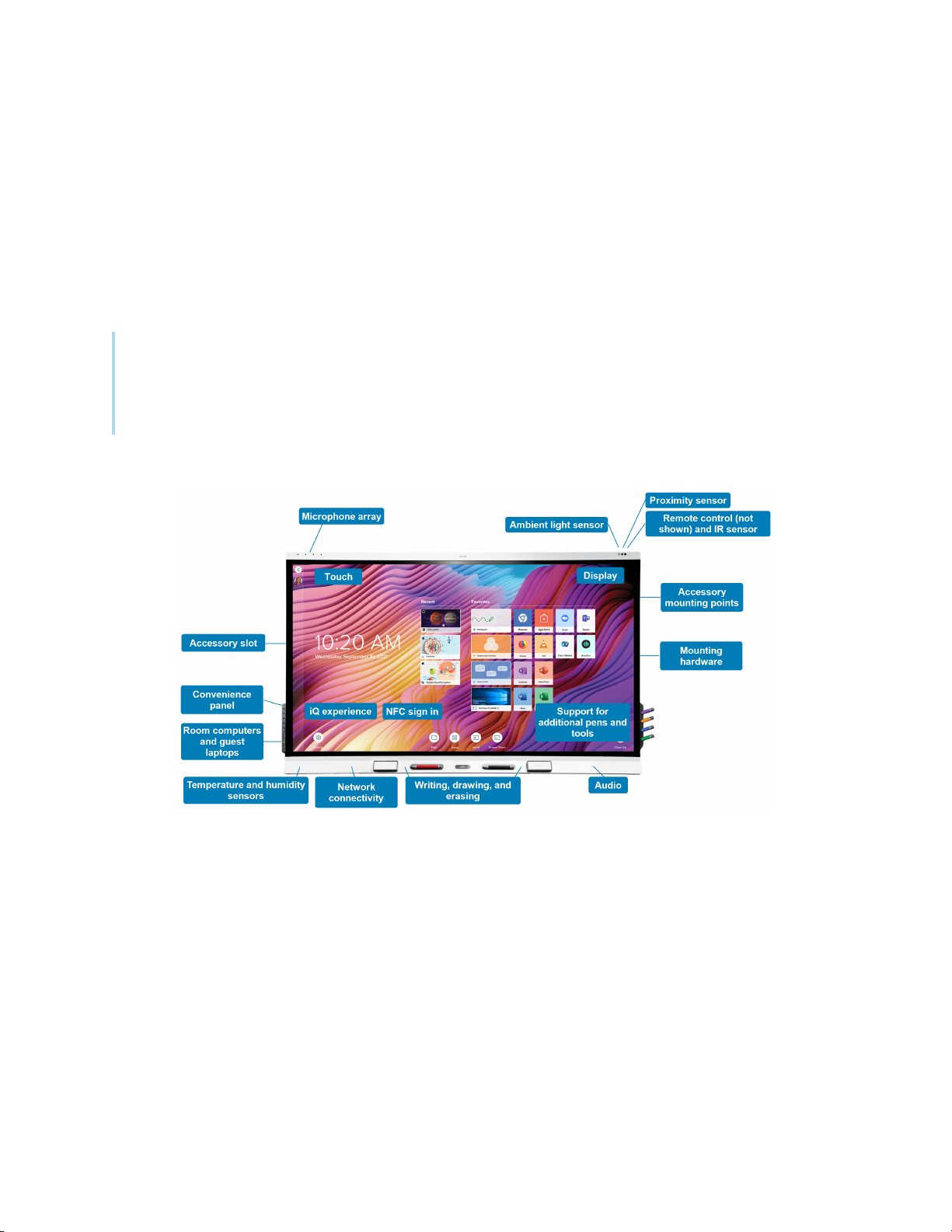

The display includes an extensive set of features and components:

Touch

You can do everything on the display that you can do at your computer—open and close applications,

meet with others, create new documents or edit existing ones, visit websites, play and manipulate videos,

and so on—by touching the display’s surface.

You can use an array of gestures within applications, including panning, scaling, rotating and zooming in

and out.

The display’s advanced HyPr Touch™ (HybridPrecisionTouch) with InGlass™ touch technology provides

a natural, intuitive writing and touch experience with high accuracy and low latency. In addition, its

Silktouch ultra-smooth finish allows you to use the display for hours without finger burn.

For more information, see

Using touch

on page24.

Chapter 1 Welcome

smarttech.com/kb/171415 8

Writing, drawing and erasing

The display comes with a black pen and a red pen that you

can use to write or draw on the screen.

The display also includes two erasers, which you can use to

erase digital ink.

With Object Awareness, the display responds automatically

to the tool or object you’re using, whether it’s a pen, finger,

eraser, or palm. The display’s Pen ID and Simultaneous Tool

Differentiation technologies allow multiple people to write

independently and simultaneously, using different colored ink.

For more information, see

Using the pens and erasers

on page26.

Support for additional pens and tools

The SMART Board 6000S features the Tool Explorer™ platform, which enables you to use other SMART-

authorized pens and tools in addition to those supplied with the display. The Tool Explorer platform lets

teachers and students manipulate real-world objects to interact intuitively with on-screen objects and

digital content, increasing engagement and knowledge retention.

For more information about using Tool Explorer-enabled objects on the display, see

Using additional

tools and manipulatives

on page32.

For more information about available tool kits, see smarttech.com/kb/171796.

iQ experience

If enabled, the display’s iQ experience provides one-touch access to collaborative tools, such as a

whiteboard, wireless screen sharing, and a web browser. There’s no need for wires, cables, or manual

software and firmware updates.

Note

Some features, such as Browser and Screen Share, require a properly configured network connection.

Chapter 1 Welcome

smarttech.com/kb/171415 9

Press the Home button on the display (pictured) or the remote control to

open the Home screen. From the Home screen, you can open the iQ

apps, switch inputs, and adjust settings.

For more information about the Home button and the Home screen, see

Using the Home button

on page20.

For more information about the iQ apps, see

Chapter 3 Using the iQ apps

on page42.

Display

The 4K ultra-high-definition LED display provides optimal image clarity and wide viewing angles.

The size of the display varies by model:

Models Size (diagonal)

SBID-6265S-V3, SBID-6265S-V3-PW, SBID-6265S-V3-P, SBID-6065S-V3, SBID-6065S-V3-PW,

SBID-6065S-V3-P, SBID-6465-V3-P

SBID-6265S-C, SBID-6265S-CPW, SBID-6065S-C, SBID-6065S-CPW

SBID-6265S, SBID-6265S-PW, SBID-6065S, SBID-6065S-PW, SBID-6065S-P

65"

SBID-6275S-V3, SBID-6275S-V3-PW, SBID-6275S-V3-P, SBID-6075S-V3, SBID-6075S-V3-PW,

SBID-6075S-V3-P, SBID-6475-V3-P

SBID-6275S-C, SBID-6275S-CPW, SBID-6075S-C, SBID-6075S-CPW

SBID-6275S, SBID-6275S-PW, SBID-6075S, SBID-6075S-PW, SBID-6075S-P

75"

SBID-6286S-V3, SBID-6286S-V3-PW, SBID-6286S-V3-P, SBID-6086S-V3, SBID-6086S-V3-PW,

SBID-6086S-V3-P, SBID-6486-V3-P

SBID-6286S-C, SBID-6286S-CPW, SBID-6086S-C, SBID-6086S-CPW

SBID-6286S, SBID-6286S-PW, SBID-6086S, SBID-6086S-PW, SBID-6086S-P

86"

Audio

The display includes two 20 W integrated speakers, which are designed to provide sound at the front of a

room.

Network connectivity

The display requires a network connection for downloading software and firmware updates, and a

number of the iQ apps require a network connection as well.

You can connect to a network using Wi-Fi or an Ethernet cable:

lThe Wi-Fi module supports both 2.4 and 5 GHz bands.

lThe two RJ45 jacks allow you to connect the display and an external device, such as a computer, to

a Gigabit Ethernet network.

Chapter 1 Welcome

smarttech.com/kb/171415 10

Room computers and guest laptops

You can connect room computers and guest laptops to the display and view and interact with their

inputs.

The display comes with SMART software that you can install on connected computers to take full

advantage of the display’s features while using the connected computers.

For more information, see

Connecting room computers and guest laptops

on page49.

Accessory slot

You can install an OPS-compatible device, such as a SMART OPS PC module, in the accessory slot.

SMARTOPS PC modules provide a complete Windows® 10 Pro installation.

For more information on SMART OPS PC modules, see

SMART OPS PC module

on page16.

Note

Unlike previous SMART Board interactive displays, the SMART Board 6000S and 6000S Pro series

interactive displays don’t require an iQ appliance in the accessory slot. The iQ experience is built into

these interactive displays (see

iQ experience

on page8). For this reason, SMART doesn’t support

installing iQ appliances in these displays’ accessory slots. However, the AM50 appliance allows the

use of an Intel Compute Card on the 6000S and SMART Board 6000S (C) models.

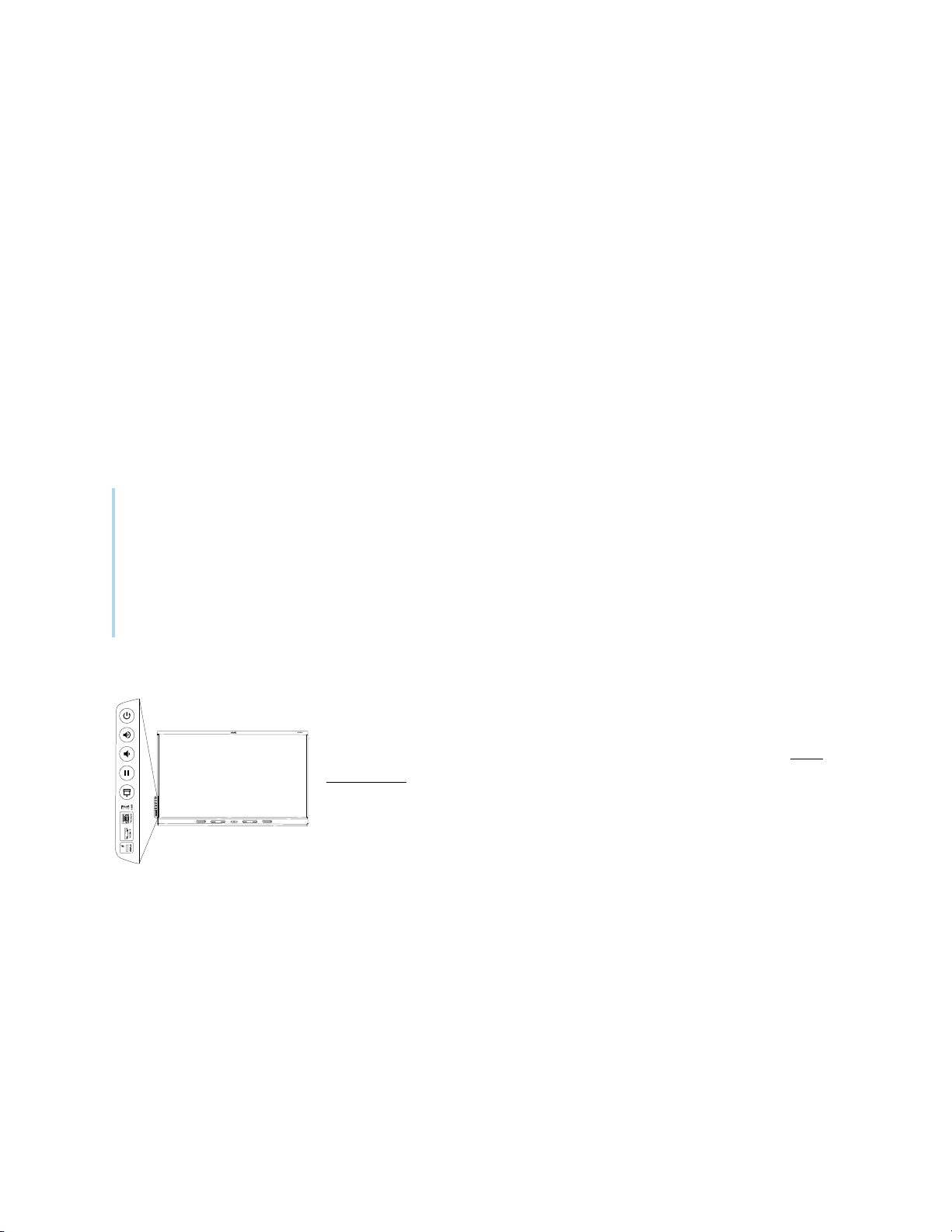

Convenience panel

The convenience panel provides buttons for turning the display on and

off, controlling the volume, freezing and unfreezing the screen, and

showing and hiding a screen shade. It also includes connectors for USB

peripherals and a computer or other input source (available connectors

vary by model, see

Connecting room computers and guest laptops

page49).

For more information about the convenience panel, see

Using the

convenience panel

on page21.

Autres manuels pour 6000S Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SMART Board Moniteur

SMART Board

SMART Board 6000S Series Manuel utilisateur

SMART Board

SMART Board GX V3 Series Manuel utilisateur

SMART Board

SMART Board SBID-6265S-C Manuel du produit

SMART Board

SMART Board 6065 HD Manuel du produit

SMART Board

SMART Board 6000S Series Manuel du produit

SMART Board

SMART Board 6000S Series Manuel utilisateur

SMART Board

SMART Board GX V2 Series Manuel utilisateur

SMART Board

SMART Board SBID-7075 Manuel utilisateur

SMART Board

SMART Board 8070i Manuel utilisateur

SMART Board

SMART Board 7000R Series Manuel utilisateur

SMART Board

SMART Board 7000 series Manuel du produit

SMART Board

SMART Board GX (V2) Series Manuel du produit

SMART Board

SMART Board 7000 Pro series Manuel du produit

SMART Board

SMART Board SBID-7275-V2 Manuel utilisateur

SMART Board

SMART Board SPNL-6275-V3 Manuel du produit

SMART Board

SMART Board 7000R Pro Series Manuel utilisateur

SMART Board

SMART Board 6000 Pro Series Manuel utilisateur

SMART Board

SMART Board 2000 series Manuel utilisateur

SMART Board

SMART Board 6075S Manuel du produit

SMART Board

SMART Board 6000S Pro Series Manuel utilisateur

SMART Board

SMART Board SBID-MX165 Mode d’emploi

SMART Board

SMART Board SBID-7075-V2 Manuel utilisateur

SMART Board

SMART Board 7000R Series Manuel utilisateur

SMART Board

SMART Board SBID-MX055-V3N-PW Manuel du produit

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
