Smacq Technologies USB-3100 Series Manuel utilisateur

USB-3100 Series Multifunctional

Data Acquisition Devices

User Manual

Rev. C

Smacq

Beijing Smacq Technology Co., Ltd.

Smacq.com

Smacq.cn

1 |

StatementL

No content of this manual may be reproduced, modified or abridged without prior consent and

written permission.

Trademark information

Smacq is a registered trademark ofBeijing Smacq Technology Co., Ltd.

The names ofthe other products and companies mentioned inthis document are trademarks or

trade names oftheir respective companies.

Other Disclaimer

The information provided in this document may be modified and updated in subsequent

versions without prior notice.

Smacq does not provide any warranties, express or implied, for this document as well as the

information inside it, including but not limited to implied warranties of the marketable nature

of the product and its suitability for a particular purpose.

There may be a chance that inaccurate descriptions or errors exist in this document. Smacq

does not hold any liability for accidents because of the information and deductive functions

provided in this manual, as well as the resulting loss of any chance because of the use of this

document.

Smacq reserves the rights to change product specifications, prices, and decide whether to stop

the production.

If you have any questions or need assistance in using this product or this document, please contact

us via:

Phone: (+86)10-52482802

E-Mail: servic[email protected]

Website: http://www.smacq.com

http://www.smacq.cn

2 |

Safety Requirements

Warning Only the voltage within the specified range can be connected. Voltage

exceeding the specified range may cause damage to the device, and even

present a negative impact on personal safety. Check the product

specification for detailed reference to the range of voltages that can be

connected by each port.

Warning Do not attempt to operate the device in other ways that are not

mentioned in this document. Incorrect use of the device may be

dangerous. In the event of device damage, the internal security

protection mechanism will also be affected.

Warning Do not attempt to replace device components or change devices in other

ways that are not mentioned in this document. Do not repair the device

yourself in the event of a product failure.

Warning Do not use the device in an environment where an explosion may occur

or where flammable flue or gas is present. If you must use the device in

this kind of environment, please fit it into a proper case.

Warning While the device is running, all chassis covers and fill panels need to be

closed.

Warning For equipment with exhaust vents, do not insert foreign objects into the

vents or block air circulation in the vents.

3 |

Measurement Categories

Warning For use in measurement category I (CAT I) only. Do not use in

measurement category II/III/IV. Use this device to connect signals or

make measurements.

Measurement categories Note

Measurement categories I (CAT I) means that measurements are made on a circuit that is not

directly connected to the main power supply. For example, a circuit that is not exported from the

main power supply, especially a circuit that is exported from a protected (internal) primary power

supply, is measured. In the latter case, the instantaneous stress will change. Therefore, the user

should be aware of the instantaneous affordability of the device.

Measurement categories II (CAT II) means that measurements are made on a circuit that is directly

connected to a low-voltage device. For example, a measurement on household appliances, portable

tools and similar equipment.

Measurement categories III (CAT III) means that measurements are made in construction

equipment. For example, a measurement on the distribution boards, circuit breakers, wiring

(including cables, Busbars, junction boxes, switches, sockets) in fixed equipment and equipment

for industrial use and certain other equipment (for example, fixed motors that are permanently

connected to fixtures).

Measurement categories IV (CAT IV) means that measurements are made on the source of

low-voltage equipment. For example, a measurement on a meter, a major overcurrent protection

device, and a pulse control unit.

4 |

Environment

Temperature

Operating 0℃ ~ 55℃

Storage -40℃ ~ 85℃

Humidity

Operating 5%RH ~ 95%RH, no condensation

Storage 5%RH ~ 95%RH, no condensation

Pollution degree 2

Highest elevation 2000 m

Pollution degree description

Pollution degree 1: No pollution, or only dry non-conductive pollution. This pollution degree has

no effect. For example: a clean room or an air-conditioned office environment.

Pollution degree 2: Generally only dry non-conductive pollution occurs. Temporary conduction

can sometimes occur due to condensation. For example: General indoor environment.

Pollution degree 3: Conductive pollution occurs, or dry non-conductive pollution becomes

conductive due to condensation. For example, an outdoor sheltered environment.

Pollution degree 4: Permanent conductive pollution caused by conductive dust, rain, or snow. For

example: Outdoor places.

Recycle precautions

Warning Some of the substances contained in this product may be harmful to the

environment or human health. In order to avoid releasing harmful

substances into the environment or endangering human health, it is

recommended that appropriate methods be used to recover this product

to ensure that most materials can be properly reused or recycled. For

information about processing or recycling, please contact your local

professional organizations.

5 |

CONTENT

SAFETY REQUIREMENTS................................................................................................................. 2

MEASUREMENT CATEGORIES .......................................................................................................3

ENVIRONMENT ................................................................................................................................... 4

1. GETTING STARTED....................................................................................................................7

1.1. PRODUCT INTRODUCTION ......................................................................................................... 7

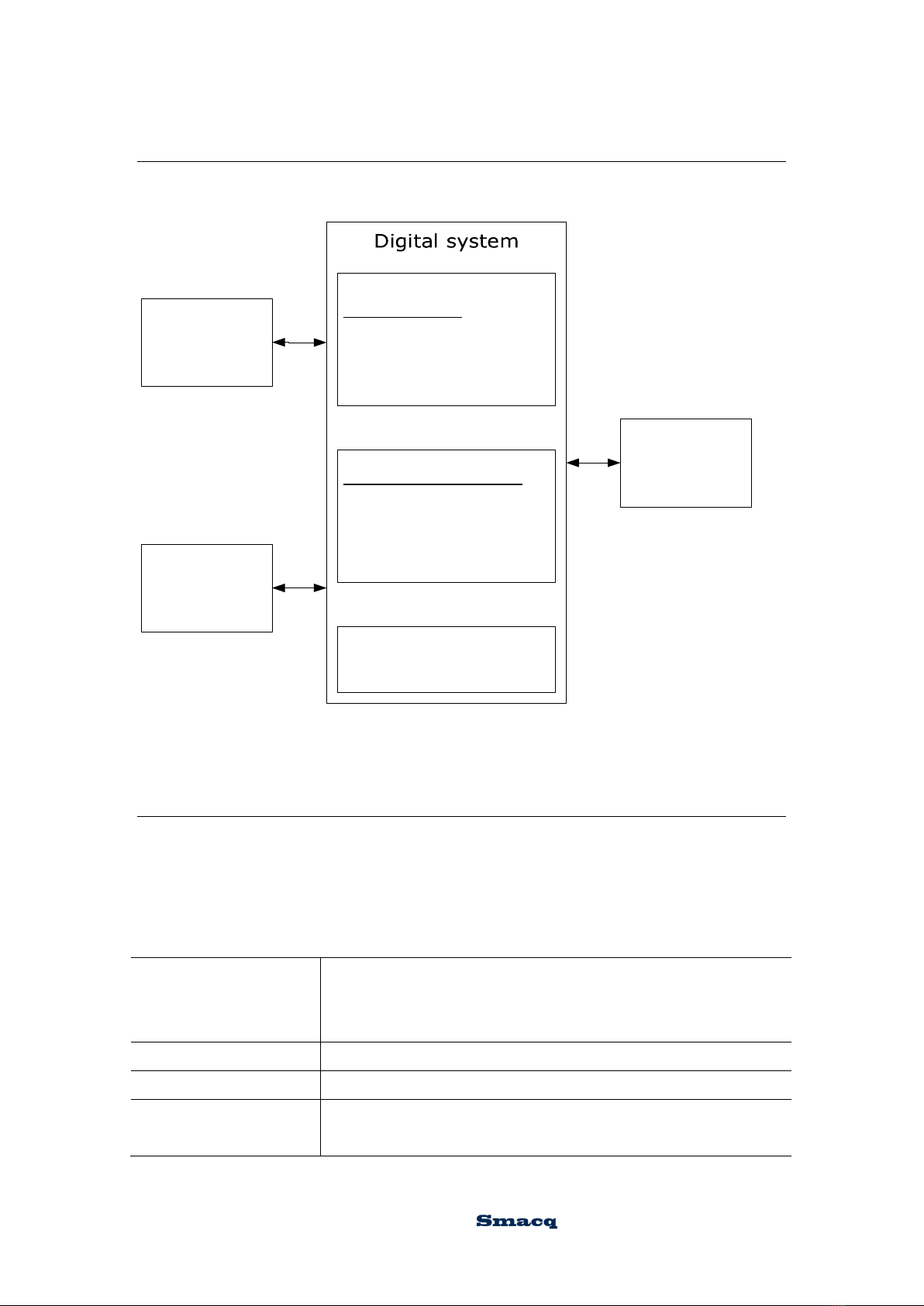

1.2. FUNCTION DIAGRAM ................................................................................................................8

1.3. PRODUCT SPECIFICATIONS ........................................................................................................ 8

1.4. PRODUCT UNPACKING.............................................................................................................12

Precautions .................................................................................................................................... 12

Check the packing list ....................................................................................................................13

2. INSTALLATION..........................................................................................................................14

2.1. CONNECTOR SIGNAL PINS DISTRIBUTION ................................................................................14

2.2. USB CABLE REINFORCEMENT DESIGN .................................................................................... 16

2.3. DRIVE INSTALLATION.............................................................................................................. 16

3. ANALOG INPUT（AI）............................................................................................................19

3.1. CIRCUIT DIAGRAM .................................................................................................................. 19

3.2. SIGNAL CONNECTION METHODS..............................................................................................19

3.3. FLOATING GROUNDED SIGNAL SOURCE ...................................................................................20

Using differential mode (DIFF) connection................................................................................... 20

Non-grounded reference single-ended mode (NRSE) connection ..................................................23

3.4. GROUNDED SIGNAL SOURCE ..................................................................................................24

Use a differential mode (DIFF) connection ...................................................................................24

Use a non-grounded reference single-ended mode (NRSE) connection .........................................25

3.5. SIGNAL ACQUISITION MODE .................................................................................................... 26

Hardware timing mode...................................................................................................................26

Continuous acquisition mode.........................................................................................................26

Limited number acquisition mode ..................................................................................................27

3.6. COMPREHENSIVE SAMPLING RATE AND SINGLE CHANNEL SAMPLING RATE .............................27

3.7. AI SAMPLING CLOCK ..............................................................................................................27

3.8. TRIGGER .................................................................................................................................28

Clear trigger ..................................................................................................................................29

Pre-trigger...................................................................................................................................... 29

4. ANALOG OUTPUT (AO) ...........................................................................................................31

4.1. CIRCUIT DIAGRAM ..................................................................................................................31

4.2. SIGNAL OUTPUT MODE............................................................................................................ 31

DC immediate output ..................................................................................................................... 31

Hardware timing ............................................................................................................................ 32

6 |

Finite number output mode ............................................................................................................32

Infinite loop output mode ...............................................................................................................32

Infinite non-loop output mode ........................................................................................................32

4.3. OUTPUT UPDATE RATE ............................................................................................................33

Synchronous update .......................................................................................................................33

4.4. AO SAMPLING CLOCK .............................................................................................................33

4.5. TRIGGER .................................................................................................................................34

Clear trigger ..................................................................................................................................35

5. DIGITAL INPUT（DI）............................................................................................................. 36

5.1. SIGNAL ACQUISITION MODE ....................................................................................................36

Hardware timing ............................................................................................................................ 36

Continuous acquisition mode.........................................................................................................36

Limited number acquisition mode ..................................................................................................37

5.2. SAMPLING RATE...................................................................................................................... 37

5.3. DI SAMPLING CLOCK ..............................................................................................................37

5.4. TRIGGER .................................................................................................................................38

Clear Trigger.................................................................................................................................. 39

Pre-Trigger ..................................................................................................................................... 39

6. DIGITAL OUTPUT（DO）.......................................................................................................40

6.1. SIGNAL OUTPUT MODE ............................................................................................................40

Immediate output............................................................................................................................ 40

Hardware timing ............................................................................................................................ 40

Finite number output mode ............................................................................................................40

Infinite loop output mode ...............................................................................................................41

Infinite non-loop output mode ........................................................................................................41

6.2. OUTPUT UPDATE RATE ............................................................................................................41

6.3. DO SAMPLING CLOCK .............................................................................................................42

6.4. TRIGGER .................................................................................................................................42

Clear trigger ..................................................................................................................................43

7. SYNCHRONIZATION SYSTEM............................................................................................... 44

7.1. SAMPLING CLOCK ...................................................................................................................44

7.2. EXTERNAL TRIGGER................................................................................................................ 45

8. SERVICE AND WARRANTY .................................................................................................... 47

9. ORDERING INFORMATION ...................................................................................................48

7 |

1. Getting Started

This chapter describes the basic functions ofUSB-3100 Series Data Acquisition Devices,as

well as product specifications and precautions in the process ofproduct unpacking.

1.1. Product introduction

USB-3100 Series data acquisition device is the multifunctional data acquisition devices based on

high-speed USB2.0 interface. When connected to thecomputer, it can be used for continuous

high-speed signal acquisition and high-speed control signal output.

USB-3100 series of data acquisition devices can measure analog anddigital signals continuously

and save the data tothe computer hard drive without interruption. Itcanalso provide digital signal

output, periodic repetitive signal output, and high-speed uninterrupted non-repetitive signal output

controlled bya computer.

USB-3100 series data acquisition device supports operating inWindows OS, providing standard

DLLs andsupport for mainstream development languages including VC++, VB, C#, LabVIEW,

and MATLAB.

USB-3100 series data acquisition device provides multiple models, in terms offunction and

performance. For detailed reference, please turn toChapter 1.3 for specification description of

each model.

Key Features

High speed USB interface, Plug and Play,USB powered

16-bit analog input resolution, support continuous uninterrupted acquisition

Up to 1MS/s sampling rate for analog input

Multi-range and separate range support on all analog input channels

Support single-ended or differential signals onall analog input channels

16-bitanalog output resolution, with output range of ±10V

Support 4 channel synchronous analog output, up to 100kS/s sampling rate

Support continuous analog output of nonrepetitive arbitrary waveforms ofinfinite

length

Analog output waveform supports calculation of scale and offset.

Up to 10MS/s/Ch sampling rate for digital I/O

8 |

1.2. Function Diagram

Figure 1.1 shows the schematic diagram ofUSB-3100 series data acquisition device.

USB bus

Trigger source:

Software trigger

External trigger

Din trigger

Sampling clock source:

Internal module sampling

clock source

External sampling clock

source

Digital I/O

FIFO cache

Figure 1.1 USB-3100 series data acquisition device functions

1.3. Product specifications

The following product specification parameters, unless otherwise stated, are acquired at the

temperature of 25°C and the humidity of 40%, while the device is turned on for 20 minutes.

Analog input

Number of channels

USB-3130/3131/3132/3133：24 Single-Ended /12 Difference

USB-3120/3121/3122/3123：16 Single-Ended / 8 Difference

USB-3110/3111/3112/3113：8 Single-Ended / 4 Difference

ADC type SAR

Resolution 16-bit

Highest sampling rate USB-3113/3123/3133: 1MS/s, continuous, all channels

USB-3112/3122/3132: 500Ks/s, continuous, all channels

9 |

USB-3111/3121/3131: 250Ks/s, continuous, all channels

USB-3110/3120/3130: 125KS/s, continuous, all channels

Timing resolution 10ns

Channel synchronization No

Range ±10.24 V/±5.12 V/±2.56 V/±1.28 V/±0.64 V

Input coupling mode DC

Input impedance 500 MΩ

Small signal bandwidth

(-3db）

450KHz

Input bias current 0.7nA

Analog input max voltage The ground voltage of each input side does not exceed ±12 V

Software FIFO 2 MPts/Ch

Pre-trigger FIFO 4096 Pts

AI capture mode Continuous acquisition mode and limited number acquisition mode

Analog input accuracy (with temperature coefficient of 5 ppm/℃)

Range Gain error

(ppm of reading)

Offset error

(ppm of range)

Random noise

(μVrms)

Full range

absolute

accuracy

(μV)

±10.24 V 20 10 195 820

±5.12 V 50 15 110 550

±2.56 V 55 30 70 315

±1.28 V 100 60 60 220

±0.64 V 200 120 50 100

Analog output

Number of channels 4

Resolution 16-bit

DNL ±1 LSB

Highest update rate 100 kHz/Ch

Timing resolution 10 ns

Channel

synchronization Yes

Input range ±10 V

Output coupling DC

Highest sampling rate

Table des matières

Autres manuels Smacq Technologies Stockage

Smacq Technologies

Smacq Technologies PCI-1132 Manuel utilisateur

Smacq Technologies

Smacq Technologies USB-3200 Series Manuel utilisateur

Smacq Technologies

Smacq Technologies PCI-1255 Manuel utilisateur

Smacq Technologies

Smacq Technologies USB-5200 Series Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
