PCI-1255 Multifunctional DAQ Device

User Manual

Smacq Technologies Co., Ltd.

2015-09-10

CONTENT

CHAPTER 1 OVERVIEW .......................................................................................................................3

1.1 PRODUCT INTRODUCTION............................................................................................................3

1.2 PRODUCT FEATURES ...................................................................................................................3

1.3 PRODUCT SPECIFICATIONS............................................................................................................4

CHAPTER 2 SIGNAL CONNECTION AND CONFIGURATION...................................................................6

2.1 OVERVIEW................................................................................................................................6

2.2 37-PIN -TYPE CONNECTION..........................................................................................................6

2.3 40-PIN IDC CONNECTER .............................................................................................................7

2.4 ANALOG INPUT CHANNEL SETTING.................................................................................................8

2.5 ANALOG INPUT RANGE SETTING ....................................................................................................9

2.6 ANALOG INPUT CALIBRATION........................................................................................................9

2.7 OTHER SETTINGS........................................................................................................................9

2.8 TIMED TRIGGER .......................................................................................................................10

CHAPTER 2 INSTALLATION AND TESTING.......................................................................................... 12

3.1 HARDWARE INSTALLATION .........................................................................................................12

3.2 INSTALLING DRIVER...................................................................................................................12

3.3 TESTING.................................................................................................................................13

CHAPTER 4 PROGRAMMING GUIDE .................................................................................................15

4.1 OVERVIEW..............................................................................................................................15

4.2 EXAMPLE CODES OVERVIEW .......................................................................................................15

4.3 LIBRARY FUNCTION DETAILS........................................................................................................15

GetCardCount() ...................................................................................................................15

OpenDevice().......................................................................................................................16

CloseDevice().......................................................................................................................16

CloseAllDevice()...................................................................................................................16

ReadDevice() .......................................................................................................................16

WriteDevice() ......................................................................................................................17

AiConfig() ............................................................................................................................17

AiRangeSet() ....................................................................................................................... 18

AiChanSet() .........................................................................................................................18

AiSampleRateSet() ..............................................................................................................19

IrqEnable() ..........................................................................................................................19

IrqDisable()..........................................................................................................................19

AiExtTrigEnable() ................................................................................................................20

AiExtTrigDisable() ...............................................................................................................20

AiSoft() ................................................................................................................................20

AiExtTrig() ...........................................................................................................................20

ClearHFifo() .........................................................................................................................21

GetHFifoStatus() .................................................................................................................21

ClearSFifo().......................................................................................................................... 21

GetSFifoStatus() ..................................................................................................................21

ReadSFifo()..........................................................................................................................22

DiRead() ..............................................................................................................................22

DoSet() ................................................................................................................................22

CTStart()..............................................................................................................................22

CTRead()..............................................................................................................................23

CTStop() ..............................................................................................................................23

CHAPTER 5 REGISTER DETAIL............................................................................................................ 24

CHAPTER 6 SERVICE AND WARRANTY ..............................................................................................26

Chapter 1 Overview

1.1 Product introduction

PCI-1255 is a high-performance data acquisition product that is feature-rich and

cost-effective. Based on 32-bit PCI interface, PCI-1255 can provide 12-bit with max sampling rate

of 500kS/s, up to 32 channels analog data acquisition. Equipped with 16 digital input channels, 16

digital output channels, and 3 16-dit timer/counter channels, this is the best choice for you

weighing cost control and the speed of completion.

Figure 1.1 shows the block diagram of PCI-1255.

1.2 Product features

32 channels single-ended analog input or 16 channels differential analog input

Up to 500kS/s analog input sampling rate

MUX

AI 0

AI 31

ADC

Logic

Memory

DIO

82C54

PCI

Controller

32-bit PCI Bus

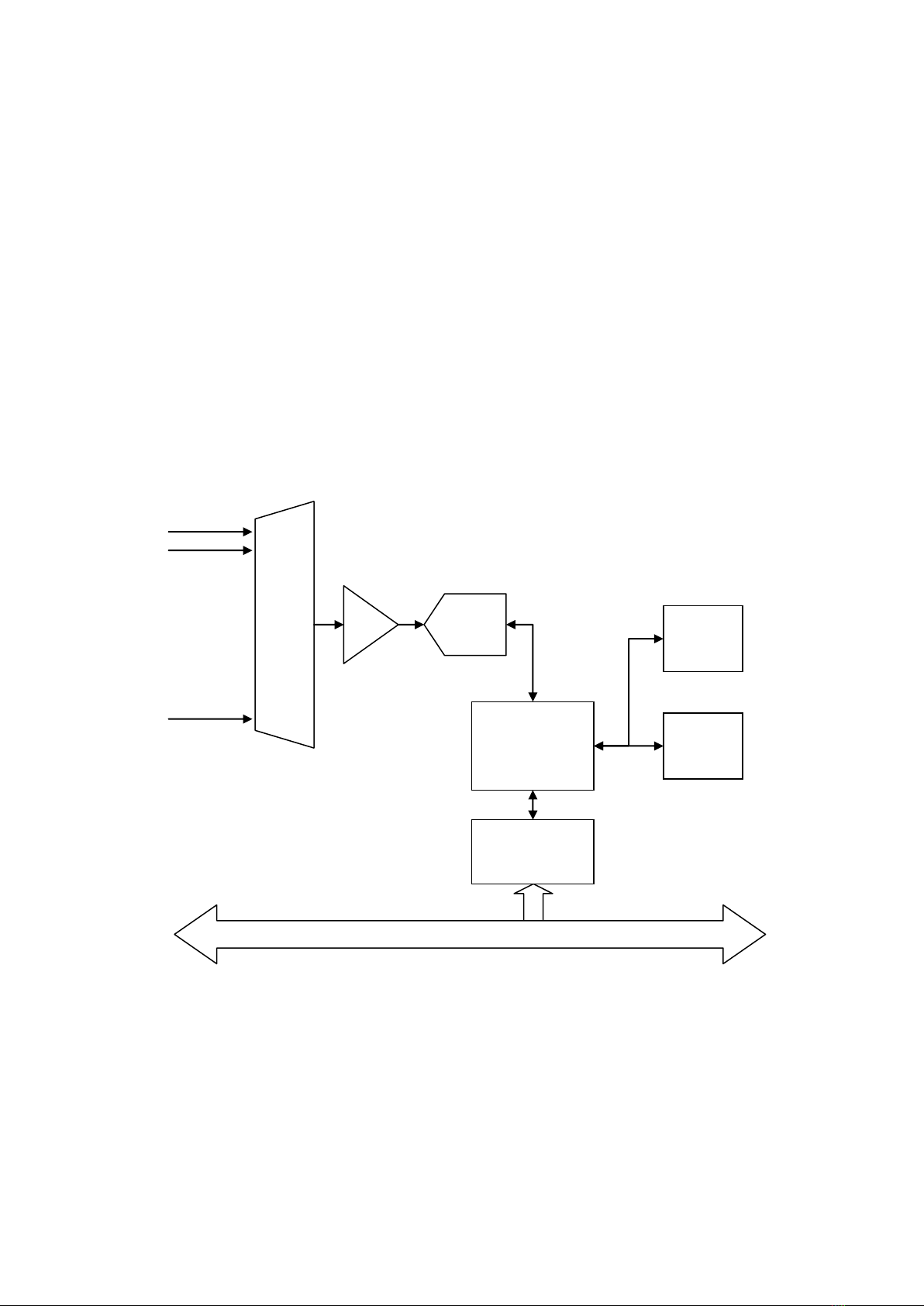

Figure 1.1、PCI-1255 block diagram

12-bit analog input resolution

Onboard 8k sampling points FIFO cache

16 channels digital input and 16 channels digital output

82C54 programmable timer/counter

LabVIEW、Visual Studio and MATLAB development support

1.3 Product specifications

Analog input

Channels

32 channels single-ended or 16 channels differential

configurable

Synchronous sampling

Sampling rate

Single channel acquiring：Max 500kS/s

Multiple channels scanning：Max 200kS/s

Resolution

12-bit

Range

0~10V or -5~5V configurable

Input resistance

1MΩ

Input coupling

Input FIFO cache

8192 sampling points

Trigger mode

Software trigger, timing trigger or external trigger

Interrupt source

External trigger interrupt or FIFO half full interrupt

Digital IO

Channels

16 channels digital input + 16 channels digital output

Logic level

5V TTL/CMOS compatible

Timer/Counter

Channels

Logic level

5V TTL/CMOS compatible

Max input frequency

8MHz

General specifications

Communication interface

32-bit PCI bus

Front connector

37-pin D-type connector

Back connector

40-pin IDC connector

Operating temperature

0~50℃

Storage temperature

-20~80℃

Dimension（mm）

175*106

Chapter 2 Signal connection and configuration

2.1 Overview

Before installing the DAQ device, you need to know the functions and positions of all

connectors, tuners and jumpers on PCI-1255 device.

PCI--1225 is equipped with two signal connectors. The 37-pin D-type connecter on its front

panel is mainly used for analog input. The 40-pin IDC connector on its back panel is mainly sued

for digital IO signal connection.

There are specific tuners and jumpers for specific settings of analog input calibration,

channel input mode, and trigger. More detail about them are in later chapters.

Figure 2.1 shows relative connectors and their corresponding settings.

2.2 37-pin -type connection

The 37-pin D-type connector is used for connections to analog input channels and the 3 OUT

ports on 82C54. Figure 2.2 shows its pin details. In the case that no analog input channel is being

used, it is best to ground it to increase the measurement accuracy of the device as much as

VR1

VR2

JP2

JP1

JP3

40-pin

IDC

37-pin

D-Type

Figure 2.1、connecters and settings positions

possible.

2.3 40-pin IDC connecter

40-pin IDC connecter is used for connection to digital IO channel and 3 timer/counter CLK-IN

port. Figure 2.3 shows its pin details.

19：OUT 0

18：OUT 2

17：AGND

16：AI 15

15：AI 14

14：AI 13

13：AI 12

12：AI 11

11：AI 10

10：AI 9

9：AI 8

8：AI 7

7：AI 6

6：AI 5

5：AI 4

4：AI 3

3：AI 2

2：AI 1

1：AI 0

37：OUT 1

36：DGND

35：AI 31

34：AI 30

33：AI 29

32：AI 28

31：AI 27

30：AI 26

29：AI 25

28：AI 24

27：AI 23

26：AI 22

25：AI 21

24：AI 20

23：AI 19

22：AI 18

21：AI 17

20：AI 16

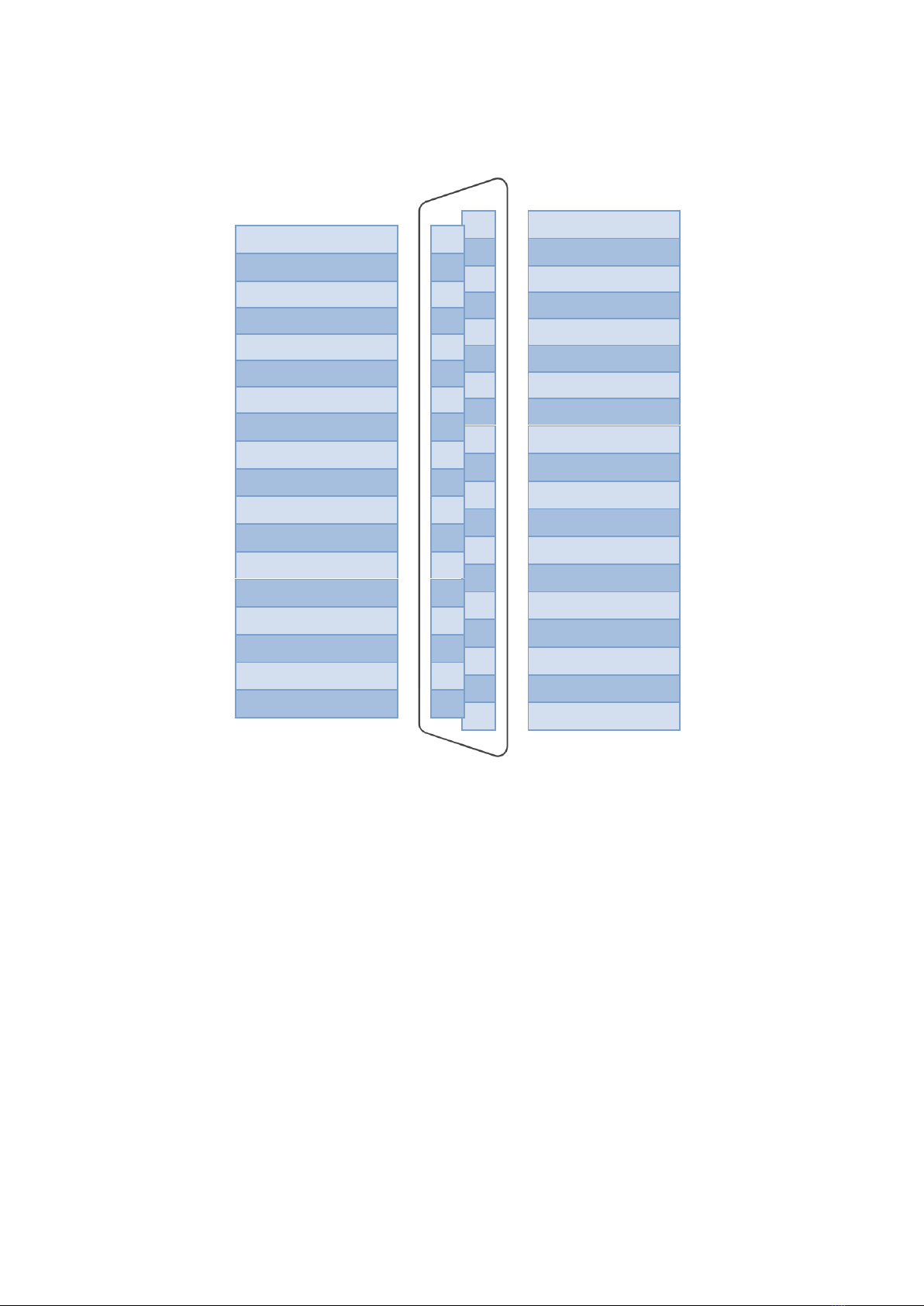

Figure 2.2、37-pin D-type connector pin details

2.4 Analog input channel setting

Jumper JP1 is for the setting of analog input channel, which can be set as single-ended input

or differential input as showed in Figure 2.4.





Singled-ended input





Differential input

Figure 2.4、Analog input channel setting

39：DGND

37：CLK-IN 2

35：CLK-IN 0

33：DGND

31：DO 14

29：DO 12

27：DO 10

25：DO 8

23：DO 6

21：DO 4

19：DO 2

17：DO 0

15：DI 14

13：DI 12

11：DI 10

9：DI 8

7：DI 6

5：DI 4

3：DI 2

1：DI 0

40：DGND

38：CLK-IN 2

36：CLK-IN 1

34：DGND

32：DO 15

30：DO 13

28：DO 11

26：DO 9

24：DO 7

22：DO 5

20：DO 3

18：DO 1

16：DI 15

14：DI 13

12：DI 11

10：DI 9

8：DI 7

6：DI 5

4：DI 3

2：DI 1

Figure 2.3、40-pin IDC connecter pin details

2.5 Analog input range setting

Jumper JP1 is for the setting of analog input range, which can be set as 0~10V range or

-5~5V range as shown in Figure 2.5.

2.6 Analog input calibration

A new PCI-1255 DAQ card will be factory-calibrated as 32 channels singled ended input with

0~10V range. It can be deployed right after basic verification. If there is any change on channel

input or range, it must be calibrated once again to make sure the DAQ card can acquire the

correct data.

The analog input correction is divided into two steps: correcting the full scale and correcting

the zero point. The regulator VR1 is used to correct the full scale and VR2 is used to correct the

zero point.

Be aware that in the calibration process, do not touch any conductive parts on the DAQ card

to avoid damaging the card or the computer.

Correction steps：

1、Enter the maximum voltage value of the range you set to any one of the analog input

channels. Adjust the VR1 so that the DAQ card measurements just reach this maximum voltage.

2、Connect the analog input channel to the AGND, adjust the VR2 so that the measurement

value on the DAQ card is just 0V.

3、Repeat the above two steps a few times to get the best correction result.

2.7 Other settings

Jumper JP3 is for relative settings on 82C54, the timing trigger and external trigger for





0~10V





-5~5V

Figure 2.5、Analog input range setting
