Skylab SKW71 EVB Manuel utilisateur
Sk
y
lab M&C Technolo
gy
Co., Ltd. SKW71-EVB-User Manual
SKW71-EVB-UM-001,A/1
1
SKW71 EVB User Manual
Sk
y
lab M&C Technolo
gy
Co., Ltd. SKW71-EVB-User Manual
SKW71-EVB-UM-001,A/1
2
Introduction
The SKW71 EVB offers a quick and easy way to evaluate the SKW71 module and the
SKW71 is a 802.11n/ b/g AP WiFi module.
The Evaluation Kit is including the following items:
1. One SKW71 module.
2. One SKW71 EVB.
3. One DC adaptor with micro USB connector cable.
4. One WIFI antenna.
5. This Manual.

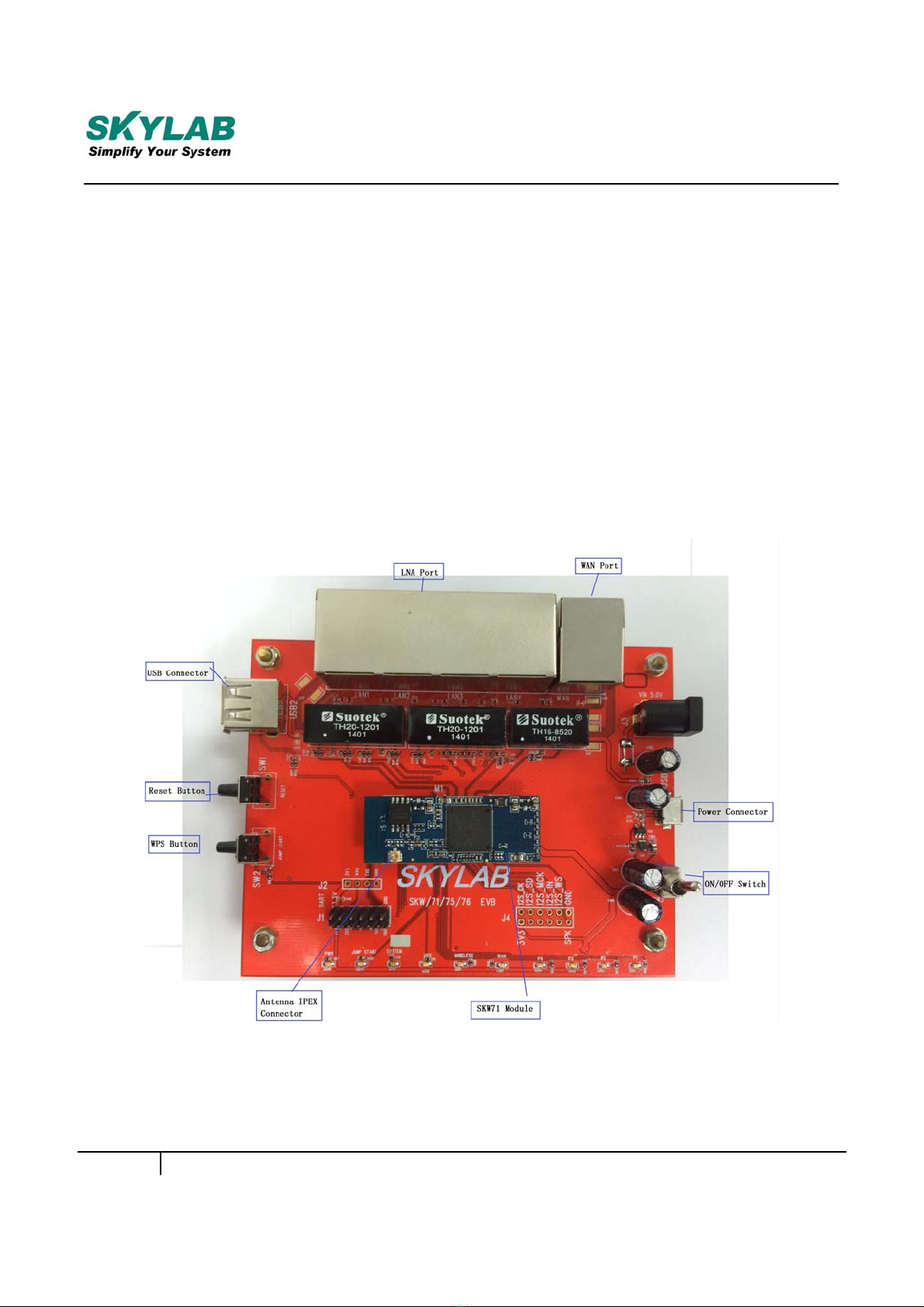

EVB Details
This section describes the various interfaces and switch settings for the SKW71-EVB
board.
EVB Hardware Installation
Sk
y
lab M&C Technolo
gy
Co., Ltd. SKW71-EVB-User Manual
SKW71-EVB-UM-001,A/1
3

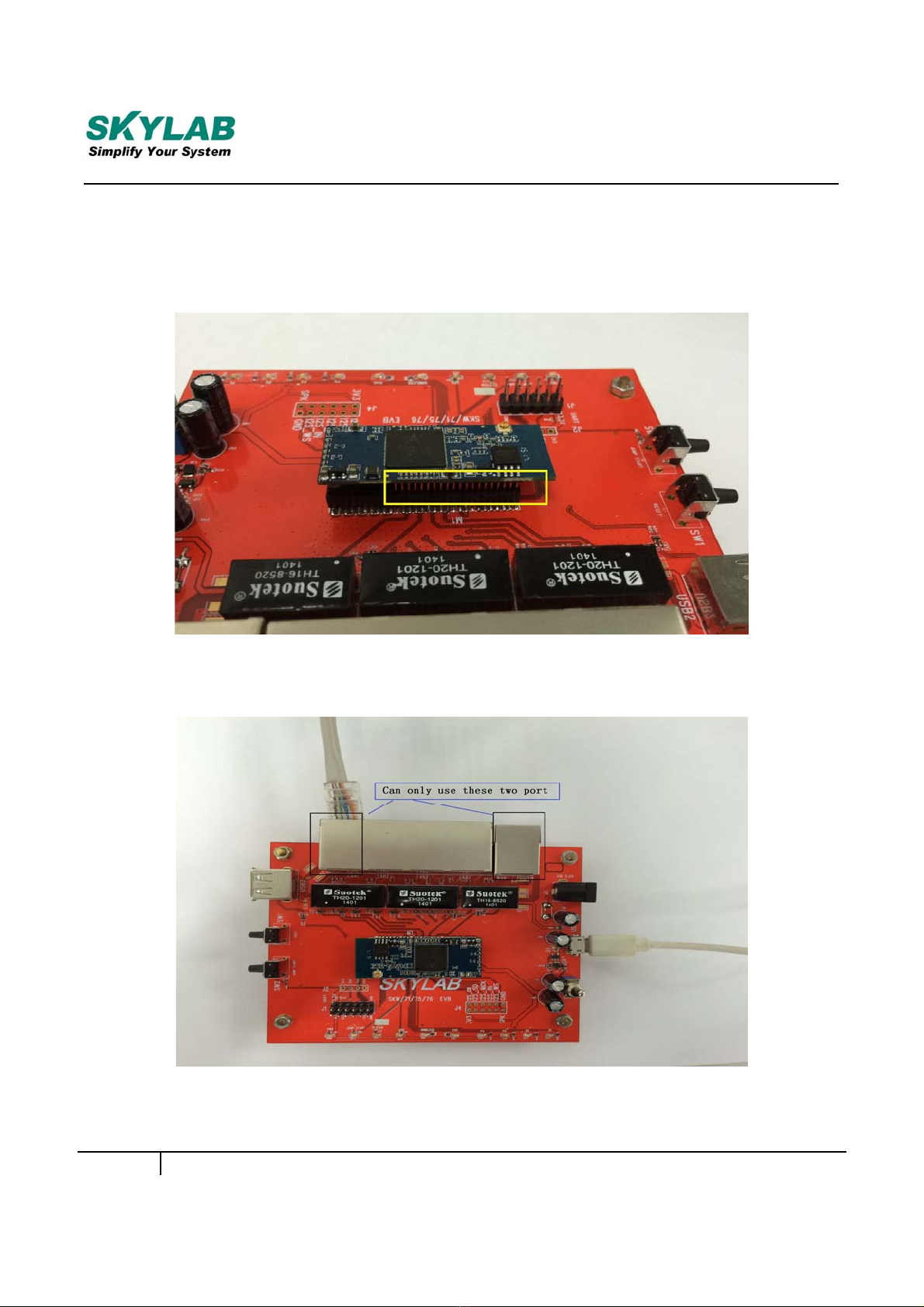

Step 1: Insert the module to the EVK board.
Note : The correct method is shown in the following figure:
Step 2: Insert the DC adaptor into the power-supply connector.
Step 3: Connect the another LAN port into PC`s RJ45 port.
Step 4: Connect the WiFi antenna.
Sk
y
lab M&C Technolo
gy
Co., Ltd. SKW71-EVB-User Manual
SKW71-EVB-UM-001,A/1
4
1. LoggingintotheModuleWeb
1）Connected SKW71 LAN port and PC`s RJ45 port；
2）Setup IP address：

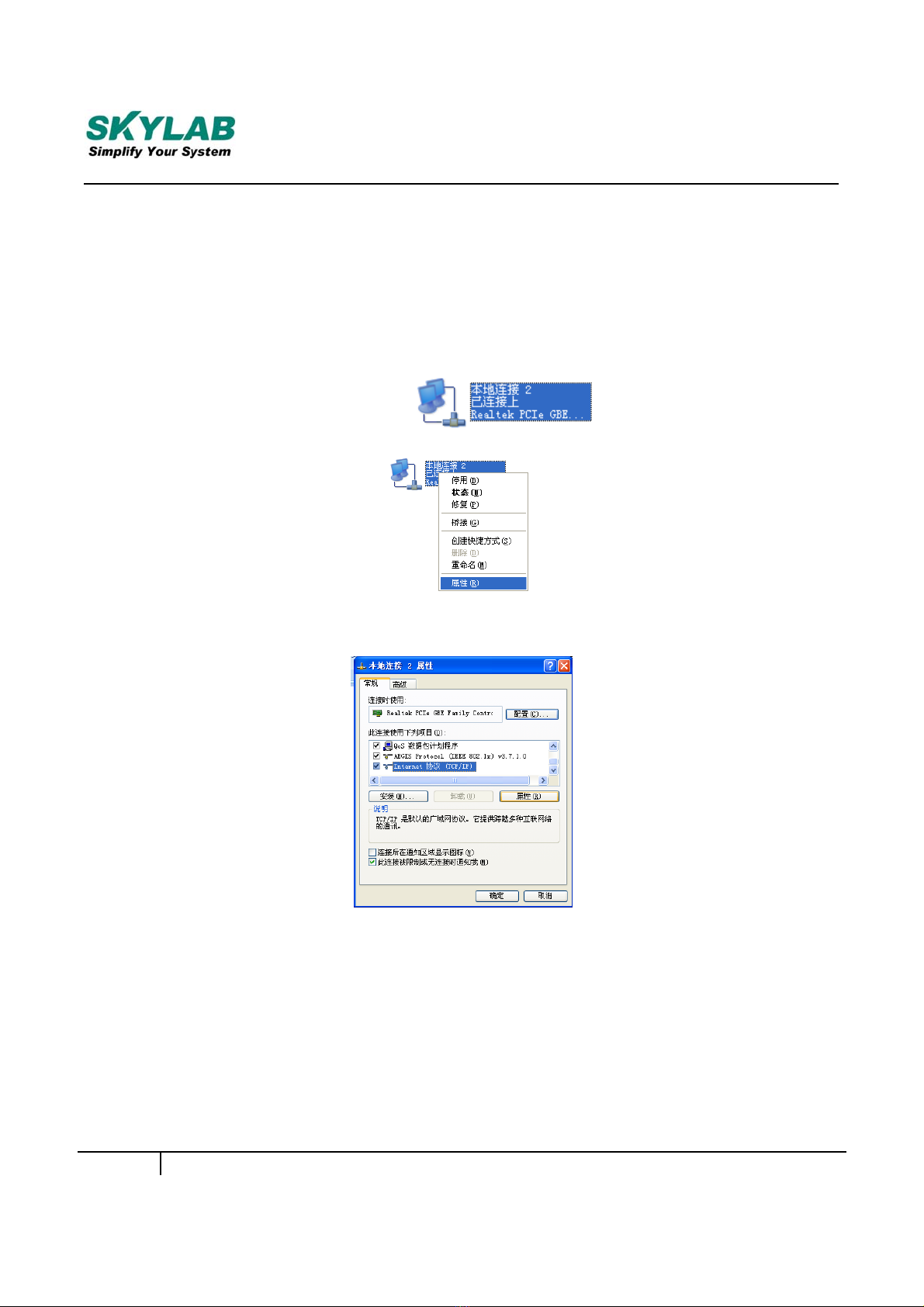

Step 1: Right-click the “local connection. This pic is chinese version.
Step 2: Click “attribute”
Step 3: Click “internet protocol(TCP/IP)”
Step 4: Set IP address Manually
Sk
y
lab M&C Technolo
gy
Co., Ltd. SKW71-EVB-User Manual
SKW71-EVB-UM-001,A/1
5

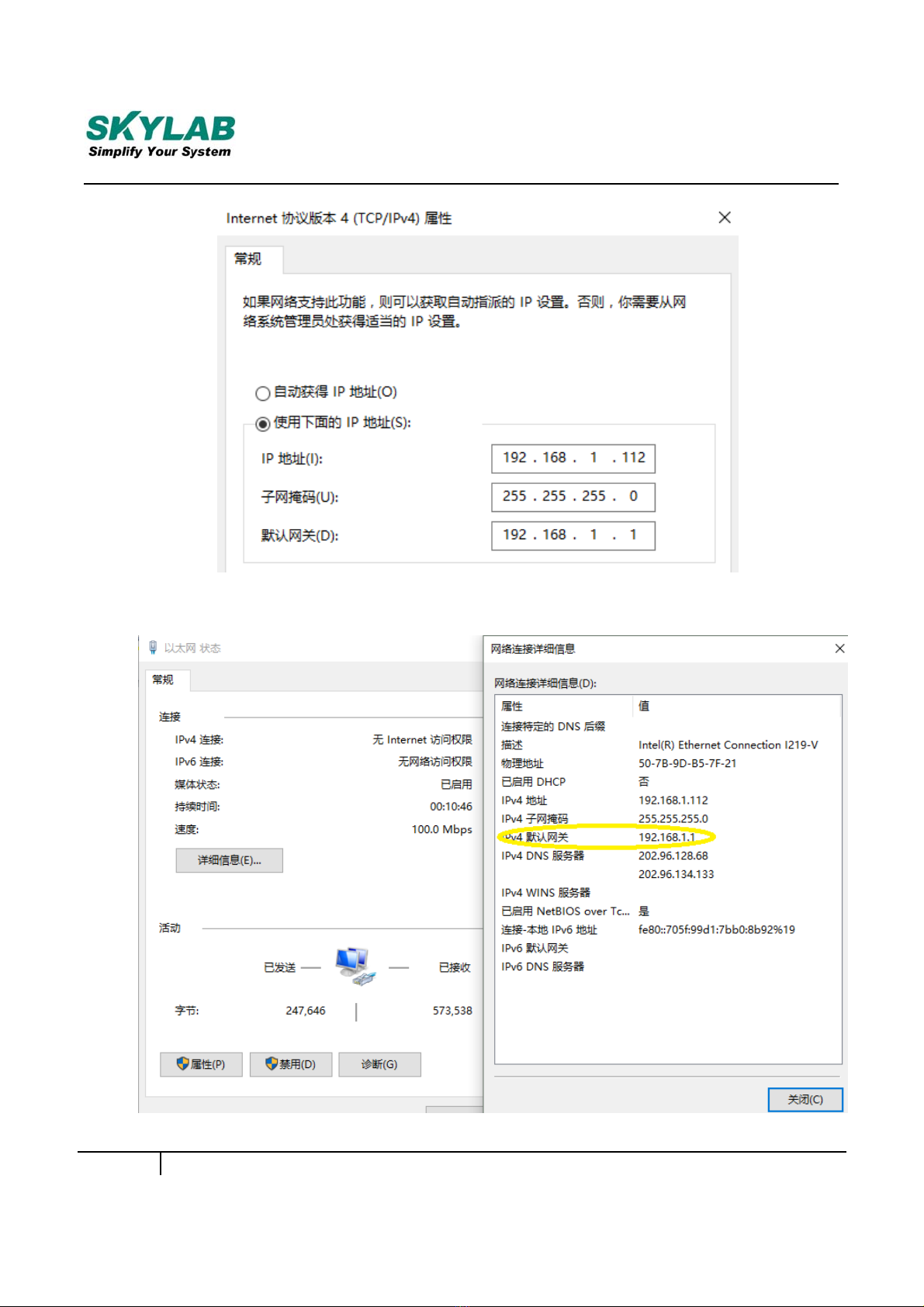

3）Check IP address according to the yellow tag in the pic.
Sk
y
lab M&C Technolo
gy
Co., Ltd. SKW71-EVB-User Manual
SKW71-EVB-UM-001,A/1
6

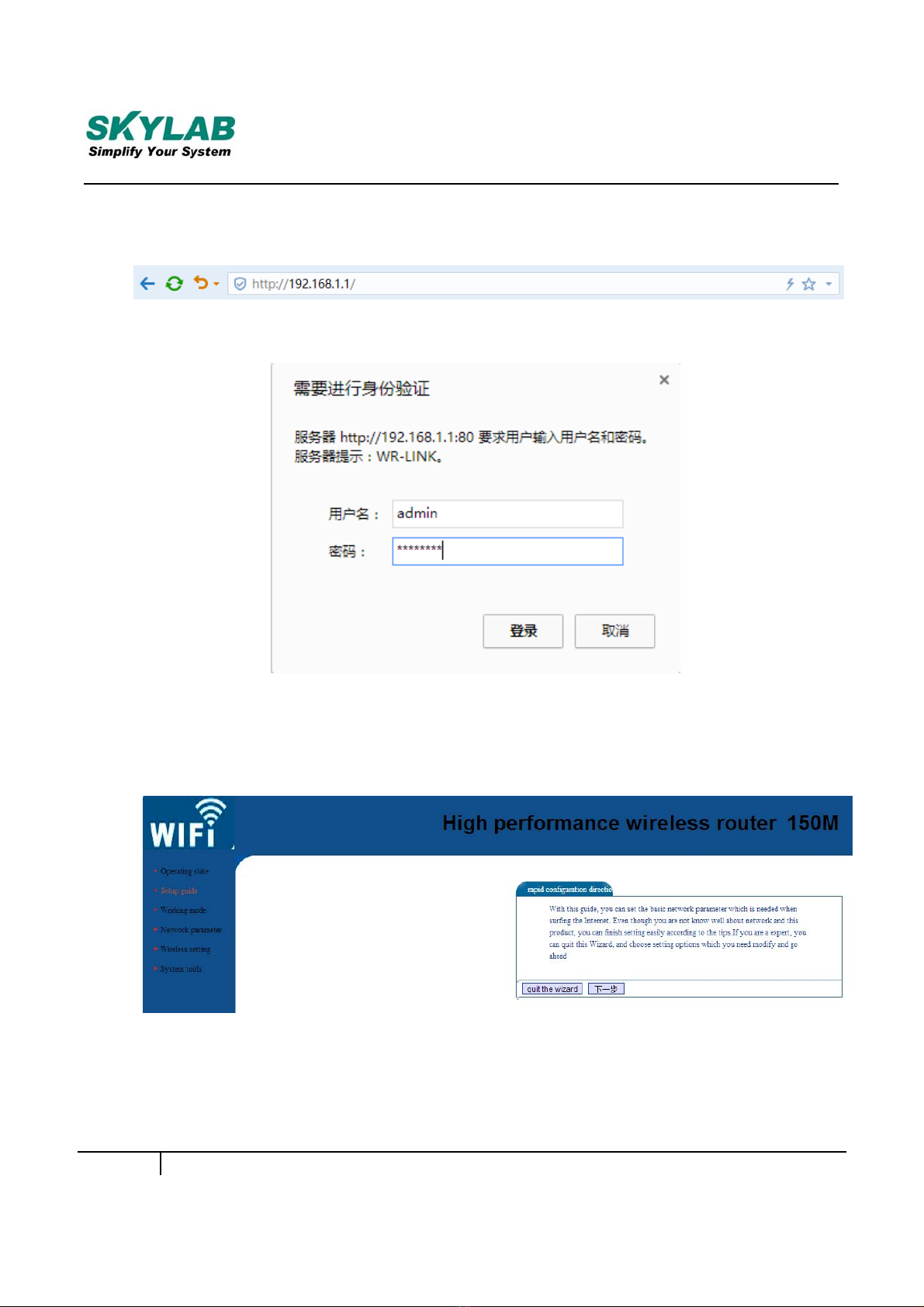

4）Web browser address: “http: //192.168.1.1”
5）User account: admin
Password: password
2. Setup“SetupGuide”
a. Click “Setup guide”, to enter configuration:

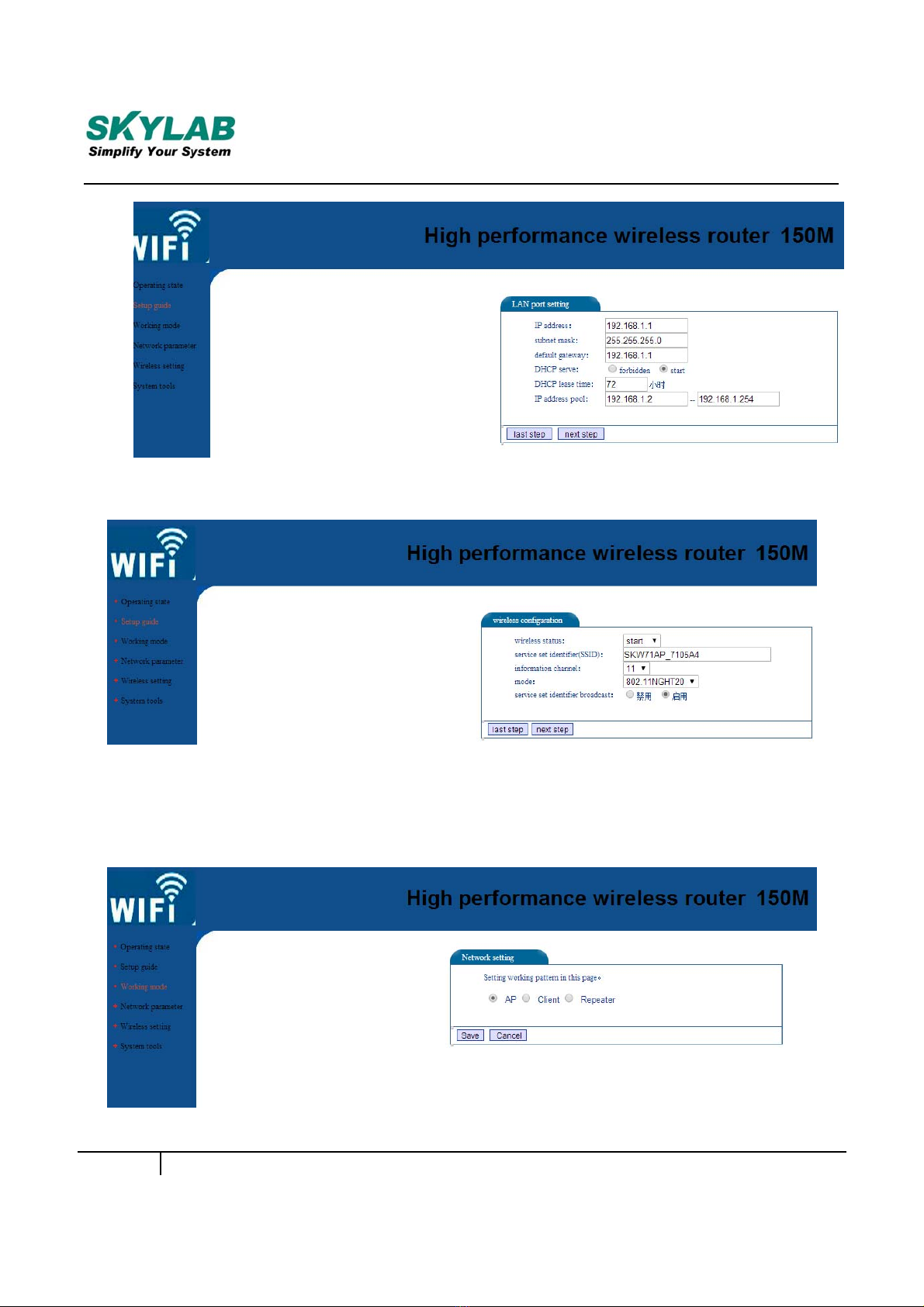

b. Click “下一步”, and then enter into LAN port setting:
Sk
y
lab M&C Technolo
gy
Co., Ltd. SKW71-EVB-User Manual
SKW71-EVB-UM-001,A/1
7
c. Click “next step”, and then enter into wireless configuration:
d. Click “next step”, setup finished.
3. Setup“Workingmode”
Sk
y
lab M&C Technolo
gy
Co., Ltd. SKW71-EVB-User Manual
SKW71-EVB-UM-001,A/1
8
1) AP mode
2) Repeater mode
3) Client mode
一． Setup “AP mode”

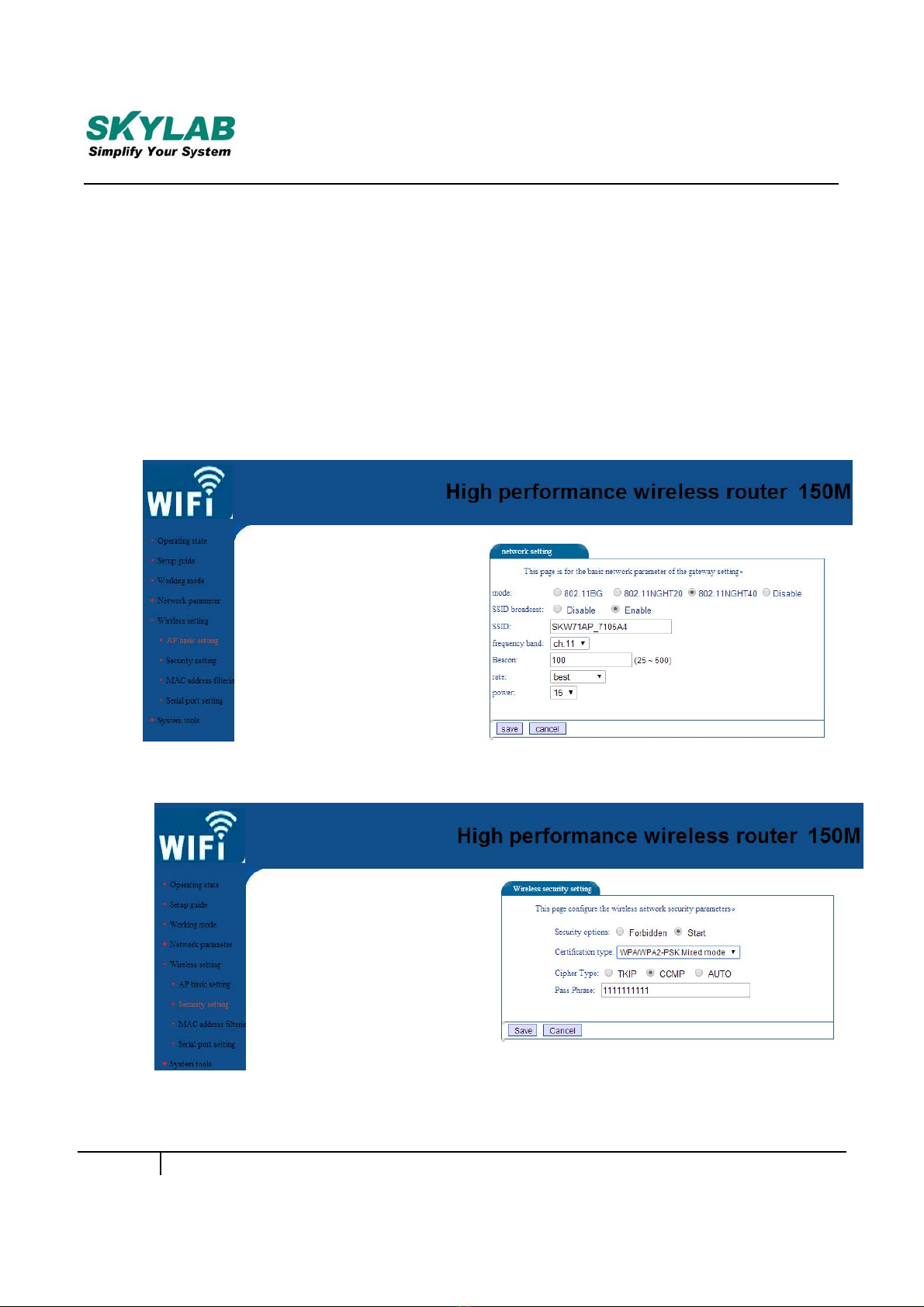

A. Click “Wireless setting”, enter into the “AP basic setting”:
B. Then enter into the “Security setting”:
C. Click “Network parameter”, and then enter into LAN port setting:
Sk
y
lab M&C Technolo
gy
Co., Ltd. SKW71-EVB-User Manual
SKW71-EVB-UM-001,A/1
9
二． Setup “Repeater mode”
A. Click “Wireless setting”, enter into the “repeater mode”:
Sk
y
lab M&C Technolo
gy
Co., Ltd. SKW71-EVB-User Manual
SKW71-EVB-UM-001,A/1
10

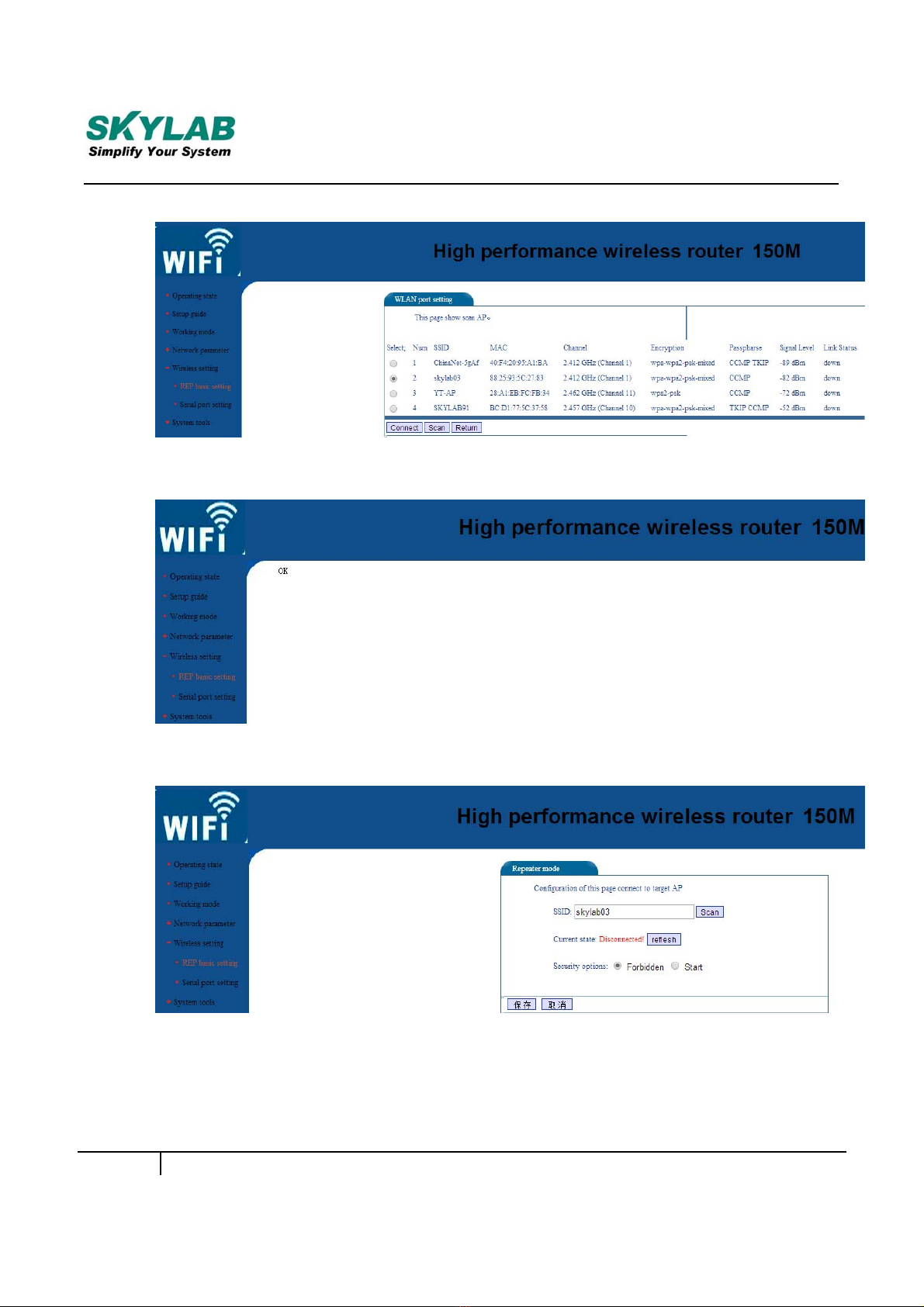

B. Click “Scan”, enter into the “WLAN port setting”:
C. Select AP, Click “connect”:
D. Click “Wireless setting”, enter into “repeater mode”:
E. Select security options, click “Start”:
