SKY-HERO Anakin Guide d'installation
Assembly
Instrucon Manual
2015.08
All manuals and user guides at all-guides.com
all-guides.com

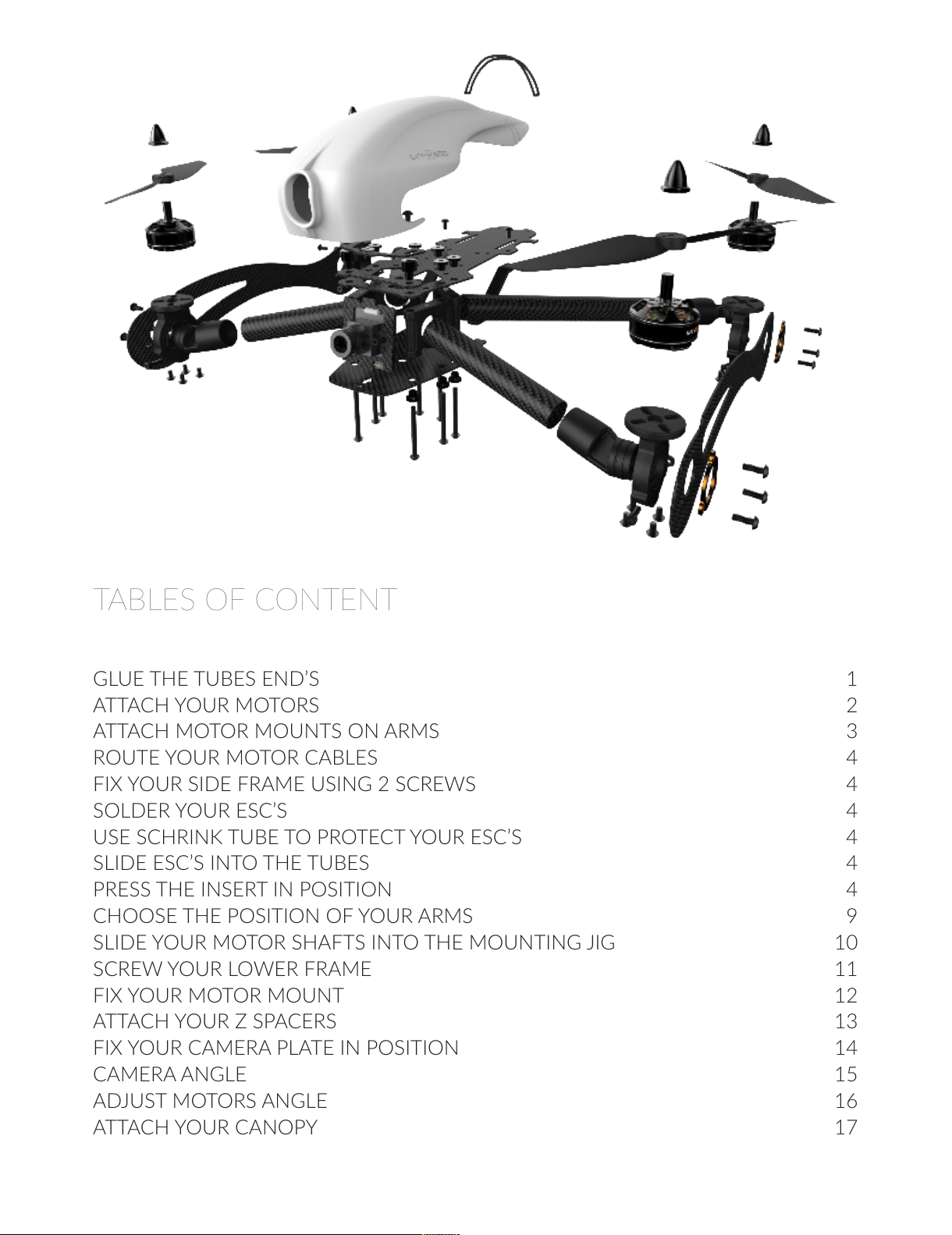

TABLES OF CONTENT
GLUE THE TUBES END’S 1
ATTACH YOUR MOTORS 2
ATTACH MOTOR MOUNTS ON ARMS 3
ROUTE YOUR MOTOR CABLES 4
FIX YOUR SIDE FRAME USING 2 SCREWS 4
SOLDER YOUR ESC’S 4
USE SCHRINK TUBE TO PROTECT YOUR ESC’S 4
SLIDE ESC’S INTO THE TUBES 4
PRESS THE INSERT IN POSITION 4
CHOOSE THE POSITION OF YOUR ARMS 9
SLIDE YOUR MOTOR SHAFTS INTO THE MOUNTING JIG 10
SCREW YOUR LOWER FRAME 11
FIX YOUR MOTOR MOUNT 12
ATTACH YOUR Z SPACERS 13
FIX YOUR CAMERA PLATE IN POSITION 14
CAMERA ANGLE 15
ADJUST MOTORS ANGLE 16
ATTACH YOUR CANOPY 17
All manuals and user guides at all-guides.com

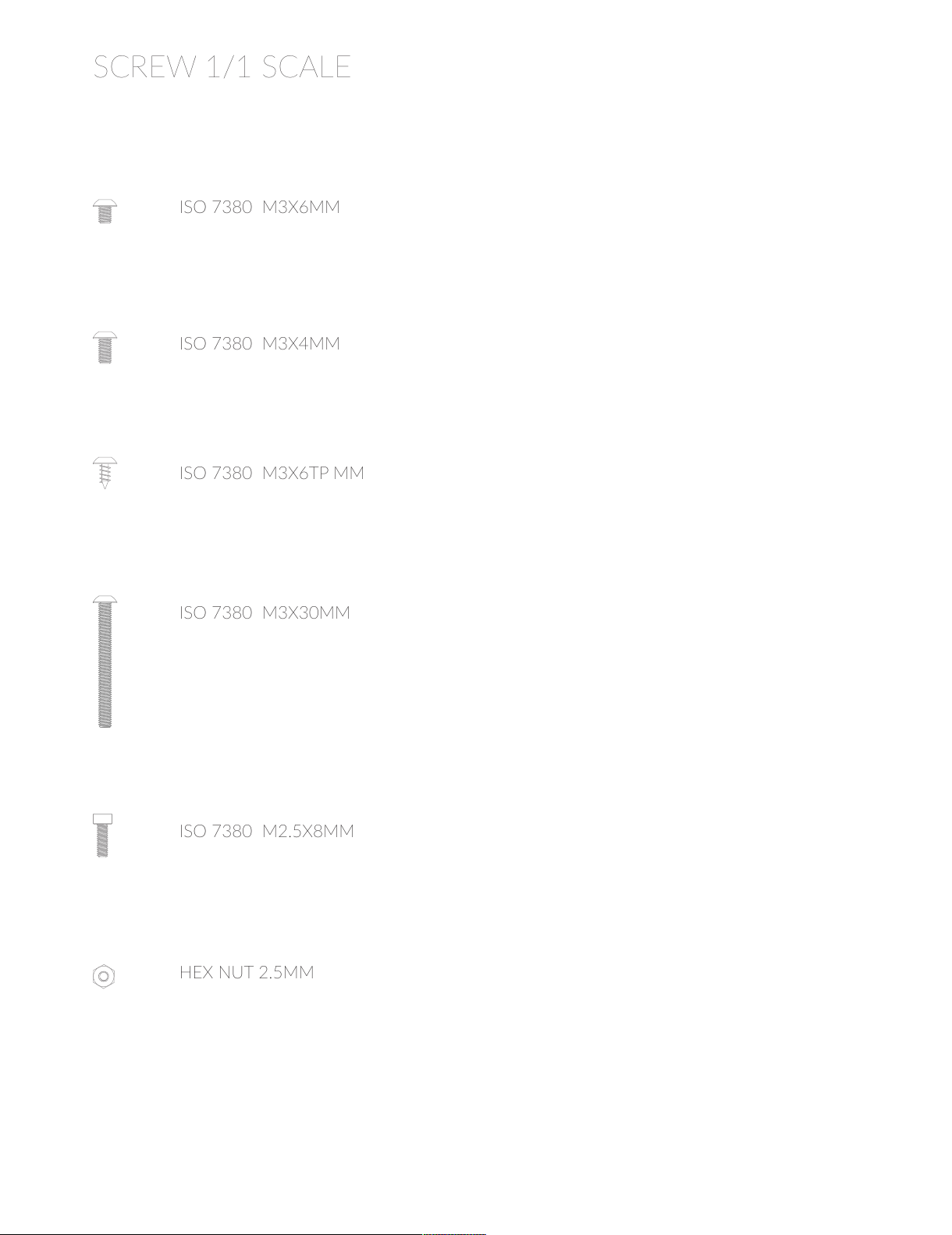

SCREW 1/1 SCALE
ISO 7380 M3X6MM
ISO 7380 M3X4MM
ISO 7380 M3X6TP MM
ISO 7380 M3X30MM
ISO 7380 M2.5X8MM
HEX NUT 2.5MM
All manuals and user guides at all-guides.com
SKH01-106-F
SKH01-106-R
SKH03-280 ( FRONT TUBE )
(ou SKH03-240)
SKH03-280 (REAR TUBE
(ou SKH03-240 )
USE EPOXY
GLUE
USE EPOXY
GLUE
8MM
8MM

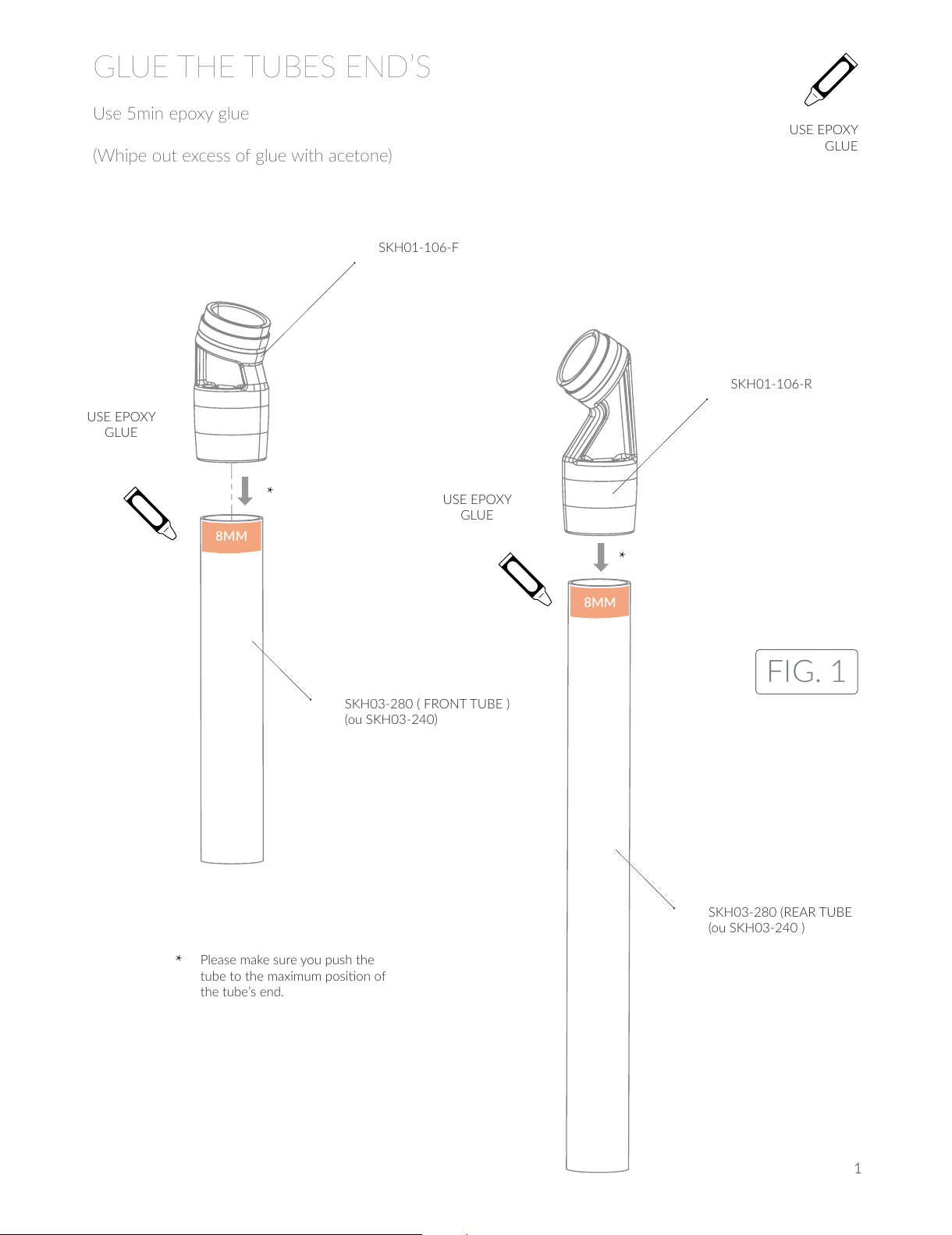

GLUE THE TUBES END’S
Use 5min epoxy glue
(Whipe out excess of glue with acetone)
1
Please make sure you push the
*
*
*
USE EPOXY
GLUE
FIG. 1
All manuals and user guides at all-guides.com
SKH04-009
SKH01-105
ISO 7380 M3x6MM

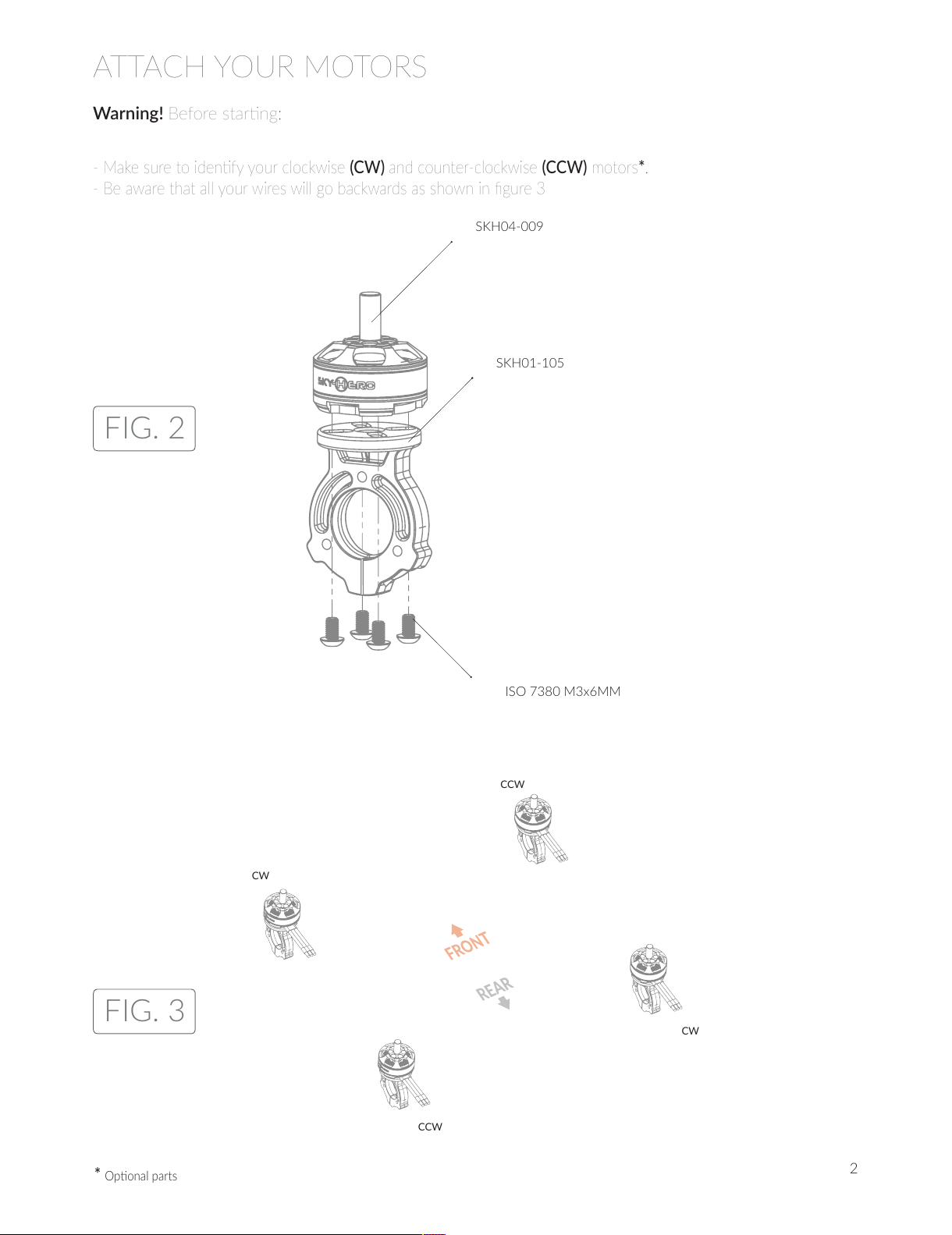

ATTACH YOUR MOTORS
Warning! Before starng:
- Make sure to idenfy your clockwise (CW) and counter-clockwise (CCW) motors*.
- Be aware that all your wires will go backwards as shown in gure 3
2
FIG. 2
FIG. 3
CW
CW
CCW
CCW
*
All manuals and user guides at all-guides.com
CW CCW
CCW CW
3

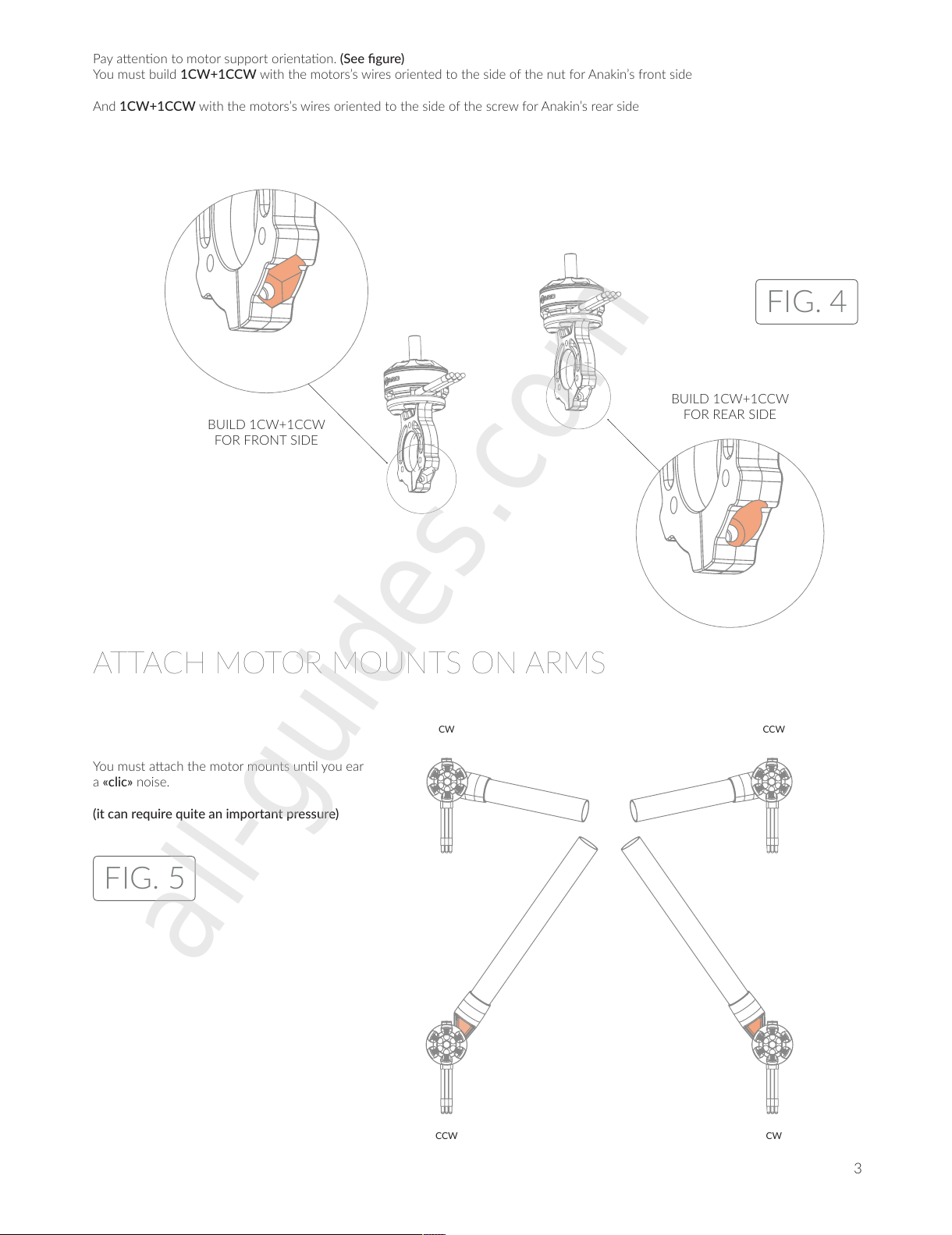

BUILD 1CW+1CCW
FOR FRONT SIDE
BUILD 1CW+1CCW
FOR REAR SIDE
(See gure)
1CW+1CCW
1CW+1CCW
FIG. 4
FIG. 5
ATTACH MOTOR MOUNTS ON ARMS
a «clic»
(it can require quite an important pressure)
All manuals and user guides at all-guides.com
all-guides.com
SKH03-280-A
OU ( SKH03-240-A )
( LEFT SIDE )
SKH01-170-00
(OPTION = SKH06-001)
ISO 7380
M3x8TP

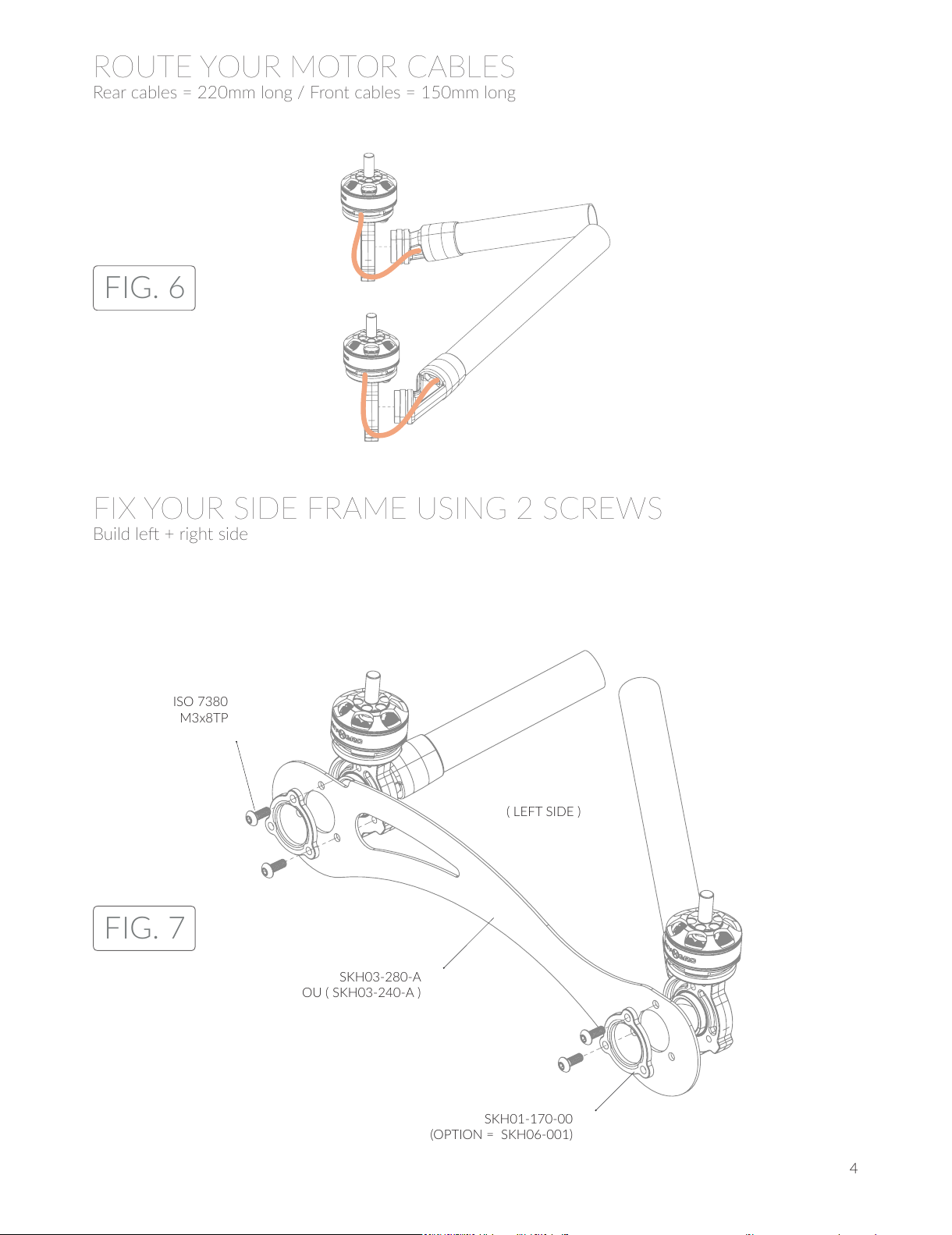

ROUTE YOUR MOTOR CABLES
Rear cables = 220mm long / Front cables = 150mm long
FIX YOUR SIDE FRAME USING 2 SCREWS
Build le + right side
4
FIG. 6
FIG. 7
All manuals and user guides at all-guides.com
SKH04-014*

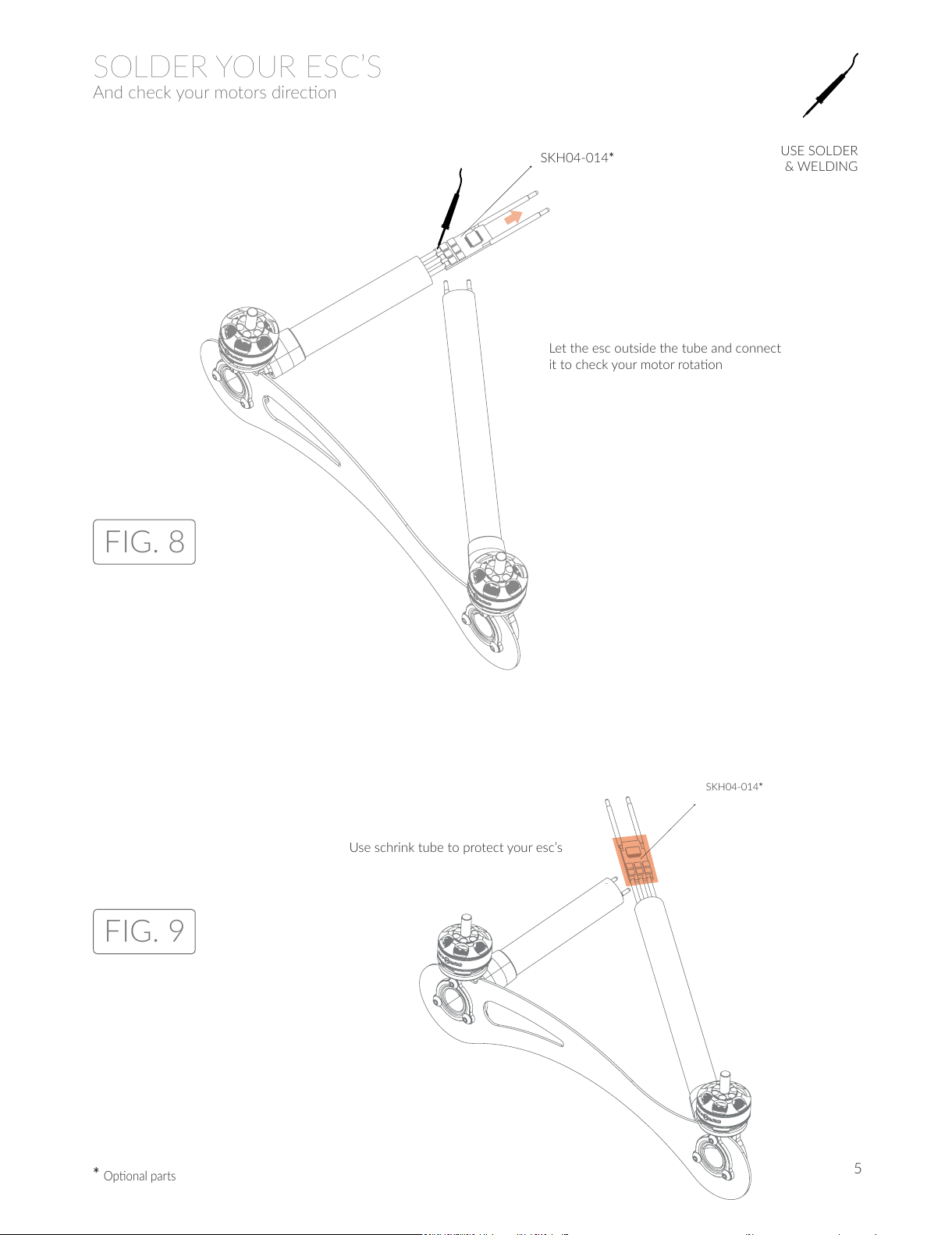

SOLDER YOUR ESC’S
And check your motors direcon
SKH04-014*
5
*
USE SOLDER
& WELDING
FIG. 8
FIG. 9
All manuals and user guides at all-guides.com
SLIDE ESC’S INTO THE TUBES
6
FIG. 10
All manuals and user guides at all-guides.com
SKH03-200-S
SH54-03
(FROM SKH07-111)
SH54-01
(FROM SKH07-111)
SKH03-200-U
SH54-03
(FROM SKH07-111)
SKH03-200-U
PRESS THE INSERT IN POSITION
In order to mount the frame you must rst insert the PEM’s by ghtening them
one by one unl you reach themaximum posion.
Use the threaded insert on upper frame.
TIP:
Use 1 frame spacer + 1
M3x30MM screw, to press
your insert in posion
Once nished you will have this:
7
THREADED
NOT THREADED
SH54-03
FIG. 11
