ISSUE DATE: JUNE 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: JAN 2018 APPROVED BY: J.ZIVANOVIC PAGE 8 OF 15
PRODUCT INFORMATION MANUAL
SECTION: 1A ALUMINIUM VENETIAN BLINDS
17-4 Ultimate Venetian BlindVersion 3.0

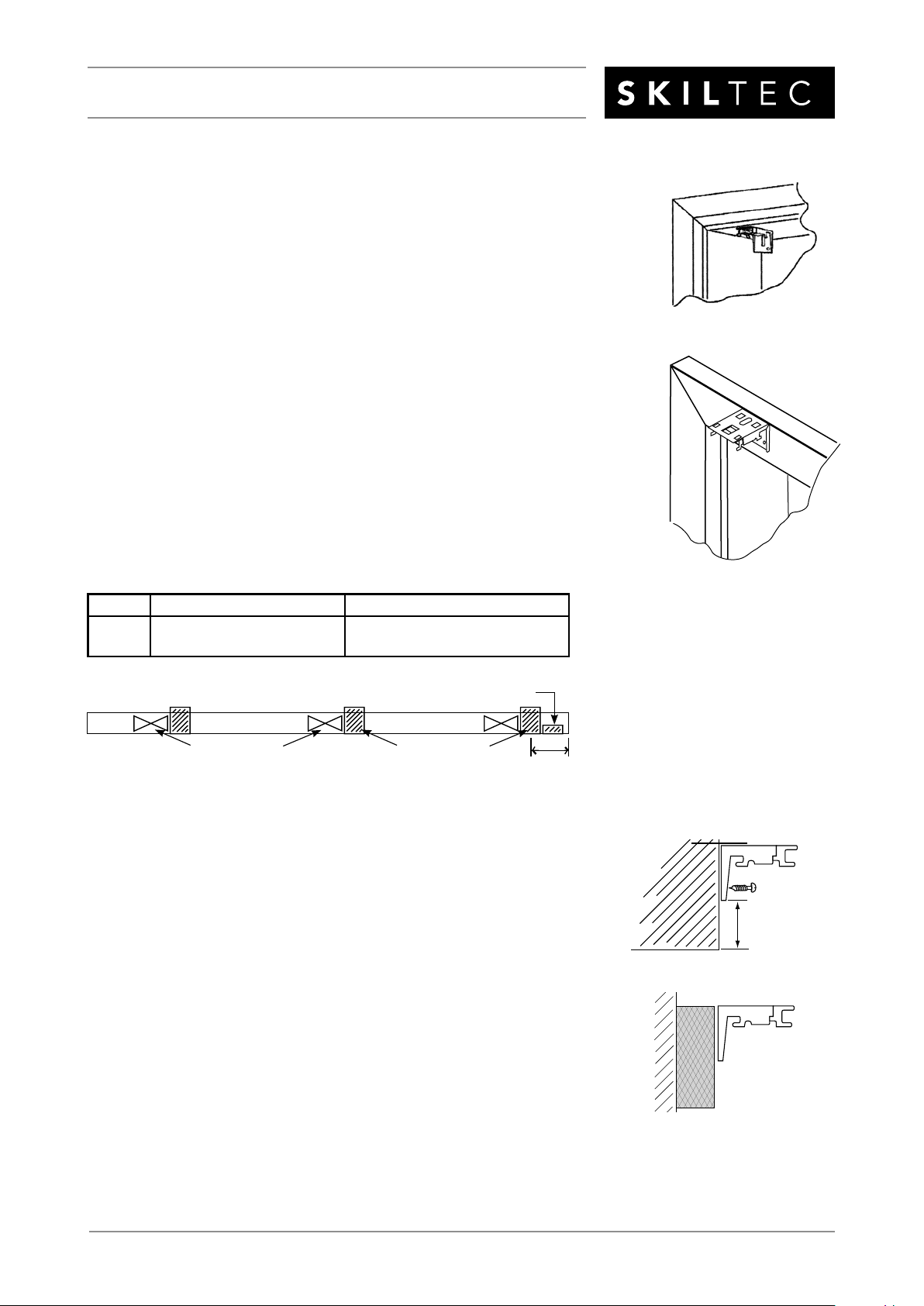

mounting
01-F0433.0
01-F0431.0
1
2
01-F0636.0
OPTIONAL EXTENSION BRACKETS
INSTALL THE BLIND
SIDE GUIDING

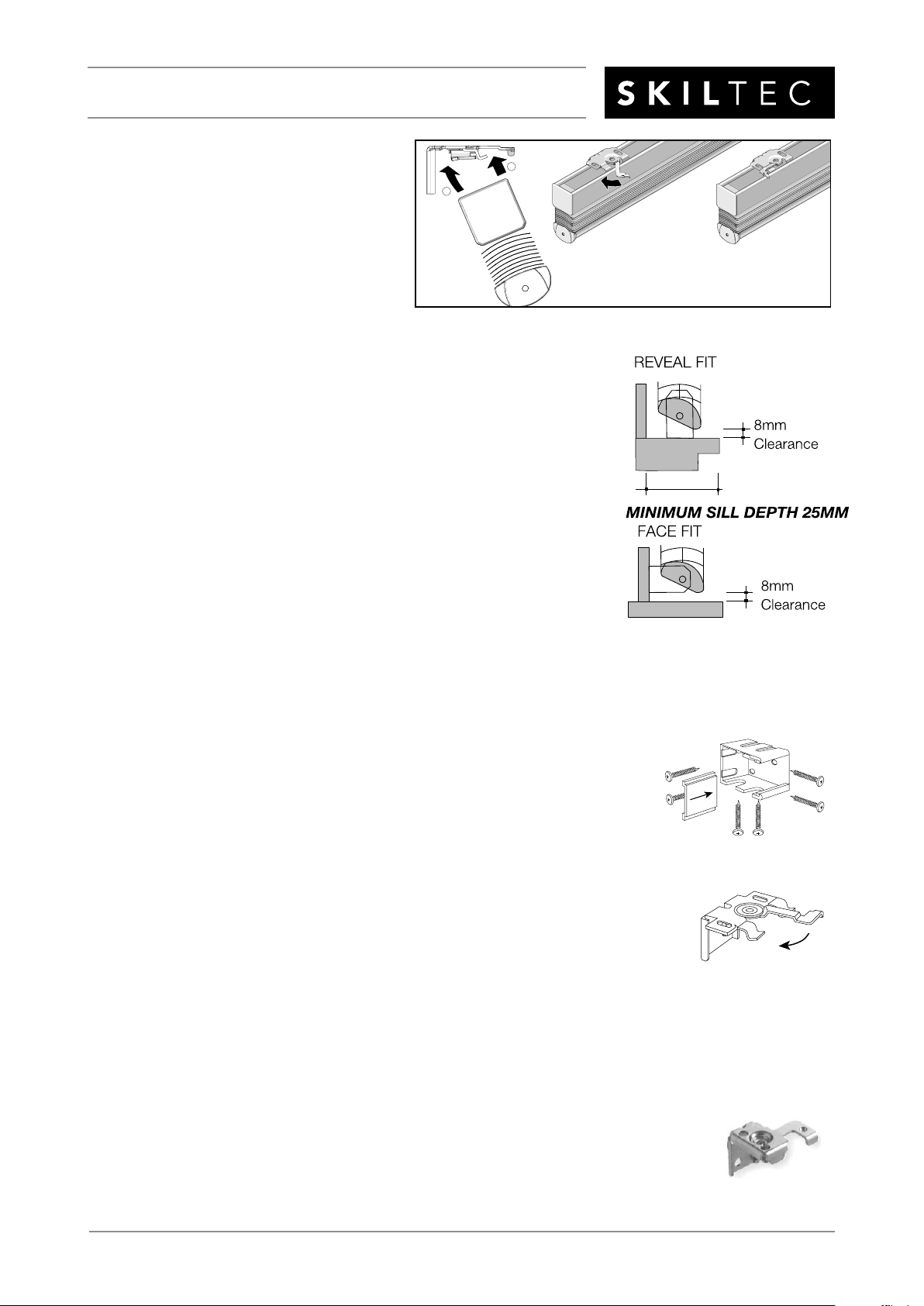

INSTALLING THE BLIND
Simply slip the headrail onto the front
hooks of the bracket, push inwards
and twist the back of the headrail
upwards in one motion. The headrail
will snap into position.
HOLD DOWN BRACKETS (OPTIONAL)
Hold-down Brackets are used to keep the bottom of the blind
from swaying in the breeze.
They may be Reveal (inside the window frame) or Face (outside
the window frame) mounted. With the blind fully lowered, place the
hold-down brackets onto the pins of the bottom rail and mark the
hole locations. Attach the bracket with screw/s supplied (20mm
x 6# Panhead). Place the bottom rail into the brackets, open and
close the blind.
NOTE: The drop ordered on a venetian blind is measured in
the closed position from the top of the headrail to the lowest
position on the bottom rail.
END MOUNTING BRACKETS (OPTIONAL)
These brackets are used in lieu of the spring mounting brackets.
Fixing Instructions:
Add 10mm to the headrail size, this gives you the position to fit the
outside edges of the end mounting brackets. End mounting brackets
can be screwed through the top, back or side as indicated. Brackets
are marked left or right. Use 2 Panhead 20 X 6 screws per bracket. If
swivel brackets are required, locate evenly along the headrail ensuring
not to foul the tape roll supports.
Fixing the Blind:
Insert slide into the bracket which will be closest to the tilter and
cordlock. Insert headrail into end mounting brackets, then fit remaining
slide. If using swivel brackets to support the centre of the blind, ensure
lever is fully out as indicated in the diagram. After the headrail has been locked into position
by end mount brackets, close lever on swivel brackets to lock into place (see arrow).
UNIWAND
These brackets are used in lieu of Uniwand. Uniwand mechanism is suitable
for 25mm and 16mm venetains only. By moving the uniwand lever up and
down the slats are raised or lowered to the desired position. These brackets
help keep the headrail fixed while under tension when operating the blind.
