Sirio Antenne TG 819 Manuel utilisateur

Model

TG 819, TG 918TG 819, TG 918

TG 819, TG 918

On-Glass Dual-Band AntennaOn-Glass Dual-Band Antenna

On-Glass Dual-Band Antenna

(TG 819: AMPS(TG 819: AMPS

(TG 819: AMPS & PCS. TG 918: GSM 900 & 1800)PCS. TG 918: GSM 900 & 1800)

PCS. TG 918: GSM 900 & 1800)PCS. TG 918: GSM 900 & 1800)

PCS. TG 918: GSM 900 & 1800)

Installation ManualInstallation Manual

Installation Manual

BCopyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 16/06/2003 - Cod. ID246

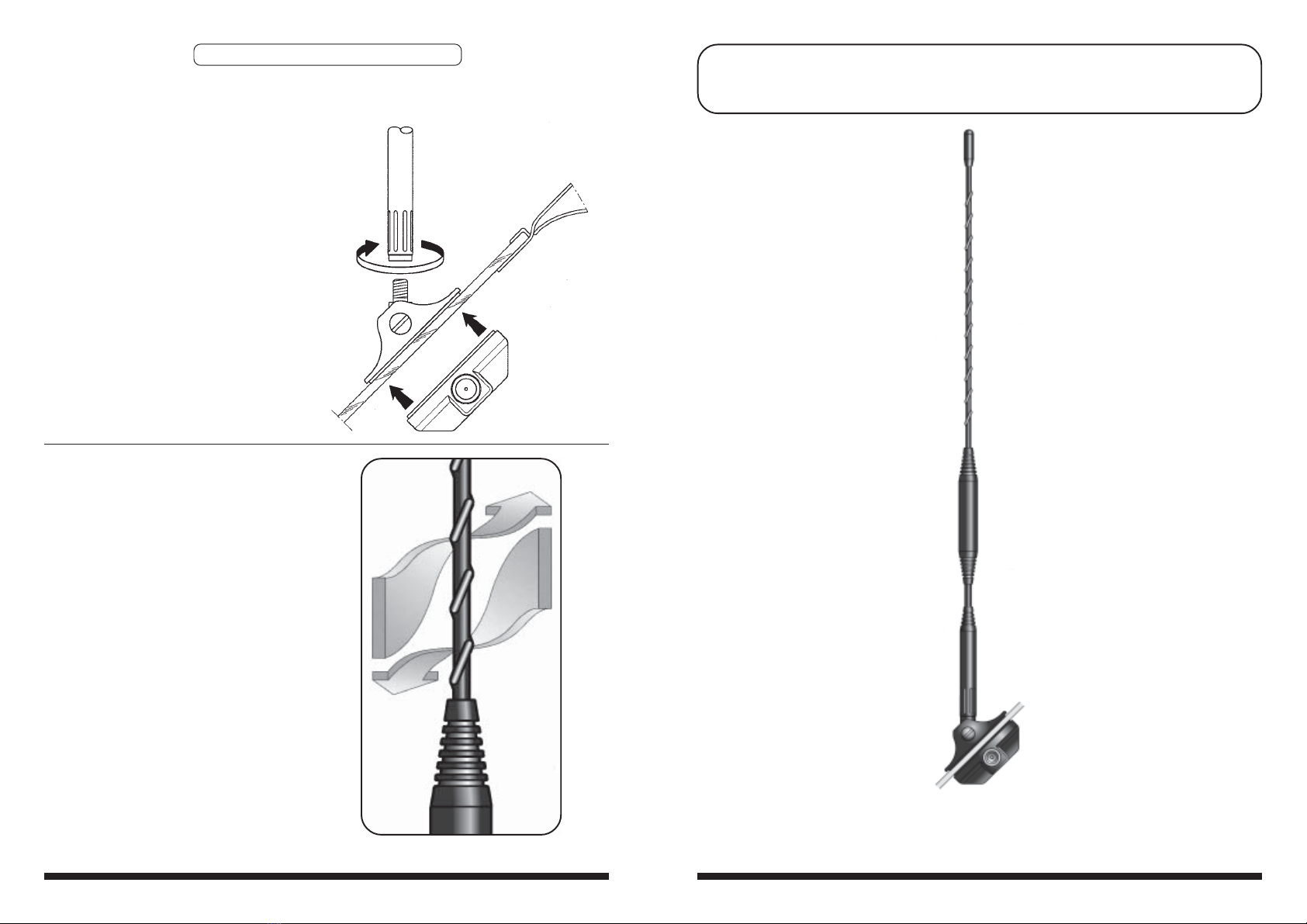

MOUNTING INSTRUCTIONS

2. Repeat the above mentioned instructions

to fit the coupling-box at the inside window;

but you have to pay attention to the coupling-

box that must to coincide with the outside

mount profile.

3. Screw the FME connector at the coupling-

box.

4. As the final stage of your installation, screw

the whip at the mount joint; lock the joint by

using a screw-driver and keep the whip in a

vertical position.

DESCRIPTION

TG 918 and TG 819 are a dual-band mobile antennas conceived for cellular system working on

GSM 900 & 1800 MHz (TG 918) or AMPS & PCS (TG 819). The whip can be easily adjusted in

vertical position and can be detached for car-washes access. It is made of 17/7 PH stainless steel

protected by a thermoplastic material. The box made of ABS is screened and has a printed circuit

in Microstrip technology. The 3M VHB adhesive supplied guarantees a perfect adherence in bad

atmospheric conditions too.

SPECIFICATIONS

Electrical Data

Type : 1/4 λat both bands

Frequency Range

TG 819 : 824-894 MHz (AMPS) &1.85-1.99 GHz (PCS)

TG 918 : 880-960 MHz (GSM 900) &1.71-1.88 GHz (GSM 1800)

Impedance : 50 ΩUnbalanced

Radiation : Omnidirectional

Polarization : Vertical

Gain (both models) : 0 dB ref. to λ/4 whip on glass at both bands

V.S.W.R.:

TG 819 : AMPS TX band (824-849 MHz) ≤1.7:1

AMPS RX band (869-894 MHz) ≤2.4:1

PCS (1.85-1.99 GHz) ≤2.2:1

TG 918 : GSM 900 band (880-960 MHz) ≤2:1

GSM 1800 band (1.71-1.88 GHz) ≤1.8:1

Max Power : 10 Watts

Coupling box Connection : FME Male

Mechanical Data

Materials : Stainless steel 17/7 PH, Chromed brass, ABS

Height (approx.) : 100 mm

Weight (approx.) : 50 gr

Mounting : "On-Glass"

ID246

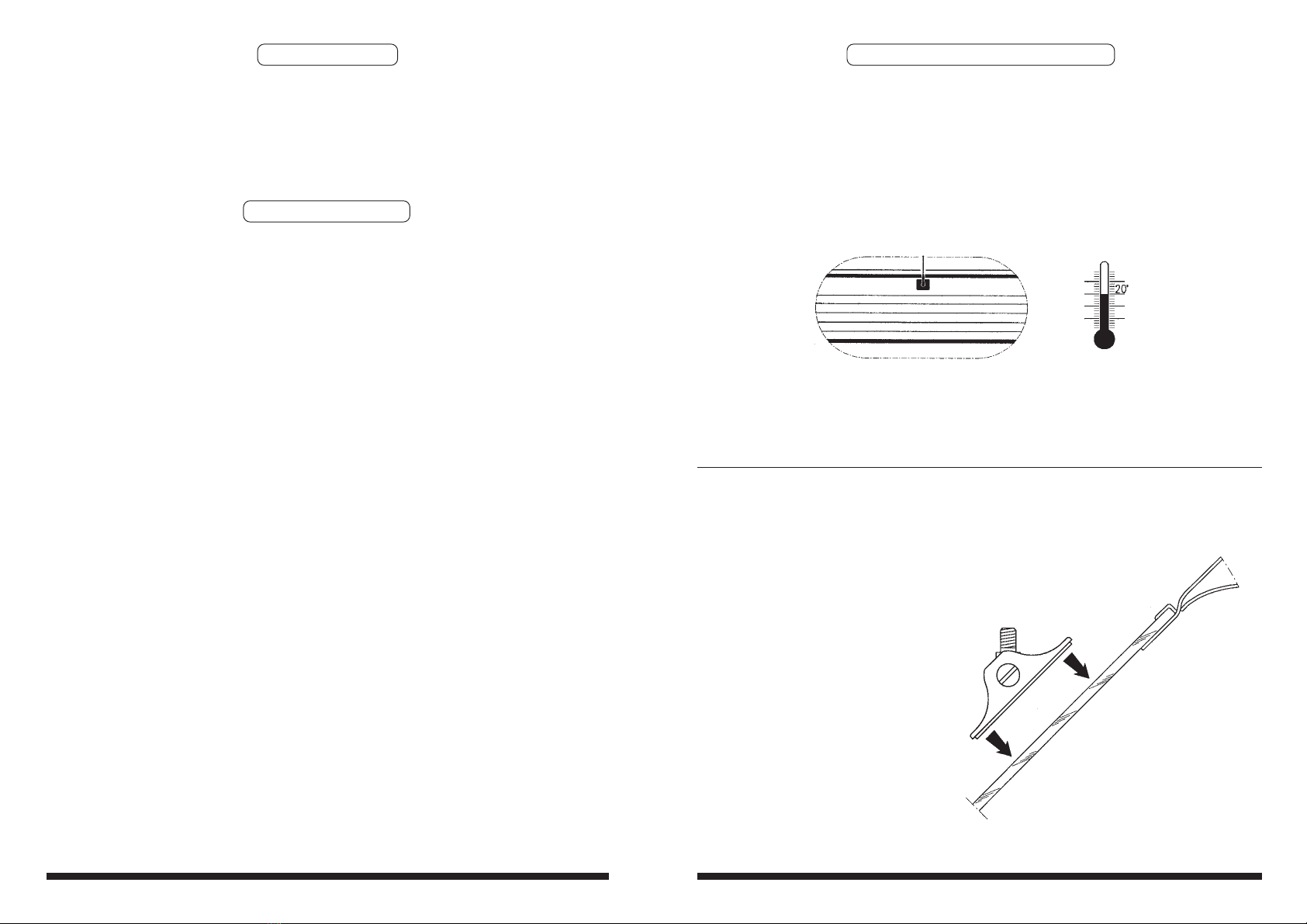

MOUNTING INSTRUCTIONS

1. Remove the protective film avoiding to touch

the adhesive with your hands; proceed with

the assembling of the mount on the window

pressing uniformly on its whole surface to get

a perfect adhesion.

••

•NOTE: It is recommended the installation of this antenna on the vehicle rear window in a

central position, far from the window thermic wires.

Morever, we suggest to clean carefully the glass surface and to proceed with the installation at

temperature of 20oC.

TG 918 C GDD seriesTG 918 C GDD series

TG 918 C GDD series

On-Glass Dual-Band UHF Antenna (GSMOn-Glass Dual-Band UHF Antenna (GSM

On-Glass Dual-Band UHF Antenna (GSM/DCS-PCN)DCS-PCN)

DCS-PCN)DCS-PCN)

DCS-PCN)

Installation ManualInstallation Manual

Installation Manual

BCopyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 13/01/2003 - Cod. ID278

MOUNTING INSTRUCTIONS

2. Repeat the above mentioned instructions

to fit the coupling-box at the inside window;

but you have to pay attention to the coupling-

box that must to coincide with the outside

mount profile.

3. Screw the FME connector at the coupling-

box.

4. As the final stage of your installation, screw

the whip at the mount joint; lock the joint by

using a screw-driver and keep the whip in a

vertical position.

Anti-noise system

Our exclusive anti-noise design produces air

movement around the whip, virtually

eliminating wind noise.

DESCRIPTION

Dual-band mobile antenna conceived for GSM and DCS/PCN 1.8 GHz cellular system working

on 880-960 MHz and 1710-1880 MHz. The whip can be easily adjusted in vertical position and

can be detached for car-washes access. It is made of 17/7 PH stainless steel protected by a

thermoplastic material. The box made of ABS is screened and has a printed circuit in Microstrip

technology. The 3M VHB adhesive supplied guarantees a perfect adherence in bad atmospheric

conditions too.

SPECIFICATIONS

Electrical Data

Type : 1/4 λ+ 5/8 λColinear at 900 MHz

1/4 λat 1800 MHz

Frequency Range : 880-960 MHz (GSM 900)

1710-1880 MHz (GSM 1800, DCS/PCN 1.8)

Impedance : 50 ΩUnbalanced

Radiation : Omnidirectional

Polarization : Vertical

Gain : 3 dB ref. to λ/4 whip on glass at 900 MHz

0 dB ref. to λ/4 whip on glass at 1800 MHz

Bandwidth : GSM: Tx 880-915 MHz; Rx 925-960 MHz

DCS/PCN 1.8: Tx 1710-1785 MHz; Rx 1805-1880 MHz

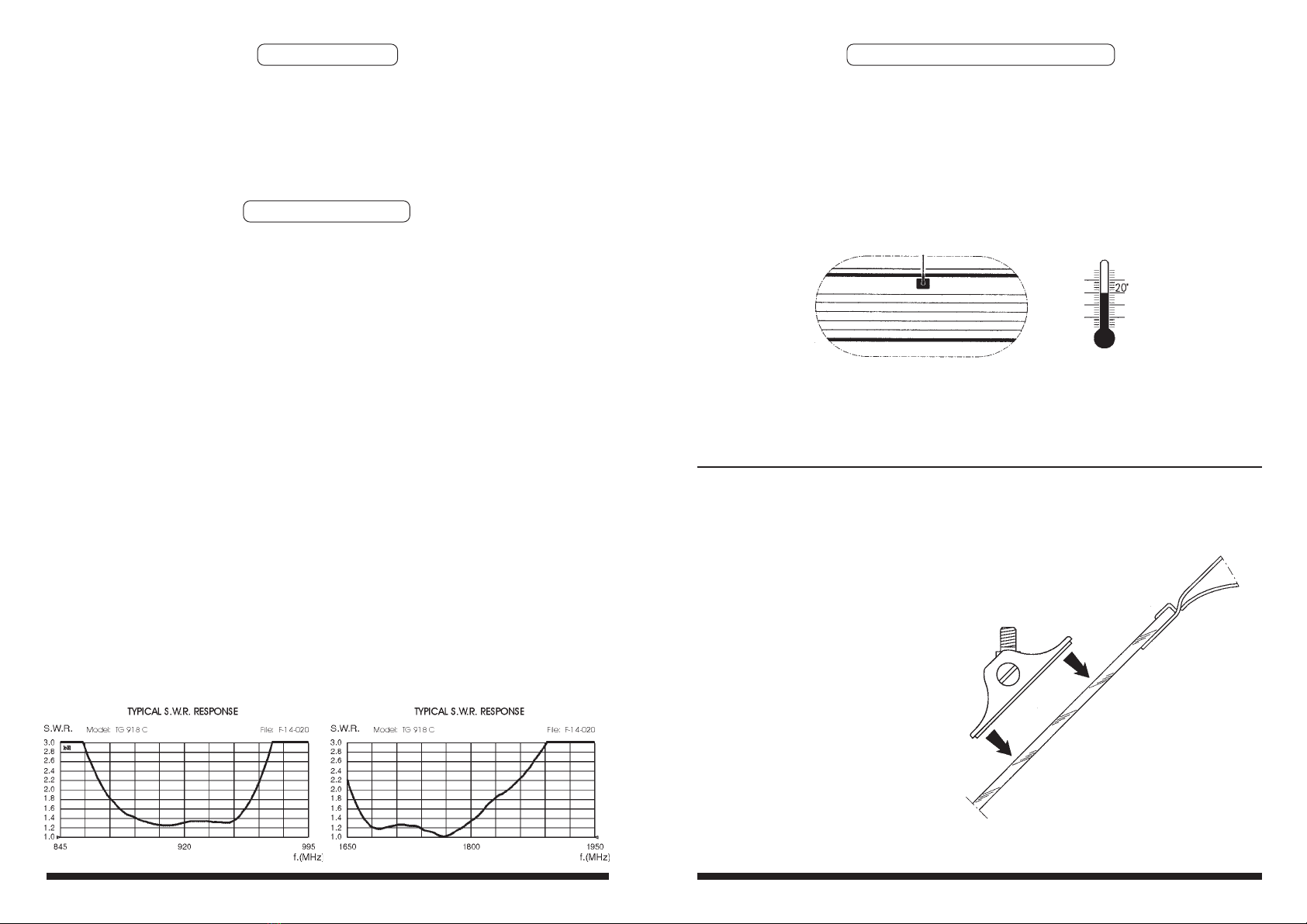

V.S.W.R.:

Tx band (880-915 MHz) : ≤1.7 : 1

Rx band (925-960 MHz) : ≤2.0 : 1

Tx band (1710-1785 MHz) : ≤1.4 : 1

Rx band (1805-1880 MHz) : ≤2.7 : 1

Max Power : 10 Watts

Coupling box Connection : FME Male

Mechanical Data

Materials : Stainless steel 17/7 PH, Chromed brass, ABS

Height (approx.) : 355 mm

Weight (approx.) : 65 gr

Mounting : "On-Glass"

ID278

MOUNTING INSTRUCTIONS

1. Remove the protective film avoiding to touch

the adhesive with your hands; proceed with

the assembling of the mount on the window

pressing uniformly on its whole surface to get

a perfect adhesion.

••

•NOTE: It is recommended the installation of this antenna on the vehicle rear window in a

central position, far from the window thermic wires.

Morever, we suggest to clean carefully the glass surface and to proceed with the installation at

temperature of 20oC.
