UHF Mobile Antennas 824-960 MHzUHF Mobile Antennas 824-960 MHz

UHF Mobile Antennas 824-960 MHz

Installation ManualInstallation Manual

Installation Manual

BCopyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 14/05/2004- Cod. ID276

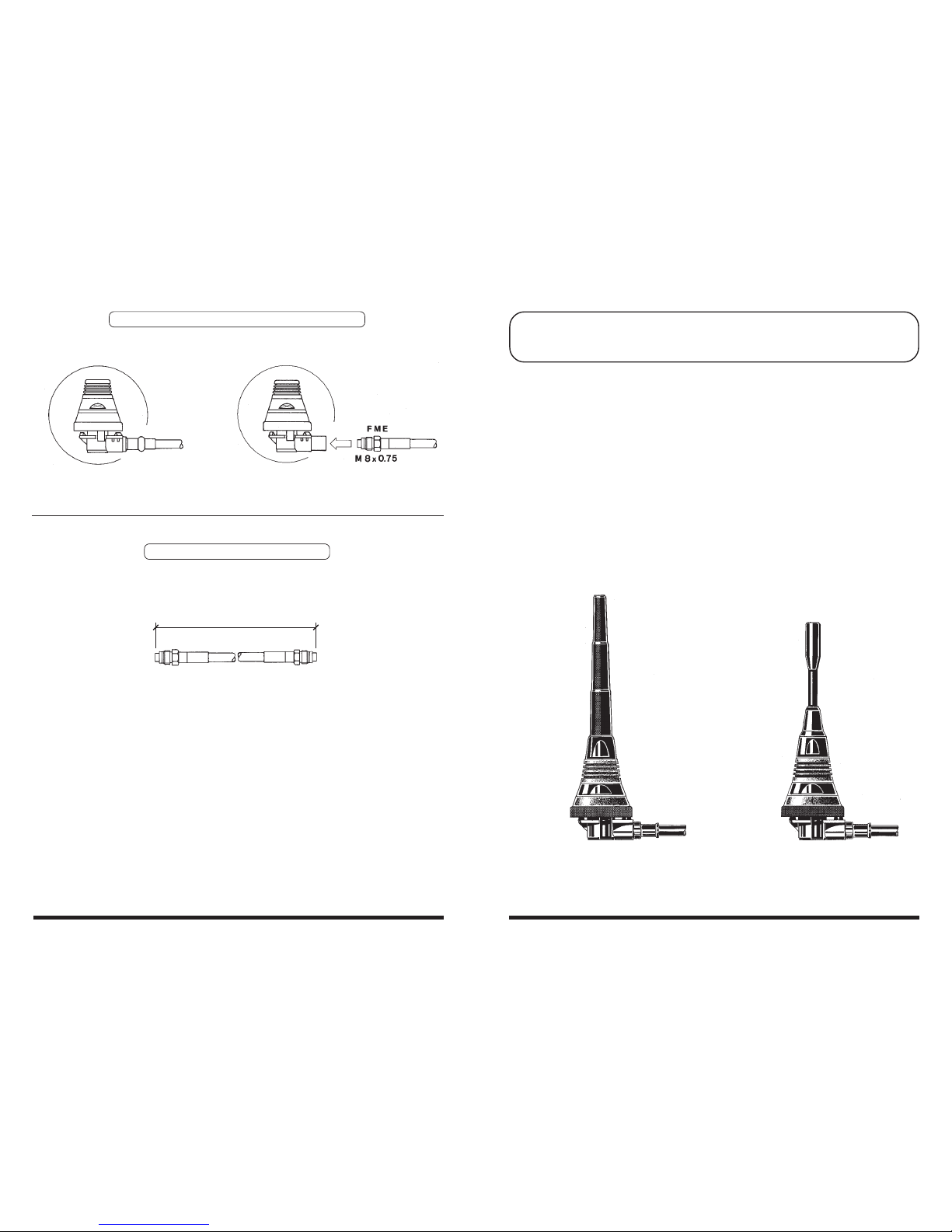

"ML" base with 5m cable "ML" base with FME connection

OPTIONAL SPARE CABLES

(only "ML" with FME connection)

Length

P/N 2510305.00 0.5 m RG 58 C/U cable + 2 FME

P/N 2510405.00 1.5 m RG 58 C/U cable + 2 FME

P/N 2510505.00 3.5 m RG 58 C/U cable + 2 FME

P/N 2510605.00 5.0 m RG 58 C/U cable + 2 FME

SKA 900 1/4 SKA 901 1/4

ALTERNATIVE CABLE CONNECTION

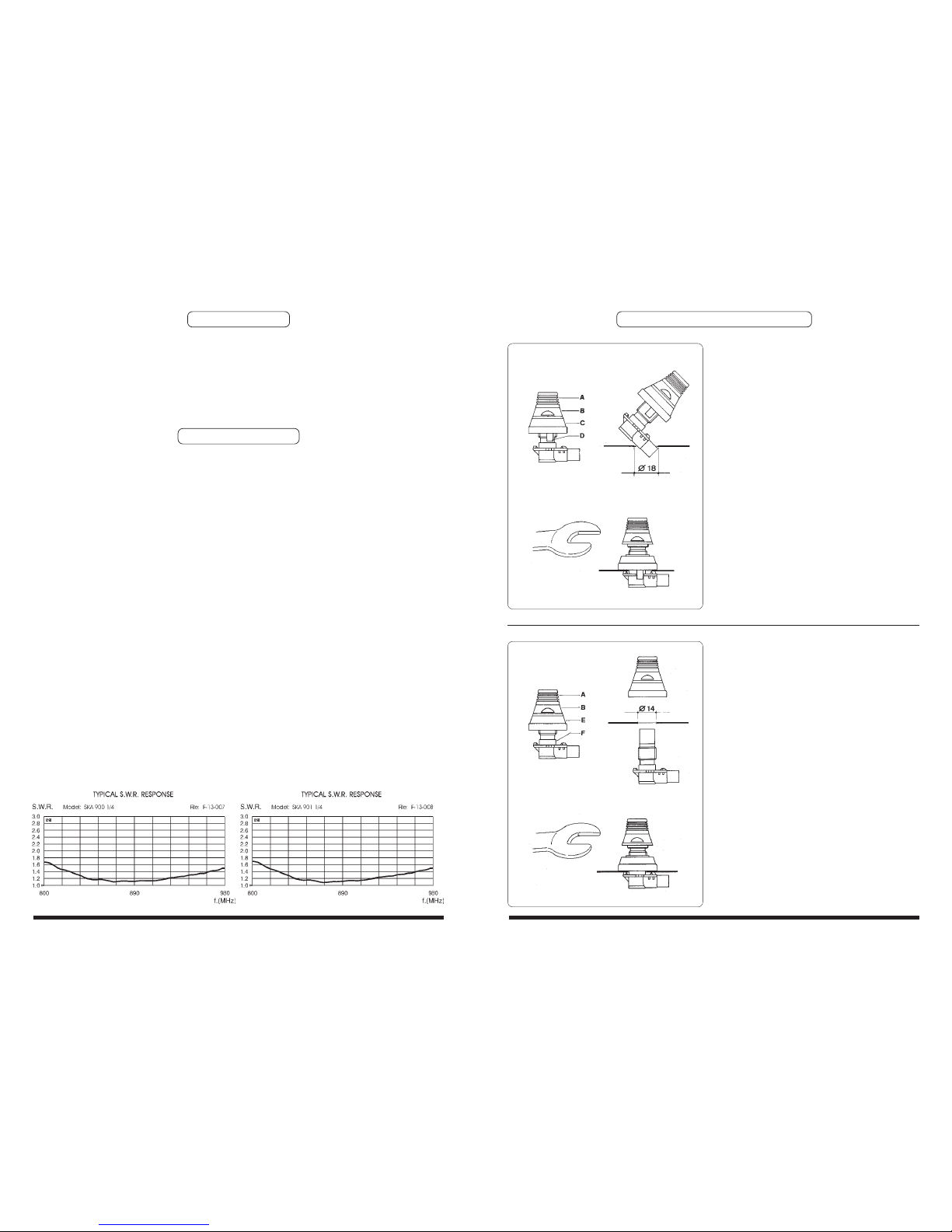

MOUNTING INSTRUCTIONS

SPECIFICATIONS

DESCRIPTION

1/4 λ vehicular antennas specially conceived for CELLULAR systems working on 900 MHz. The

whip and all the metallic components are made of brass completely black chromed. They are

supplied with "ML" (Micro Line) mount of reduced dimensions for a handy installation on the

vehicle and 5m cable RG 58 C/U with FME connector. Both models are also available without

cable and with FME connector directly assembled on the base.

Electrical Data

Type :

Frequency Range :

Impedance :

Radiation :

Polarization :

Gain :

V.S.W.R. in bandwidth :

Max Power :

Feed System / Position :

Standard Mount :

Cable Lenght / Type :

Mechanical Data

Materials :

Heigth (approx.)

SKA 900 1/4 :

SKA 901 1/4 :

Weight (approx.) :

Mounting Hole :

1/4 λ

824-960 MHz (for AMPS, TACS and GSM systems)

50 ΩUnbalanced

Omnidirectional

Vertical

0 dB ref. to a λ/4 whip

≤1.8 : 1

30 Watts (CW) at 50°C

Direct / Base

"ML"

5 m / RG 58

Chromed Brass, Zinc, Nylon, Rubber

89 mm

85 mm

250 gr

∅14 or 18 mm

Mounting from the outside

1.1 Drill a 18 mm hole, deburr it and

protect it against corrosion. Loose part B,

push it upwards together with part Cand

hold it tightly.

1.2 Insert the base into the mounting

hole and decentralize it. Insert the plastic

fish-plates Dof part Cinto the hole. Screw

on part B with a 20 mm open-end

wrench.

The ring nut B is tightened correctly,

if the upper edge of part A is at the

same height as the inner thread-bolt

Mounting from the inside

2.1 Drill a 14 mm hole, deburr it and

protect against corrosion. Loose part B

and use the item E.

Insert from below part Finto the hole up

to the stop.

2.2 Push part A,Band Efrom above and

screw them on with a 20 mm open-end

wrench.

Part B is tightened correctly, if the

upper edge of part A is at the same

height as the inner thread-bolt.

1.1

1.2

2.1

2.2

ID276
