Installation ManualInstallation Manual

Installation Manual

BCopyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 02/07/2003 - Cod. ID082

TUNING INSTRUCTION

SIRIO 827SIRIO 827

SIRIO 827

• •

• SIRIO 827 doesn't need any

tuning because its large band.

However a fine modifications is

available by acting on the final

whip.

26 MHz

28 MHz

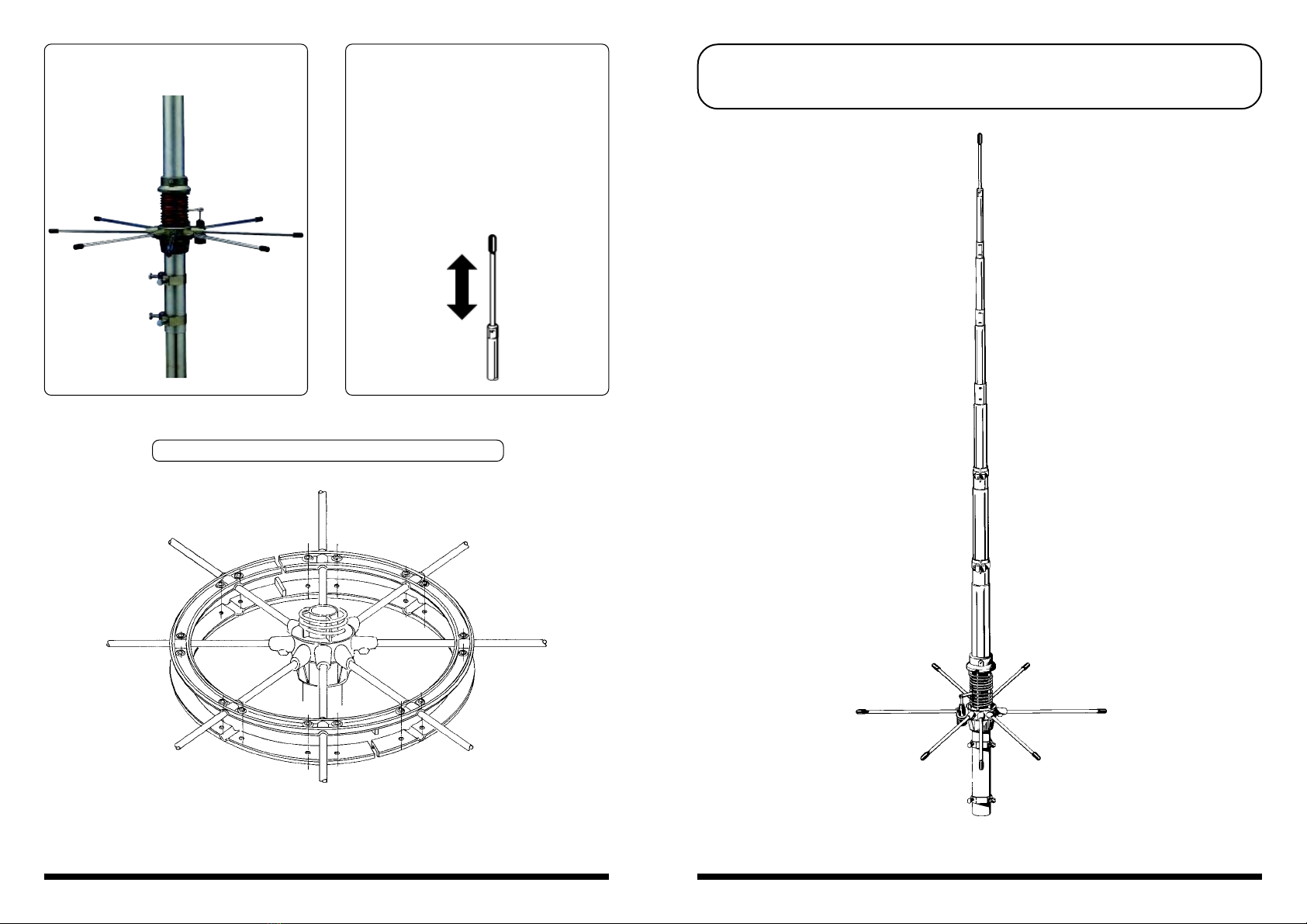

OPTIONAL ANTI-NOISE NYLON RING

Optional noise nylon ring to reduce the wind noise of the radials.

Code 2511011.00

Final mounting view

DESCRIPTION

The most modern technology and the most advanced instruments have been used for the

realization of SIRIO 827, the new base antenna with remarkable characteristics. It is made of

Silicium Magnesium Aluminium tubes of big dimensions drawn and cemented on the surface to

get the maximum strenght of the main whip. The coil, made of enamelled copper wire of big

section, has been specially planned in order to bear high powers. It adopts the exclusive system

C.A.C.S. (Coil Auto-Cooling System) which allows the auto-cooling by a finned support that keeps

the coil hanging up allowing the air circulation

SPECIFICATIONS

Electrical Data

Type : 5/8 λGround Plane

Frequency Range : 26-29 MHz

Impedance : 50 ΩUnbalanced

Radiation (H-plane) : 360°Omnidirectional

Polarization : Vertical

Gain : 1.5 dBd, 3.65 dBi

Bandwidth at V.S.W.R. 2:1 : 2000 KHz

V.S.W.R. at res. freq. : ≤1.1 : 1

Max Power : 1000 Watts

Feed system / position : Transformer DC-ground / base

Connector type : UHF-female

Mechanical Data

Materials : Aluminium, Steel, Copper, Nylon

Height (approx.) : 6700 mm

Weight (approx.) : 6000 gr

Radial lenght : 1400 mm

Mounting Mast : ∅35-39 mm

ID082

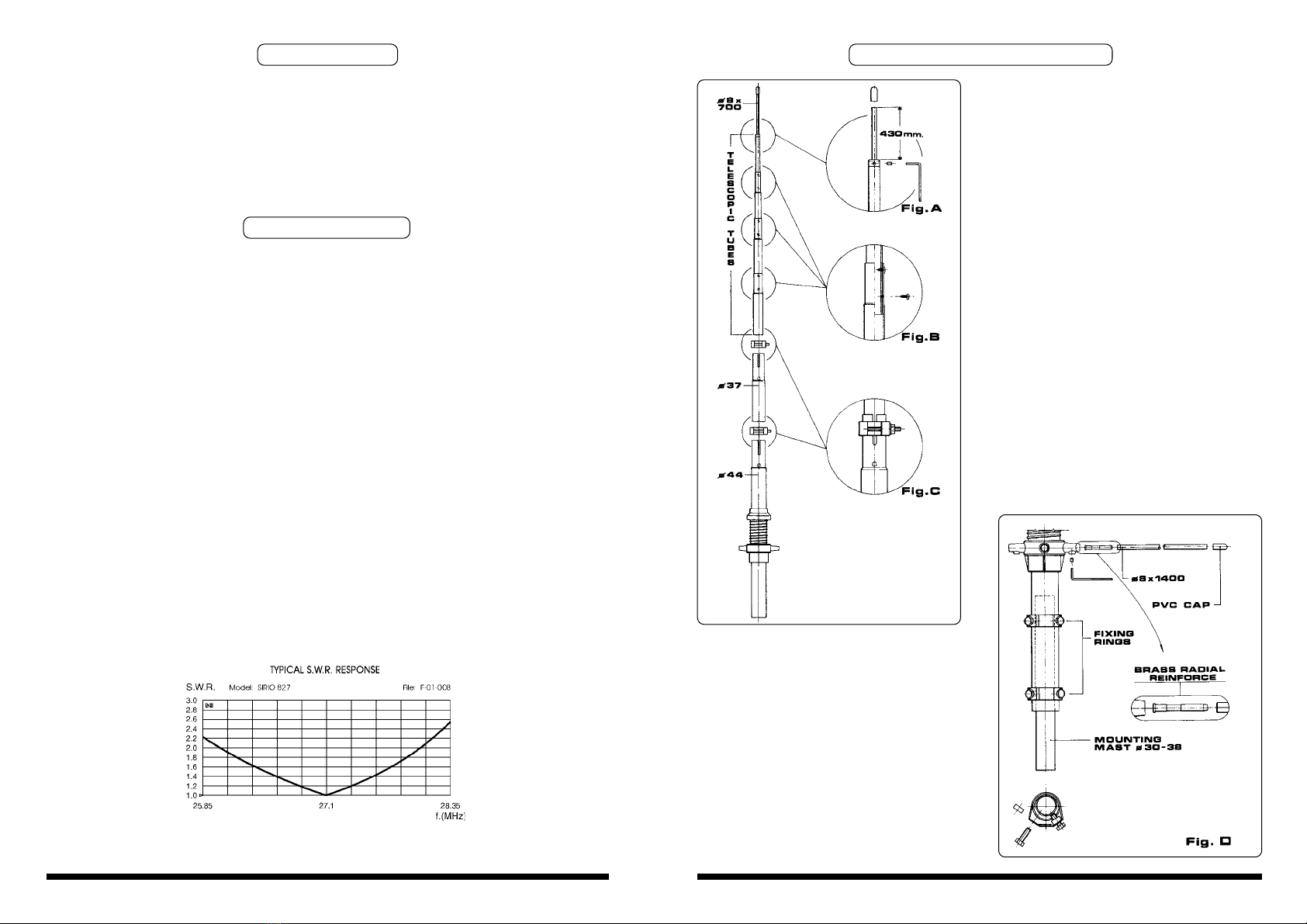

MOUNTING INSTRUCTIONS

• •

• Fig. D::

:Assemble the fixing rings as

shown in the picture and insert the an-

tenna on the mounting mast. Put the

PVC caps on the radials ∅8 x 1400 mm

and fix them with the supplied screws

and key.

• •

• Fig. A::

:Insert the tube ∅8 x 700 mm

in the top-part of the telescopic whip; let

it out for 430 mm, lock it by using the

supplied screw and key and assemble

the PVC cap on the whip.

• •

• Fig. B::

:Unstring the 4 telescopic tubes

and fix them by using the 6 screws

supplied.

• •

• Fig. C::

:Fix the telescopic whip to the

tube ∅37 mm by means of the first

tightening clip ∅32-35 mm and proceed

to fix the tube ∅37 mm to the tube ∅

44 mm with the second clip ∅ 40-43

mm.
