USER'S MANUAL

AMC-09C

MOBILE SERIES

...............................................

.......................................

.....................................

..............................................

............................................

...........................................

.........................................

..................................

.................................

17-19

20-21

.........................................

.................

4-8

9-10

...............

CONTENTS

Summary

Working principle

Models & specifications

Structure

Operating methods

Names and Functions of the Remote Controller

COOL mode operation

DRY mode operation

SLEEP mode operation

AUTO mode operation

TIMER mode operation

Installation guide for castor, drainage pipe and air exhaust accessory

Care and Maintenance

Trouble shooting

User notices

After service

Circuit diagram

...................................

.........

.....................................

－2－

SUMMARY

－1－

This MOBILE AIR CONDITIONER is a small, moveable air conditioner. It possessed the

functions of COOL, HEAT, DRY and the Separate Ventilation, and depends on different places, it

canbemovedaswill.Itisfitforhome andofficeuse,especiallyfitforthehousewithmanyrooms.

Withthecompactconfiguration,excellentworkmanship,elegantappearance,itlookslikeastanding

Benzcar. Itisconvenientformoving,energysaving,andwith lownoise.

Note:Pleasereadthismanualcarefullybeforeoperatingtheunit,themanualisusedforreference,

andthetechnicalparameters aresubjecttochangewithoutnotice.

WORKING PRINCIPLE

With the help of upper motor, the airflow of indoor pass through the evaporator becomes the

cooled wind, but with the help of lower motor, the airflow of indoor pass through the condenser

becomes the heated wind. There is two duct systems designed in its structure.The heated wind is discharged

bytherearoutlet,thecooled windisdischargedbythefrontoutlet,flow-guidedbythelouver,andit

brings the gentle cooling airflow, and the low temperature environment is maintained.

The Working Principle

Cooled wind

Upper

motor

Lower

motor

Evaporator

Airflow 1

Airflow 2

Capillary

Heated wind

Condenser

－2－

MODELS AND SPECIFICATIONS

Note:

1.The

noisewastestedwhentheunitisrunningincooling windmode,1meterawayfromthefront

outlet, dehumidifying capacity.

2.The technical parameters are subject to be changedwithout notice. Please refer to those listed on

Model AMC-09C

Cooling Capacity(W) 2600W

Power Source 220－240V ～50Hz

Rated Input Current(A) 5.3

Rated Power Input(W) 1200

Flow Volume(m3/h) 430

Sound Press Level dB(A) 55

Refrigerant R407C

Net Weight（Kg）31

Dimension(Body)(H×W

×D）（mm）840×450×370

Dimension(Package)(H×

W×D）（mm）880×685×425

nameplate of the unit.

3. Device is not intended for continuous running

－3－

STRUCTURE

Control panel

Air outlet

Handle

Lower air inlet

Front

Rear

Upper air inlet grille

Power cable

Air exhaust outlet

Lower air inlet grille

OPERATING METHODS

５

０ｃ

ｍ

５０ｃｍ

－4－

The working range of COOL mode is 16℃-35℃, the working range of

DRYmode is 16℃-35℃．

When operating, the unit should be placed on the horizontal place and

more than 50cm away from the wall or other obstructions.

The working range of COOL

mode and DRYmode

Location conditions

Power supply Before the unit is power-on, please check the following:

The power supply voltage 6%.

● The lead wire is suitable for the start-up current of more than 20A,

to avoid the voltage decline when the unit starts suddenly.

● The power plugs and the

sockets can be supported by the current

that is more than 16A.

● The thread section of the lead wires and any continued use lead wire

is no less than 2.5mm2.

● If the power supply cord is damaged, replace it by the special

power supply cord.

●

If the power supply is needed to replace or maintain, please

contact with the dealer and ask for the professional personnel to do

the repairing work.

● The air conditioner must be safety earthed. Earth wire must be

connected to the special device of the building. That is for providing

good earthing for the air conditioner.

OPERATING METHODS

●Can not use steel wire or brass wire to replace fuse, the capability

of fuse must be appropriate.

In order to avoid damage to power cord

and electrical leakage, do not fix the power supply on the knife edge or

sharp object.

●The wiring must be operated by the professional

and according

to the national regulations. In fixed circuit, there must be electricity

leakage protection switch of enough power capacity and 16A

thermal-

magnetic breaker air switch with enough space, the earth wire can't be

connected to water pipe or gas pipe. When the air conditioner is not

used, please pull out the power plug or cut off power supply.

－5－

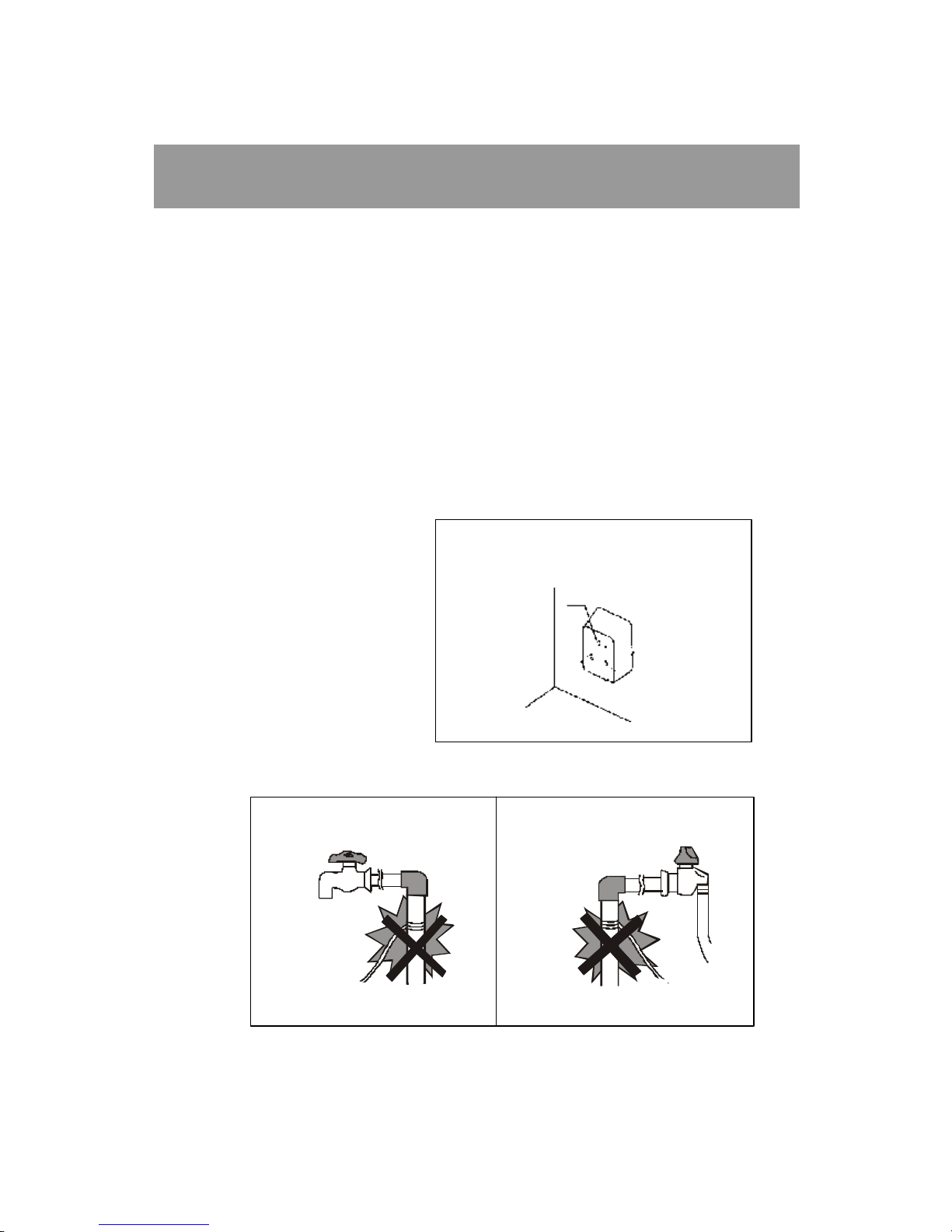

There must be reliable ground

wire in the power supply

Earthing

Water pipe

Gas pipe

－6－

OPERATING METHODS

LCD instruction (dynamic display)

Names and Functions- Remote Controller

ON/OFF

MODE

FAN SPEED

LCDscreen

SET TEMP.

SET TIMER

SET SLEEP

Remote Control window

－7－

OPERATING METHODS

Controlpanelandthefunction

1. "ON/ OFF "key

Press once to start and press once more to stop the unit.

2."MODE" key

Press this button to change operation mode in order of:

FAN → COOL → DRY →AUTO → FAN

3 "FAN SPEED" key

When the unit is running in "FAN", "COOL" and "HEAT" mode,there are 3 kinds of fan speeds to

be selected, press "FAN SPEED" key to choose between "LOW → MD → HIGH".

4."SET TEMP" key

When turn on the air conditioner, in the "COOL","HEAT" mode, the control panel will display the set

temp. Press "▲"""to increment or to decrement the set temperature.

5. "SET TIMER" key

Press"▲""" key to set the time for timer on or timer off. When the unit is running, you could set the

timer off, the unit will stop running; When the unit is stop running (not power off ), set timer on, andthe

time interval that being set will be 0.5-24 hour(s), press "▲""" key to adjust.

6. "SET SLEEP" key

When the unit is running, press once to set "SLEEP" operation, repress it, the unit will stop the "SLEEP"

operation.There is no "SLEEP" operation in "AUTO" mode.
