USER'S MANUAL

ASH-18AC PT, ASH-24AC PT

CAESAR SERIES



CONTENTS

This symbol stands for the items

should be forbidden.

This symbol stands for the items

should be followed

■.............................................................1

■

■..........................................................13

■.................................................................16

■ ..............................................21

■................................................................23

■..............................................................25

■...............................27

■..........................28

■

■ .........................................................19

■..................................................................14

Operation and maintenance

Notices for operation

Notices for use ....................................................................3

Names and functions of each part ...........................................5

■Operation of remote controller ...............................................7

Clean and care

Troubleshooting

Installation service

Notices for installation

Installation dimension diagram

Install indoor unit

Install outdoor unit

Check after installation and test operation

Emergency operation

Installation and Maintenance of Healthy Filter

■.....29

Configuration of connection pipe and additional volume of refrigerant

Do not dispose this product as unsorted municipal waste.

Collection of such waste separately for special treatment

is necessary.

The products in this manual may be different with the real one, according to different

models, some models have displayer and some models without displayer, the position

and shape of the displayer please refer to the real one.

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

R410A:GWP:(R32/125: 50/50): 1900

FUSE:T3.15AL 250V

Keep room cooler

than outside

about 5 degree.

★

Operation and maintenance-notices for operation

★★

Be sure to pull out the power

★

★★

★

Earth: The ground

be connected!

If not, please ask the qualified person-

nel to install. Furthermore, don't conn-

ect each wire to the gas pipe, water

pipe, drainage pipe or any other impr-

oper places.

plug when not using the air co-

nditioner for a long time.

Otherwise, the accumulated dust

may cause fire or electric shock.

Select the most appropriate tem-

perature.

It can preclude the electricity wasted.

Don't leave windows and

doors open for a long time

while operating the air conditioner.

It can decrease the air conditioning

capacity.

Don't block the air intake or outlet

vents of both the outdoor and indoor

units.

It can decrease the air conditioning

capacity or cause a malfunction.

Keep combustible spray away

from the units more than 1m.

It can cause afire or explosion.

If it is damaged, it may lead to

the fall of the unit and cause

the injury.

Please note whether the installed

stand is firm enough or not.

Don't step on the top of the

outdoor unit or place something

on it.

As falling off the outdoor unit

can be dangerous.

Don't attempt to repair

the air conditioner by yourself.

The wrong repair will lead to

an electric shock or fire, so

you should contact the service

center to repair.

２

★

Notices for operation

If the supply cord is damaged, it must be replaced

by the manufacturer or its service agent or a

similarly qualified person in order to avoid a

hazard.

The airflow direction can be adjusted appro-

priately. At operating, adjust the vertical airflow

direction by adjusting the louvers of upward/do-

wnward direction. And then, hold two ends of

left and right louver to adjust the horizontal air-

flow.

Louver of left/right directionLouver of upward/

downward direction.

Don't insert your hands or stick into the air

intake or outlet vents.

Otherwise it will cause accident.

Don't blow the wind to animals and plants

directly. It can cause a bad influence to them.

Don't apply the cold wind to the body for a

long time.

It can cause the health problems.

Don't use the air conditioner for other purposes,

such as drying clothes, preserving foods, etc.

Splashing water on the air conditioner can

cause an electric shock and malfunction. Don't place a space heater near the air

conditioner.

Or CO toxicosis may occur for imcomplete

burning.

Anti-cool wind function:

In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't

arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within

2 mins):

1. Heating starts. 2.After Auto Defrost finished. 3.Heating under the low temperature.

Gentle Breeze

In the following situation, the indoor unit may blow gentle breeze, and

the guide louver rotate to a certain position:

1. In “Heat” mode, the unit turned on, the compressor doesn’t arrive the starting condition

2. In “Heat” mode, the temperature arrive at the setting value and the compressor stop

running about 1min.

Notices for use

Working principle and special functions for cooling

Principle:

Anti-freezing function:

Working principle and special functions for heating

Principle:

Defrosting:

Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that

indoor ambient temperature decreased, its cooling capacity will increase or decrease by

outdoor ambient temperature.

If the unit is running in COOL mode and in low temperature, there will be frost formed on

the heat exchanger, when indoor heat exchanger temperature decreased below 0 , the

indoor unit microcomputer will stop compressor running and protect the unit.

℃

Air conditioner absorbs heat from outdoor and transmits to indoor, in this way to increase

room temperature. This is the heat pump heating principle, its heating capacity will be

reduced due to outdoor temperature decrease.

If outdoor temperature becomes very low, please operate with other heating equipments.

When outdoor temperature is low but high humidity, after a long while running, frost will

form on outdoor unit, that will effect the heating effect, at this time, the auto defrosting

function will act, the heat running will stop for 3-12mins.

During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.

During the defrosting, the indoor indicator flashes, the outdoor unit may emit vapor.

This is due to the defrosting, it isn't malfunction.

After defrosting finished,the heating will recover automatically.

Notices for use

The operating temperature range (outdoor temperature) for cooling only unit is 18℃~ 43℃；

for heat pump unit is -7℃~ 43℃.

Working temperature range

Maximum cooling

Maximum heating

Indoor sideDB/WB(oC) Outdoor sideDB/WB(oC)

32/23

27/---

43/26

24/18

-7

Working temperature range

Minimum cooling

Minimum heating

Indoor sideDB/WB(oC) Outdoor sideDB/WB(oC)

The operating temperature range (outdoor temperature) for cooling only unit is 21℃~ 52℃；

for heat pump unit is -7℃~ 52℃.

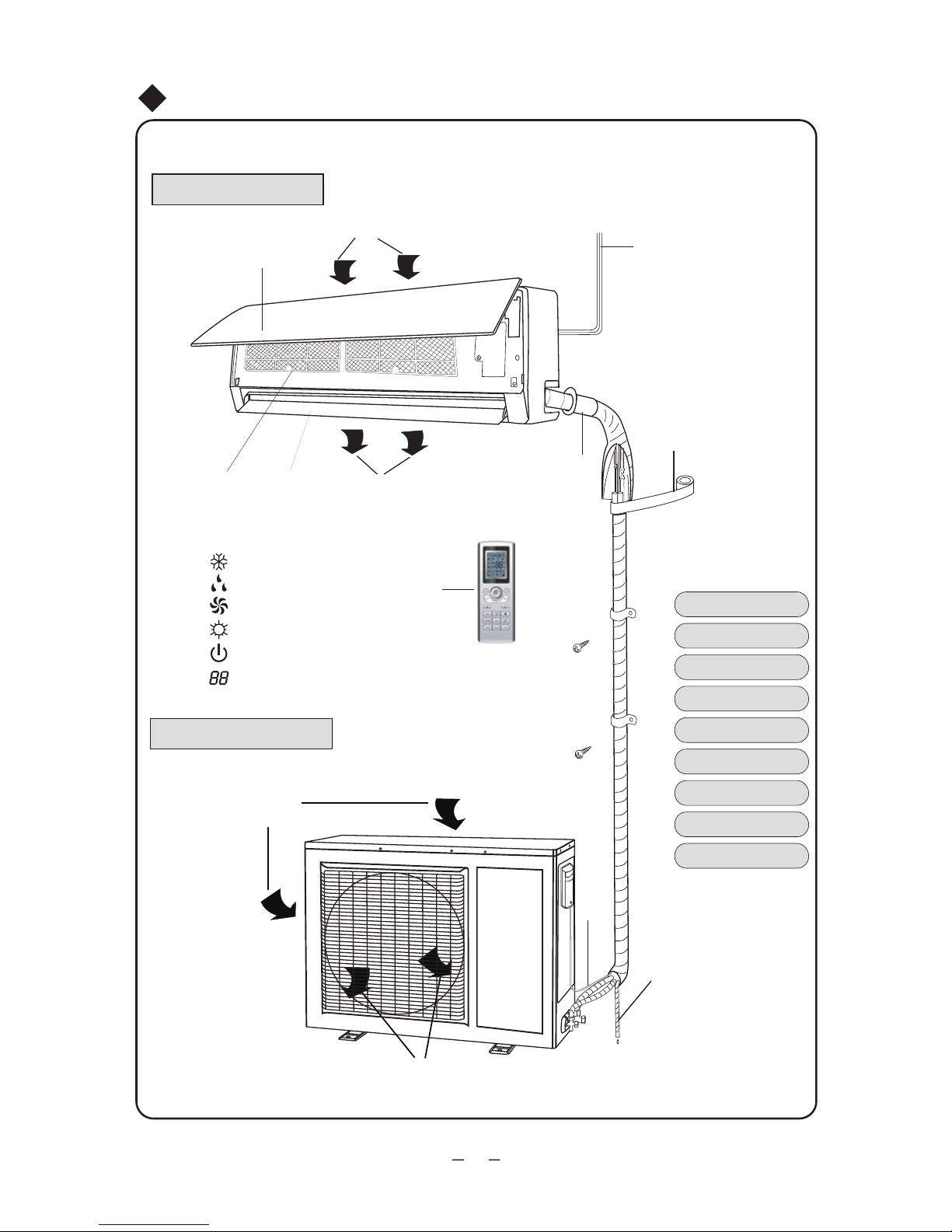

Names and functions of each part

⑸

⑶⑴

⑵

⑹

⑸

⑵

⑻

⑼

⑷

⑺

⑶

⑴

Indoor unit

Air in

Air out

Outdoor unit

Wireless

remote control

Power cable

Remote control

Front panel

Filter

Guide louver

Wall pipe

Bind tape

Connection wire

Drainage pipe

⑷

：Cool

：Dry

：Fan

：Heat

：Set temp.

：Run

The pattern in displayer：

Air in

Air out

(6)

(7)

(8)

(9)

Press it to start or stop operation.

ON/OFF

MODE

Press it to select operation mode

(AUTO/COOL/DRY/FAN/HEAT).

: Press it to increase temperature

setting.

: Press it to decrease temperature

setting.

FAN

Press it set swing angle.

TIMER ON

TIMER OFF

CLOCK

X-FAN ( page 11)

TEMP( page 11)

TURBO( page 11)

SLEEP( page 12)

LIGHT

Press it to set fan speed.

Press it to set auto-on timer.

Press it to set auto-off timer

Press it set clock.

Press it to set HEALTH function

I FEEL(Page 10)

Operation of remote controller

910

Press it to set AIR function.

Press it to turn on/off the light.

This area will show the set tempe-

rature. In SAVE mode,"SE" will be

displayed. During defrosting opera-

tion, “H1” will be displayed.

DIGITAL display:

LOCK icon:

is displayed by pressing "+"

and “-” buttons simultaneously. Press

them again to clear the display.

LIGHT icon:

is displayed by pressing the

LIGHT button. Press LIGHT button

again to clear the display.

MODE icon:

If MODE button is pressed,

current operation mode icon

(AUTO), ( COOL),

(DRY), (FAN) or (HEAT

only for heat pump models) will show.

is displayed when pressing

the

up & down swing

button.

Press this button again to clear the

display.

Up & down swing icon:

After pressing TIMER button, ON or

OFF will blink.This area will show

the set time.

SET TIME display:

Pressing TEMP button,

(set temperature),

ambient temperature)

(outdoor ambient temperature)

and blank is displayed circularly.

(indoor

TEMP icon:

SLEEP icon :

is displayed by pressing

the SLEEP button. Press this

button again to clear the display.

is displayed when pressing the

nottubsihtsserP.nottubOBRUT

again to clear the display.

TURBO icon:

292929

19 20 21 22

Operation of remote controller

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sinclair Climatiseur

Sinclair

Sinclair SMH-100IRA? SMH-140IRA Manuel utilisateur

Sinclair

Sinclair CONSOLE ASP-12BI Manuel utilisateur

Sinclair

Sinclair SDV6 Mode d’emploi

Sinclair

Sinclair ROCKY SERIES ASH-09AIR Manuel utilisateur

Sinclair

Sinclair ASC-XXAIN Manuel utilisateur

Sinclair

Sinclair ASH-09AIE2 Manuel utilisateur

Sinclair

Sinclair ASD-**BI series Manuel utilisateur

Sinclair

Sinclair ASH-09AIE2 Manuel utilisateur

Sinclair

Sinclair ROCKY Series Manuel utilisateur

Sinclair

Sinclair SDV5 Series Manuel utilisateur

Sinclair

Sinclair KJR-120A Manuel utilisateur

Sinclair

Sinclair SIH-09BIK2 Manuel utilisateur

Sinclair

Sinclair Alpha Inverter Series Manuel utilisateur

Sinclair

Sinclair ASH-24CN Manuel utilisateur

Sinclair

Sinclair MC-D09AI Manuel utilisateur

Sinclair

Sinclair SDV4 series Manuel d'utilisation

Sinclair

Sinclair MV-H**BIF series Manuel utilisateur

Sinclair

Sinclair MV-D BI Series Manuel utilisateur

Sinclair

Sinclair ASC-60AN Manuel utilisateur

Sinclair

Sinclair ASH-09AIR2 Manuel utilisateur

Sinclair

Sinclair ASE-76AH Manuel utilisateur

Sinclair

Sinclair ASC-18BI Manuel utilisateur

Sinclair

Sinclair CONSOLE ASP-09BI Manuel utilisateur

Sinclair

Sinclair SDV5 C1A Series Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
