USER'S MANUAL

FC-C12AI, FC-C18AI

FREE COMBI SERIES

CASSETTE UNITS

CONTENTS

Thank you for purchasing this air conditioner.Please read this MANUAL carefully before using this unit and then

keep it properly for future reference.

CONTENTS

Operation procedureInstallation

Names and functions of parts

Safety cautions

Remote control operation procedure

Optimum operation

Trouble shooting

Installation notes

Care and maintenance

Installation accessories and drawings

Indoor unit installation

Test and check items after installation

Names and functions of parts

Indoor unit

Names and functions of parts

Safety cautions

Read the following instructions carefully before use.

Avoid direct air flow to your body and avoid

excessive heating or coolingthat may makes

you feel uncomfortable and do harm to your

health.

Do not remove protection grill nets from the

outdoor unit.

Do notput hands or insert anything into the

air outlet vent of the unit.

If there is something abnormal (eg.burning

smell), cut off the power immeditely and con-

tact service center.

If room air is stuffy, air the room by opening

door and window for a while, but please close

the curtains when operating the unit to prevent

conditioned air from leaking.

Check whether the installed stand is still firm

enough after the unit has operated for a long

time.

If a worn-out stand is left unfixed,the unit may

topple and do harm to others.

Do not stand on the outdoor

unit or put anything on it, or

you may fall down or people

may get hurt by the falling

things.

Do not spray any paint or

pesticide on the unit, or it

may cause fire.

Never use wrong ampere rating fire.

Use of iron wire or copper wire may

cause the unit to break down or

cause fire.

Warning

Safety cautions

Do not check or repair during the unit is

operating. It is very dangerous.

Never place objects near the air intake and the air outlet of the unit.

It may affect performance or stop operation of the unit.

Do not splash water directly to indoor unit

It may cause trouble or electric shock.

Do not use other

heating equip-

ment near the air

conditioner.

It will affect the

cooling perfor-

mance.

Do not throw the remote controller and do not

press the button of the remote controller with

pointed object, or the remote controller may

be damaged.

Warning

Safety cautions

Remote control operation procedure

Name and Function-Remote control

SWINGbutton

When it is pressed, the louvers

start to rotate automatically and

stop when repressed.

TEMP.button

SET TEMP. increases 1 by

pressing button once,and decreases

1by pressing button once.

At COOL mode operation, SET

TEMP. can be selected from 16 to

30 .

At DRY mode operation, SET TEMP.

can be selected from 16 to 30 .

At HEAT mode operation, SET

TEMP. can be selected from 16 to

30 .

MODE button

press this button to change the

operation mode in order of:

Note:

Cooling only type have no

“ ” mode.

FANbutton

Press this button to

change the fan speed of:

“ ” COOL mode

“ ” DRY mode

“ ” FAN mode

“ ” HEAT mode

ON/OFF button

Press this button to turn on

or turn off the unit.

Note:

Be sure that there are no obstructions.

Don’t drop or throw the remote controller.

Don’t place the remote controller directly in the sunlight.

Remote control operation procedure

AUTO

ＯＮ／ＯＦＦ

Liquid crystal displayer. It

shows all setcontents.

SLEEP button

Press this button to set

SLEEP operation.

TIMER OFF button

At operating, press TIMER

OFF button, set OFF TIME

in range of 0 to 24 hour to

stopthe unit automatically.

TIMER ON button

At stopping, press TIMER

ON button, setON TIME in

range of 0 to 24 hour to start

theunitautomatically.

Name and F unction-R emote contr ol. (R emove the cover )

Note: This type of r emote contr oller is a kind of new cur r ent one. Some buttons of it that

are not available to this air conditioner will not be introduced below.

ＯＮ／ＯＦＦ

Remote control operation procedure

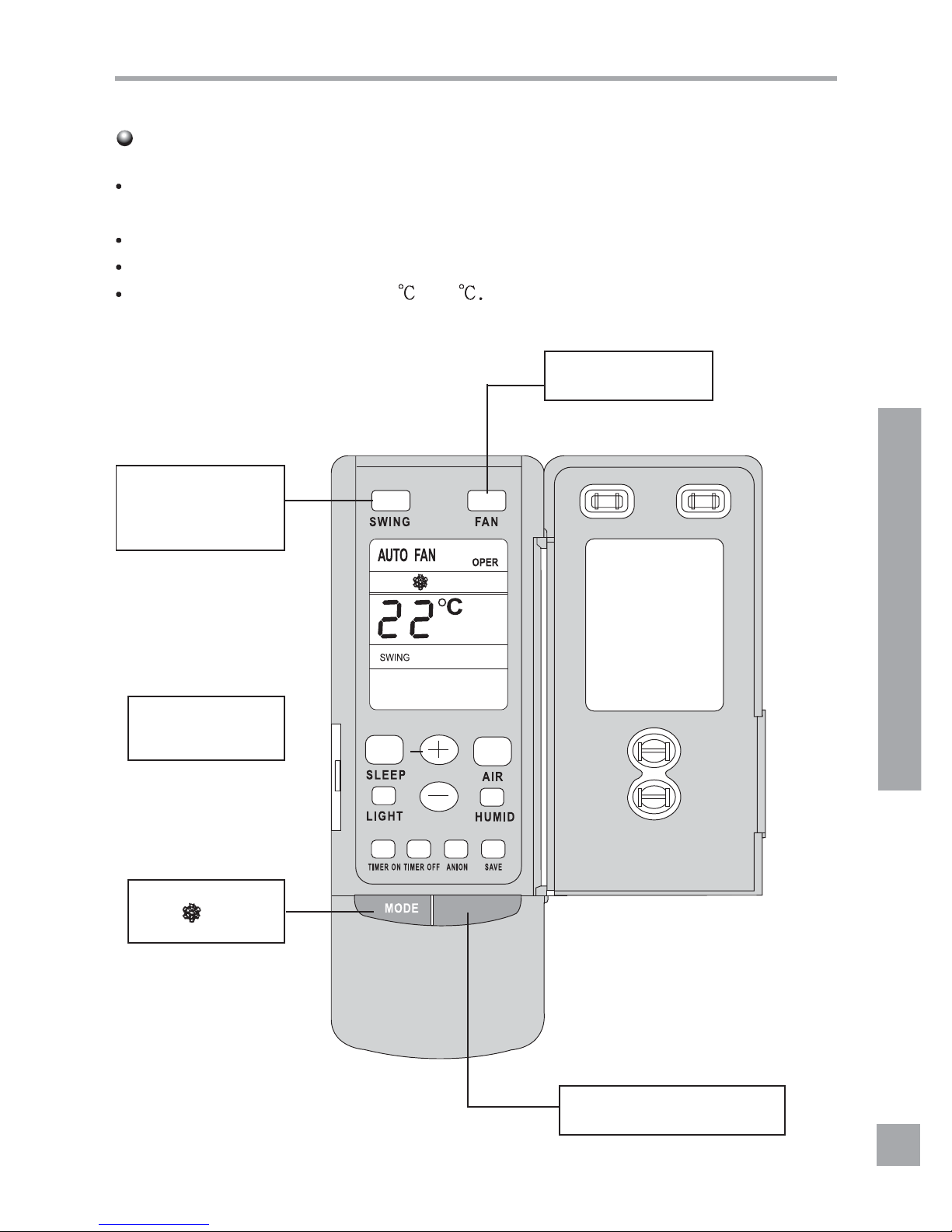

C OOL mode operation procedure

4.Press FAN button, set

fan speed.

5.Press TEMP. but-

ton, set suitable

TEMP.

2.Press MODE button,

set operation

mode.

3.Press SWING button,

the louvers start to ro-

tate automatically, and

stopwhenrepress.

1.Plugin, press ＯＮ／ＯＦＦ button,

thenair conditioner is turnedon.

Accordingtodifferencebetween room temp. and set temp., microcomputer can control cooling

on or not.

If room temp. is higher than set temp., compressor runs at COOL mode.

If room temp. is lower than set temp., compressor stops and only indoor fan motor runs.

Set TEMP. should bein range of 16 to30

ＯＮ／ＯＦＦ

Remote control operation procedure

HEAT mode operation procedure

If room temp. is lower than set temp., compressor runs at HEAT mode.

If room temp. is higher than set temp., compressor and outdoor fan motor stop, only indoor fan

motor runs.

Set TEMP. should bein rangeof 16 to30

4.Press FAN button, set

fan speed.

5.Press TEMP. but-

ton, set suitable

TEMP.

1.Plugin, press ＯＮ／ＯＦＦ button,

thenair conditioner is turnedon.

2.Press MODE button,

set operation

mode.

3.PressSWING button, the

louvers start to rotate

automatically, and stop

when repress it.

ＯＮ／ＯＦＦ
